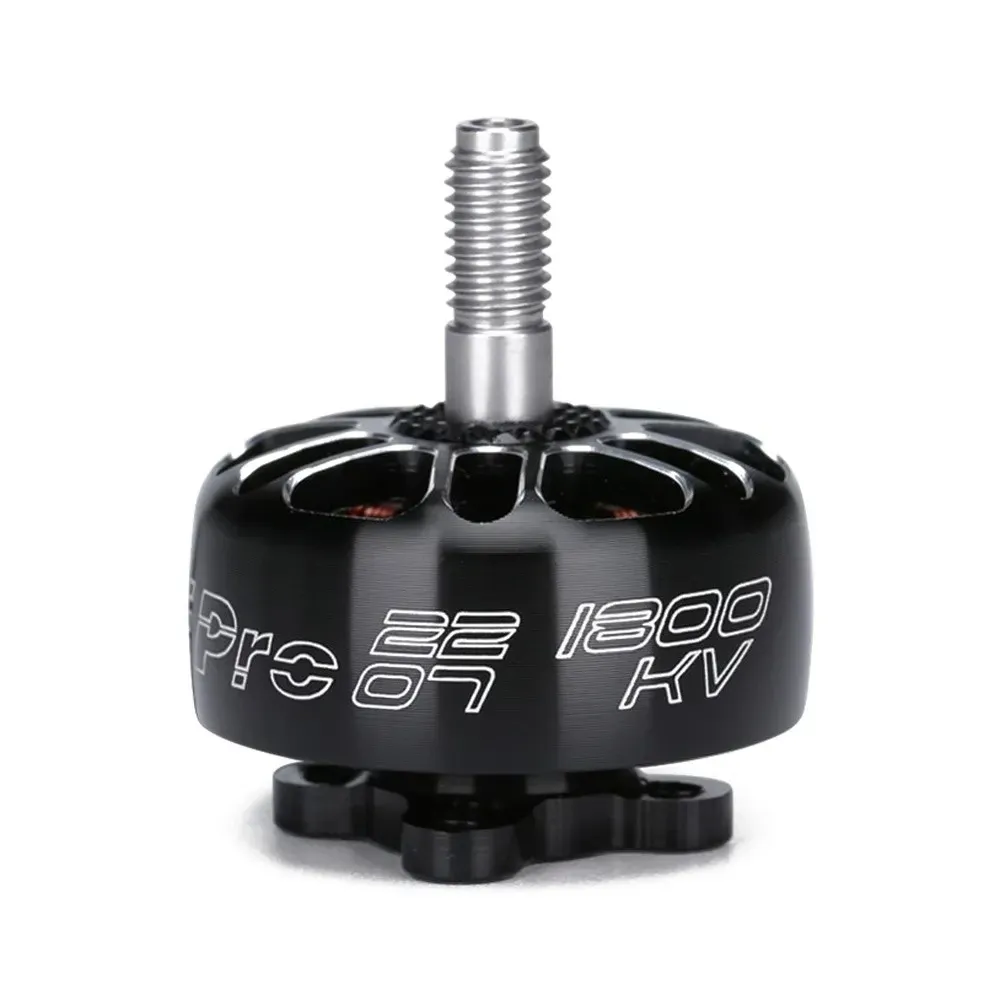

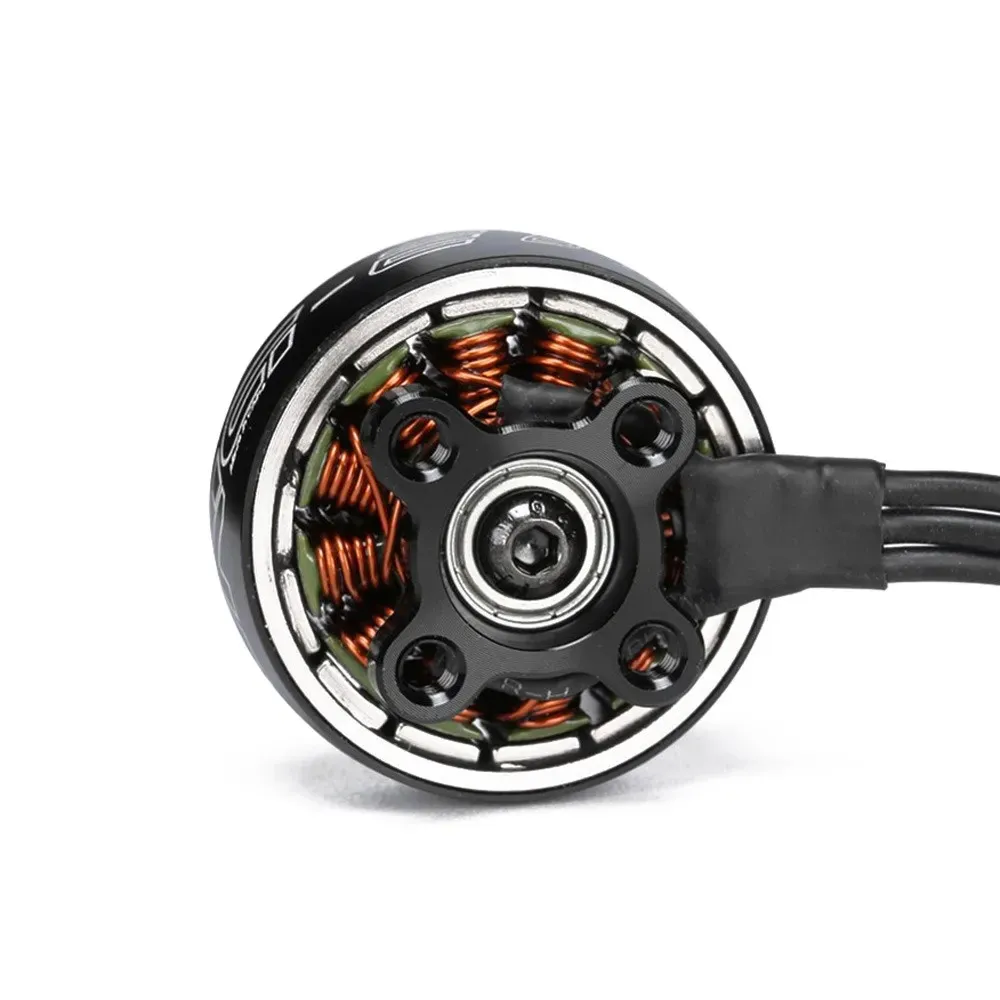

iFlight XING-E Pro 2207 FPV Motor (2–6S)

The iFlight XING-E Pro 2207 is a rugged, high-torque motor engineered for 5-inch freestyle and racing quads. Sharing its core electromagnetic design with the flagship XING series, the E Pro version trades the titanium components for a highly durable 5mm steel shaft, providing excellent crash resilience without sacrificing flight performance or smoothness.

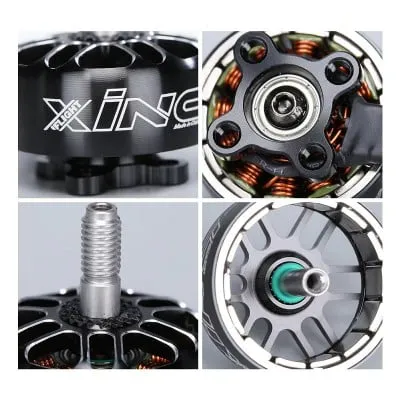

Key features

• High-strength 5mm steel prop shaft resists bending during severe impacts.

• CNC-machined unibody aluminium bell ensures structural rigidity.

• N52SH high-temperature curved magnets provide consistent torque across the throttle band.

• High-quality NSK bearings deliver smooth, low-vibration operation.

Specifications

• KV options: 1800KV / 2450KV / 2750KV

• Stator size: 2207

• Configuration: 12N14P

• Shaft diameter: 5mm

• Shaft length: 13.5 mm

• Bearings: NSK 9 x 4 x 4 mm

• Mounting pattern: 16x16mm (M3)

• Dimensions: 28.5 x 19.7 mm

• Input voltage: 2–6S LiPo

• Peak current: 35.22 A (1800KV)

• Max power (60 s): 845 W (1800KV)

• Idle current: 1.2 A at 12.6 V

• Internal resistance: 81.5 mOhm

• Wire gauge: 20AWG, 150 mm

• Weight: 33.8g

For standard 5-inch builds, pair the 1800KV variant with a 6S LiPo for efficient, torque-heavy freestyle, or select the 2450KV option to maximize RPM on 4S power.
