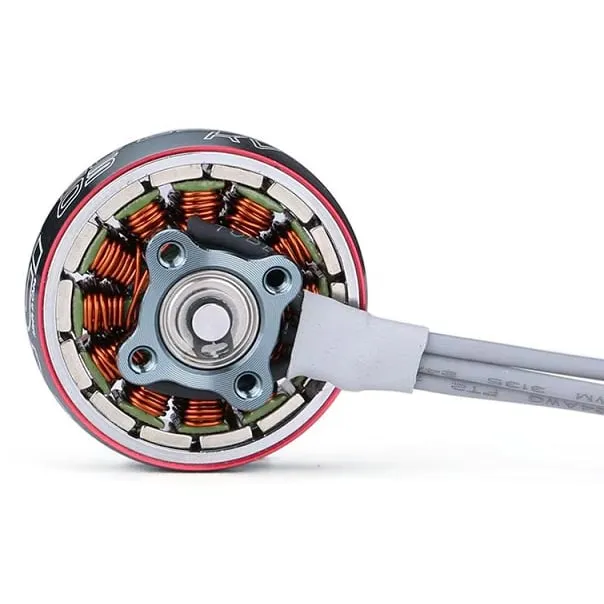

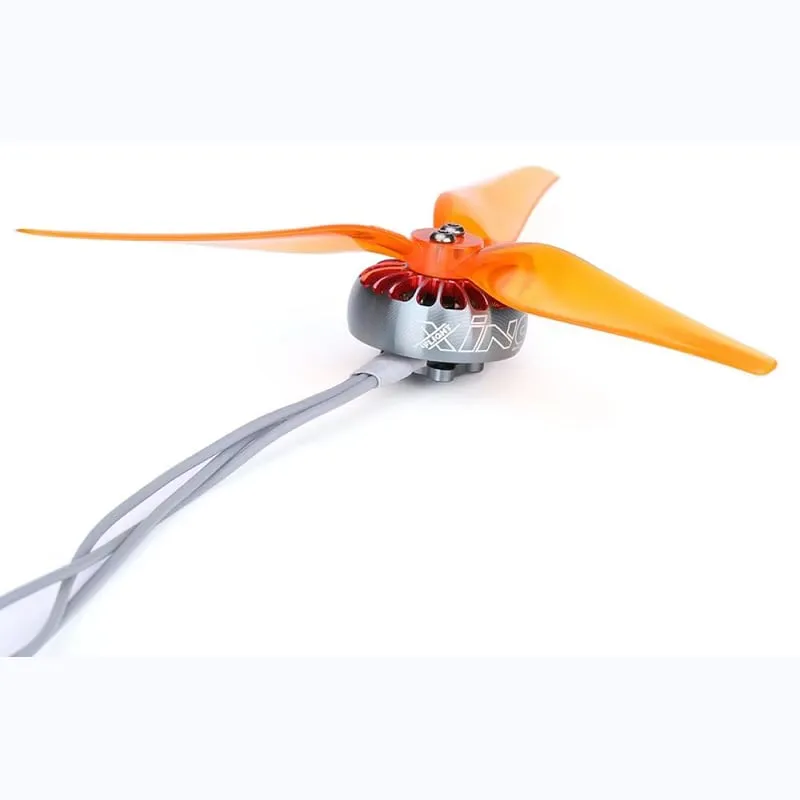

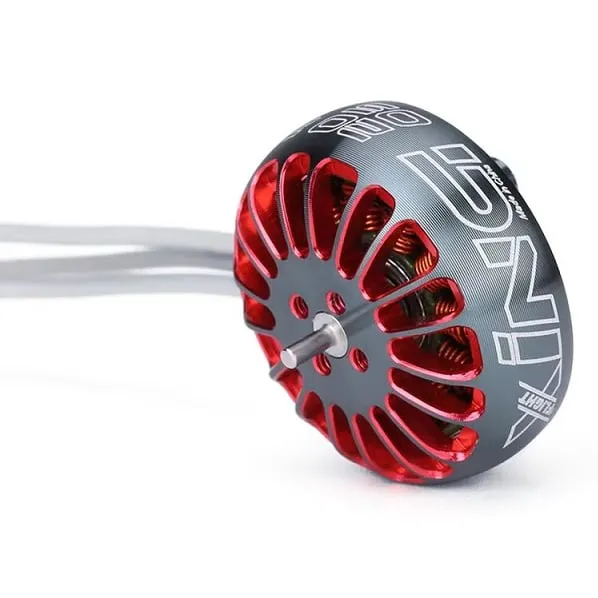

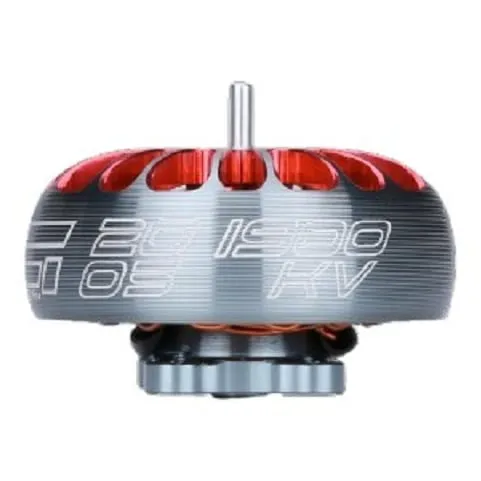

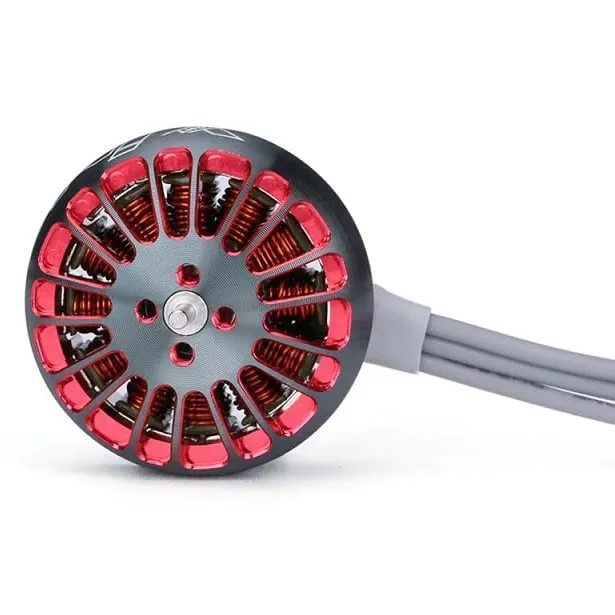

iFlight XING 2005 1900KV Motor
₹3,299Incl. GST
SKU IFLT-XING-2005-1900KV
Stator Size: 2005KV: 1900 KVProp Mount: T-Mount, 1.5mmShaft: 1.5mm
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The iFlight XING 2005 1900KV is a unibell motor built for ultralight, toothpick-style 5-inch builds around 250g all-up weight, running 6S LiPo power. Its titanium-alloy shaft threads propellers on directly, without a separate prop nut.
Key features
- 1.5mm titanium-alloy outer shaft accepts 1.5mm-shaft propellers such as the iFlight Nazgul 5030.
- N52H curved magnets and a 12N14P winding for consistent, high-efficiency thrust.
- NSK bearings support smooth rotation over sustained flight.
- Weighs 21g including wire, keeping the build within toothpick weight targets.
Specifications
- Stator size: 2005
- KV: 1900KV
- Input voltage: 6S
- Weight: 21g
- Shaft diameter: 1.5mm
- Inner shaft: 3mm
- Bearings: NSK 8 x 3 x 4 mm
- Peak current: 19.37A
- In the box: 1 x motor, 4 x M2 x 6 mm screws, 4 x M2 x 7 mm screws
Mounting holes follow a 12x12mm pattern; pair it with four matched motors and 1.5mm-shaft propellers rated for the build's weight. Because the shaft threads propellers on directly, always use a propeller rated for this mounting style rather than a standard nut-and-washer prop.
| Stator Size | 2005 |
|---|---|
| Stator Diameter | 20mm |
| Stator Height | 5mm |
| KV | 1900 KV |
| Prop Mount | T-Mount, 1.5mm |
| Shaft | 1.5mm |
| Motor Mount | 12x12mm |
| Input Voltage | 6S |
| Weight | 21 g |
| Brand | iFlight |
| Made in India | No |
