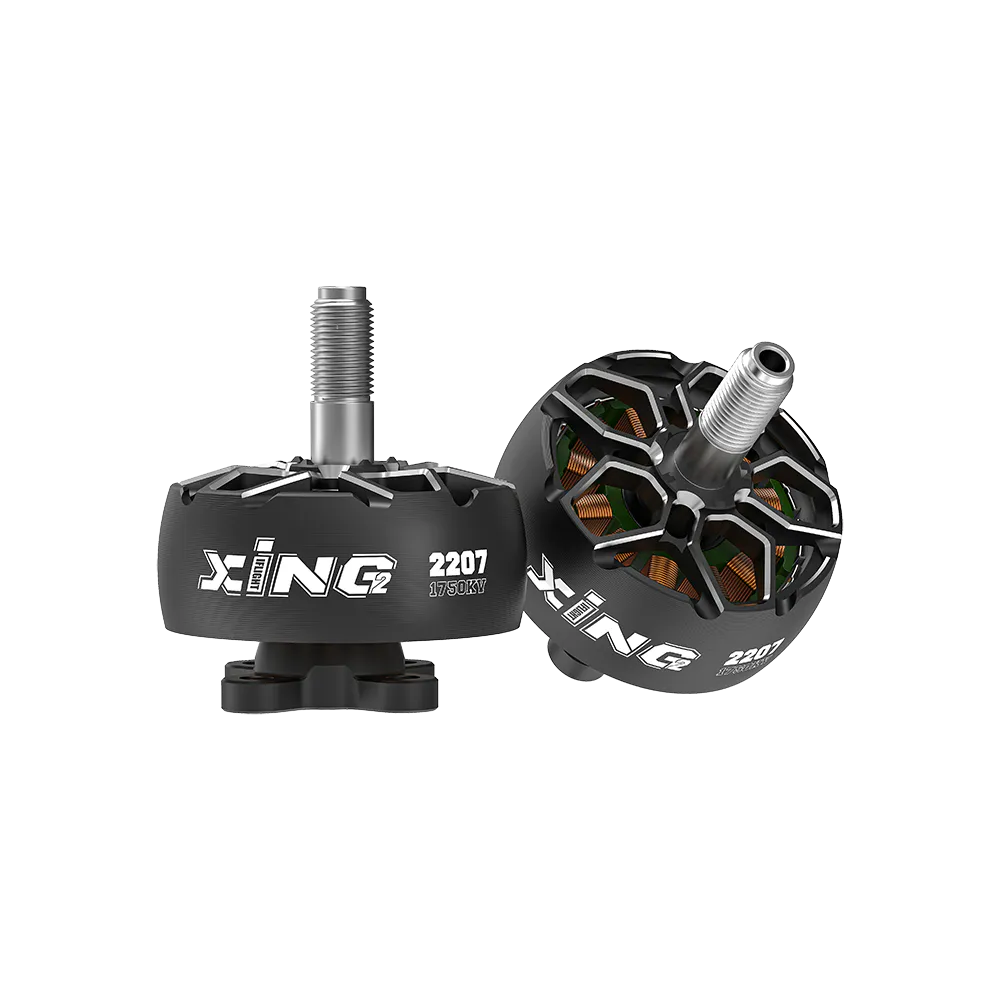

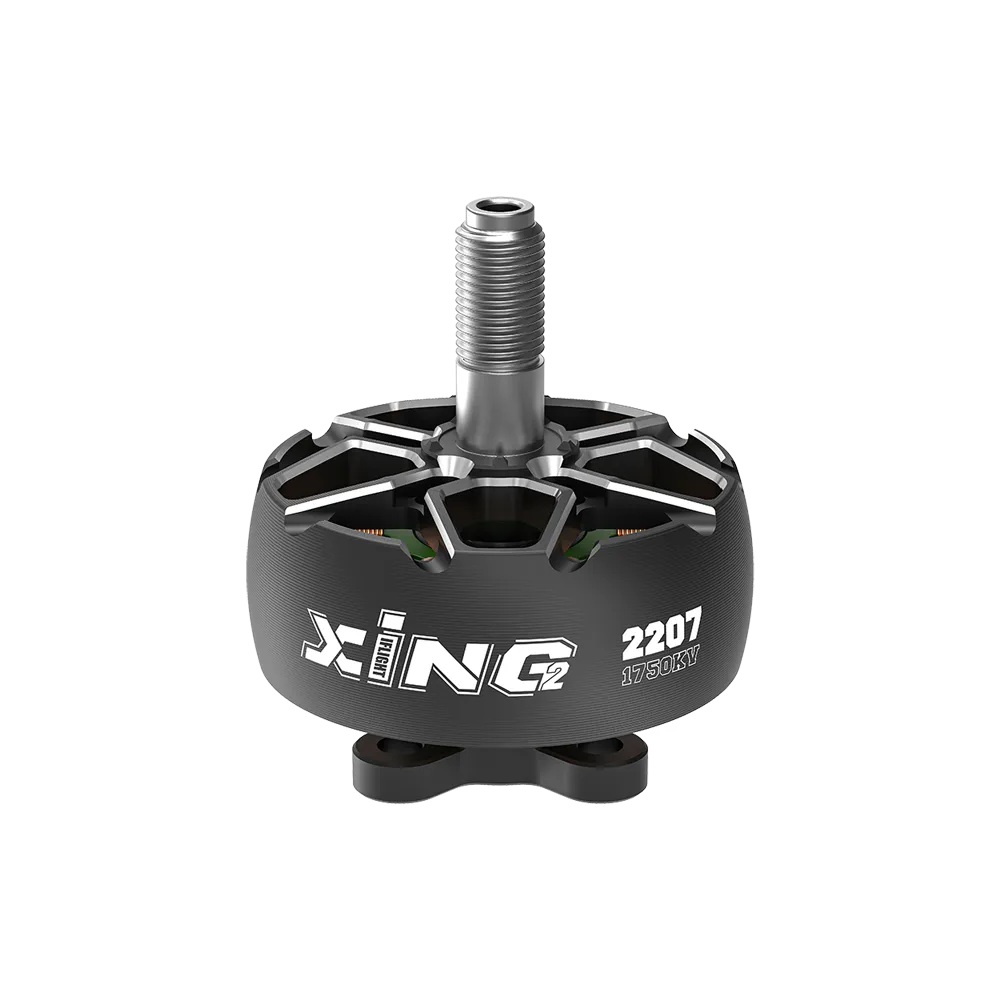

iFlight XING2 2207 1750KV 6S Motor

The iFlight XING2 2207 1750KV delivers responsive torque and precise throttle control for 6S 5-inch freestyle and racing drones. Building on the established XING architecture, this iteration features upgraded materials and tighter manufacturing tolerances to handle aggressive flight profiles and heavy prop loads without sacrificing efficiency.

Key features

• Constructed with a robust 5mm titanium alloy prop shaft for high crash resilience.
• Utilises curved N52H arc magnets to narrow the stator gap and increase magnetic efficiency.
• Fitted with premium Japanese NSK bearings for sustained smooth rotation under load.
• Crash-resistant unibell housing incorporates an internal O-ring to dampen vibrations and protect the bearing assembly.

Specifications

• Stator size: 2207 (22mm diameter, 7mm height)
• KV: 1750
• Input voltage: 6S LiPo
• Configuration: 12N14P
• Propeller shaft diameter: 5mm
• Shaft protrusion: 13.5 mm
• Mounting pattern: 16x16mm
• Wire gauge: 20AWG, 160mm length
• Weight: 30.5g (including wire)
• Dimensions: 29 x 19.25 mm
• Peak current: 36.3 A (6S)
• Max power: 898 W (6S)
• Bearings: NSK 9x4x4 mm
• In the box: 1 x motor, 4 x M3x7 screws, 1 x M5 flanged nylon-insert lock nut

Pair these motors with a 45A to 60A ESC and aggressive 5-inch to 5.1-inch propellers for an optimal balance of top-end speed and low-end authority on heavier 6S freestyle frames.
