iFlight XING2 2405 Motor (Unibell) – 1800KV

The iFlight XING2 2405 is a high-torque unibell motor tailored for 5-inch FPV freestyle and racing drones. By utilising a wider 24mm stator instead of standard 22mm or 23mm sizes, this motor shifts power delivery toward the low end, providing aggressive punch, rapid spool-up times, and granular throttle resolution for heavier 6S builds.

Key features

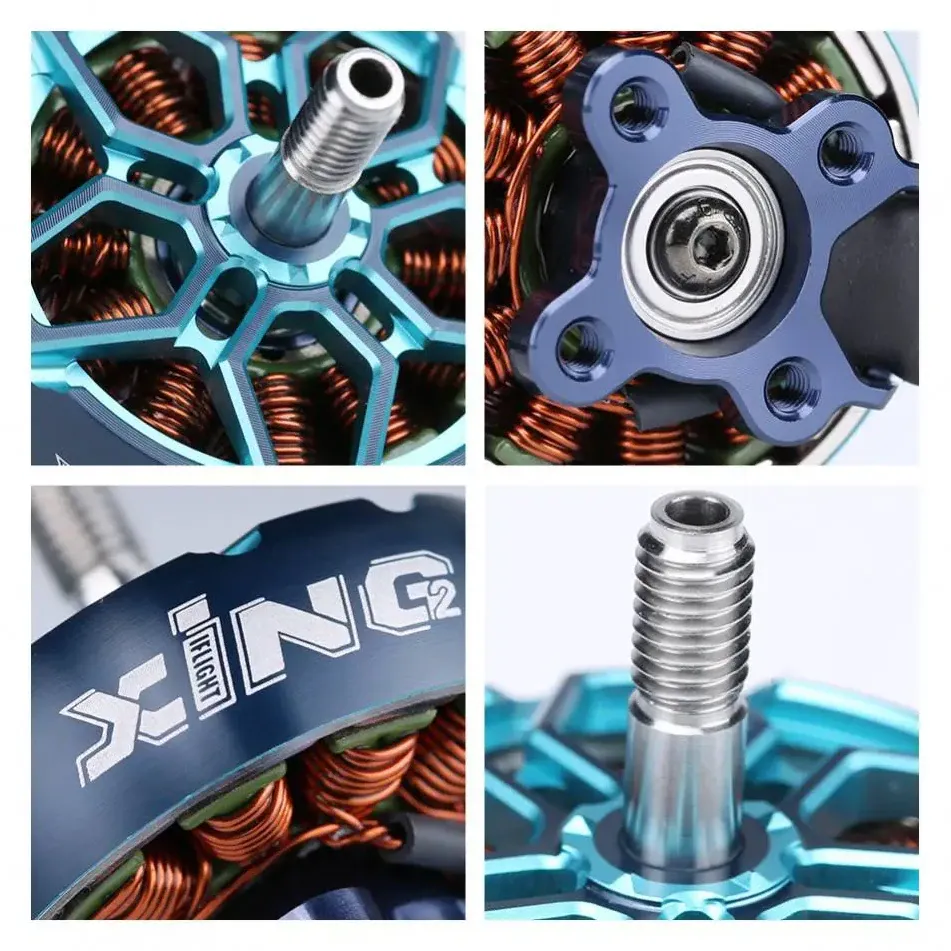

• Sturdy unibell housing machined from high-grade aluminium to resist bell deformation during impacts.
• High-strength 5mm titanium alloy shaft featuring iFlight's signature vibration-damping O-ring to extend bearing life.
• High-temperature N52H curved arc magnets that minimise the stator air gap and maximise overall efficiency.
• Premium Japanese NSK bearings ensure smooth, noise-free rotation under heavy loads.

Specifications

• Stator Size: 2405 (24mm diameter, 5mm height)
• KV Rating: 1800KV
• Configuration: 12N14P
• Input Voltage: 4-6S LiPo
• Prop Shaft Diameter: 5mm
• Mounting Pattern: 16x16mm
• Wire: 20AWG, 160 mm
• Weight: 30.7 g (with wires)

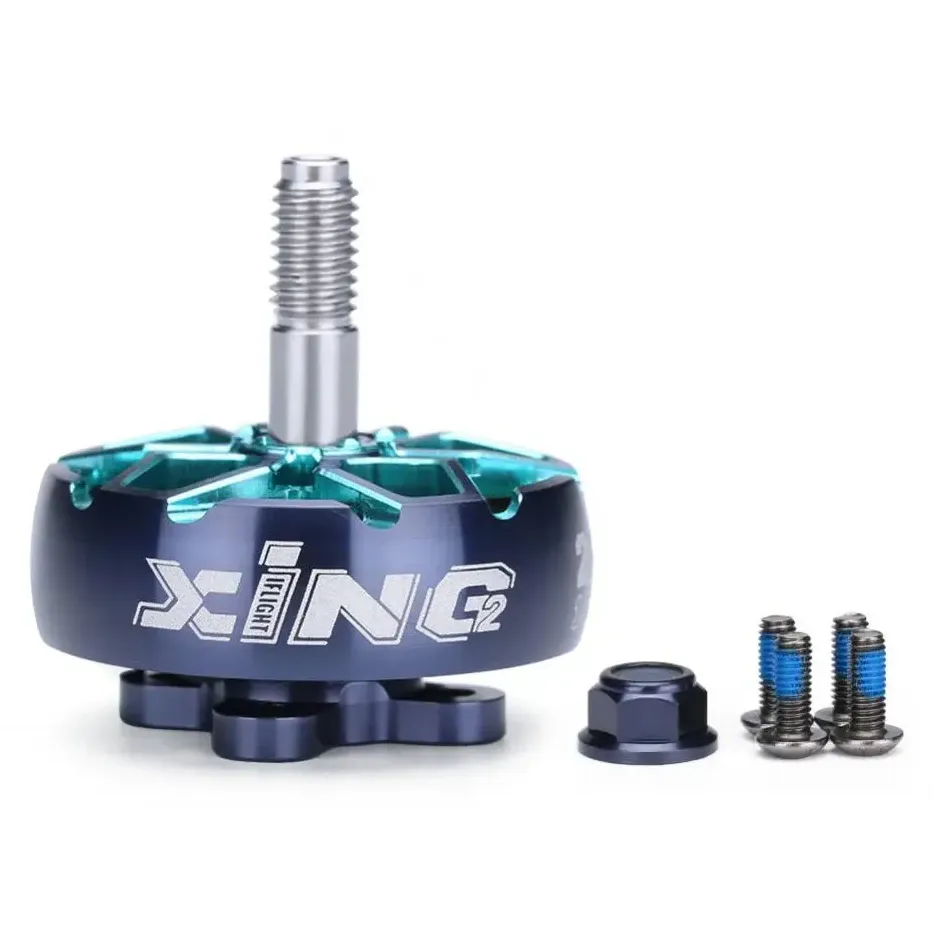

• In the box: 1 motor, 4 x M3 screws, M5 flange nut

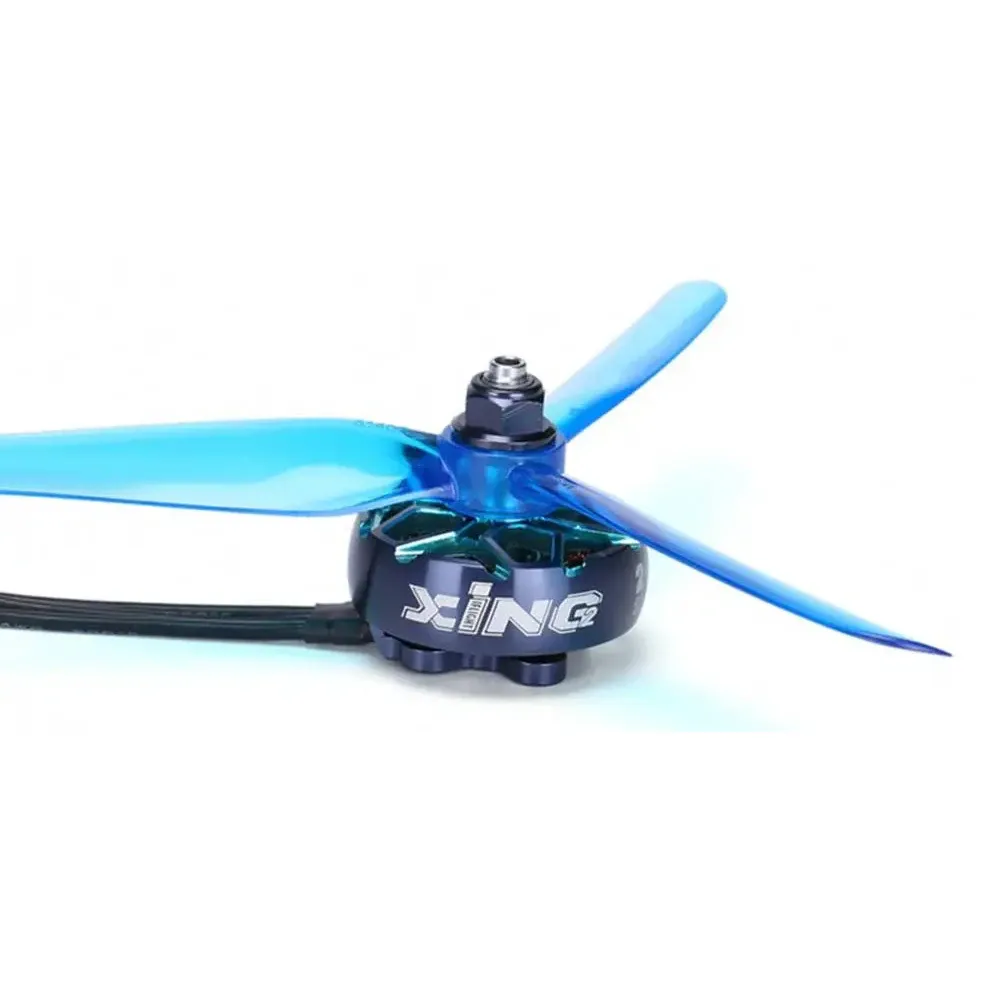

At 1800KV, this stator volume is perfectly tuned to drive high-pitch 5-inch tri-blade propellers, delivering excellent low-end authority for freestyle tricks and quick directional changes.
