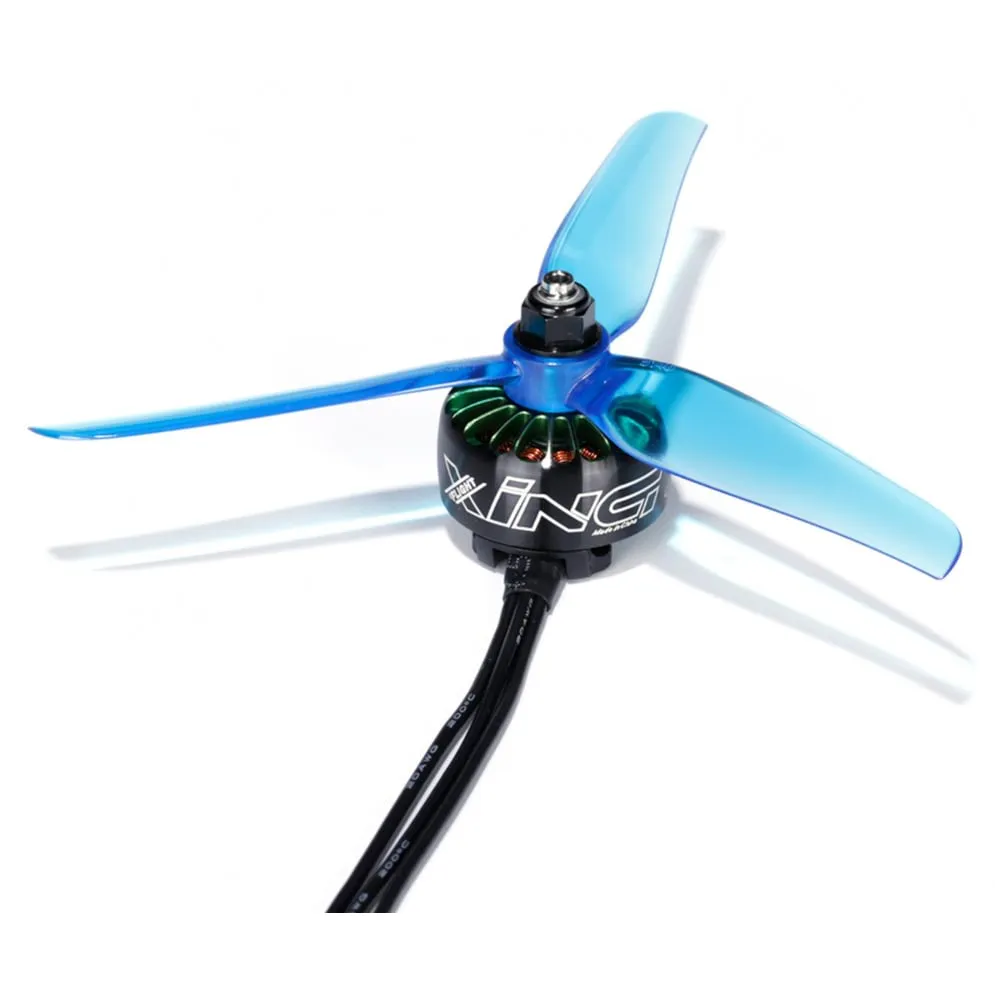

iFlight XING 2208 FPV NextGen Motor (Unibell, 2-6S)

The iFlight XING 2208 is a high-torque brushless motor engineered for 5-inch heavy freestyle quads, cinematic builds, and 6-inch mid-range FPV drones. With an 8 mm stator height, it delivers increased low-end torque and throttle authority compared to standard 2207 stators, making it exceptionally effective for carrying heavier action cameras across a 2-6S LiPo voltage range.

Key features

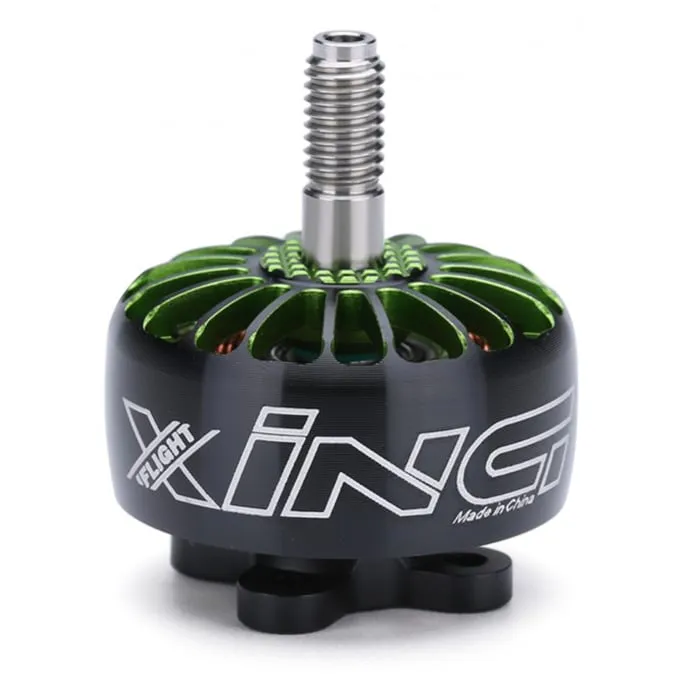

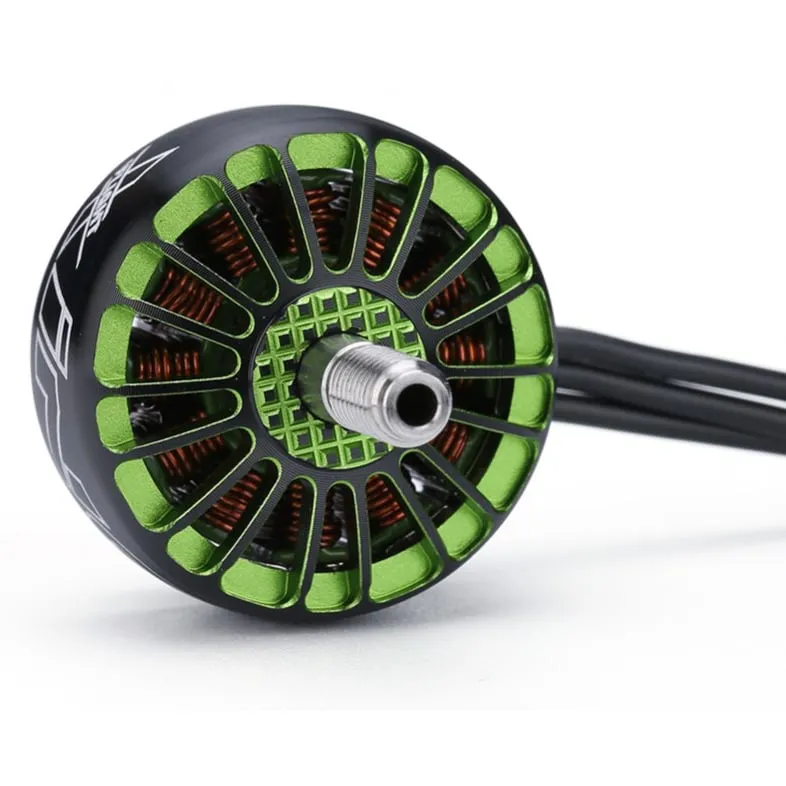

• CNC-machined 7075 aluminium Unibell housing improves bell rigidity and impact resistance during crashes.

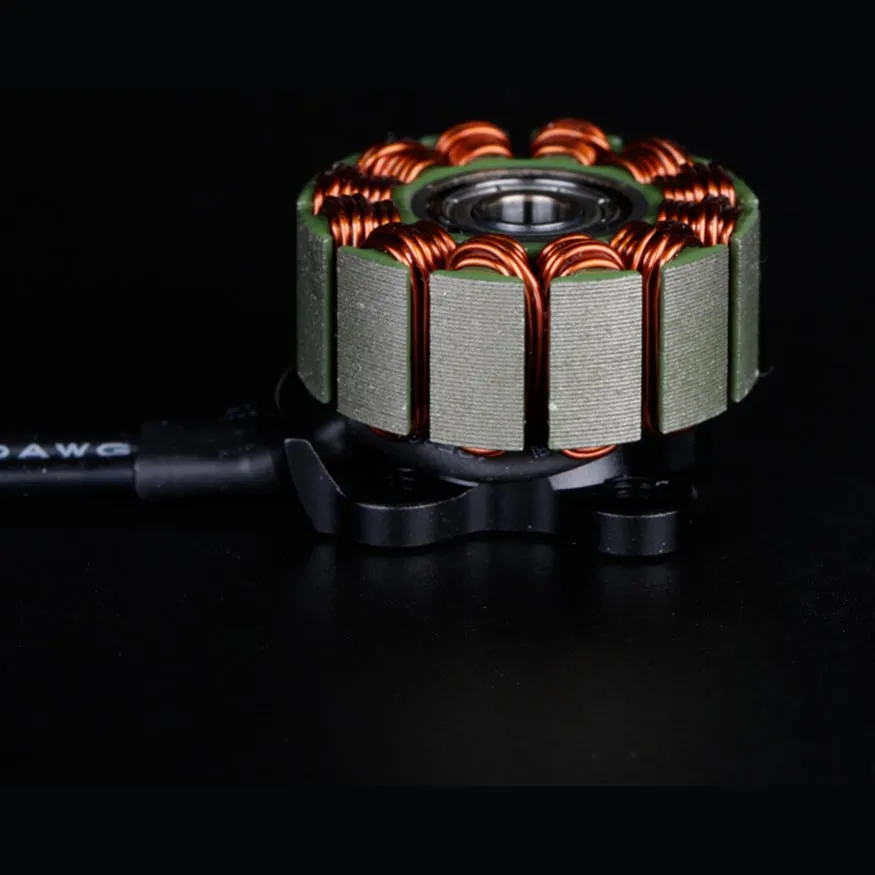

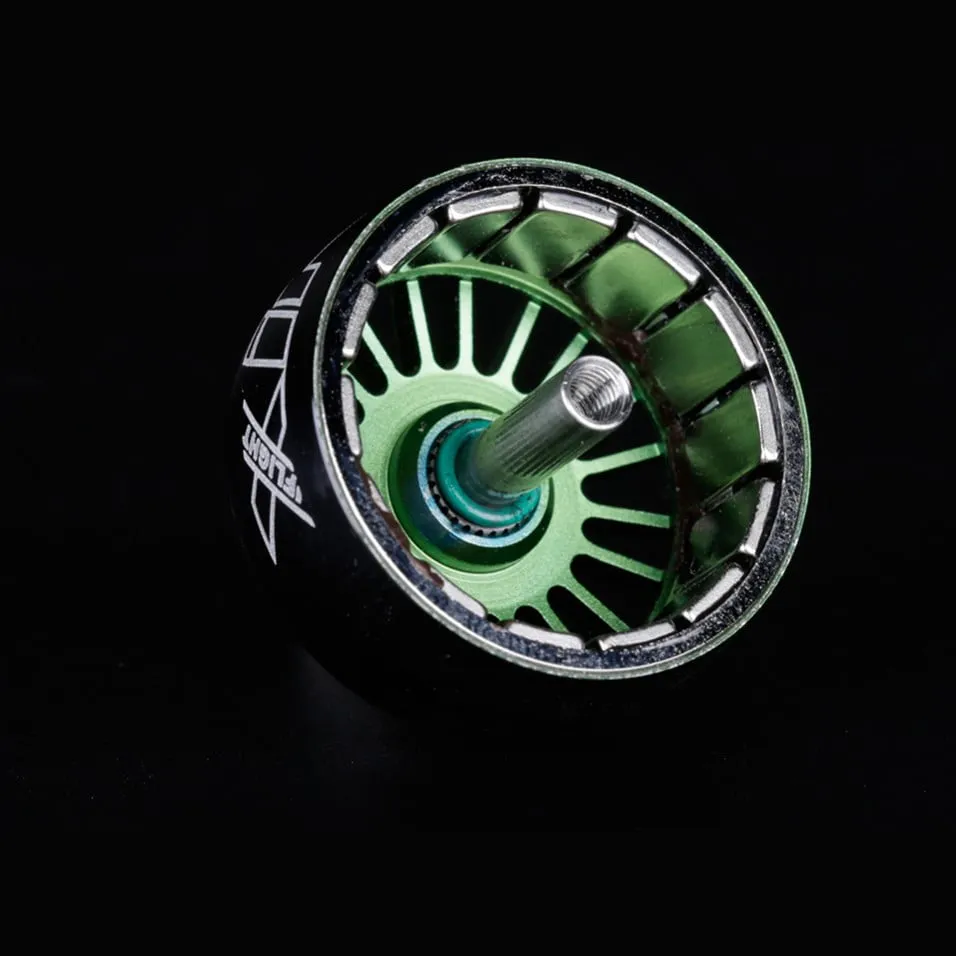

• High-temperature N52H curved arc magnets paired with a 12N14P configuration ensure responsive, linear thrust delivery.

• Titanium alloy hollow shaft and Japanese NSK 9x4x4 mm bearings reduce mechanical vibration at high RPMs.

• Available in 1800KV for efficient 6S freestyle and cinematic cruising, or 2450KV for high-thrust 4S setups.

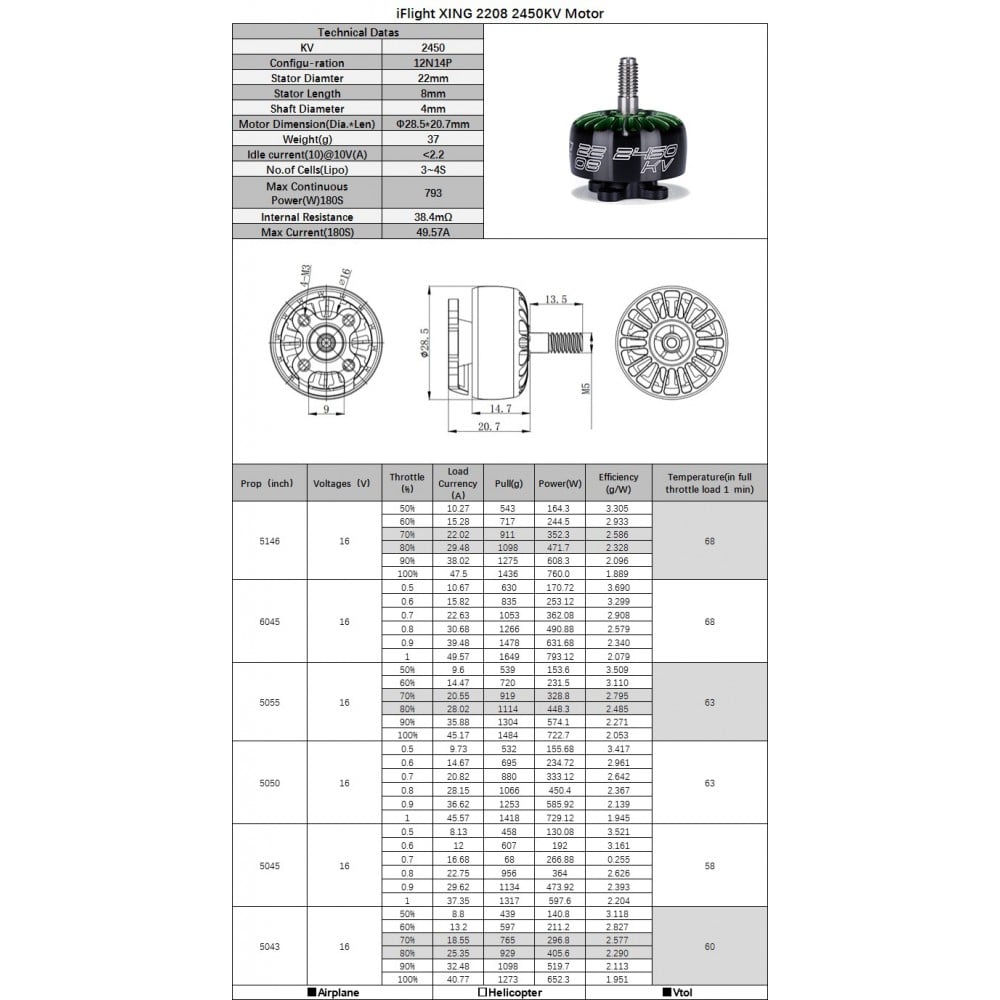

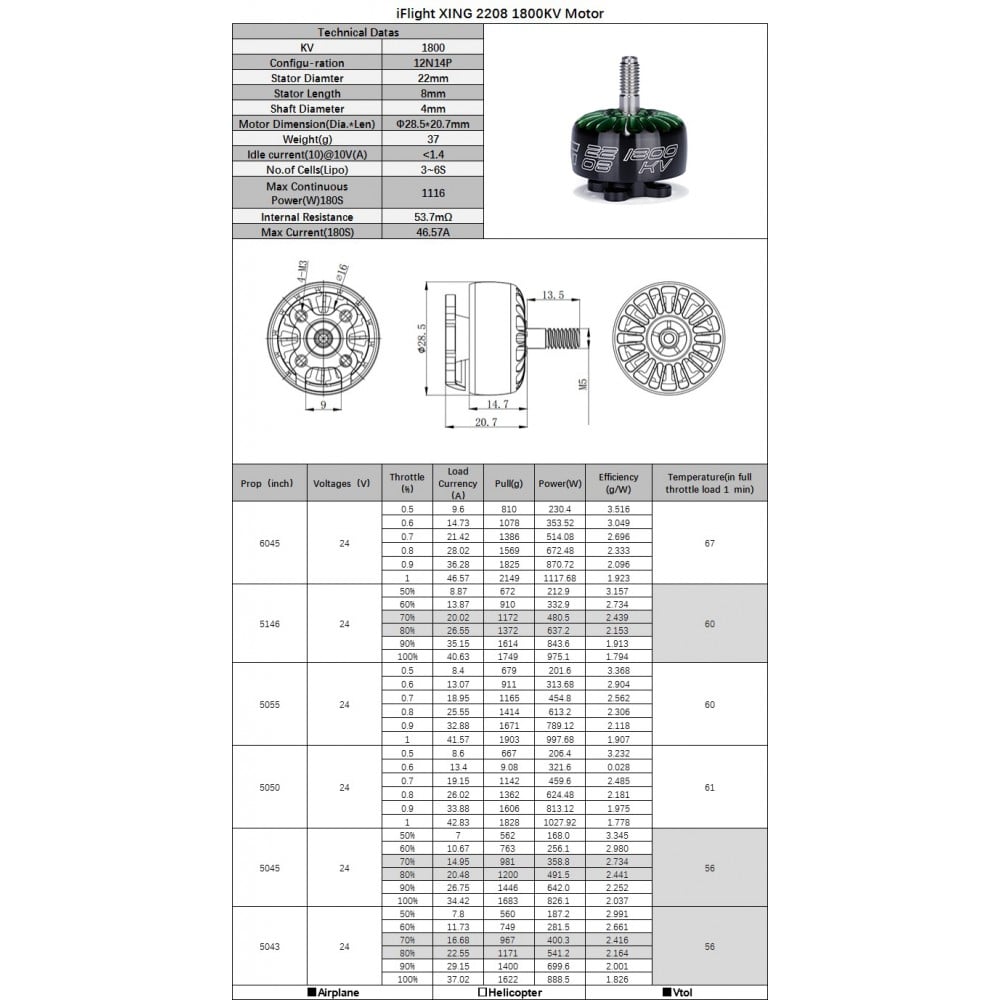

Specifications

• Stator Size: 2208

• Configuration: 12N14P

• Input Voltage: 2-6S LiPo

• Propeller Shaft: 4 mm titanium alloy (M5 thread)

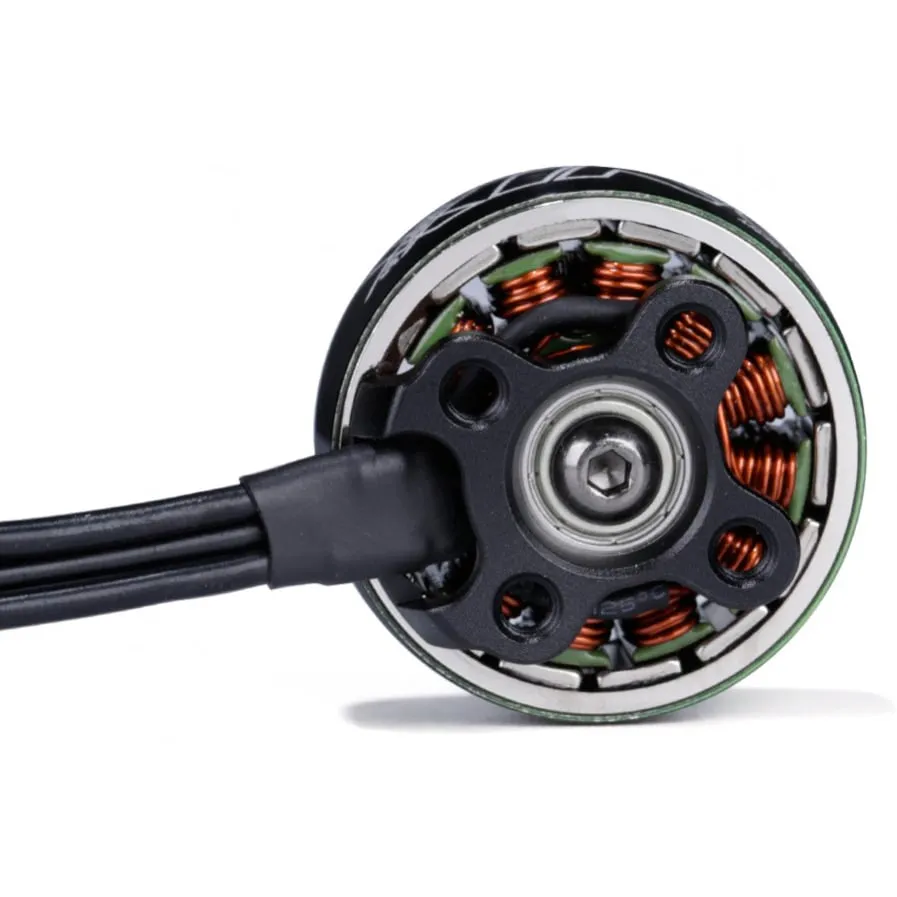

• Mounting Pattern: 16x16 mm (M3)

• Lead Length: 160 mm

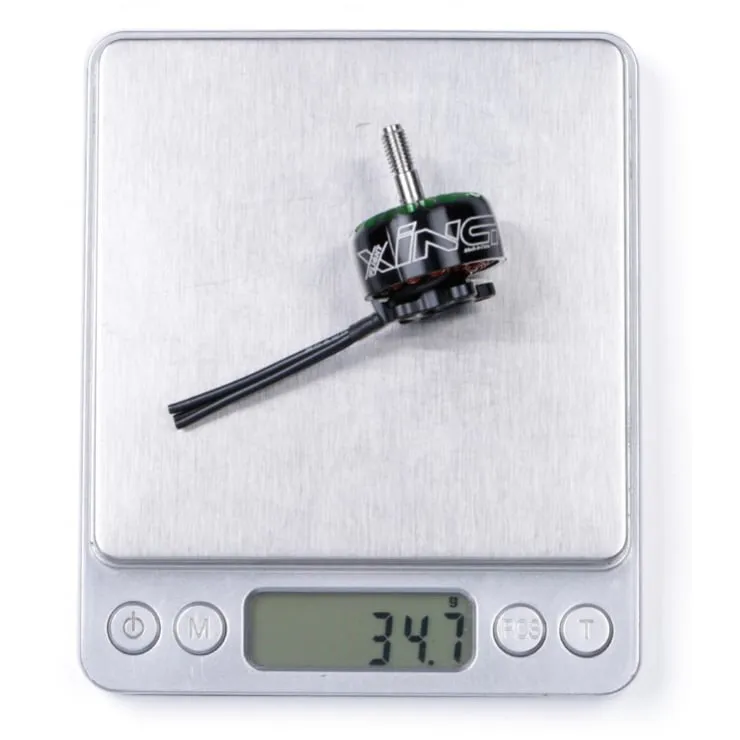

• Weight: 37.3 g (including lead wires)

The motor uses a standard 16x16 mm M3 mounting pattern compatible with most modern 5-inch and 6-inch arms. Pair the 1800KV variant with a 6S LiPo and 5040 to 5146 propellers for smooth cinematic flight, or select the 2450KV variant on a 4S LiPo for aggressive freestyle punch-outs.
