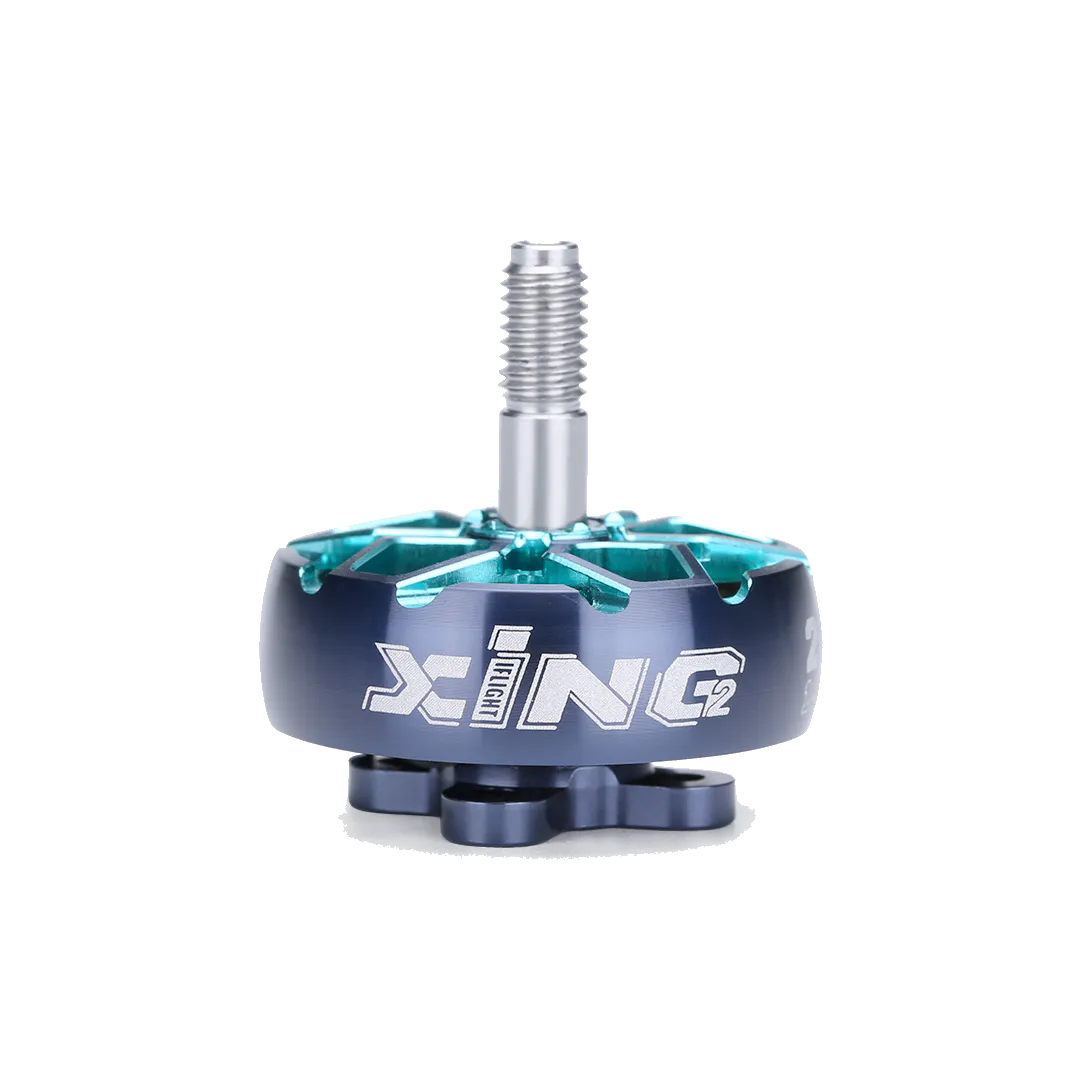

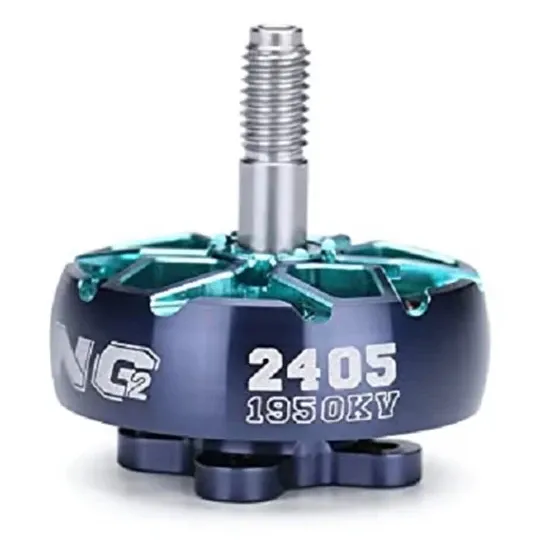

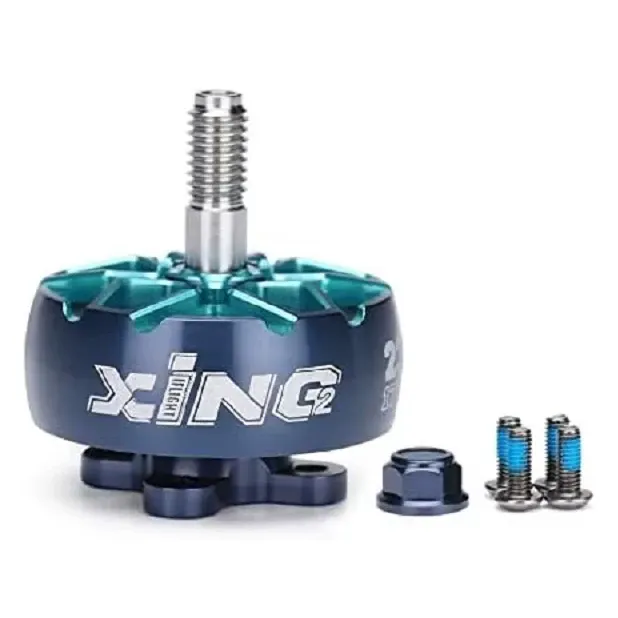

iFlight XING2 2405 1950KV 4-6S FPV Motor

The iFlight XING2 2405 1950KV motor delivers exceptional torque and low-end throttle resolution for heavy 5-inch freestyle or 6-inch cinematic FPV builds running on 4S to 6S LiPo power. Its 2405 stator geometry provides a wider, flatter magnetic field compared to traditional 2207 or 2306 sizes, yielding highly responsive and incredibly smooth flight characteristics ideal for carrying action cameras.

Key features

• Durable unibell design with a crash-resistant 5mm titanium alloy shaft
• High-temperature N52H curved arc magnets maintain efficiency under heavy loads
• Built-in O-ring dampening protects the Japanese NSK 9x4x4mm bearings from impact forces
• Wide 24mm stator maximises low-end torque for precise altitude control

Specifications

• KV: 1950
• Input Voltage: 4-6S LiPo
• Configuration: 12N14P
• Stator Dimensions: 24mm diameter, 5mm height
• Shaft Diameter: 5mm
• Mounting Pattern: 16x16mm, M3
• Wire Gauge: 20AWG (160mm length)
• Weight: 34.6g (with wires)

This 1950KV variant is heavily favoured for 6S 5-inch freestyle quads needing aggressive punch-outs, or as a smooth, predictable power plant for 4S cinematic rigs.
