Hobbywing H11M Motor + 150A ESC + 48175 Props Combo Kit

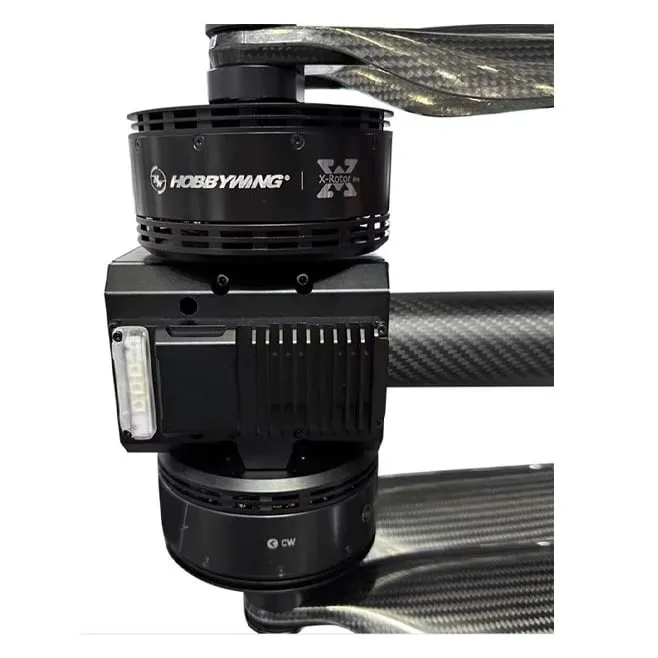

The Hobbywing H11M propulsion combo is an integrated power system designed for high-payload agricultural and industrial drones. Built as an integrated coaxial unit with 150A FOC (Field Oriented Control) drive and an upper and lower pair of 48-inch (48175) folding propellers, this kit delivers the immense thrust required for large-scale liquid spraying and heavy-lift transport frames.

Key features

• Integrates the motor, ESC, and folding propeller into a single tuned system for agricultural builds
• H11M motor is rated for up to 57.5kg of thrust at 70KV on a 14S Li-ion or LiPo pack
• FOC ESC drive provides efficient, low-noise commutation with precise throttle response, rated 60A continuous and 150A peak
• Includes 48x17.5-inch (48175) propellers to support extreme payload weights
• One integrated coaxial unit per axis with upper and lower 48x17.5 propellers (CW + CCW), built for four-axis, eight-propeller airframes of around 100 kg

Specifications

• Brand: Hobbywing
• Motor: H11M, 70KV
• Max thrust: 57.5kg
• Recommended take-off weight: 25-28 kg per axis
• ESC continuous / peak current: 60A / 150A
• Max allowable voltage: 65 V
• Drive protocol: FOC (Field Oriented Control)
• Propeller dimensions: 48x17.5 inches (48175)
• Recommended battery: 14S Li-ion/LiPo
• Ingress protection: IP45
• Operating temperature: -20 to +50 C
• Weight: 4.35 kg without propellers, 4.77 kg with the propeller set (415 g incl. adapter)
• Configuration: integrated coaxial unit, upper + lower propeller (CW + CCW)

Engineered for large-scale multirotors, this integrated system simplifies the build process by pairing the motor, tuned ESC, and propeller in a single matched unit, removing the guesswork from heavy-lift component selection.
