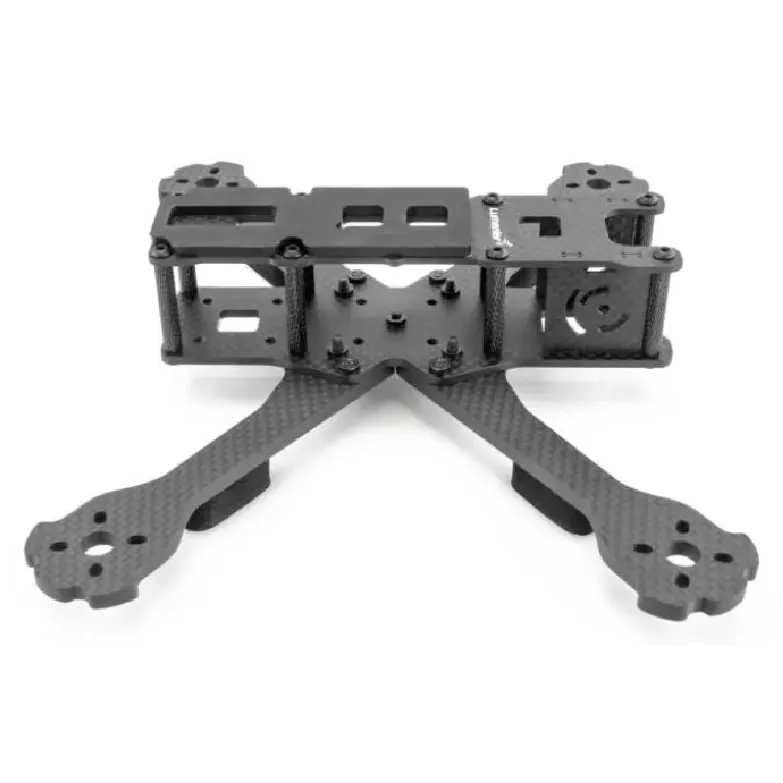

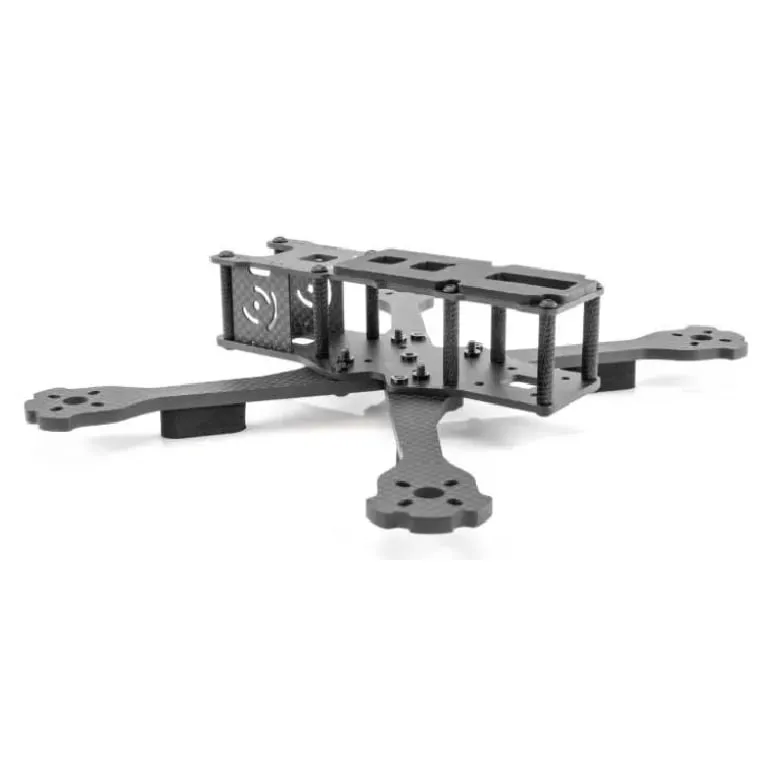

Lumenier QAV-R 2 5-Inch Freestyle Frame

The Lumenier QAV-R 2 is a 5-inch freestyle frame for custom FPV quadcopter builds, built from full 3K carbon fibre for pilots assembling their own electronics package rather than buying a pre-built quad.

Key features

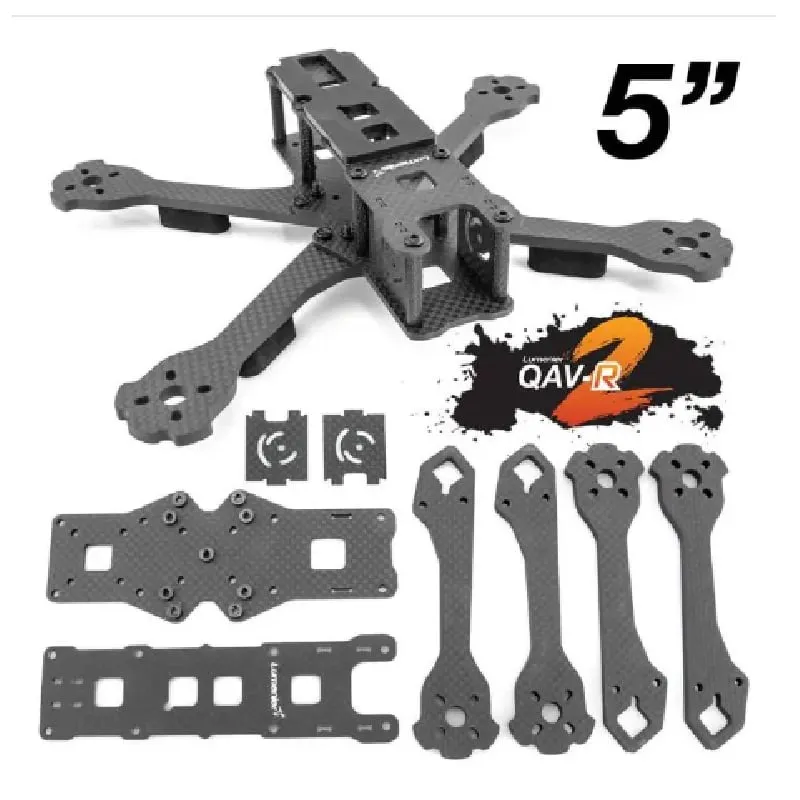

• Individually removable 4.5mm-thick arms let you swap a damaged arm without disturbing the rest of the stack after a crash.
• Squashed-X layout keeps propellers out of the camera's field of view for a cleaner FPV feed.
• Fits both 30.5x30.5mm and 20x20mm electronics stacks, covering most current flight-controller and ESC combinations.
• Complete airframe with hardware, battery pad and landing pads weighs about 116g.
• Carbon fibre camera side walls fit a full-size FPV camera; a silicone pad grips a top-mounted LiPo battery.

Specifications

• Prop size: 5 in
• Arm thickness: 4.5 mm
• Top plate thickness: 2 mm
• Bottom plate thickness: 2.5 mm (with press-fit steel nuts)
• Weight: 116 g
• Stack compatibility: 30.5x30.5 mm / 20x20 mm

Check the frame's mounting and clearance requirements against your chosen stack, camera, motors and battery before final assembly.
