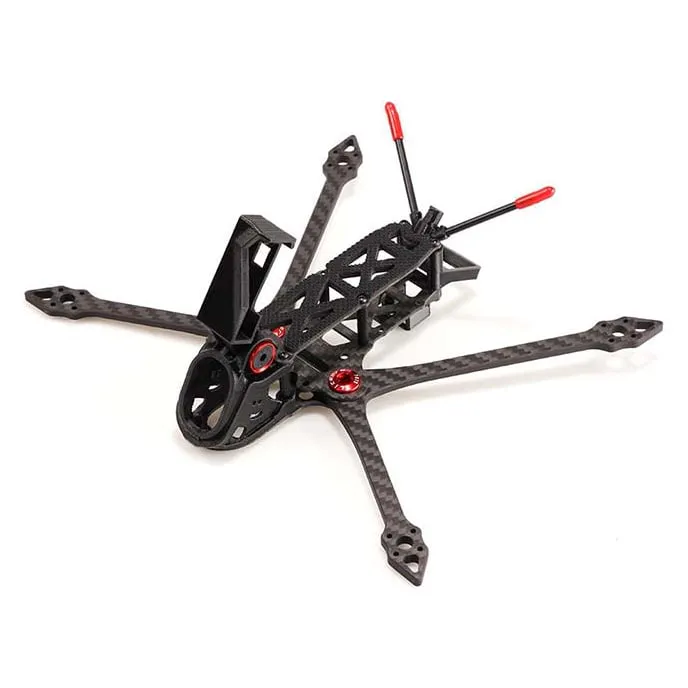

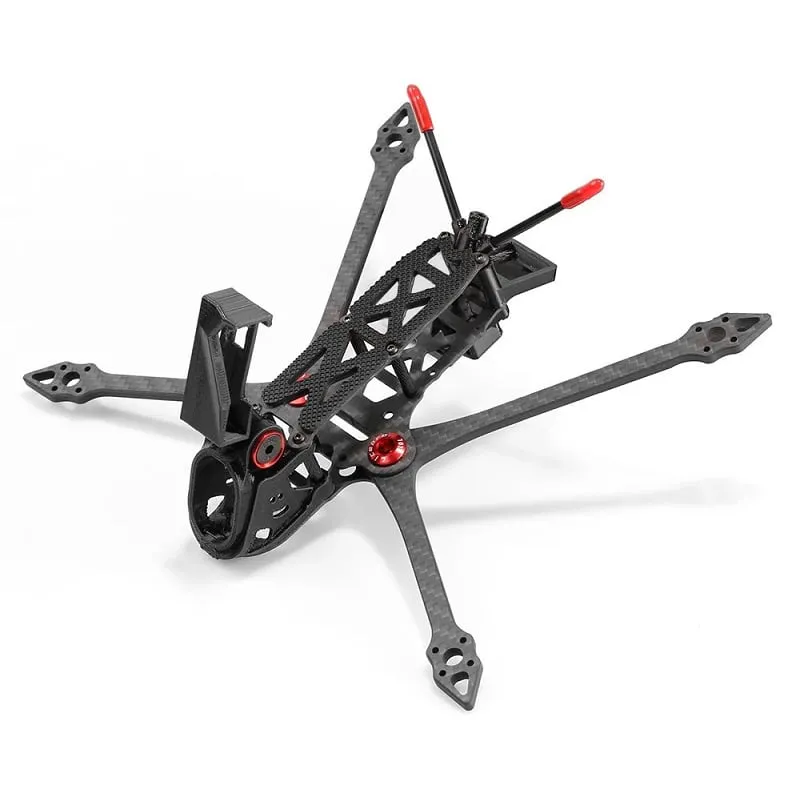

HGLRC Rekon5 LR 5 Inch Long Range Frame

The HGLRC Rekon5 LR is a 5-inch long-range FPV frame designed for extended flight times, built to carry a GoPro-style camera more easily than a typical 4-inch frame while keeping weight down.

Key features

• Single-piece front and rear arms locked by an aluminium bolt at the centre section, allowing lighter M2 hardware and thinner carbon plates elsewhere on the frame.

• Flexible TPU front canopy with a carbon brace absorbs impact energy and protects the camera in a crash.

• Optimised for 2004-2204 size motors on 12 x 12 mm M2 mounting holes.

• Built-in GPS mount sized for an M80 GPS module, plus an external buzzer mount.

• Top-to-middle plate spacing of 23 mm and a 3 mm protective bottom bar.

• Mild deadcat layout reduces props in view without hurting flight performance; optional braces add vibration damping and crash resistance.

Specifications

• Propeller size: 5 inch

• Motor mount: 12 x 12 mm, M2

• Centre bolt: 10 mm aluminium

• Main body: split deck on 25 mm / 20 mm standoffs, room for two 20x20 stacks

• Front: shock-absorbing TPU with integrated GoPro mount

• Antenna mount: foldable Immortal-T mount

• Plate spacing (top-middle): 23 mm

• Protective bar thickness: 3 mm

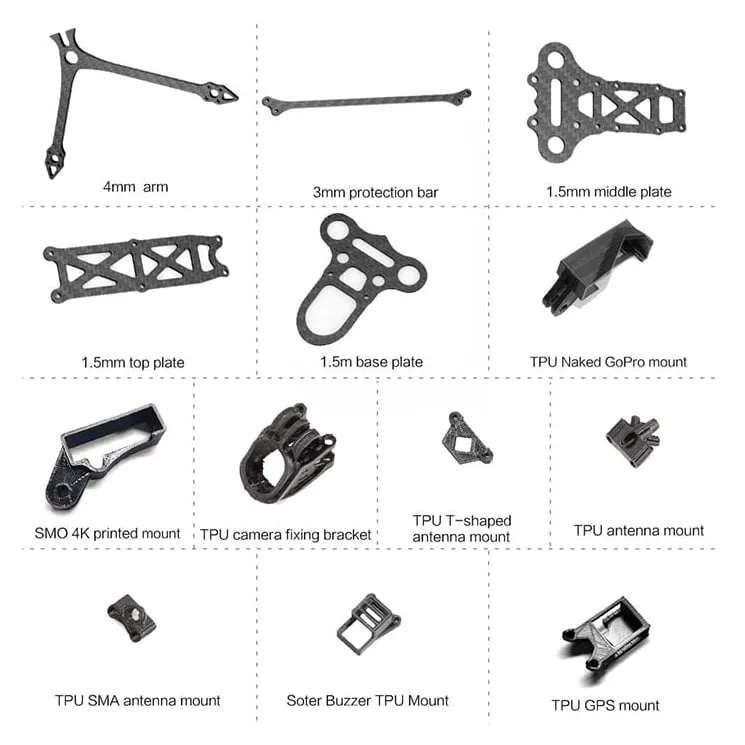

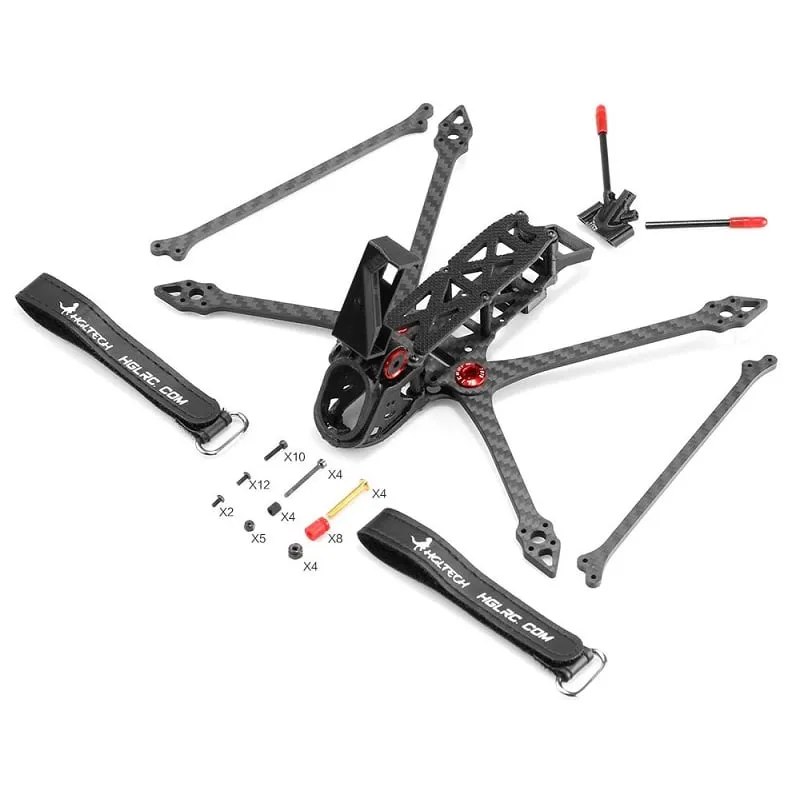

Supplied as a frame kit with a hardware kit and TPU kit; add your own 2004-2204 motors, flight stack, GPS, VTX and battery to complete the build.
