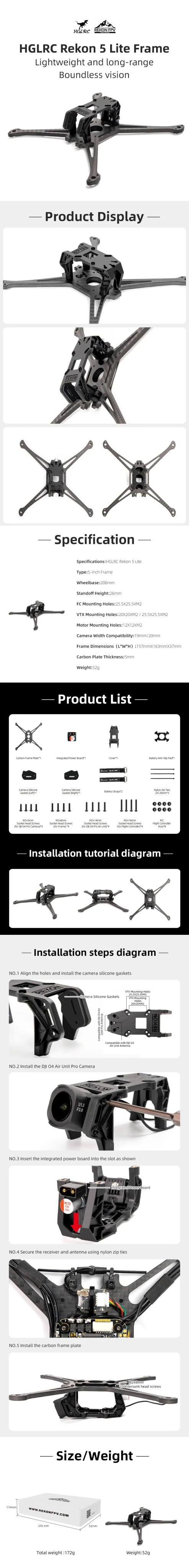

HGLRC Rekon 5 Lite Frame Kit

The HGLRC Rekon 5 Lite is a lightweight carbon-fibre 5-inch frame kit built around a 206mm wheelbase, sized for compact freestyle and long-range builds.

Key features

• 206mm wheelbase carries 5-inch propellers on a compact, agile chassis.

• 5mm carbon-fibre plates keep bare frame weight to 52g before electronics.

• Flight controller mounting holes are spaced 25.5x25.5mm (M2).

• VTX mounting supports both 20x20mm and 25.5x25.5mm (M2) hole patterns.

• Motor mounting holes are spaced 12x12mm (M2), suiting light 18xx-class motors such as the recommended 1804.

• Camera bay fits both 19mm and 20mm wide FPV cameras.

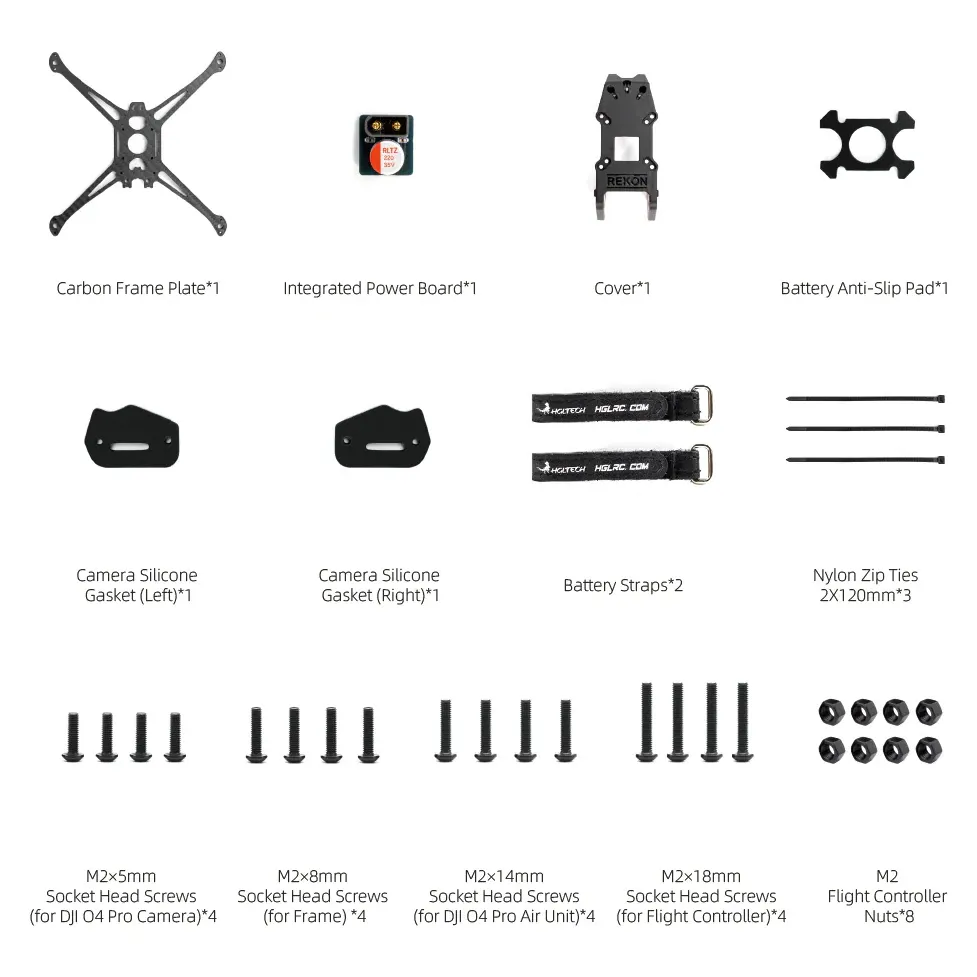

• Ships as a frame kit — carbon plates, canopy, integrated power board, camera silicone gaskets, battery pad and ties plus hardware; electronics are bought separately.

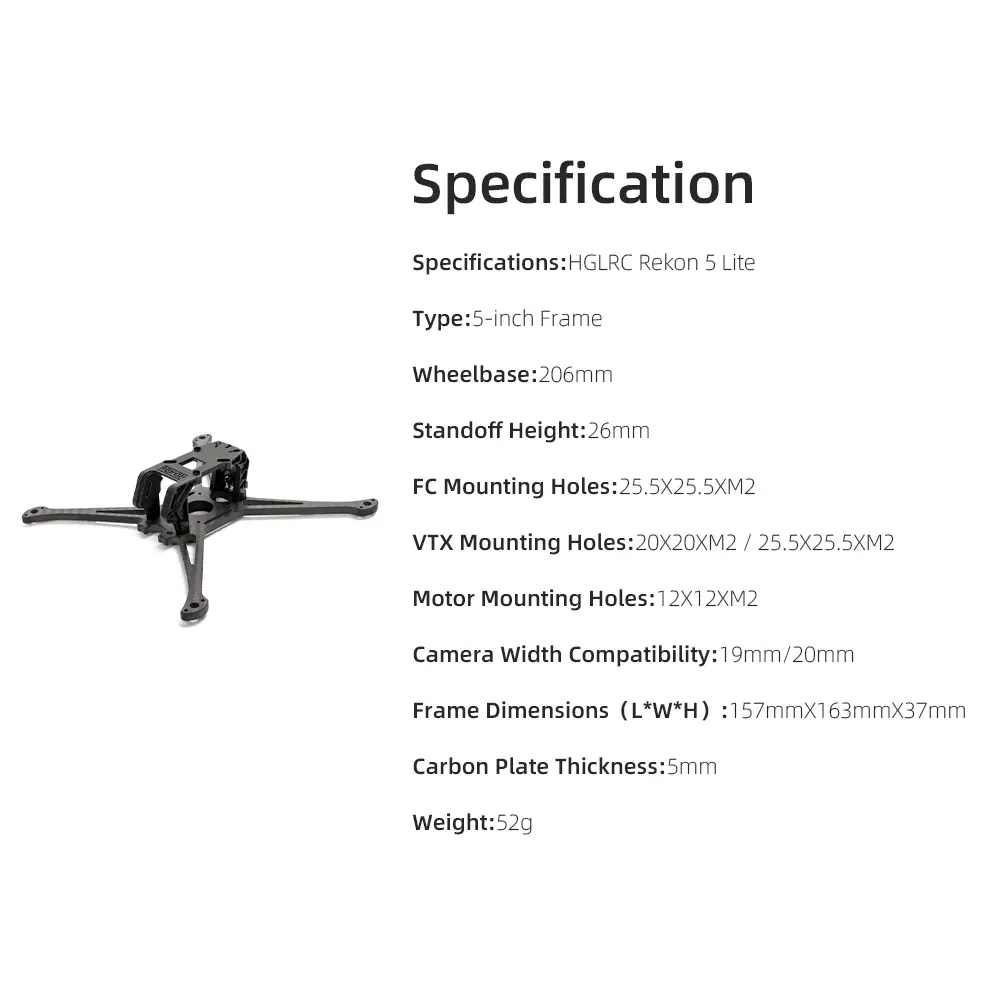

Specifications

• Wheelbase: 206 mm

• Frame weight: 52 g

• Carbon thickness: 5 mm

• Camera width: 19 mm / 20 mm

• Mounting height: 26 mm

• Frame dimensions: 157 x 163 x 37 mm

Motors, flight stack, camera, VTX and battery are sold separately — confirm their mounting patterns and clearance against this frame before assembly.
