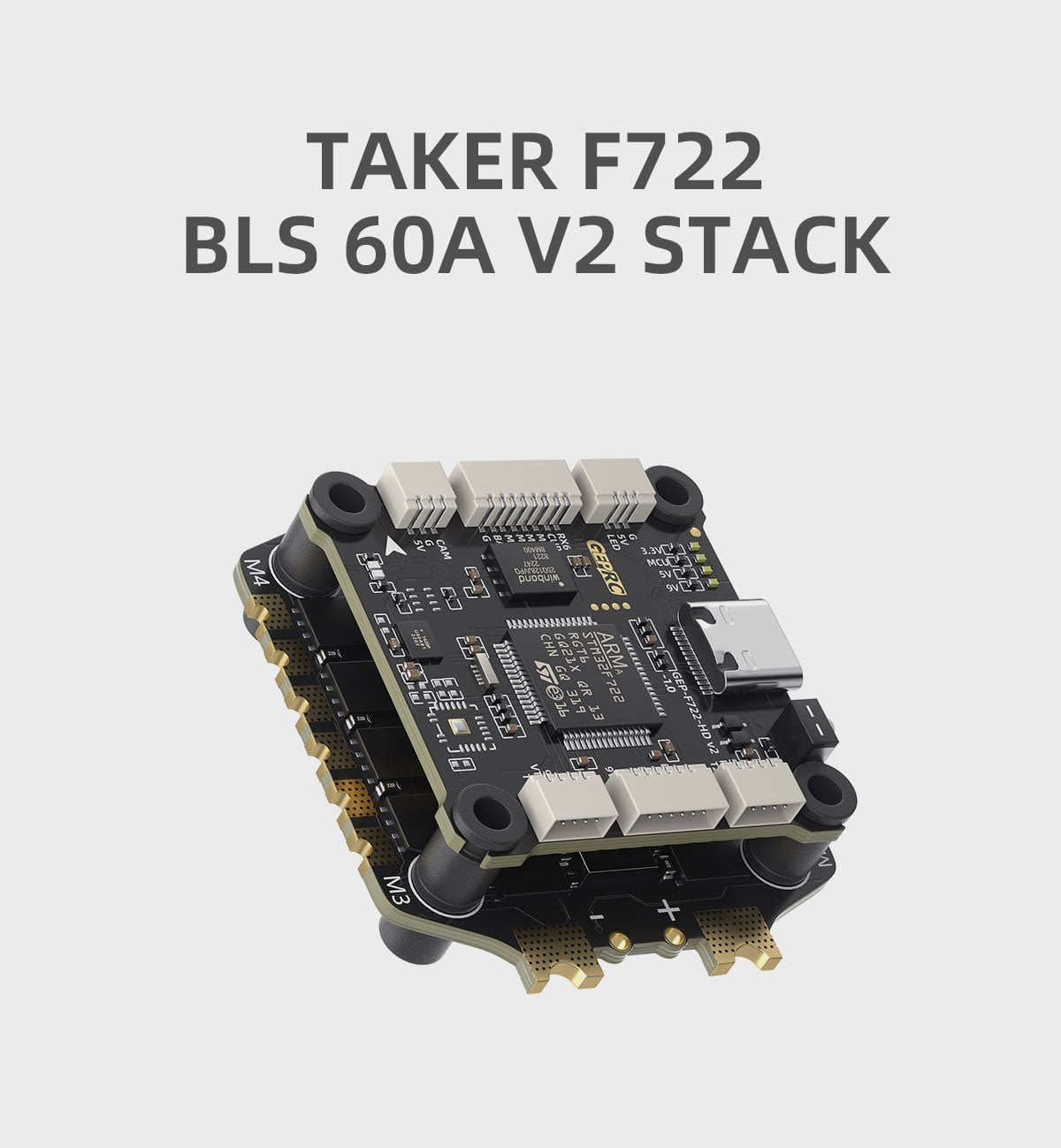

GEPRC Taker F722 BLS 60A V2 Stack (3-6S, 30.5x30.5)

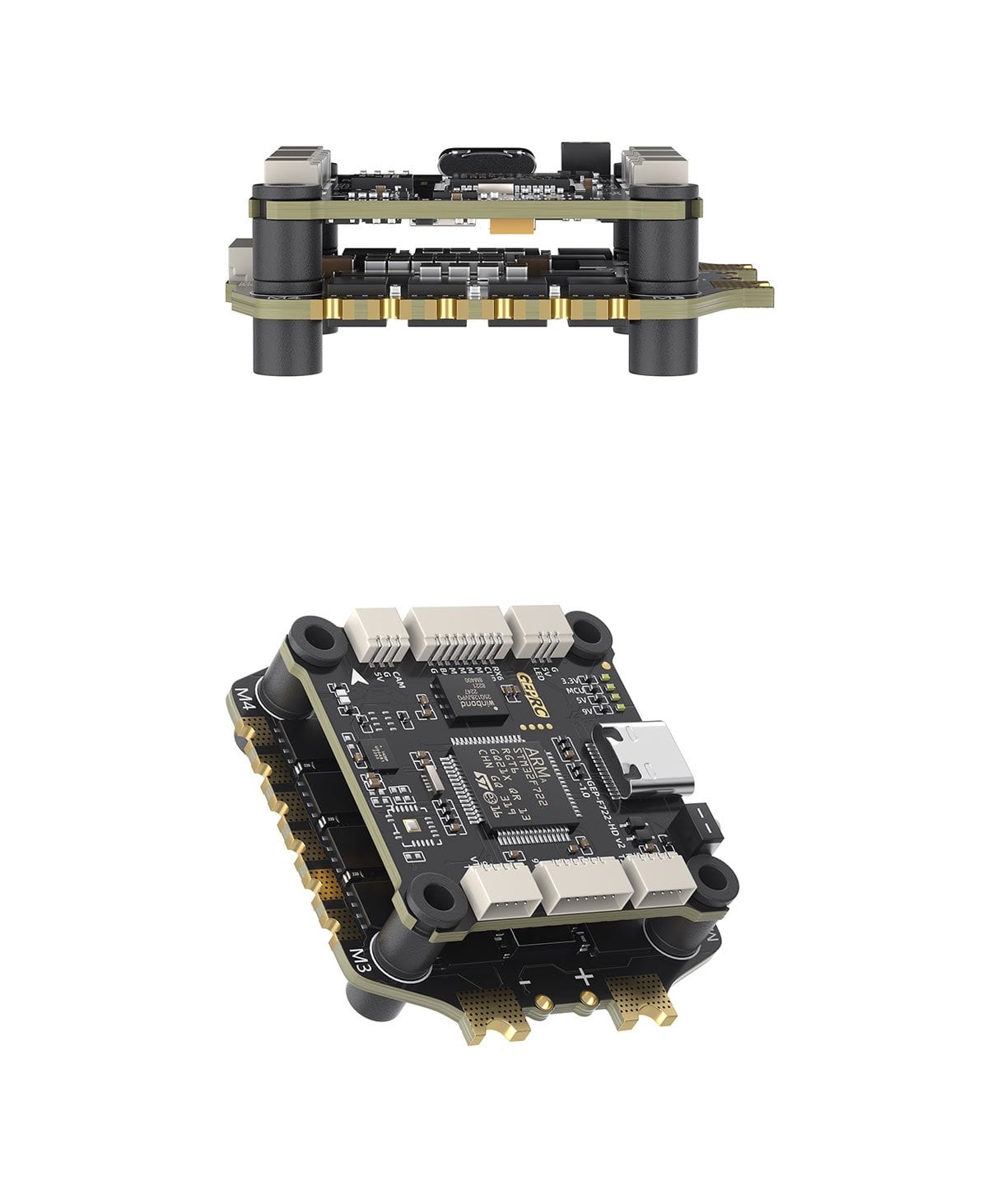

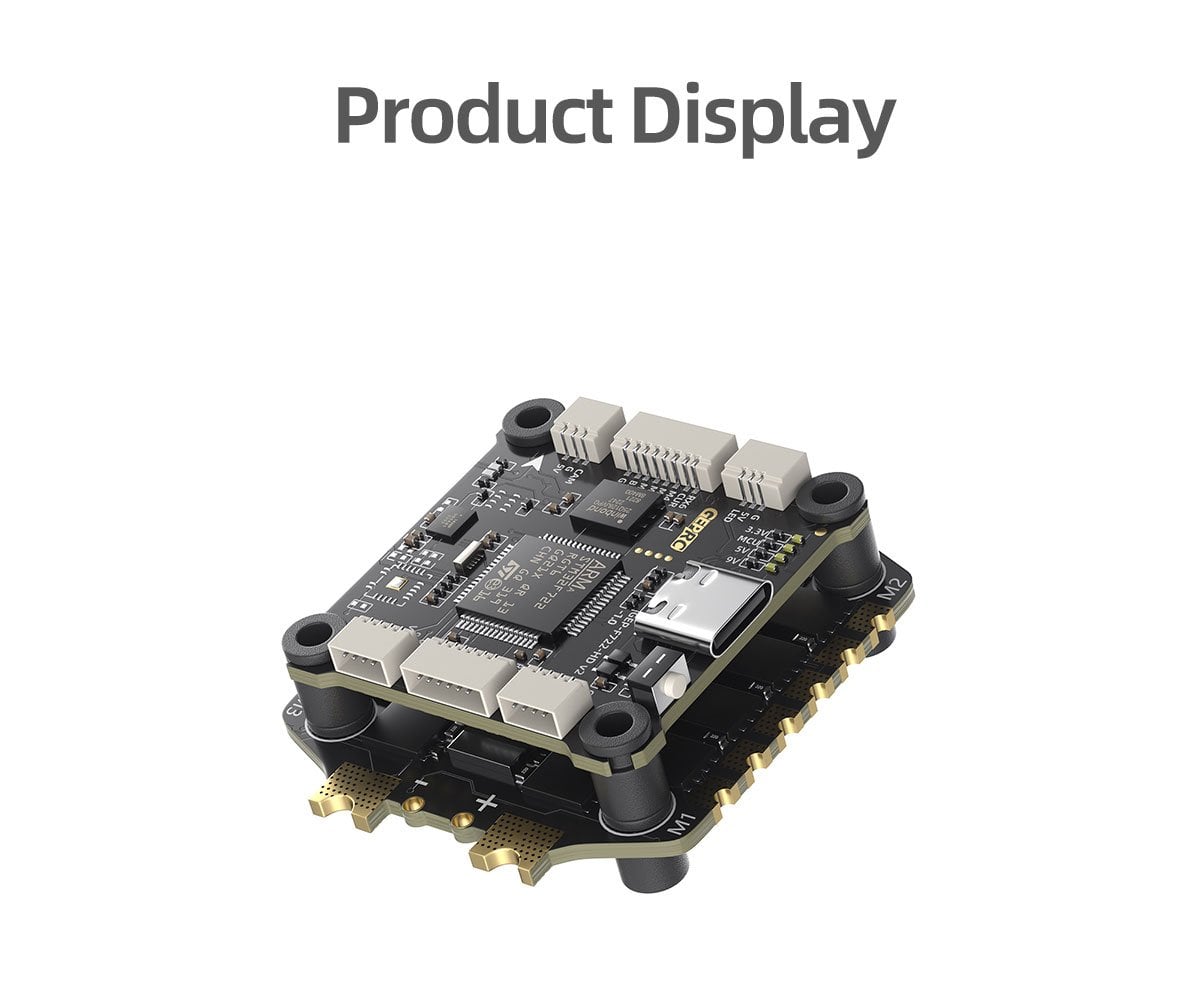

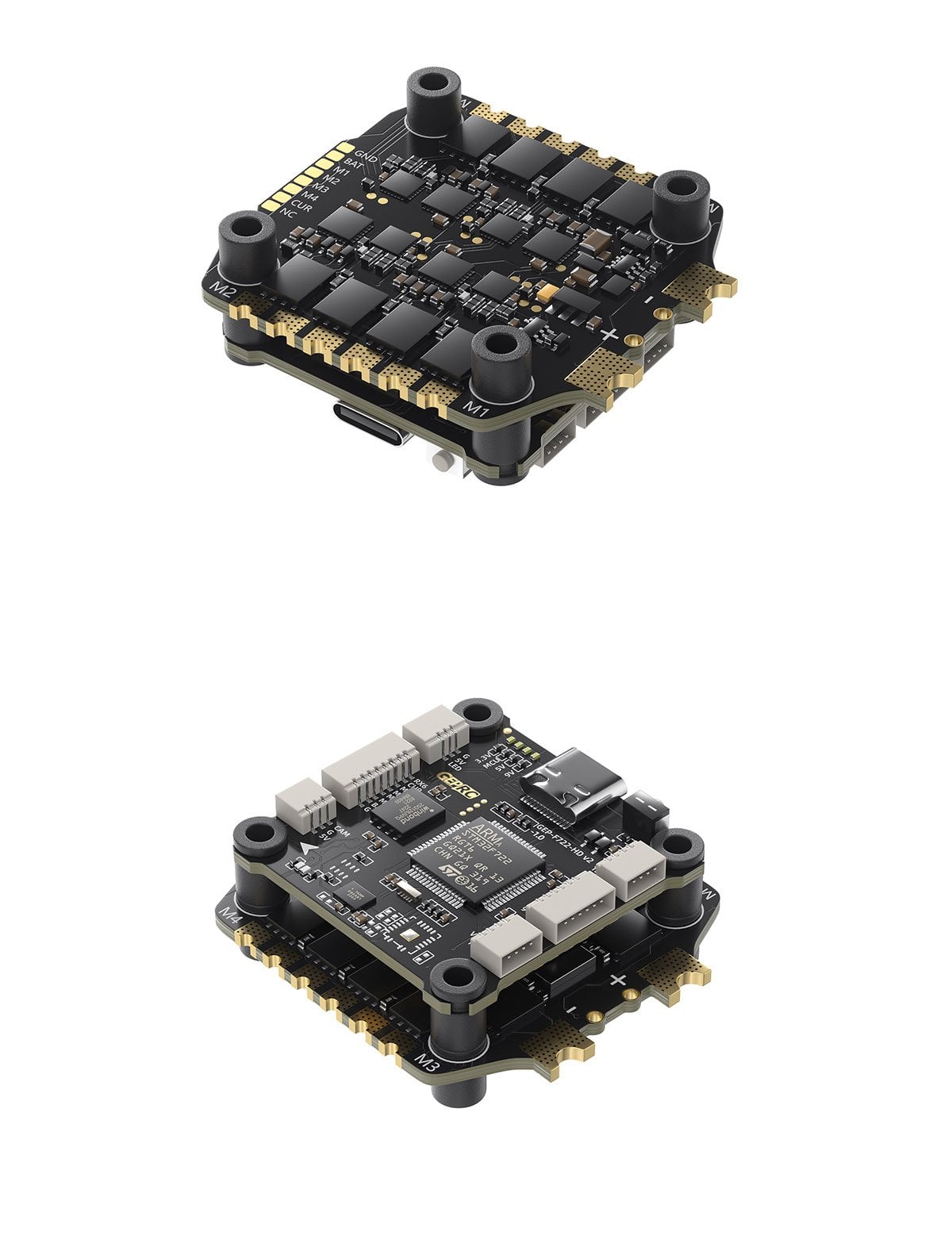

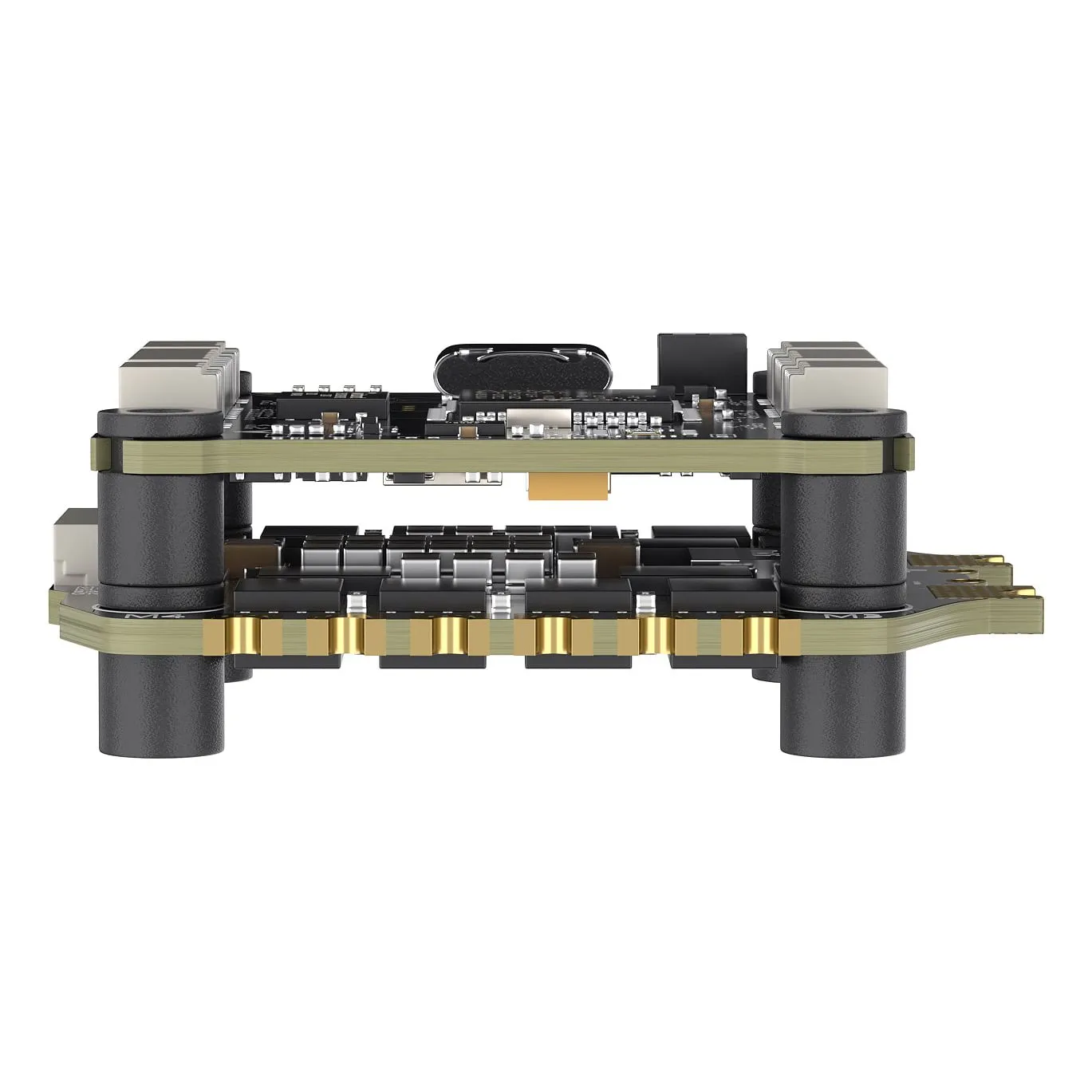

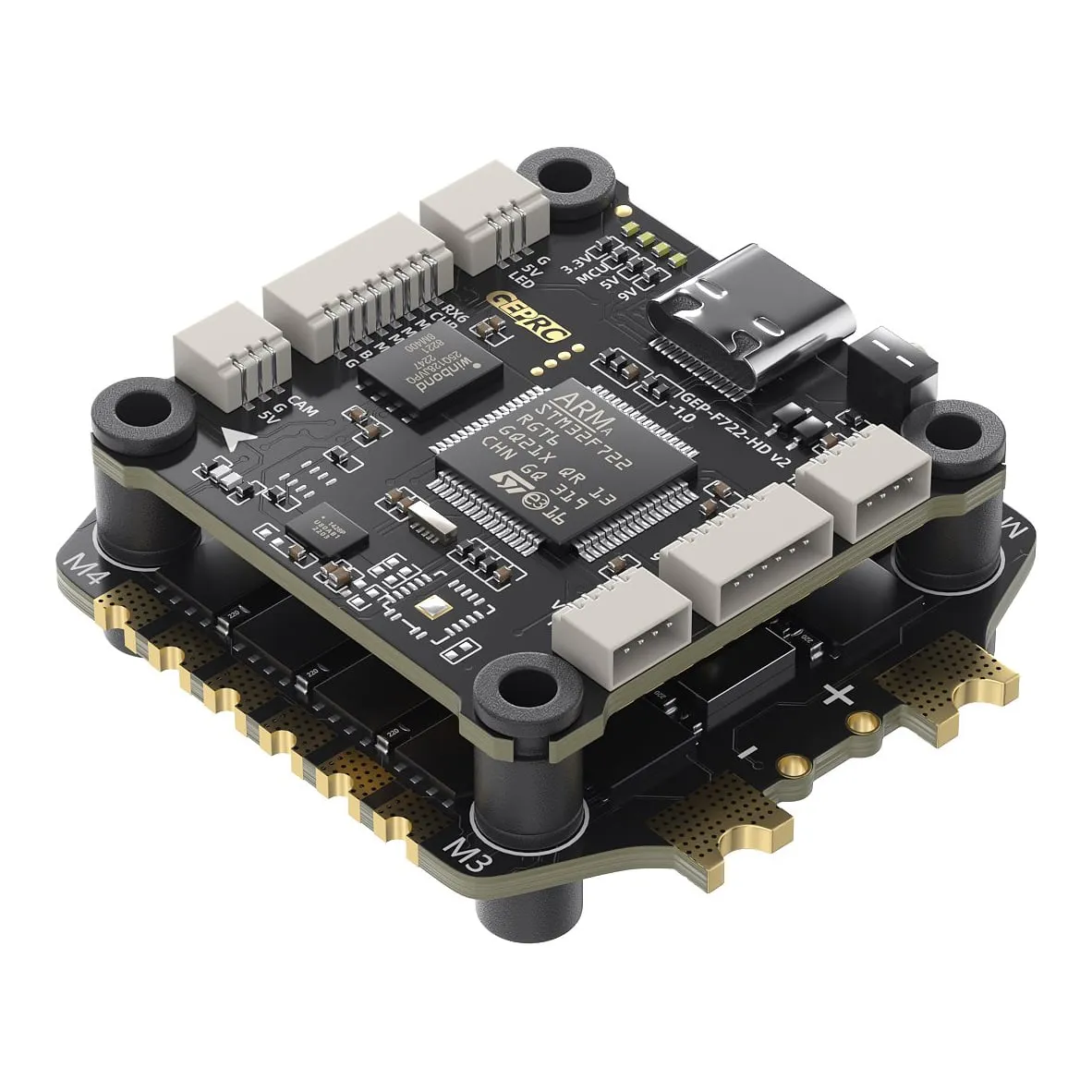

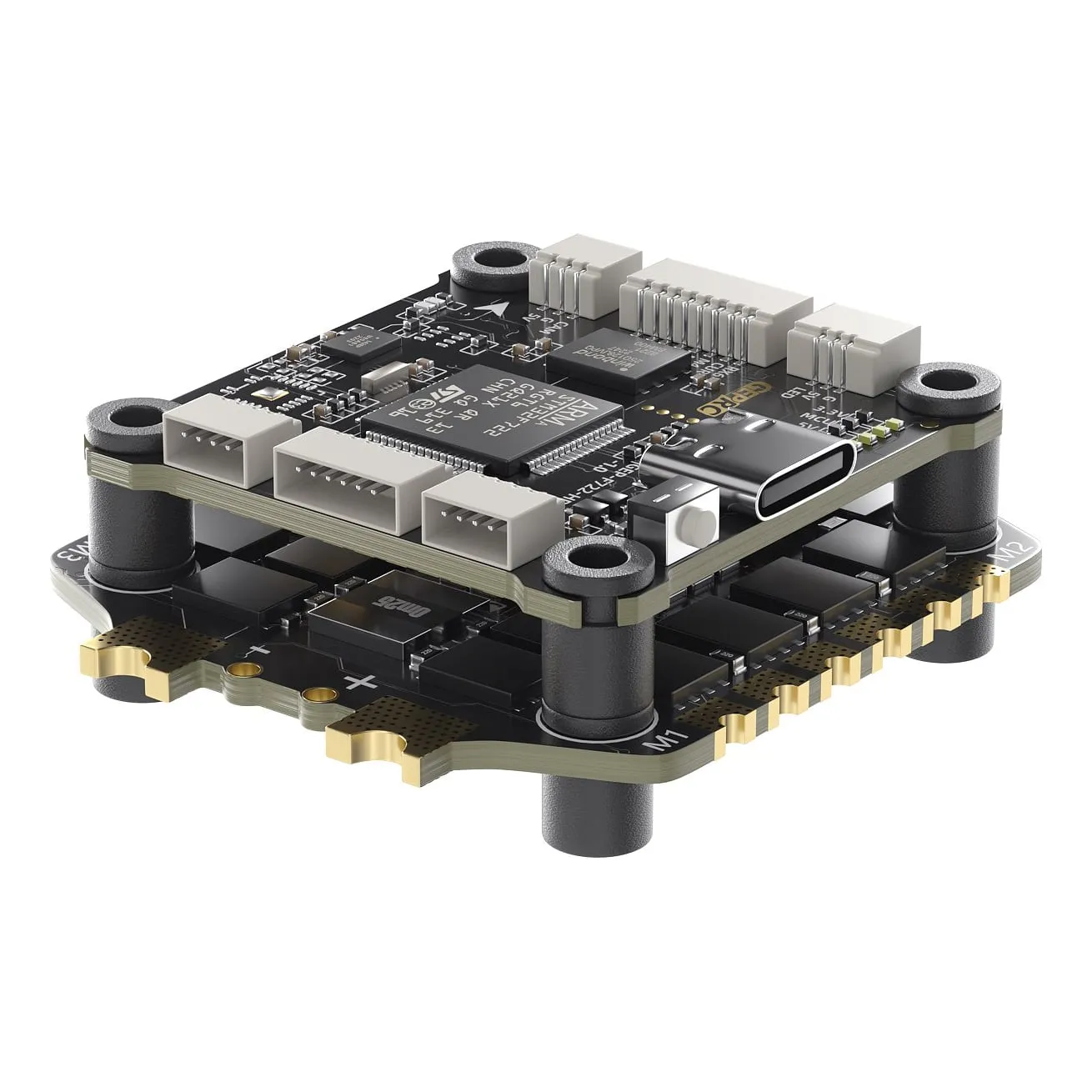

The GEPRC Taker F722 BLS 60A V2 stack pairs the GEP-F722-HD V2 flight controller with the Taker H60_BLS 60A 8-bit 4-in-1 ESC on a 30.5 x 30.5 mm pattern. It suits 5-inch freestyle and racing quads on 3-6S, and direct DJI Air Unit plug-in makes it a quick fit for HD builds.

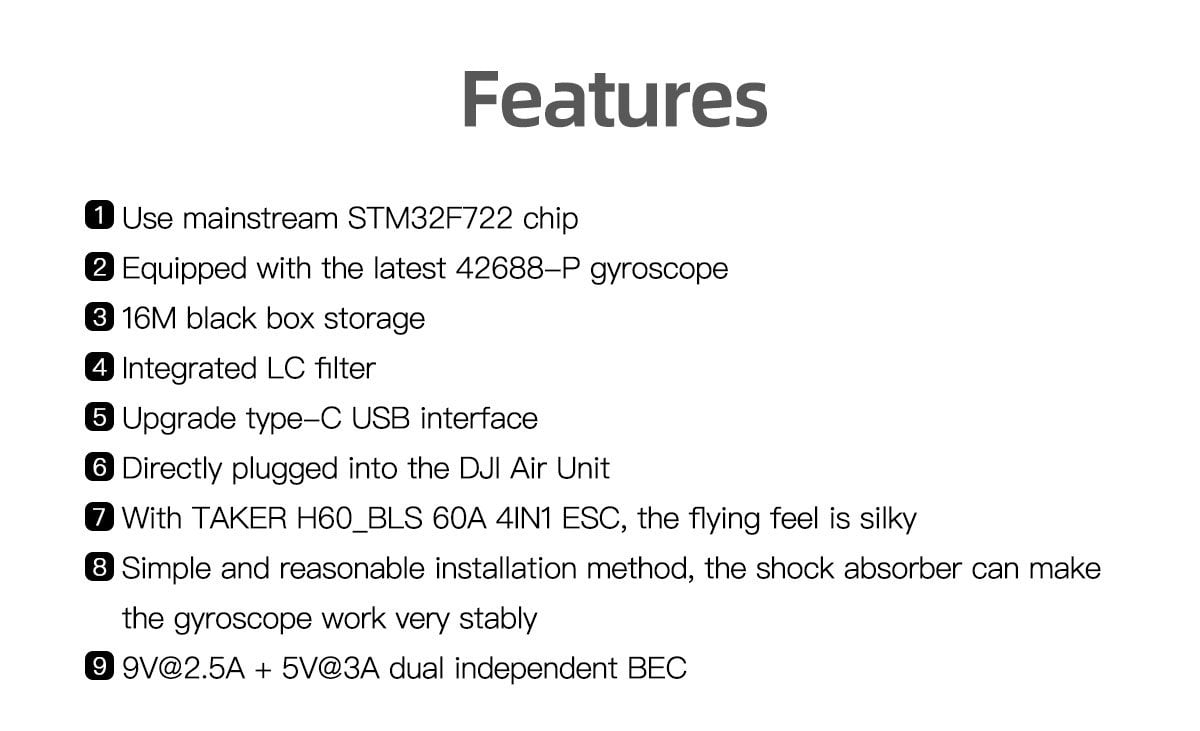

Key features

• STM32F722 FC with ICM42688-P gyro, onboard barometer and 16M blackbox

• Taker H60_BLS ESC: 60A continuous, 65A burst (5 s), with built-in current sensor

• Dual independent BECs: 9V 2.5A and 5V 3A

• Direct DJI Air Unit plug-in, plus AT7456E Betaflight OSD for analog cameras

• Type-C USB, integrated LC filter and five UARTs

• 4 mm mounting holes take the supplied silicone grommets for soft-mounted M3 installation and a cleaner gyro signal

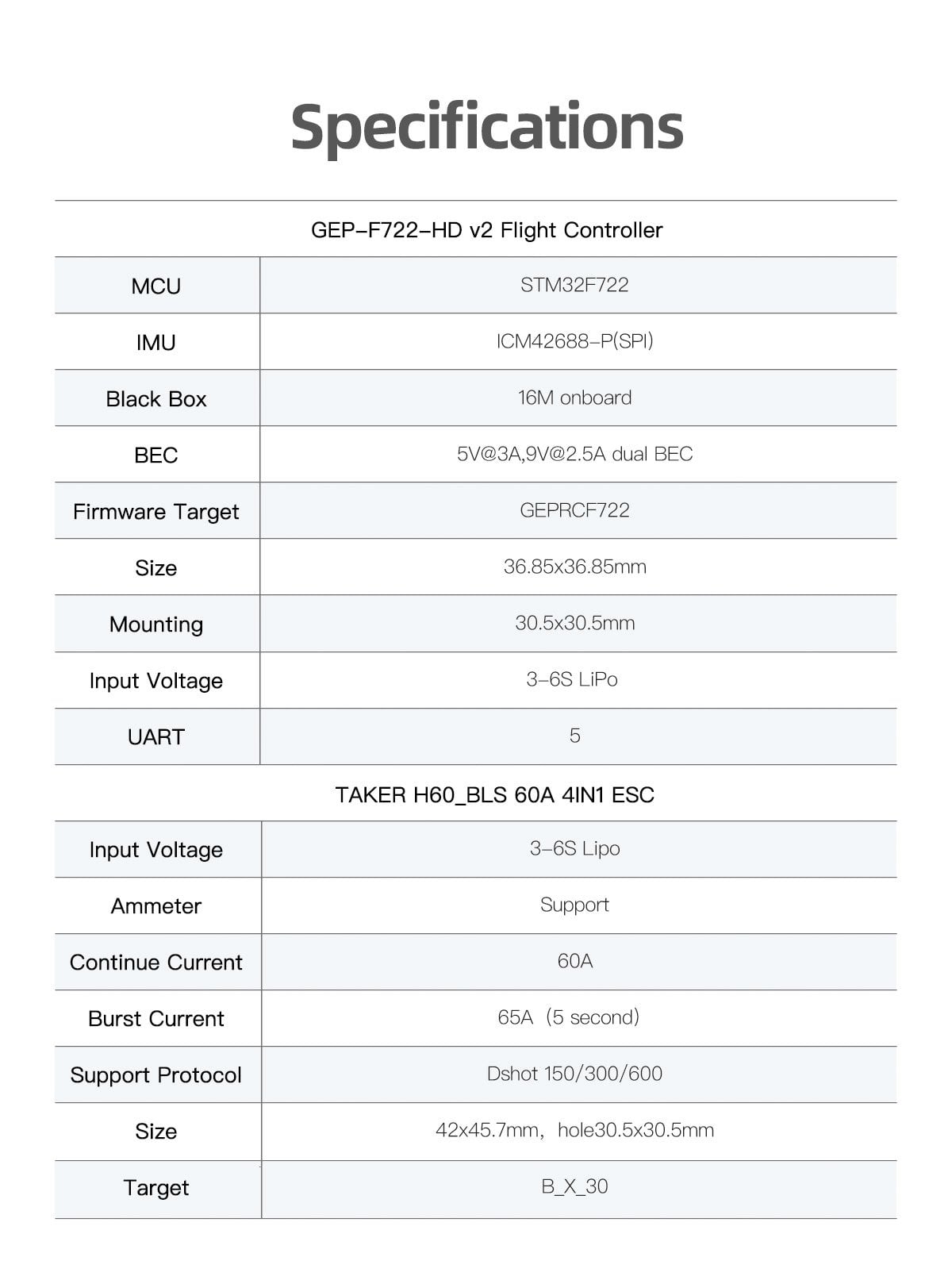

Specifications

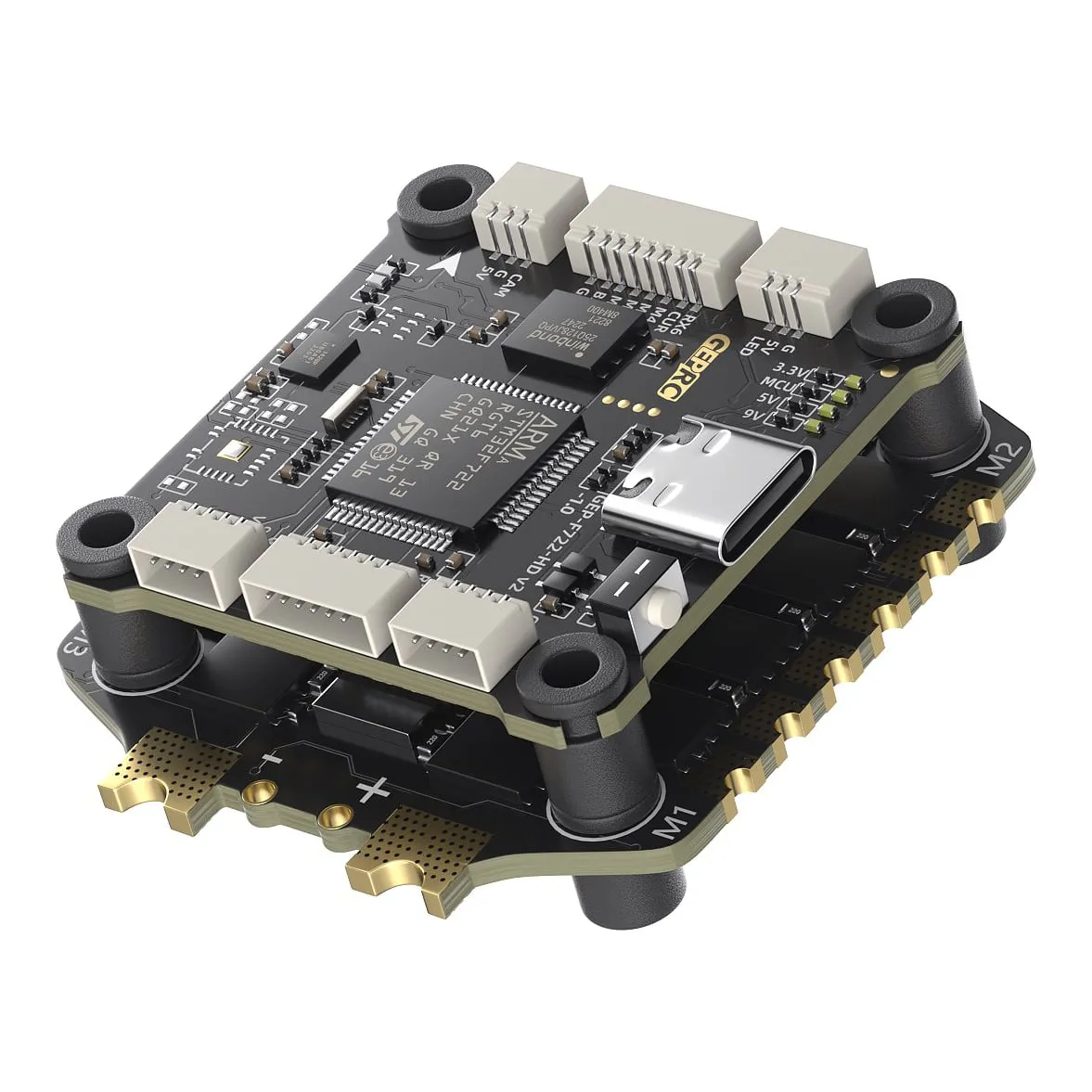

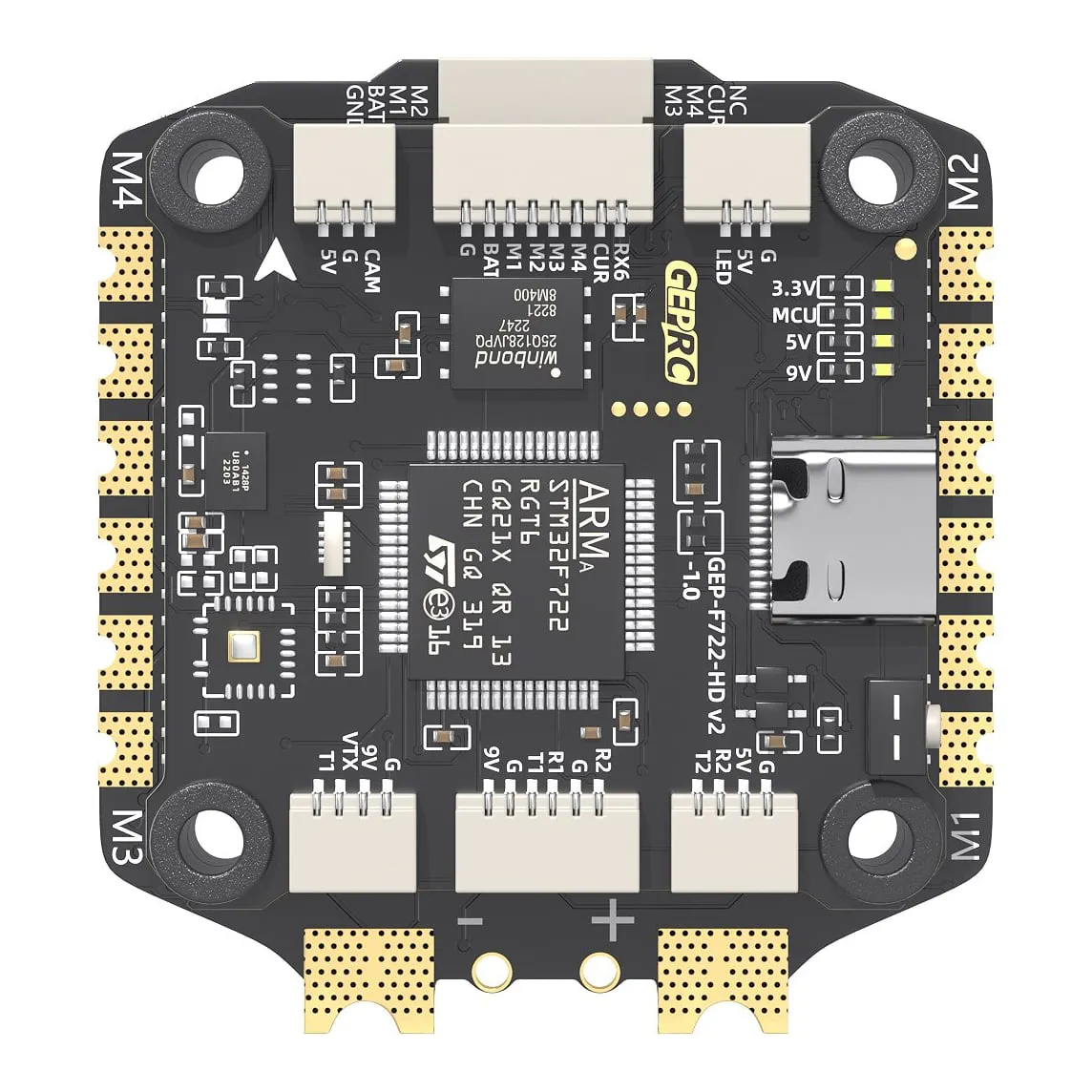

• FC: GEP-F722-HD V2, STM32F722, ICM42688-P, target GEPRCF722

• FC input: 3-6S LiPo

• FC size / weight: 36.85 x 36.85 mm, 8.1 g

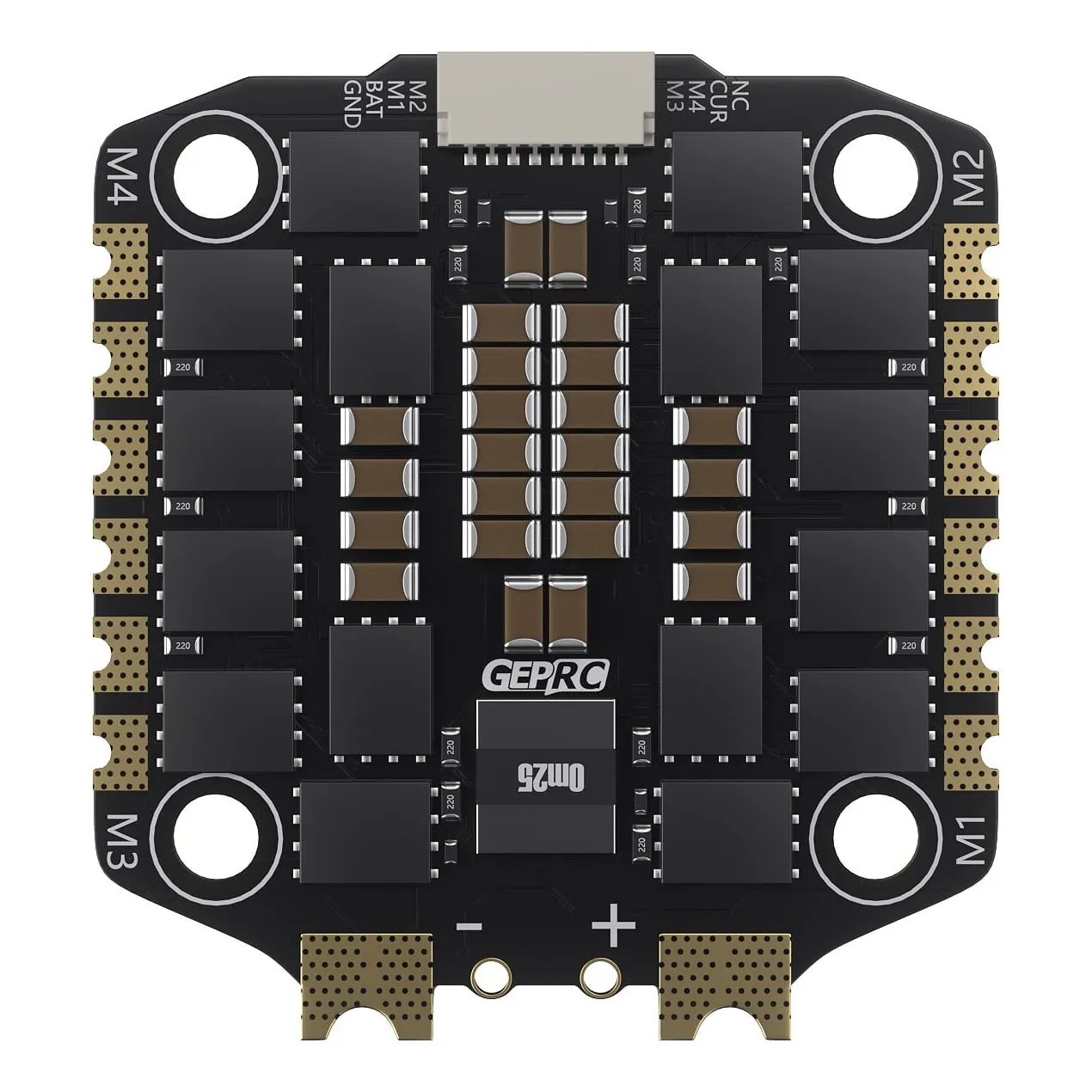

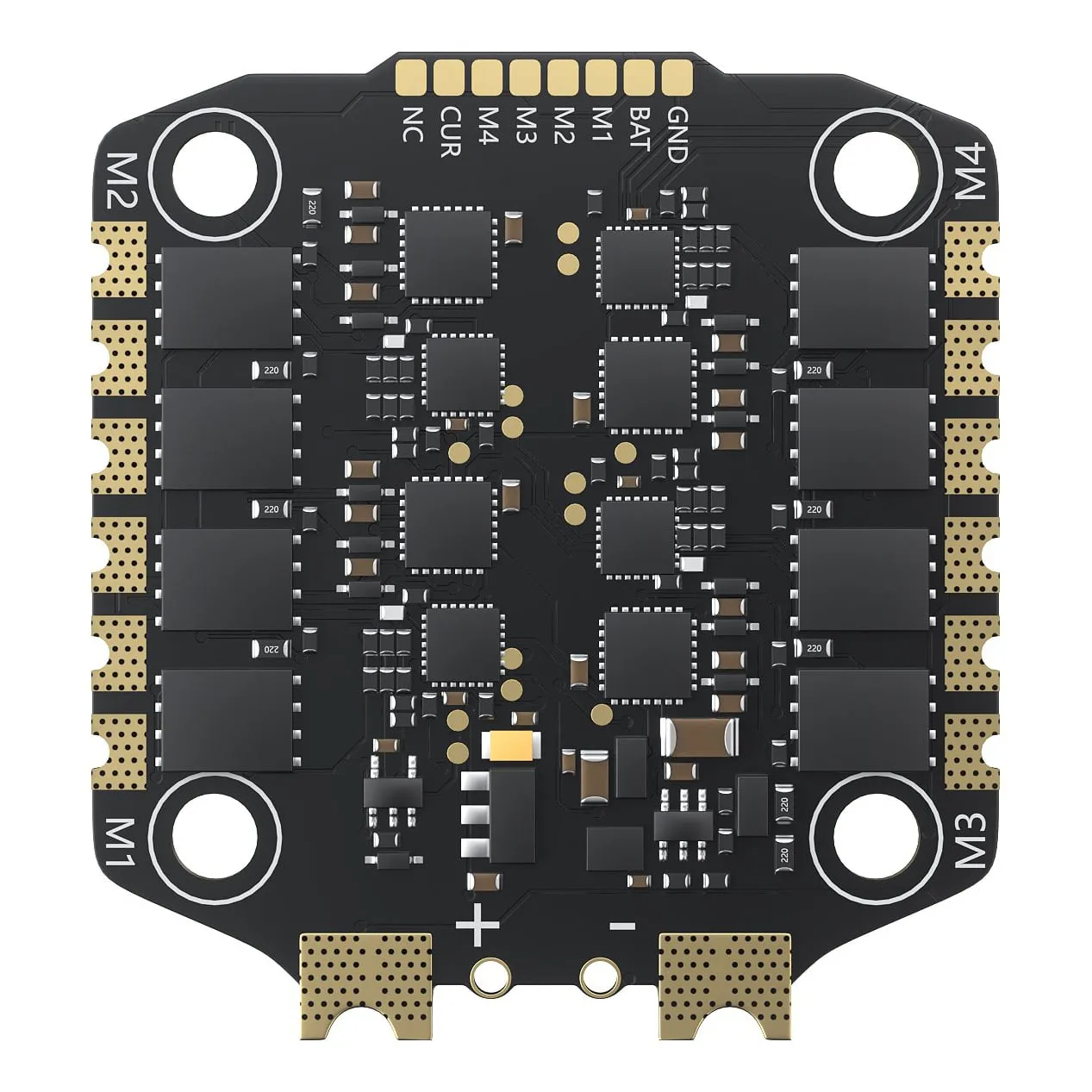

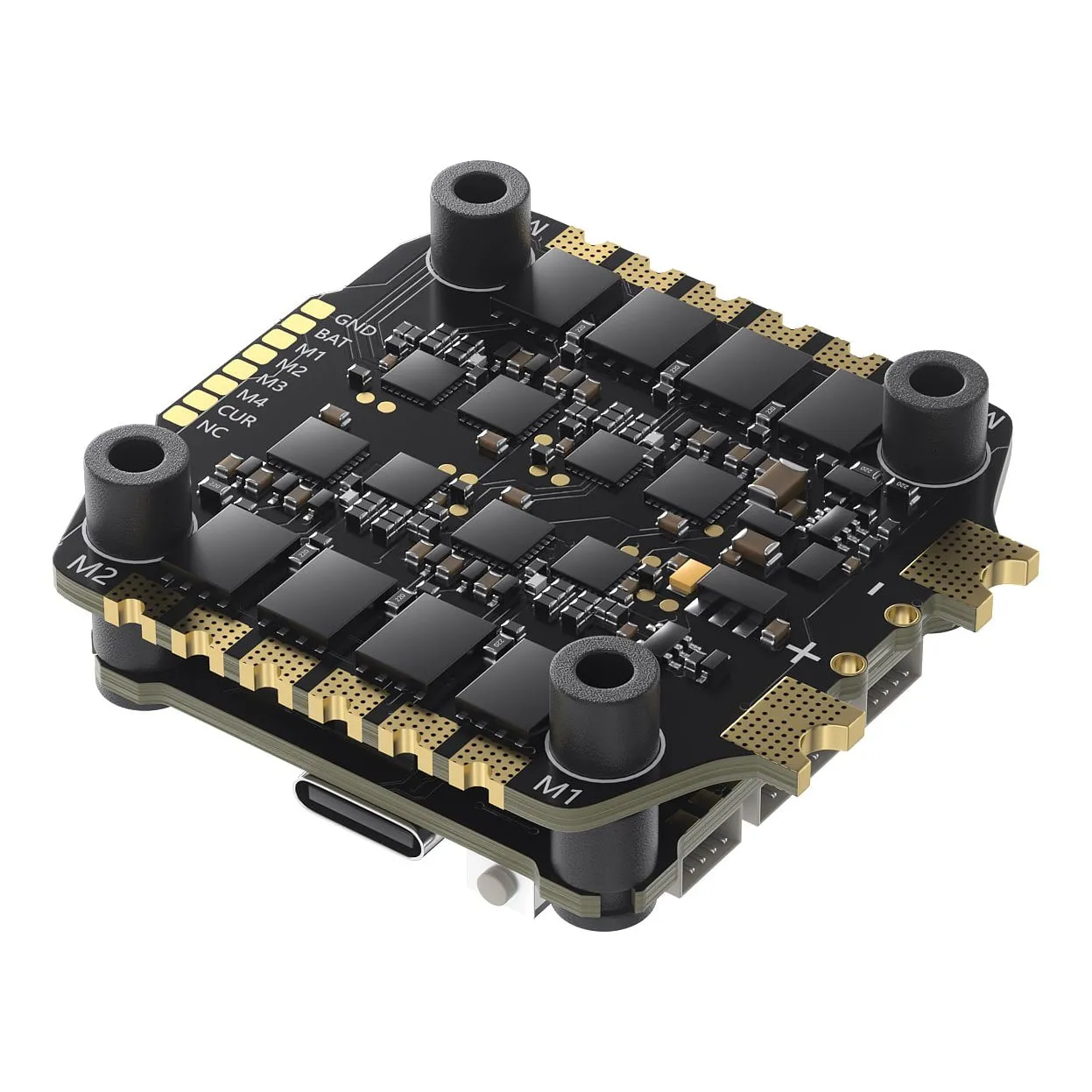

• ESC: Taker H60_BLS, 3-6S LiPo, target B_X_30

• ESC current: 60A continuous, 65A burst (5 s)

• ESC protocols: DShot150/300/600

• ESC size / weight: 42 x 45.7 mm, 14.9 g

• Mounting: 30.5 x 30.5 mm

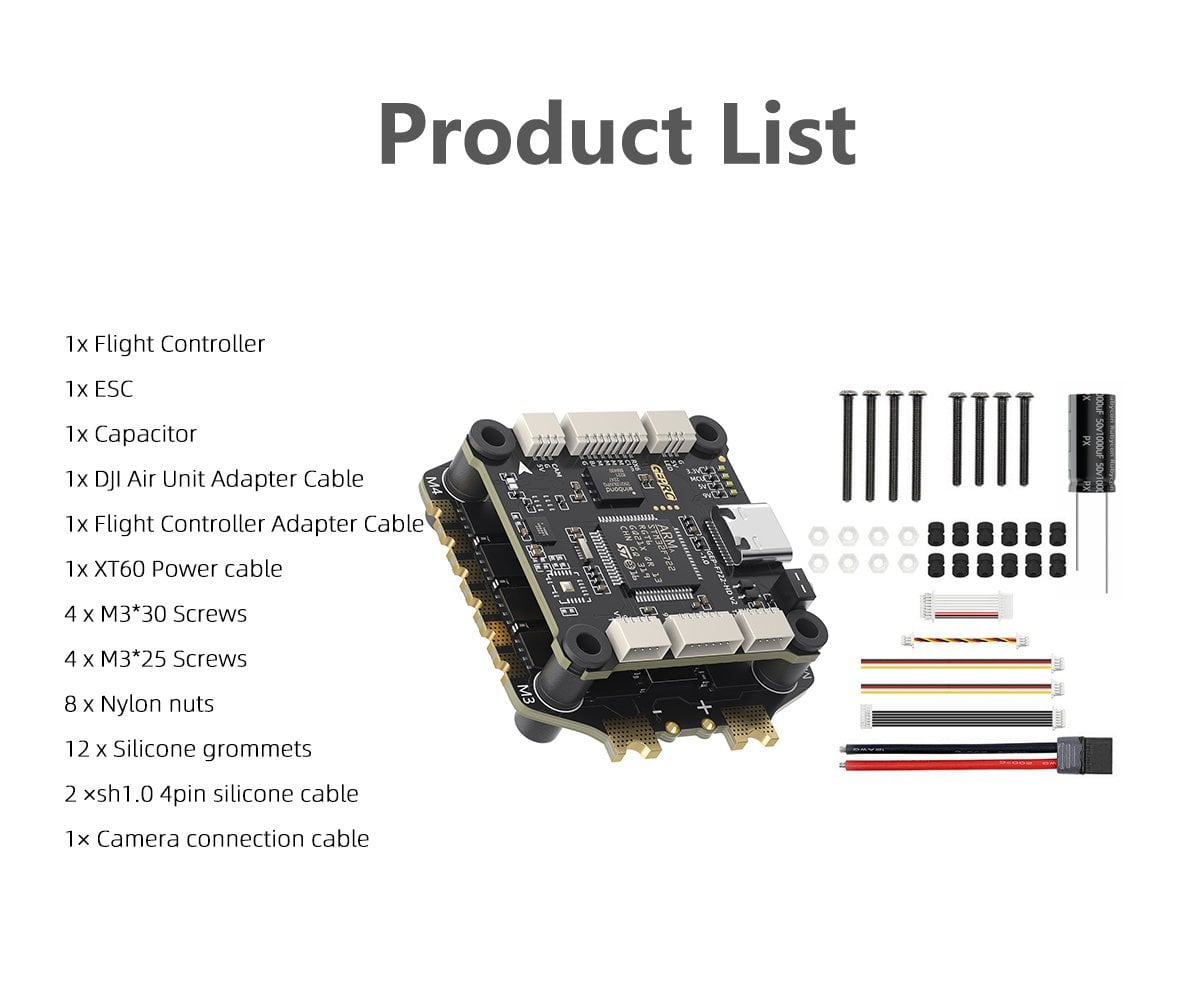

In the box: FC, ESC, capacitor, DJI Air Unit cable, FC adapter cable, XT60 power lead, four M3 x 30 mm and four M3 x 25 mm screws, eight nylon nuts, eight silicone grommets, two SH1.0 4-pin silicone cables and a camera cable.
