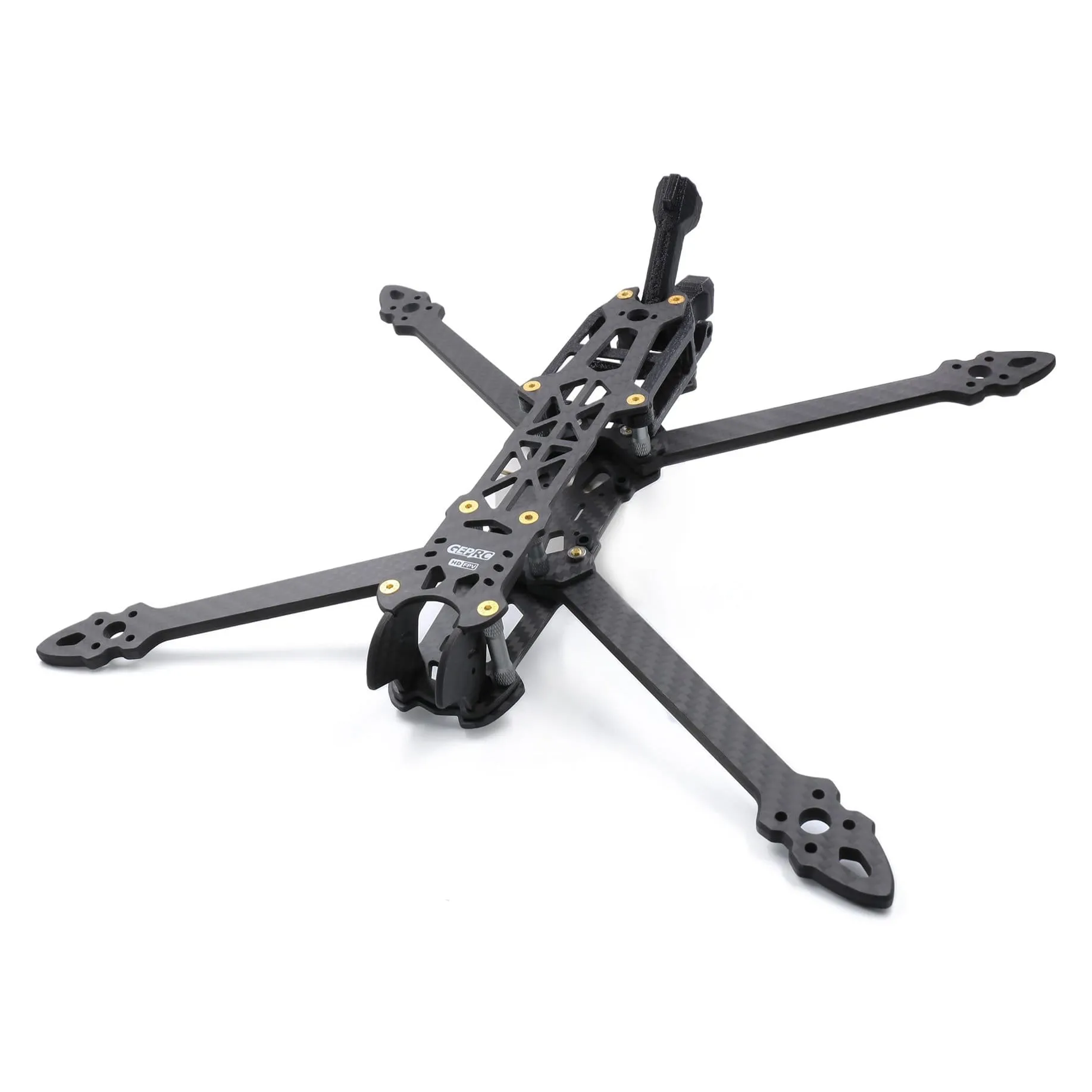

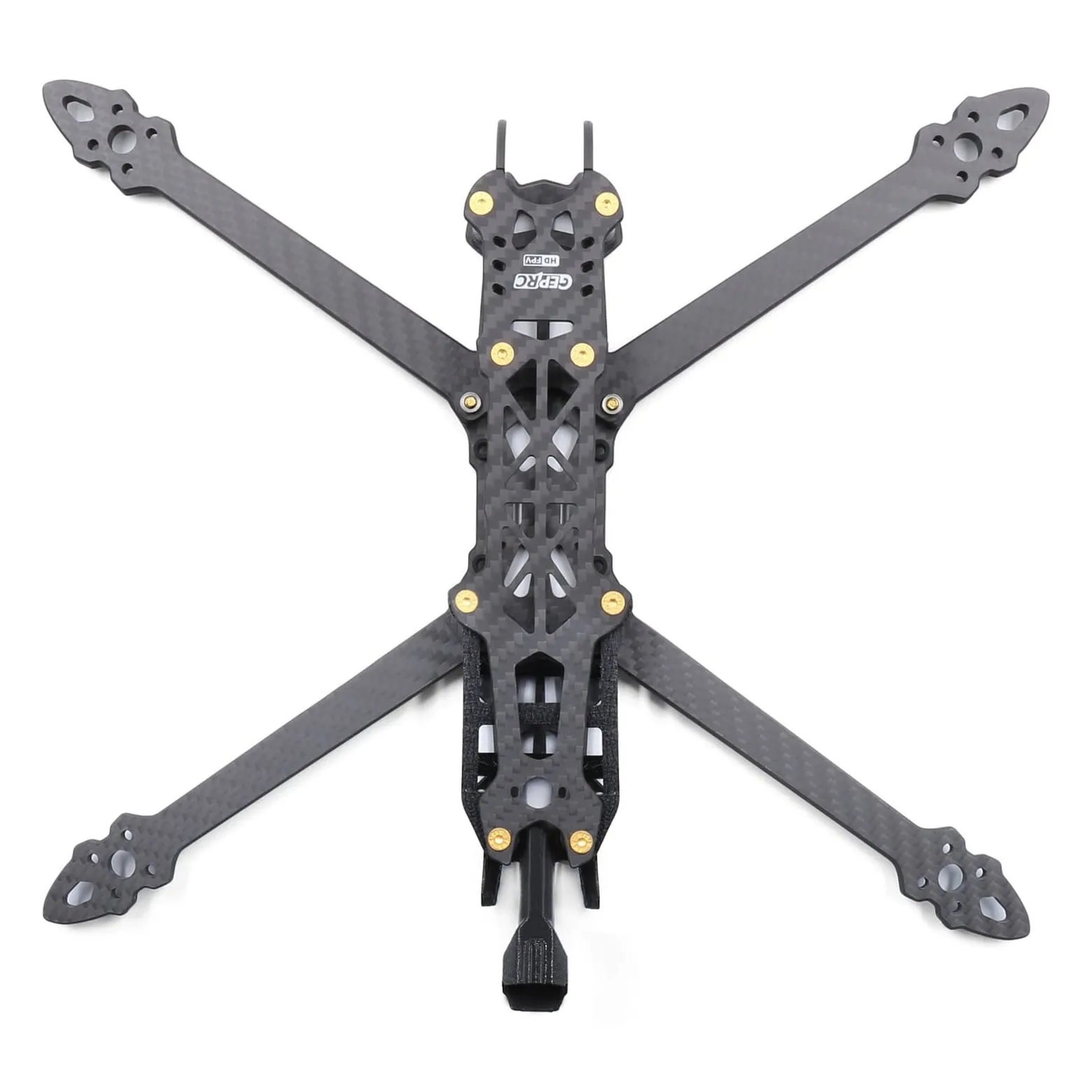

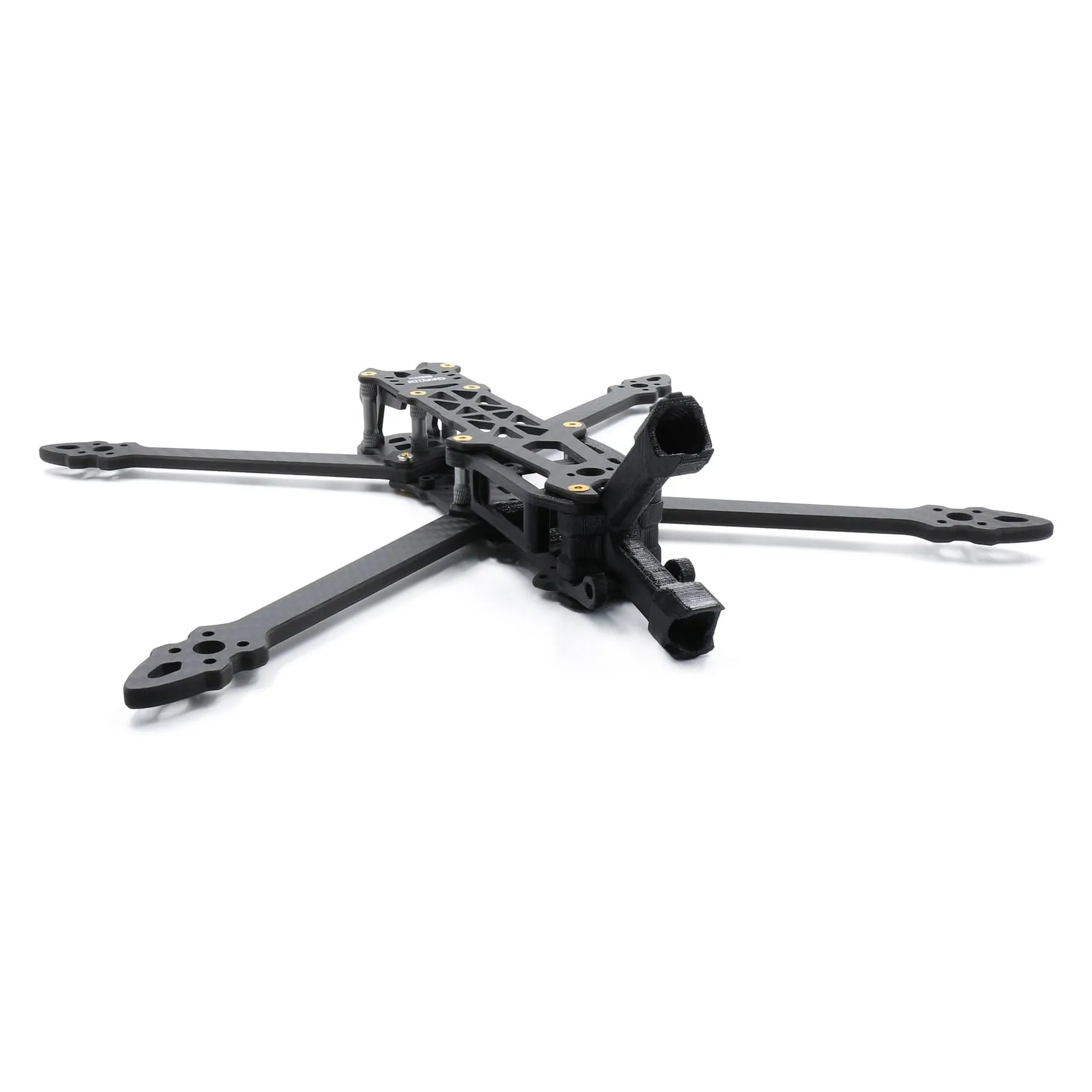

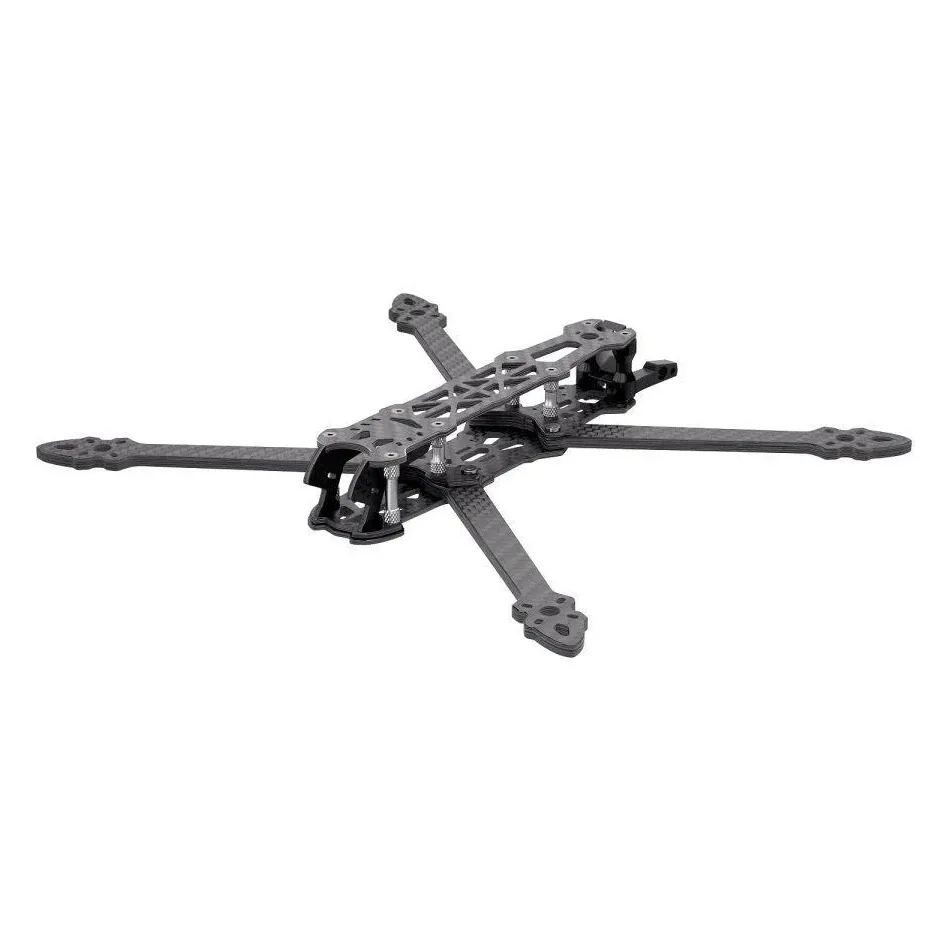

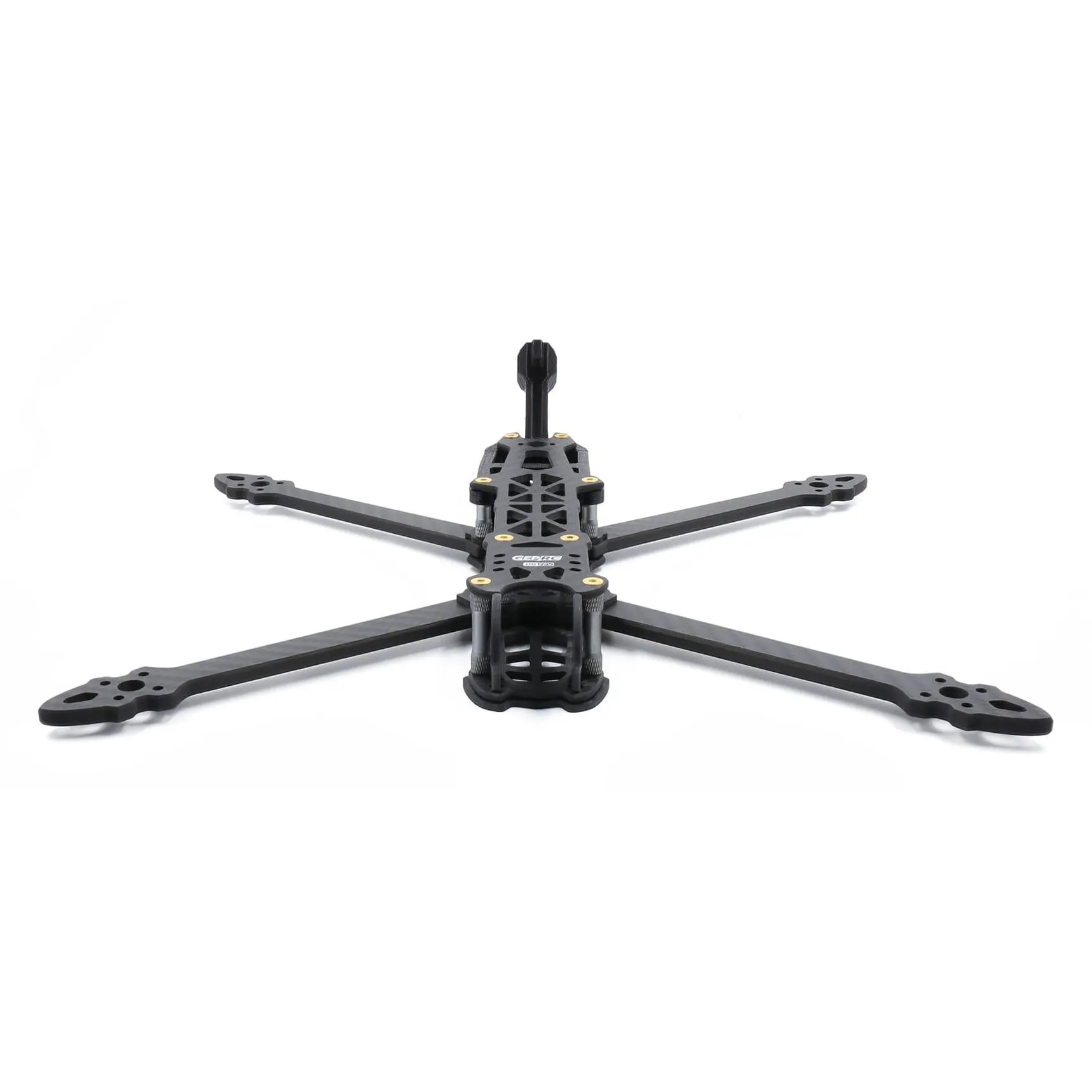

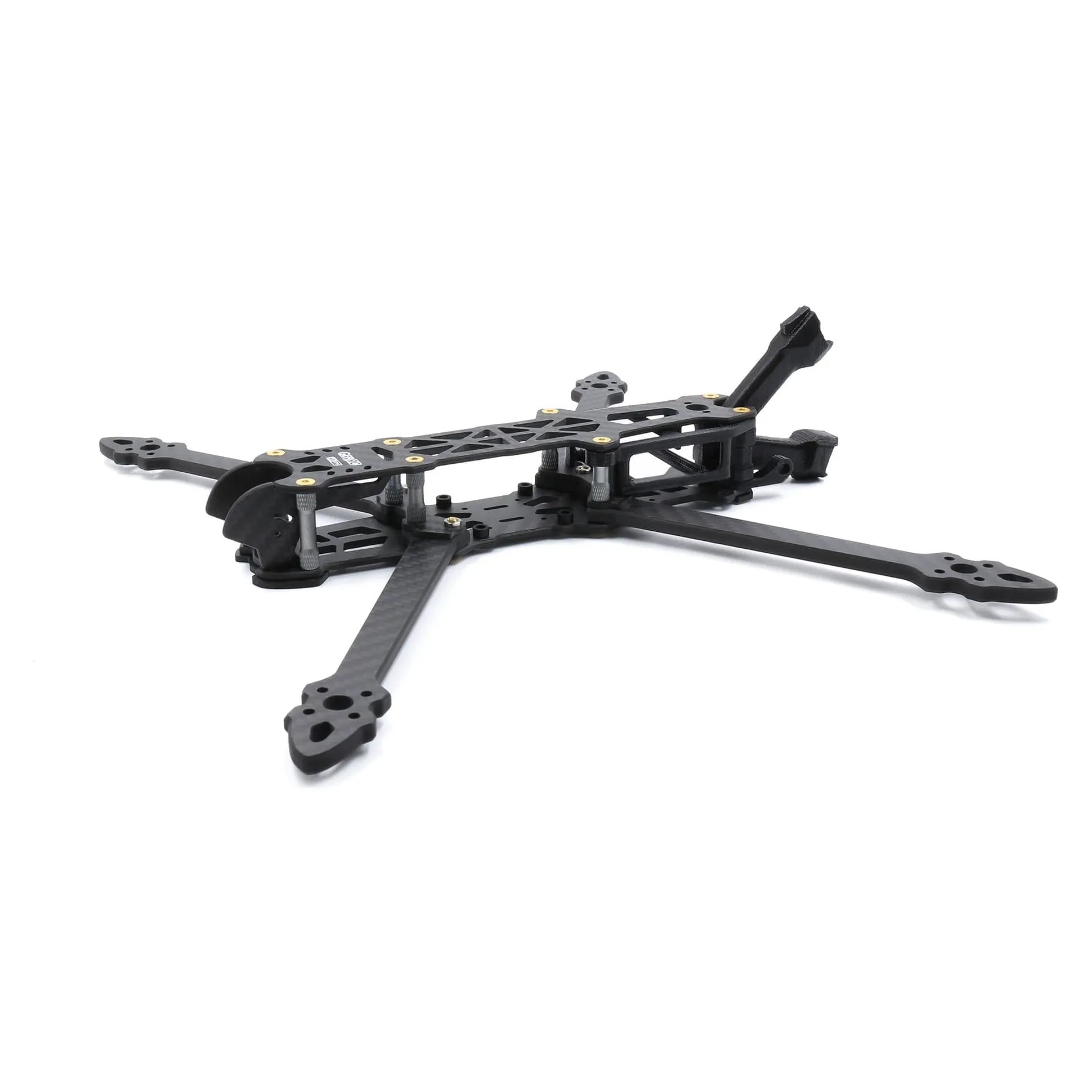

GEPRC GEP-Mark4 Frame 7 inch

The GEPRC Mark4 7-inch is a proven, reliable frame built specifically for long-range mountain surfing, cinematic heavy-lift, and extended flight times. Featuring an elongated H-style layout, it offers a spacious main deck that easily accommodates large-capacity Li-Ion or LiPo packs, dual electronics stacks, and an HD action camera up front without crowding your components.

Key features

• Durable 5mm independent carbon fibre arms designed to handle the high torque of large-stator motors.

• Versatile dual-stack mounting (30.5x30.5mm and 20x20mm) in both the centre and rear deck positions for your FC, ESC, and VTX.

• Elongated H-frame geometry keeps the 7-inch propellers largely out of your FPV camera's field of view.

• Dedicated 19x19mm micro camera mounting with protective carbon side plates.

Specifications

• Wheelbase: 295 mm

• Arm Thickness: 5 mm

• Top / Bottom Plates: 2.5 mm

• Stack Mounting: 30.5x30.5 mm, 20x20 mm

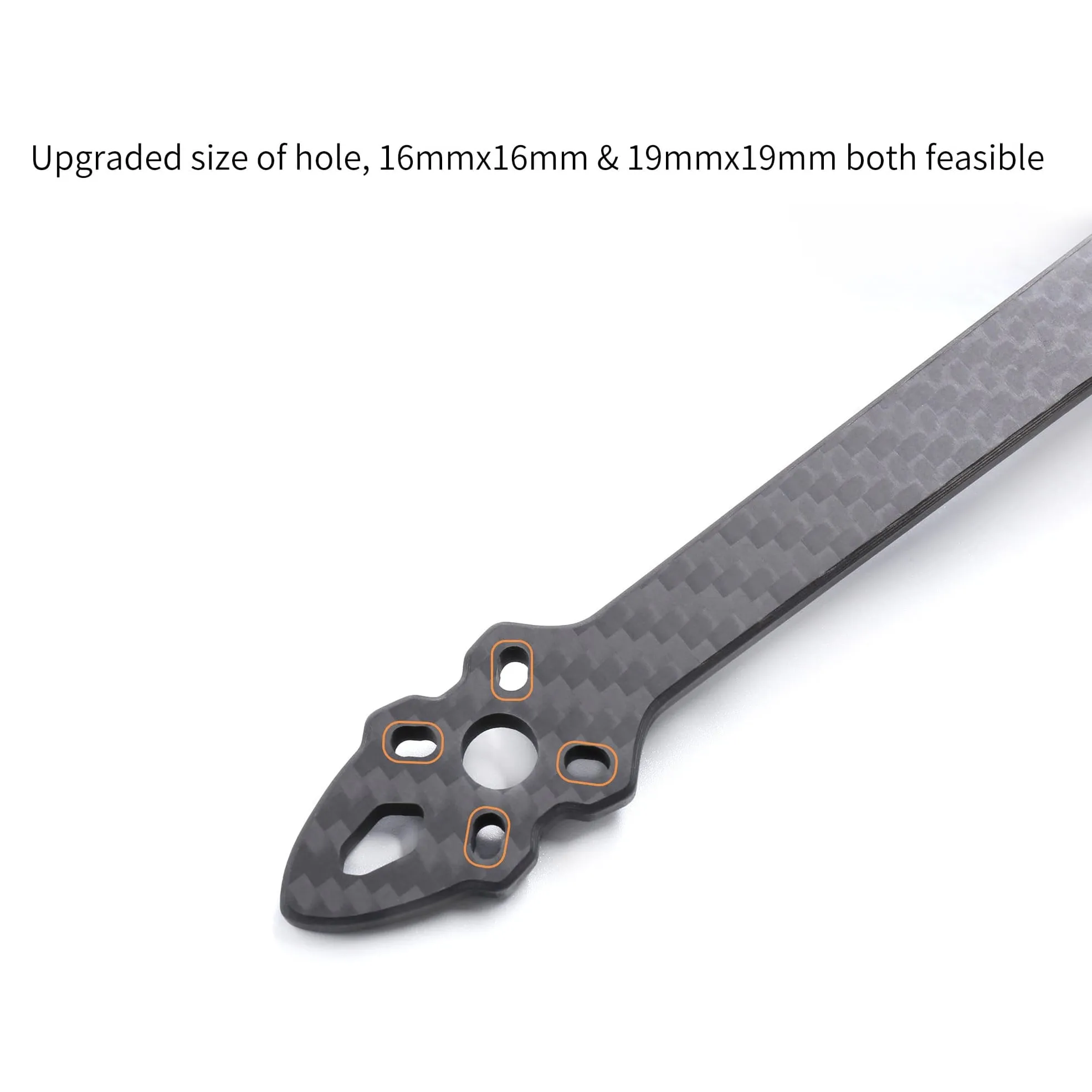

• Motor Mounting: 16x16 mm, 19x19 mm

• Camera Size: 19x19 mm

• Weight: 121 g

For an optimal long-range build, pair this frame with 2806.5 motors, 7-inch bi-blade propellers, and a heavy 6S LiPo or Li-Ion battery. The generous rear deck provides a perfect, isolated mounting spot for a large VTX and a GPS module to ensure signal reliability over distance.
