Mark4 V2 8 Inch Frame

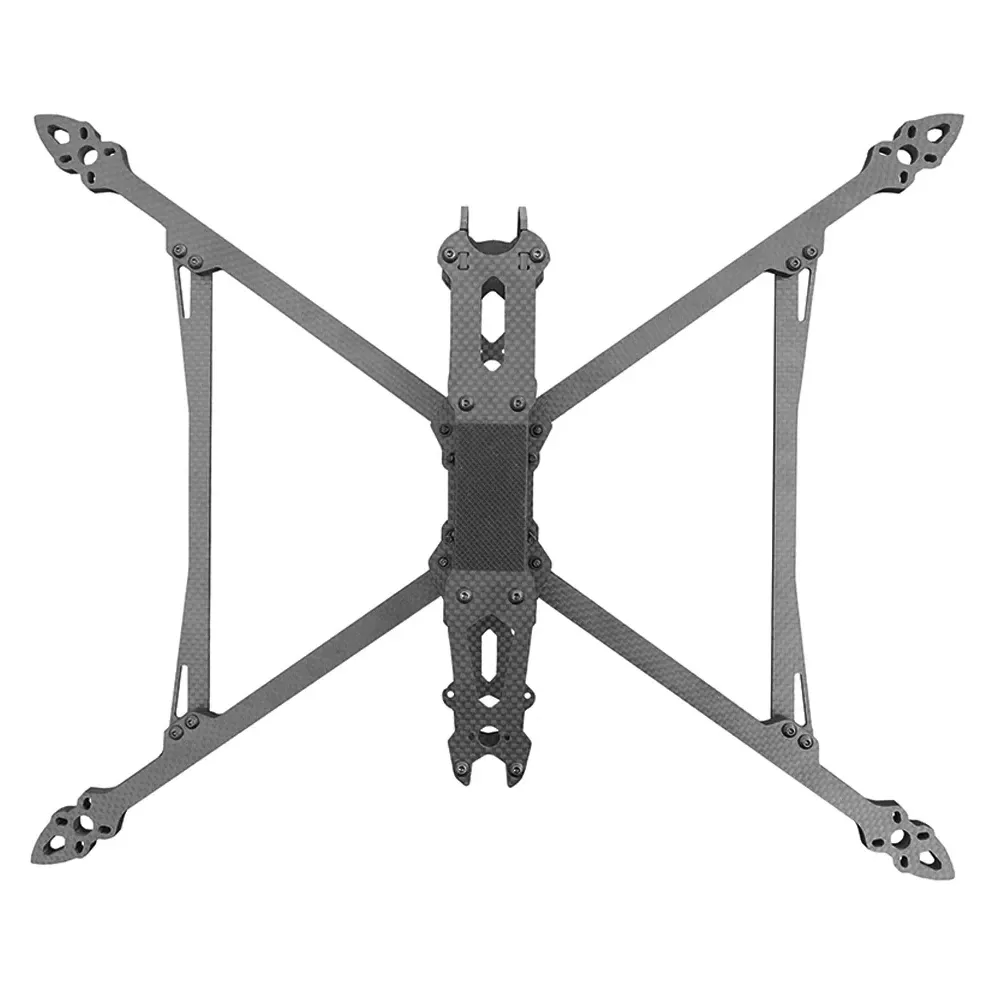

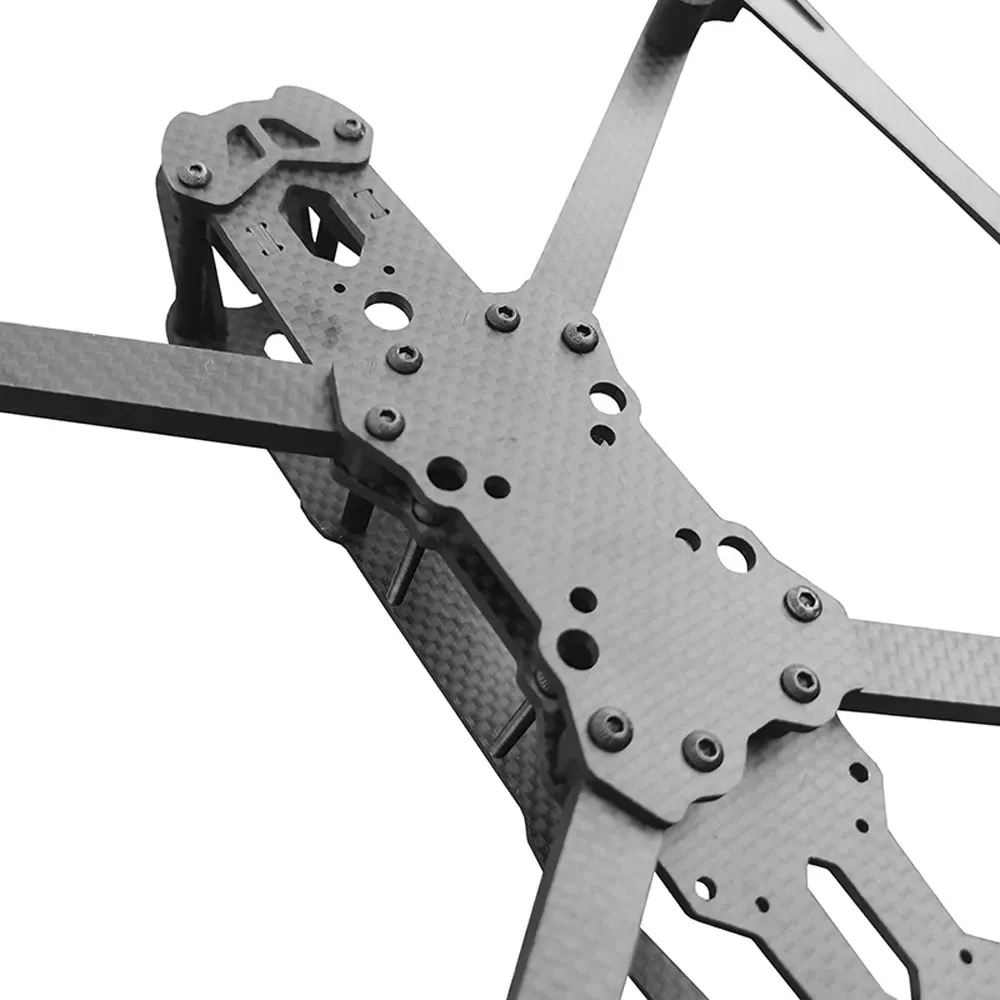

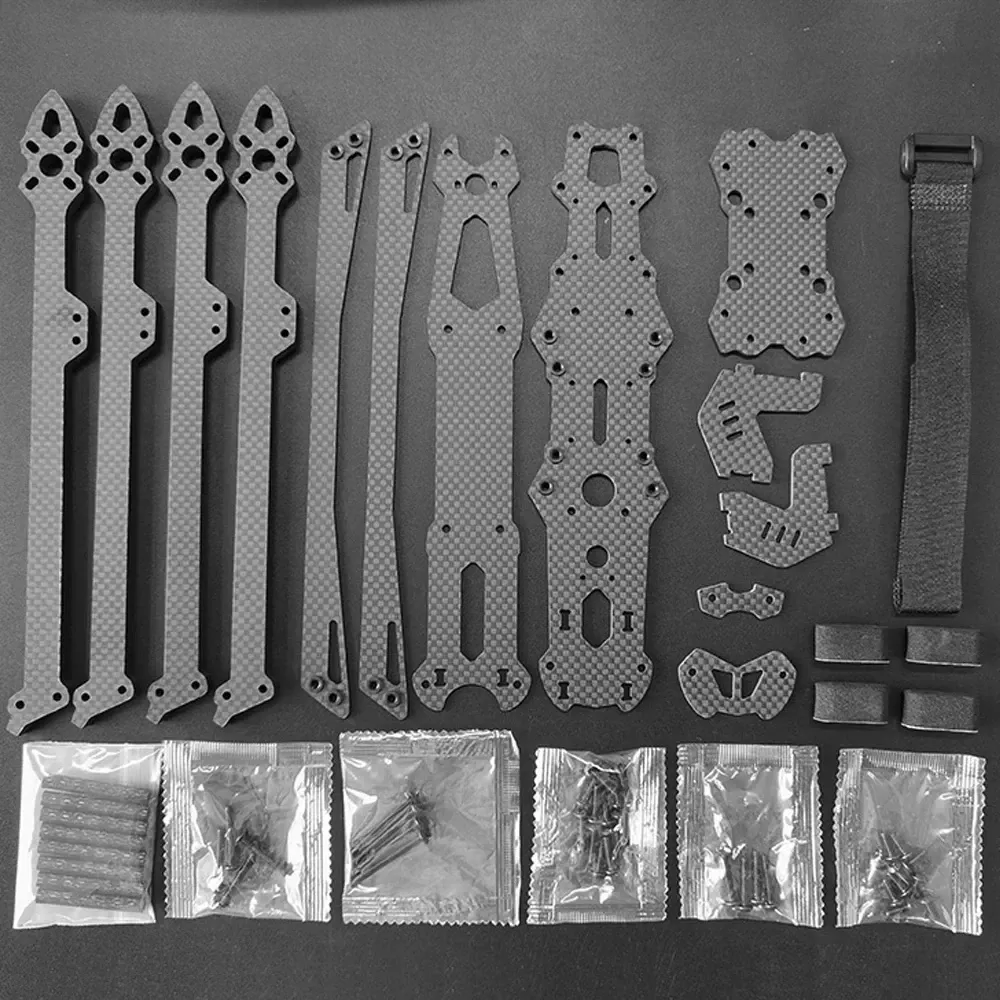

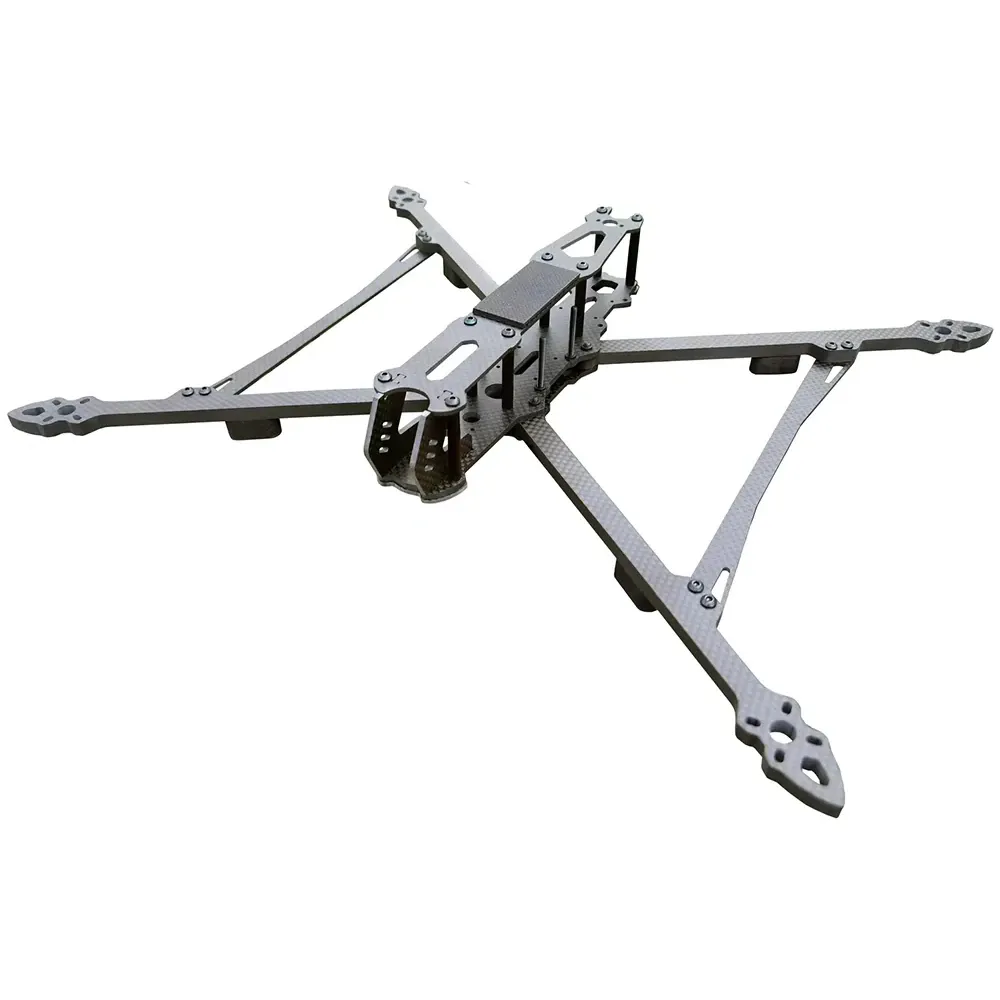

This 8-inch carbon fibre frame is built for heavy-lift long-range FPV and macro freestyle, with a 367mm wheelbase sized for 8-inch propellers. Thick camera arms and reinforced plates give it the stiffness to carry large-capacity Li-Ion packs, GPS and bulky digital video transmitters.

Key features

• 6mm-thick camera arms resist flex and vibration under the higher torque of 8-inch propellers.
• 30.5x30.5mm flight controller mounting, with both 30.5x30.5mm and 20x20mm patterns at the VTX position.
• 35mm of internal stack height leaves room for a full FC/ESC stack plus a digital VTX or GPS module.
• 19mm camera mounting width suits standard micro FPV cameras.

Specifications

• Wheelbase: 367 mm
• Camera arm thickness: 6.0 mm
• Bottom plate thickness: 3.0 mm
• Top plate thickness: 2.0 mm
• Camera side panel thickness: 2.5 mm
• FC mounting: 30.5x30.5 mm
• VTX mounting: 30.5x30.5 mm, 20x20 mm
• Motor mounting: 16x16 mm, 19x19 mm
• Camera spacing: 19 mm
• Weight: approx. 214 g (frame only)

Pairs well with 8-inch bi-blade or tri-blade propellers and low-kV long-range motors for mountain-surfing and high-endurance cinematic flights.
