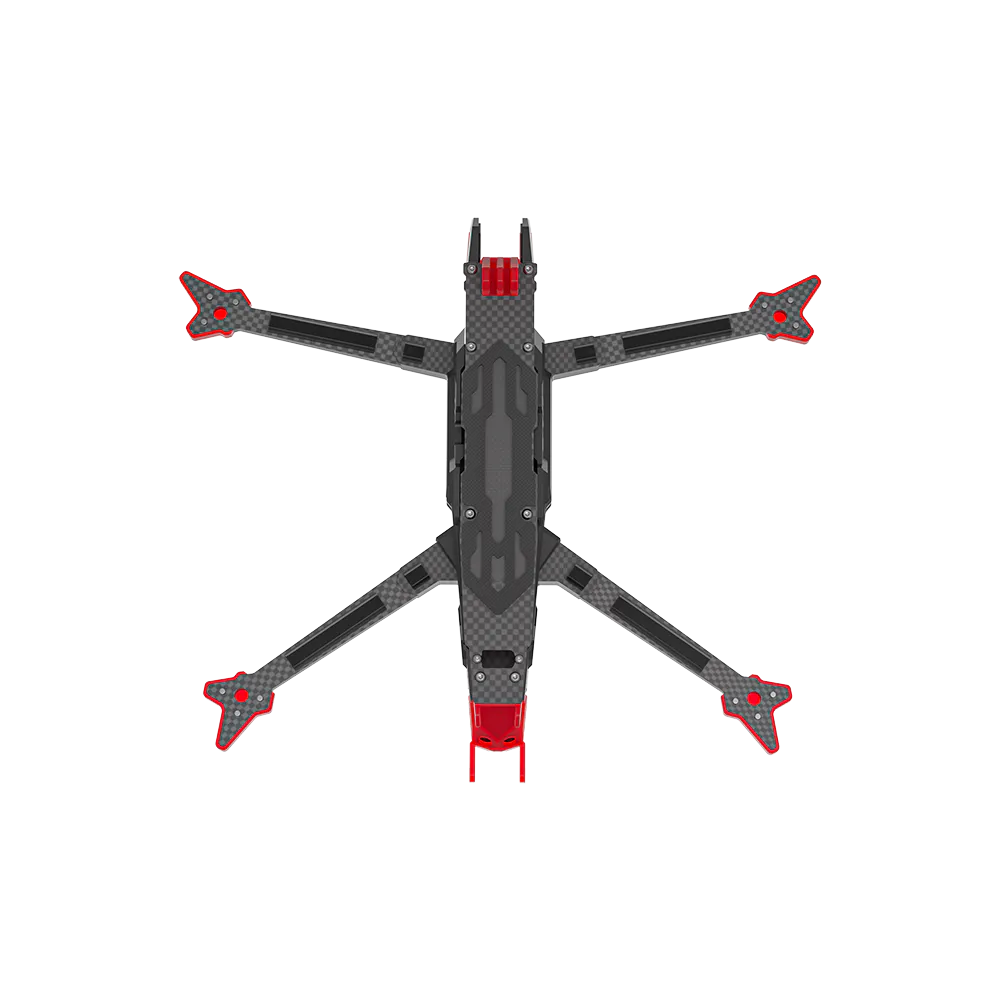

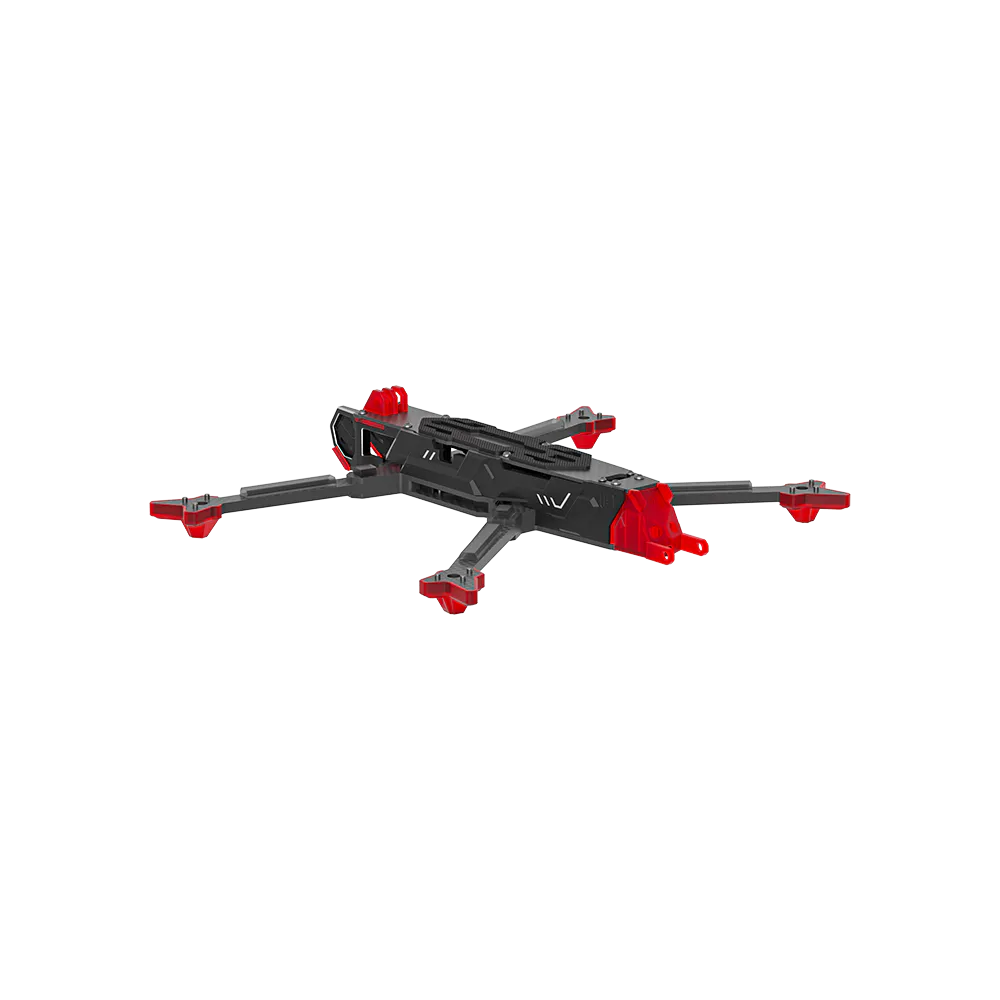

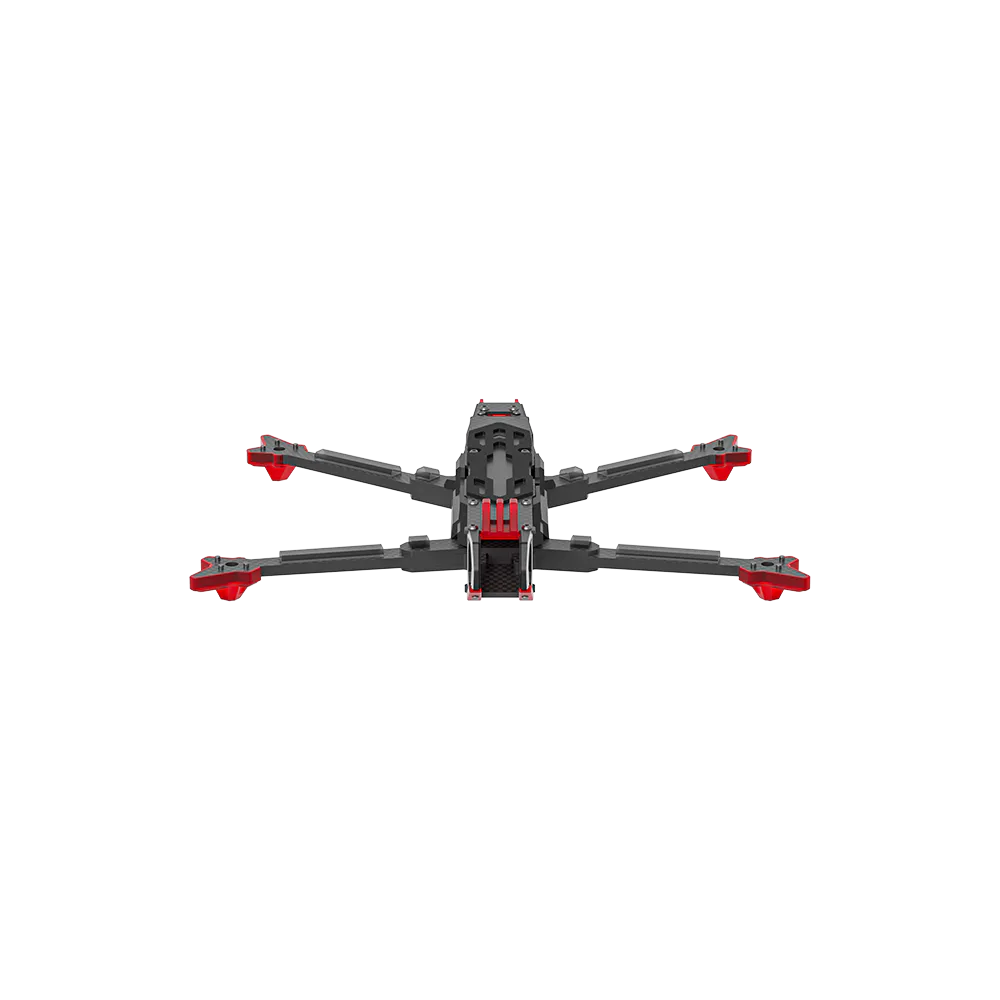

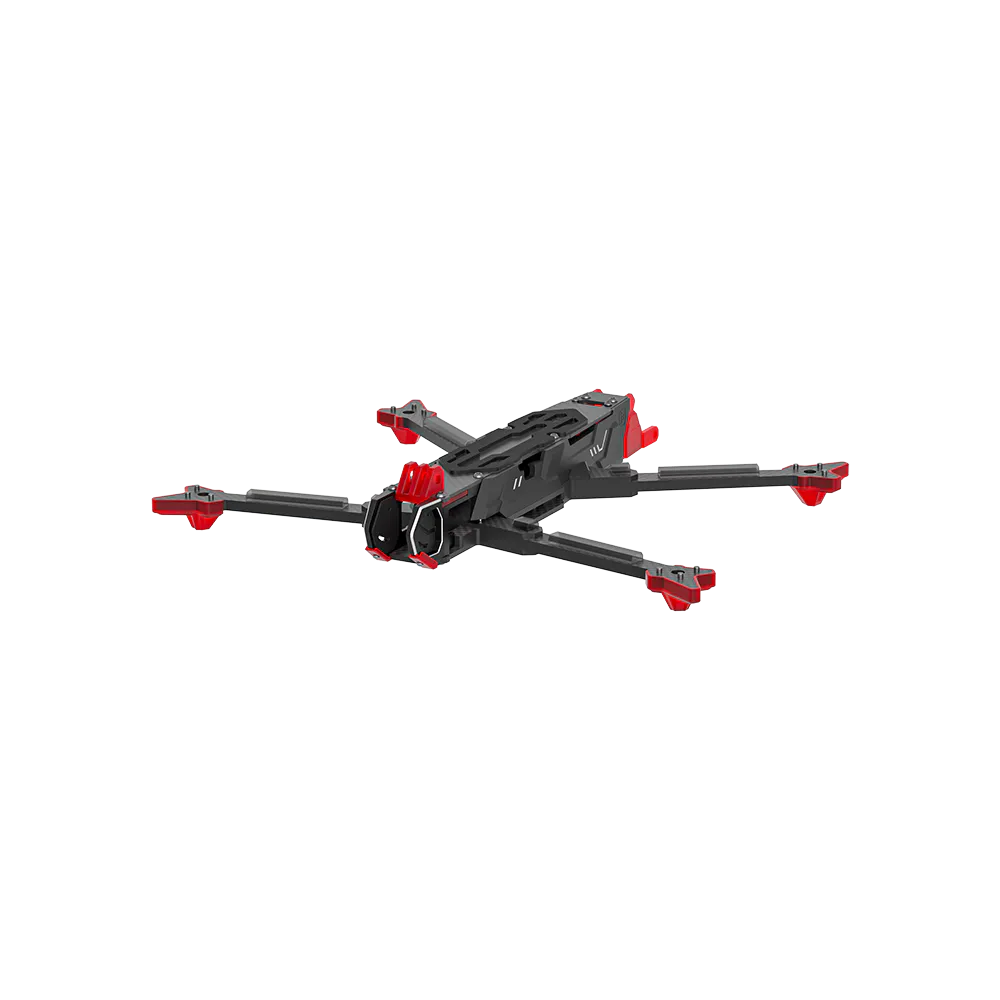

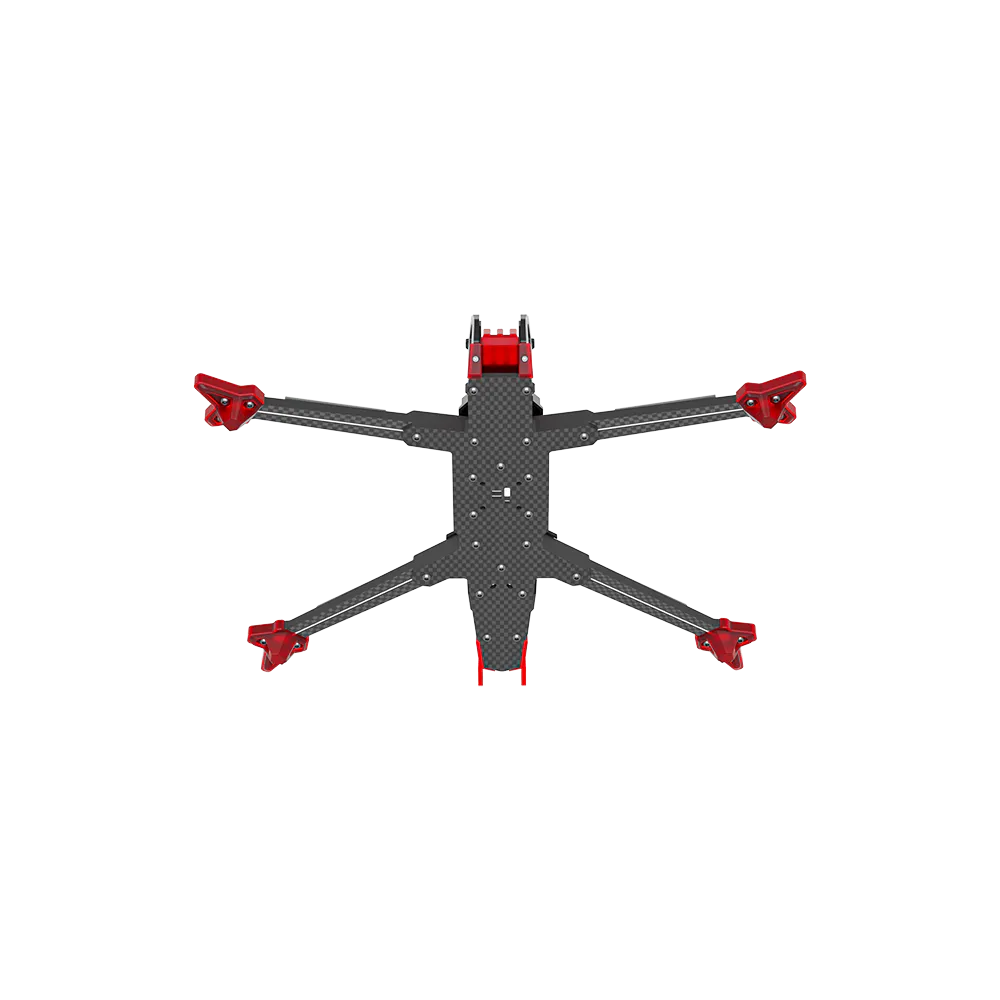

iFlight SH CineLR 7 O4 Frame Kit

The iFlight SH CineLR 7 is a 7-inch long-range frame built around the DJI O4 (or O3) Air Unit Pro, sized to carry a bigger battery for extended cruising and mountain-surfing flights, with a layout that keeps the propellers out of the camera view.

Key features

• Quick-release side panels keep wiring tidy and make maintenance easy without dismantling the whole frame.
• Integrated action camera base mount for a GoPro or similar, with a GoPro TPU mount included.
• Rear-mounted power connector improves weight distribution for steadier long-range cruising.
• Reinforced arm base strengthens the join between arm and centre plate for durability.
• Dual flight-stack mounting (20x20mm and 30x30mm) and 25.5x25.5mm VTX mounting fit most Betaflight stacks and digital VTXs.

Specifications

• Wheelbase: 334mm
• Frame dimensions: 285 x 196 x 45mm
• Arm thickness: 6mm
• Plate thickness: 3mm bottom, 2mm top, 3mm upper, 6mm mid-lower
• Motor mounting: 19x19mm (M3)
• Weight: 336g (±5g)
• Max flight stack height: 20mm
• Max VTX height: 22mm
• Compatibility: DJI O4 Air Unit Pro / O3 Air Unit

Comes with IPEX-to-RP-SMA antenna pigtails, a TPU accessory set, a screw bag and anti-slip battery pads and straps, so the kit is ready to build straight from the box.
