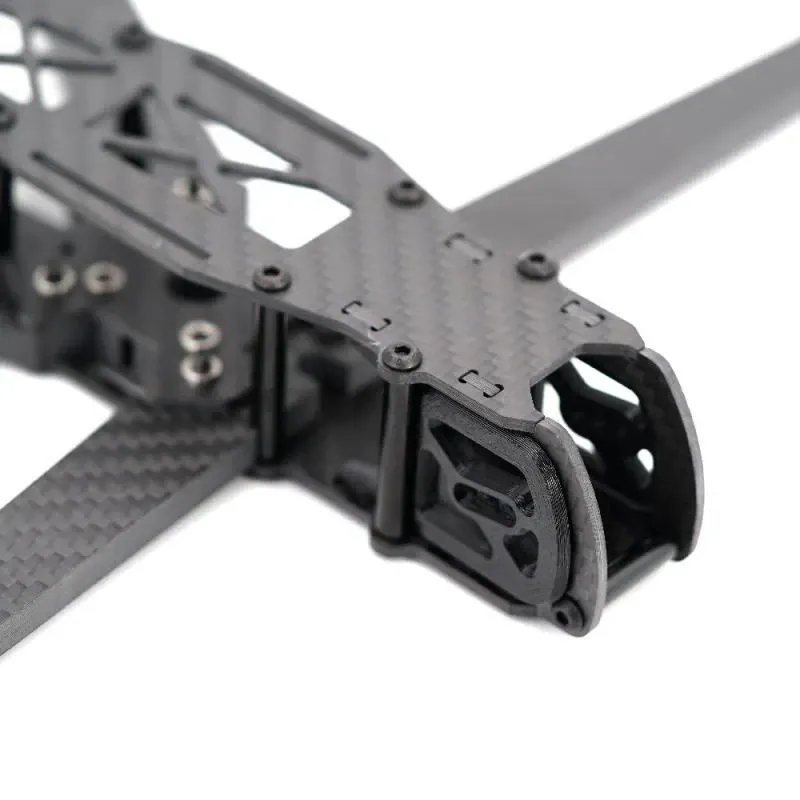

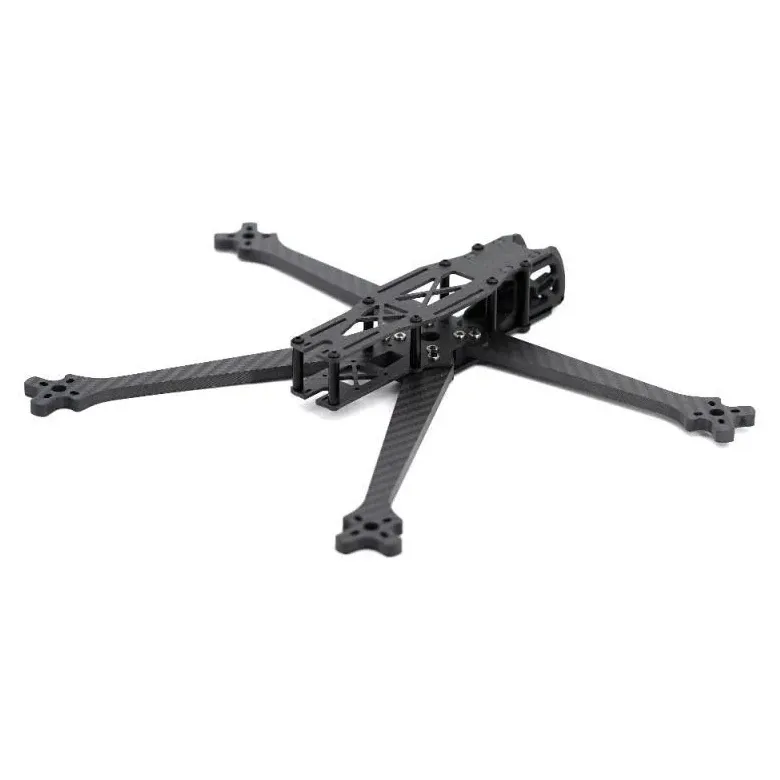

TBS Source One V6 7" DC Frame

The TBS Source One V6 7-inch DC is an open-source, heavy-duty long-range FPV frame built for cinematic cruising and endurance flights. By utilising a Deadcat (DC) arm geometry, this frame sweeps the front motors outward and backward to keep large 7-inch propellers completely out of the FPV camera view. This layout is particularly useful for builders running digital HD systems where a clean, unobstructed video feed is critical for framing shots.

Key features

• Deadcat (DC) arm layout guarantees a prop-free camera view for clean digital HD recording and flight feeds.
• Sized for 7-inch propellers to maximise battery efficiency on long-distance or high-payload flights.
• Open-source design framework ensures widespread community support and a massive library of 3D-printable mounts.
• Spacious main body easily accommodates large-capacity Li-Ion packs and dual-stack electronics layouts.

Specifications

• Frame geometry: Deadcat (DC)
• Supported prop size: 7-inch
• Wheelbase: 313 mm (motor to motor)
• Arm thickness: 6 mm
• Plate thickness: 2 mm top, 2 mm mid, 2.5 mm bottom
• Standoffs: 30 mm and 22 mm
• Stack mounting: 20x20, 30.5x30.5 (M3)
• VTX mounting: 20x20 (M2)
• Motor mounting: 16x16 / 19x19 (M3)
• Weight: 173 g

Offering extensive hardware compatibility, the Source One V6 natively fits modern digital video transmitters like the DJI O3 Air Unit or Walksnail Avatar. Its robust carbon structure provides a rigid, low-resonance platform capable of carrying heavy long-range batteries and secondary action cameras.
