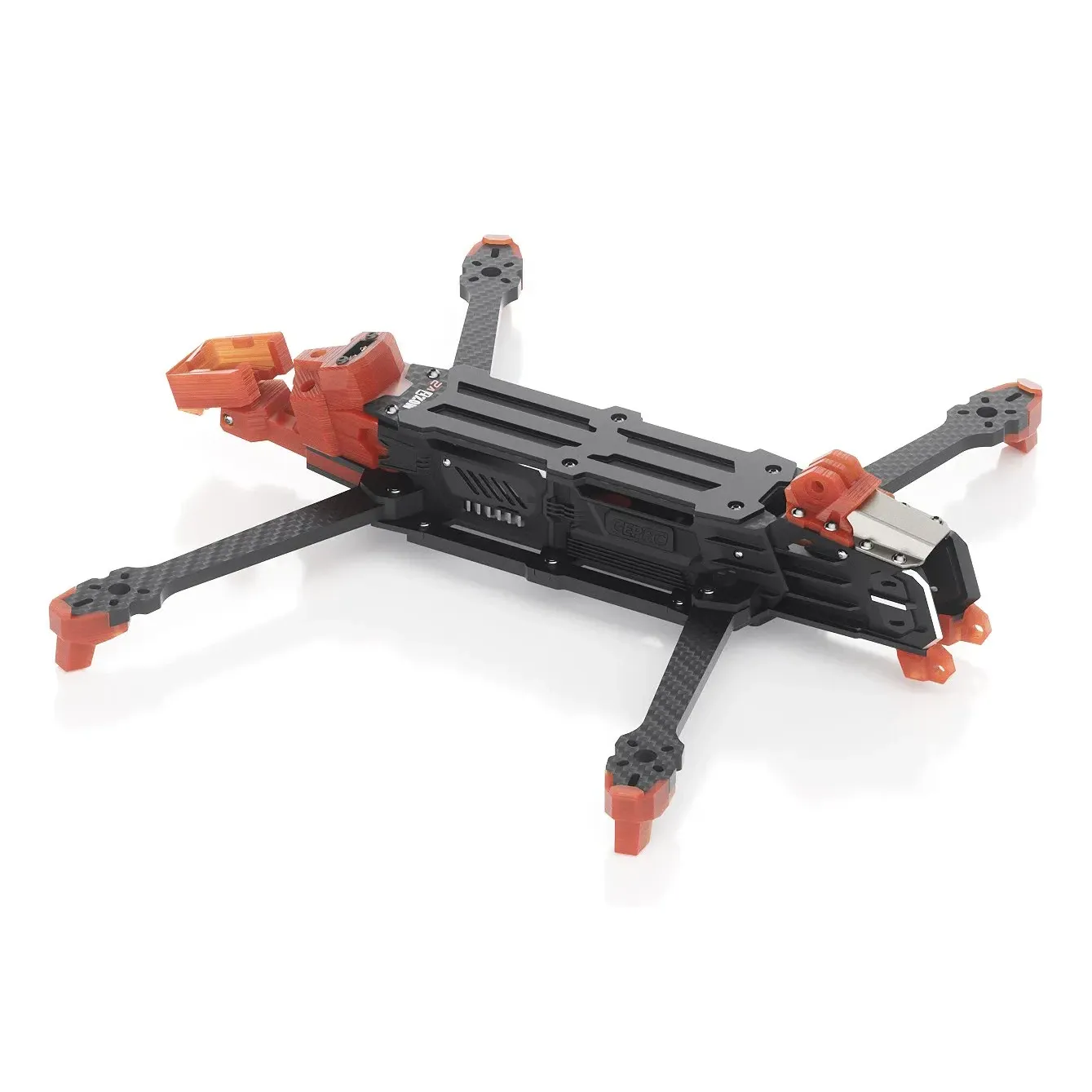

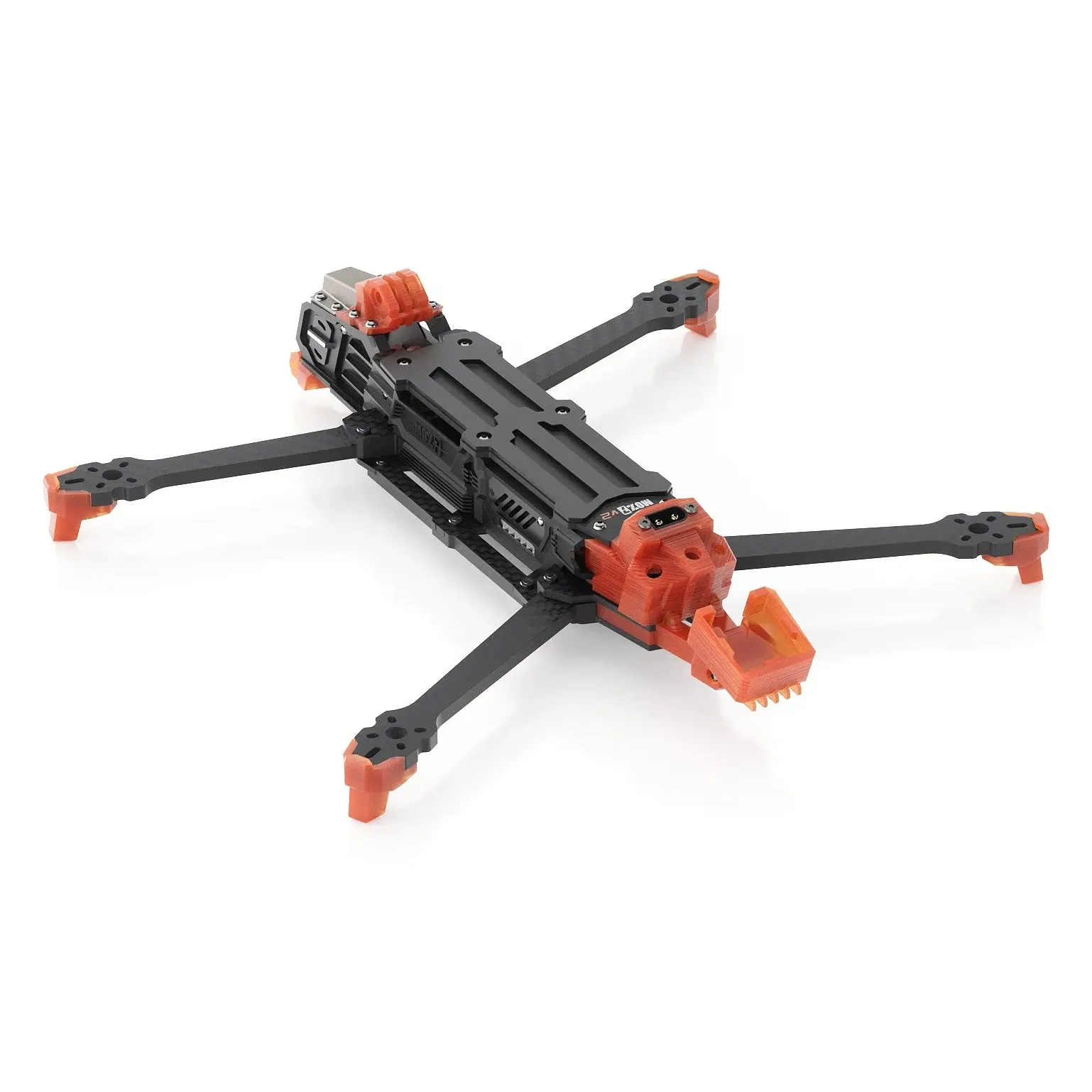

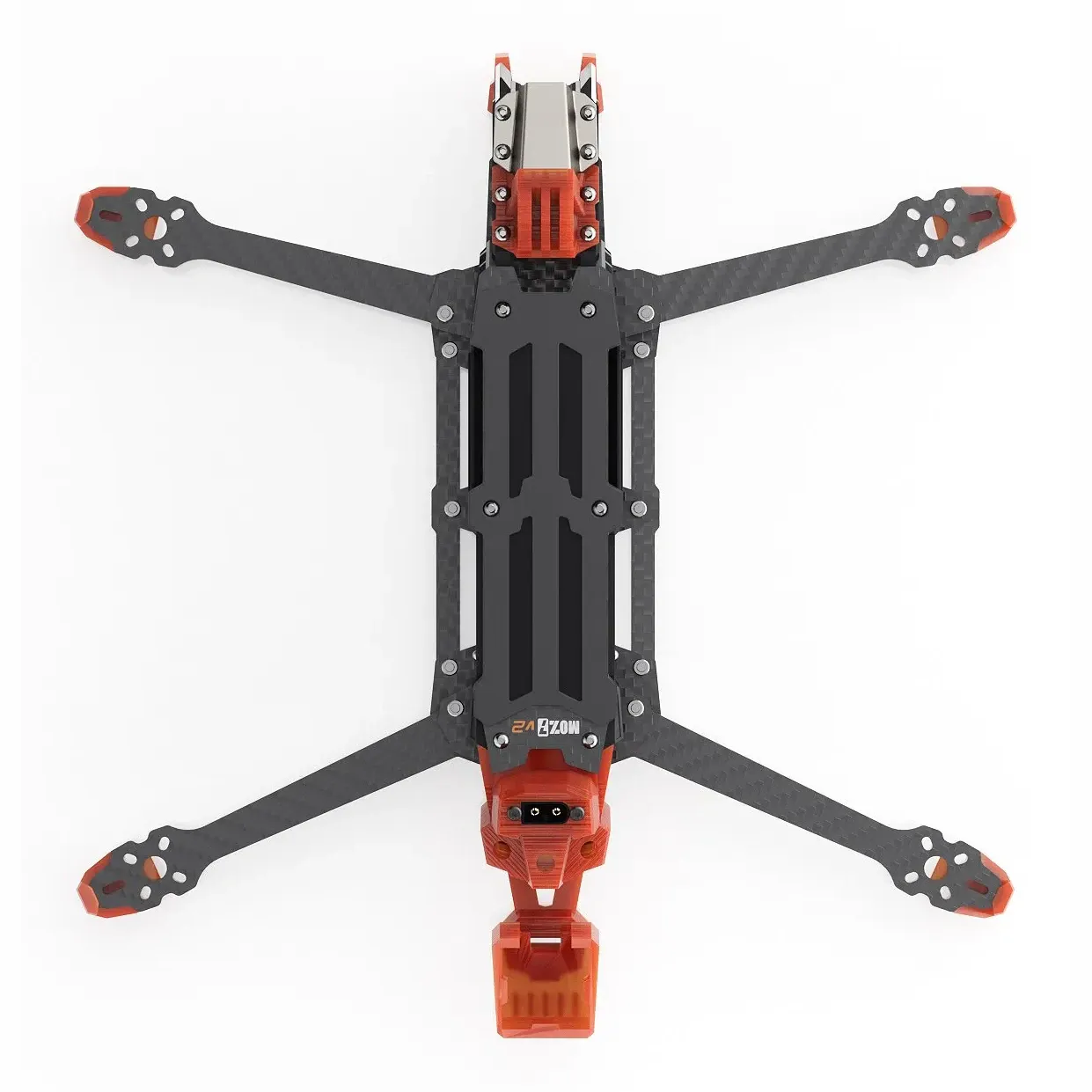

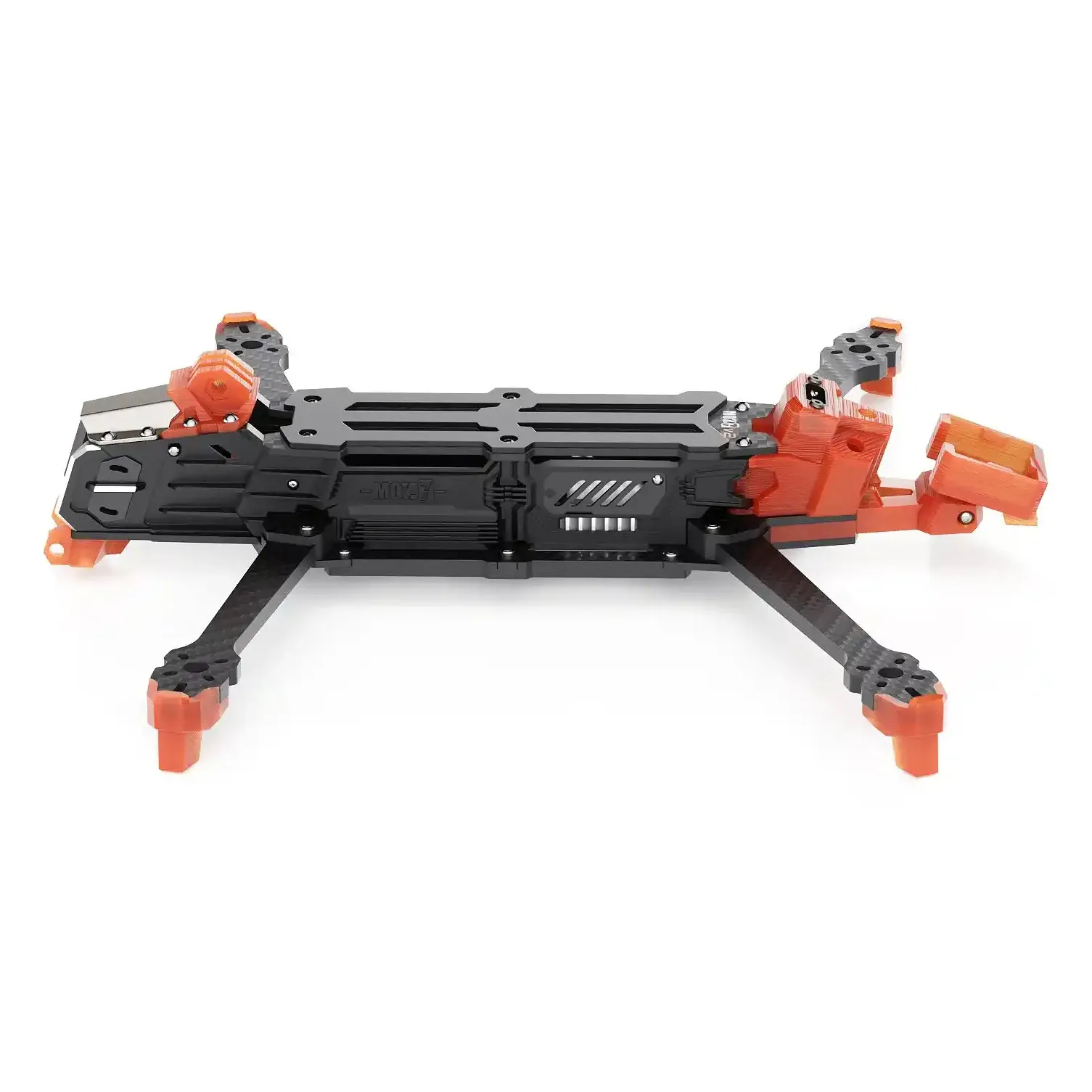

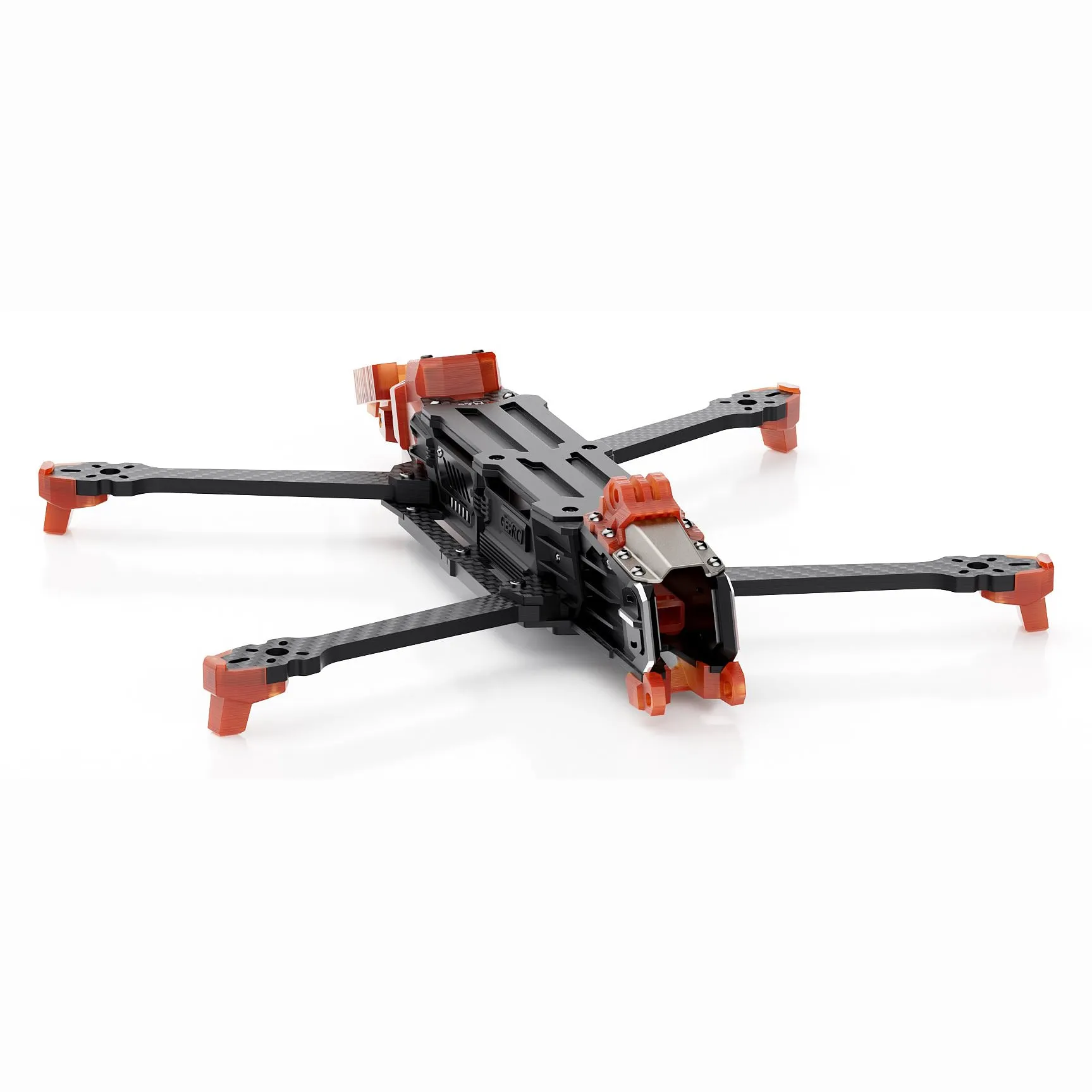

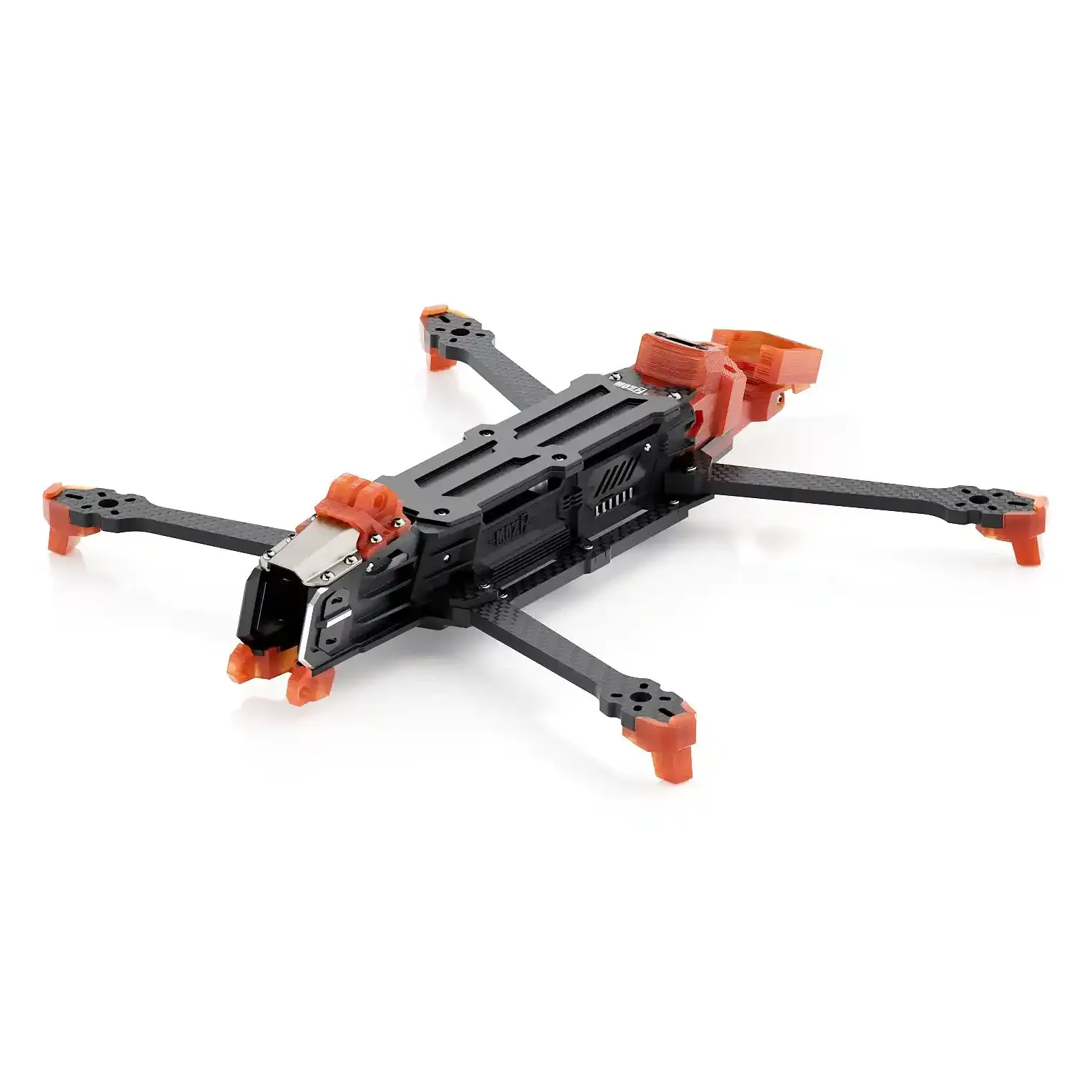

GEPRC GEP-MOZ7 V2 Frame

The GEPRC GEP-MOZ7 V2 is a 7.5-inch long-range FPV frame built around the DJI O4 Air Unit Pro, with an extended camera mount that keeps propellers out of the HD feed and reinforced arms for stable, high-payload cruising.

Key features

• Aerospace-grade aluminium camera mount and a metal top plate protect the lens and keep the O4 Air Unit Pro fully out of frame.
• A finned, vented heat sink over the O4 Air Unit Pro improves cooling on long flights.
• Vertically reinforced side arms support a bottom-mounted battery while adding rigidity for heavy-lift cruising.
• Adjustable 25x25mm GPS mount accepts larger M1025-series GPS modules for a faster satellite lock.
• Front T-shaped and rear vertical antenna mounts give dual-antenna diversity reception.
• Interchangeable action-camera mount and metallic canopy let you shift the centre of gravity to suit your payload.

Specifications

• Dimensions: 376 x 303 x 35.5 mm
• Wheelbase: 336 mm
• Weight: 270 g ± 5 g
• Arm thickness: 6 mm
• Top and bottom plate thickness: 2.5 mm
• Clamp plate thickness: 3 mm
• FC mounting: 30.5x30.5mm, 25.5x25.5mm, 20x20mm
• VTX mounting: 25.5x25.5mm, 20x20mm
• Motor mounting: 16x16mm, 19x19mm
• Supported propellers: 7-8 inch

Sturdy landing gear keeps the bottom plate off the ground on rough landings, and dual prop-size support suits both long-range and cinelifter builds.
