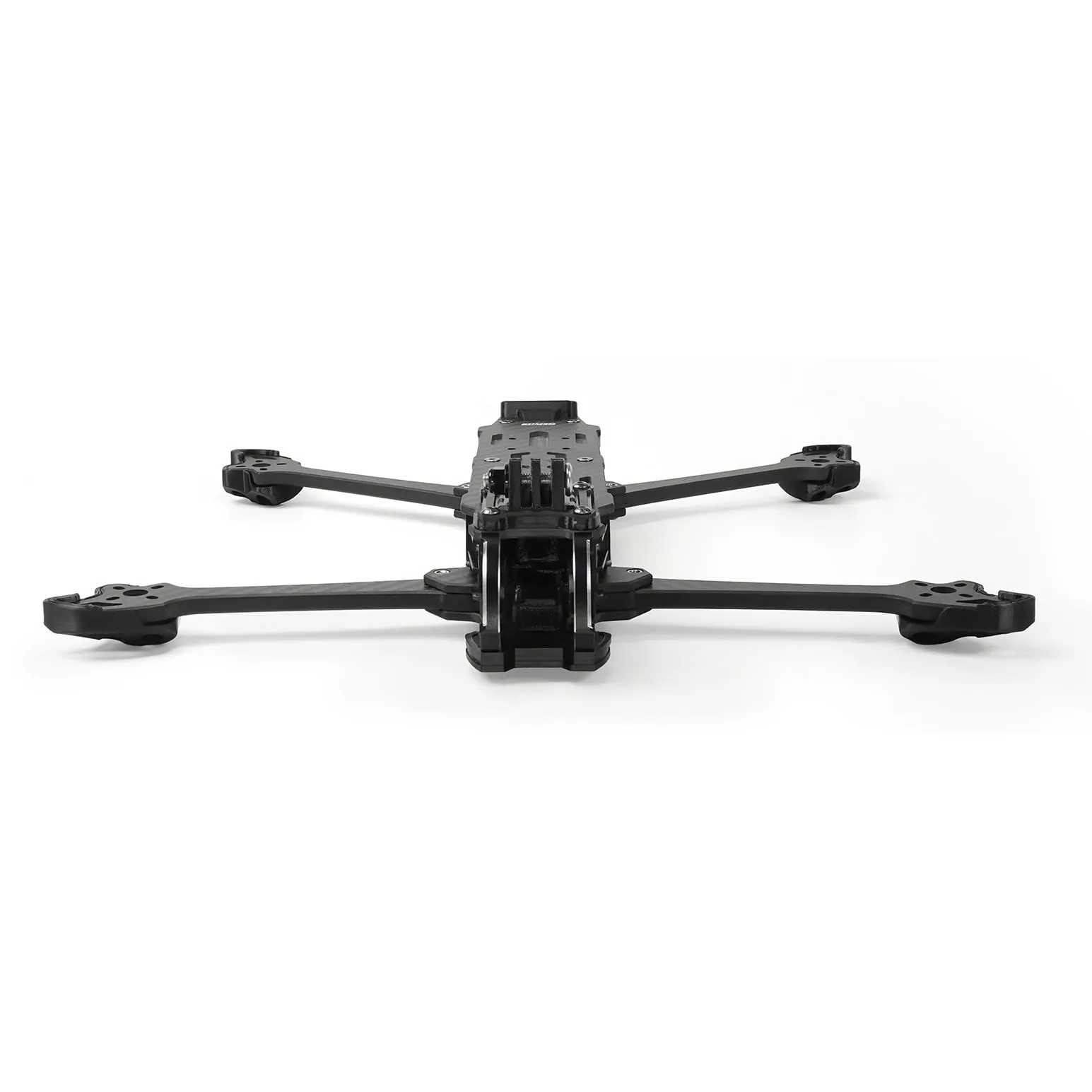

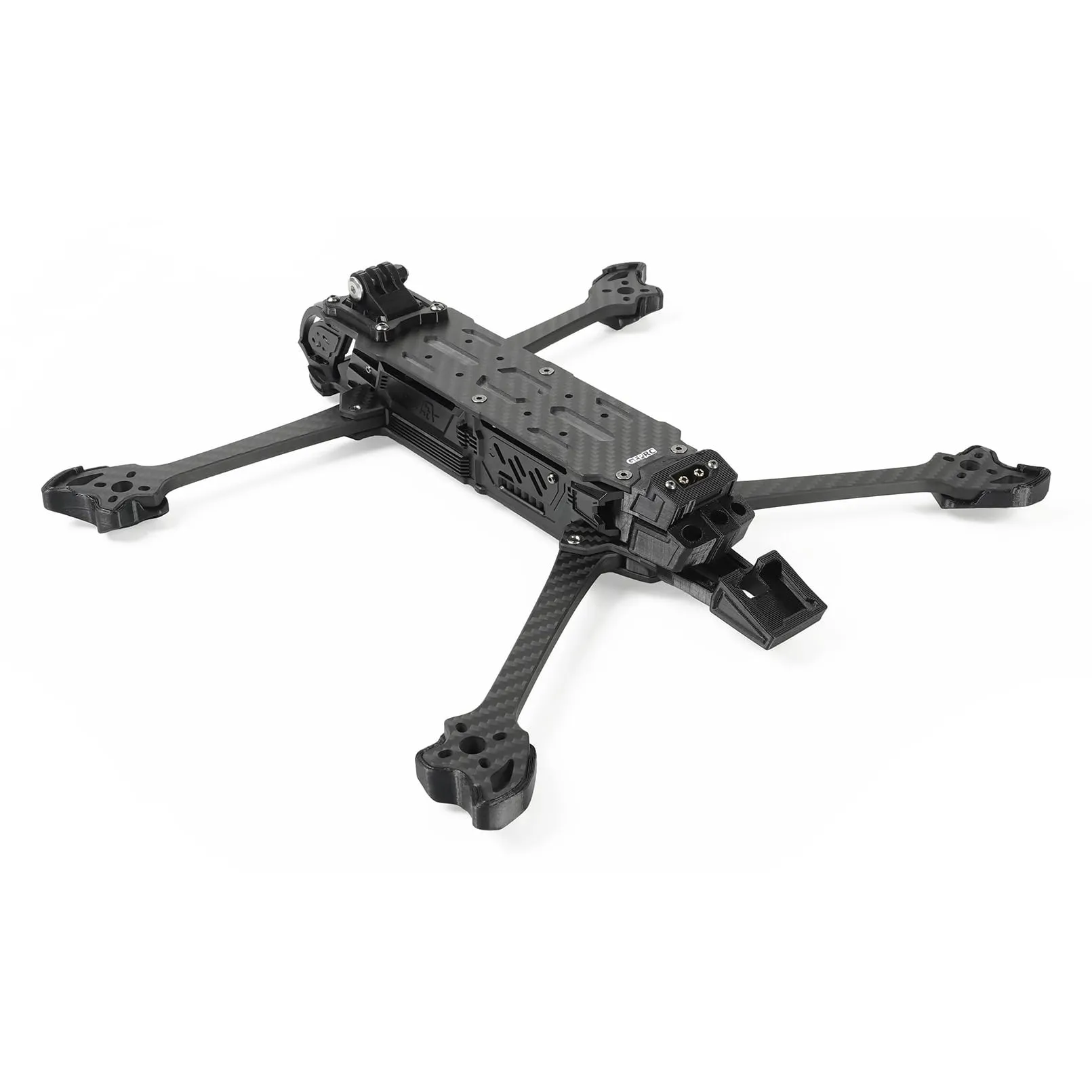

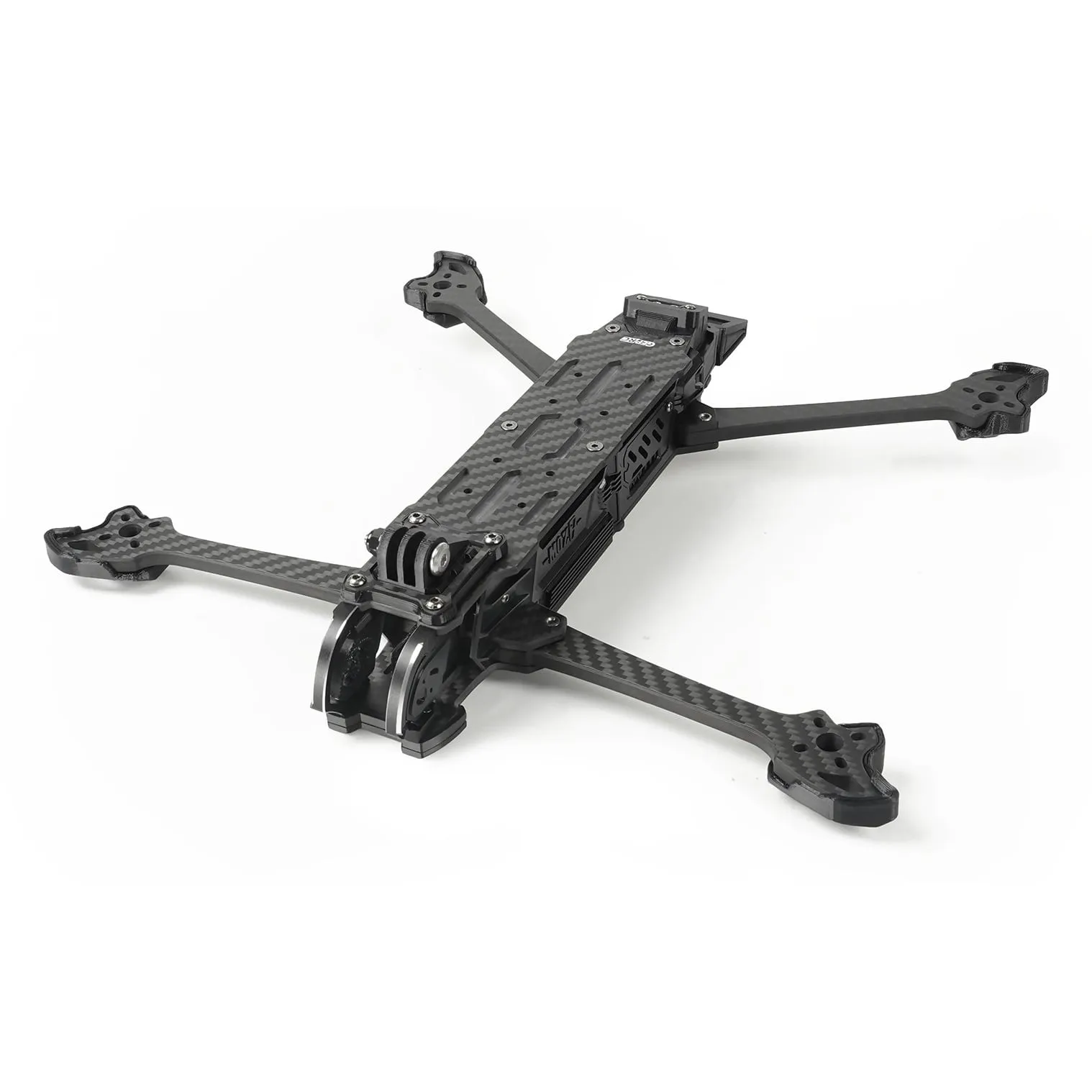

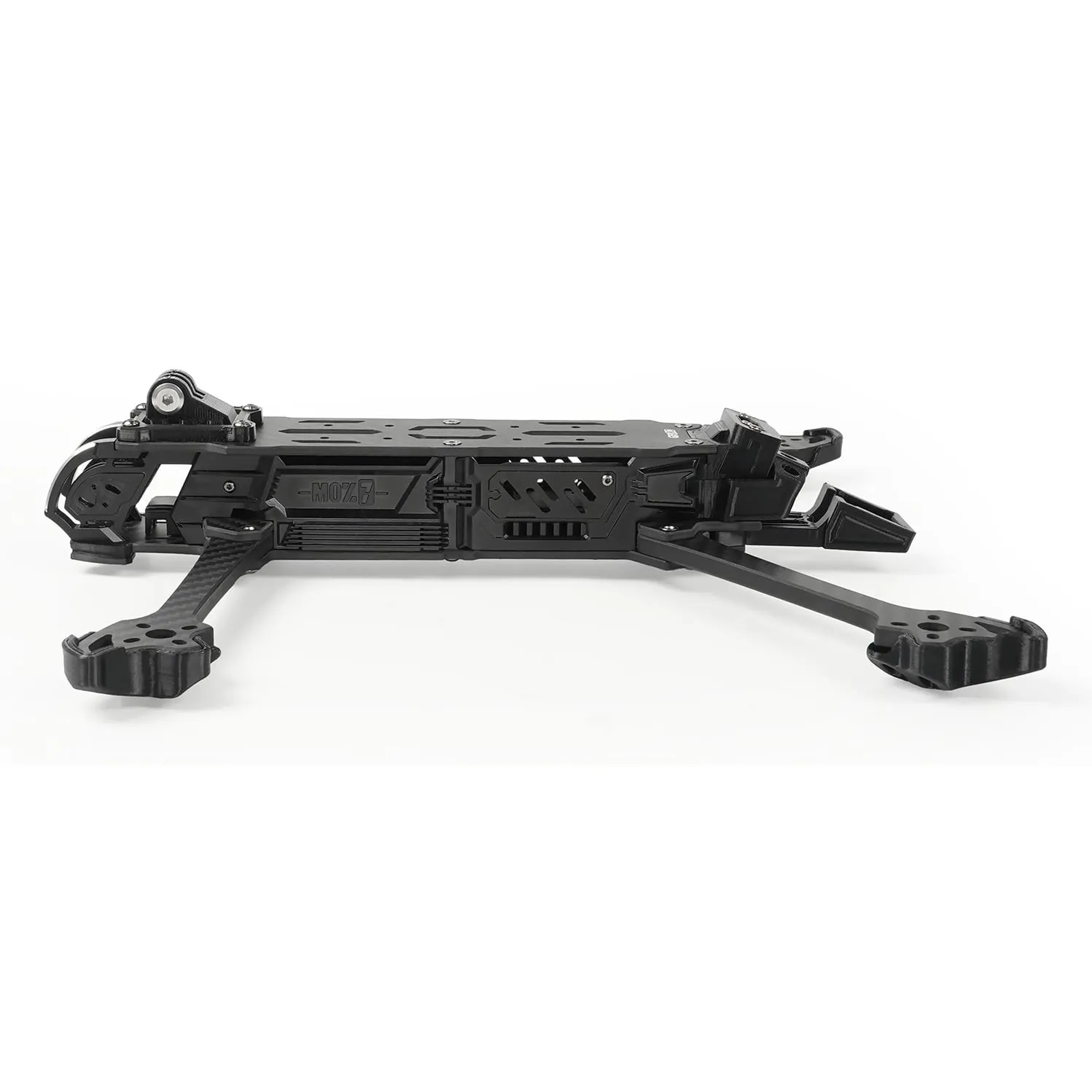

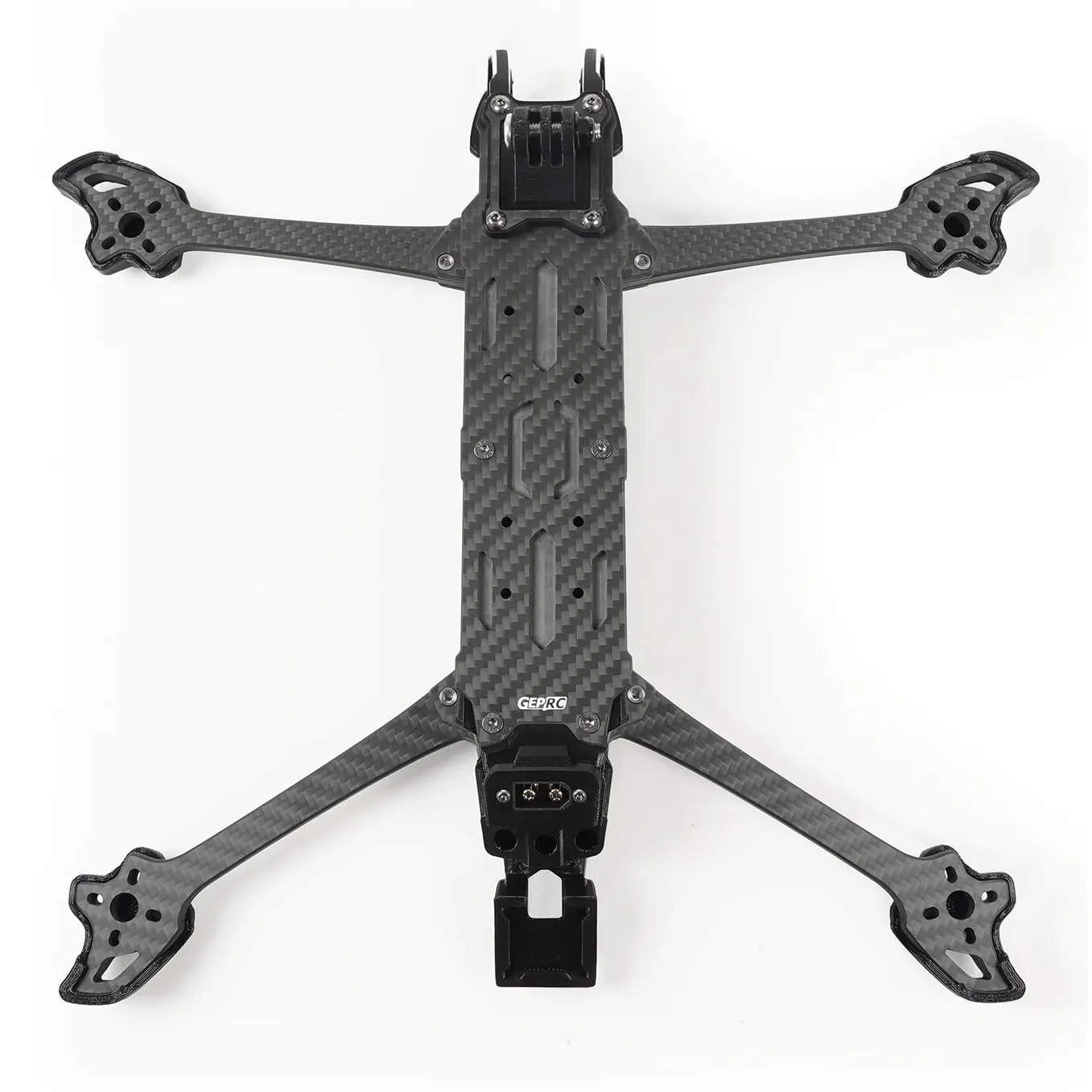

GEPRC MOZ7 7-Inch FPV Frame

The GEPRC MOZ7 is a 320mm wheelbase 7-inch carbon fibre frame engineered for long-range cruising, cinematic mountain diving, and heavy-payload flights. Designed around a rigid H-frame layout, it utilizes 6mm-thick arms and 3mm top and bottom plates to minimize structural resonance, ensuring clean gyro data and smooth HD video capture during long-distance missions.

Key features

• Rigid 6mm thick carbon fibre arms with an H-frame layout for maximum vibration reduction.
• CNC aluminium camera side plates offer crash protection and direct mounting for DJI O3, Walksnail, Vista, and analogue FPV cameras.
• Rear-mounted XT60 connector block secures the power lead and prevents prop strikes during flight.
• Includes a comprehensive set of TPU 3D-printed mounts for GPS modules, antennas, and action cameras.

Specifications

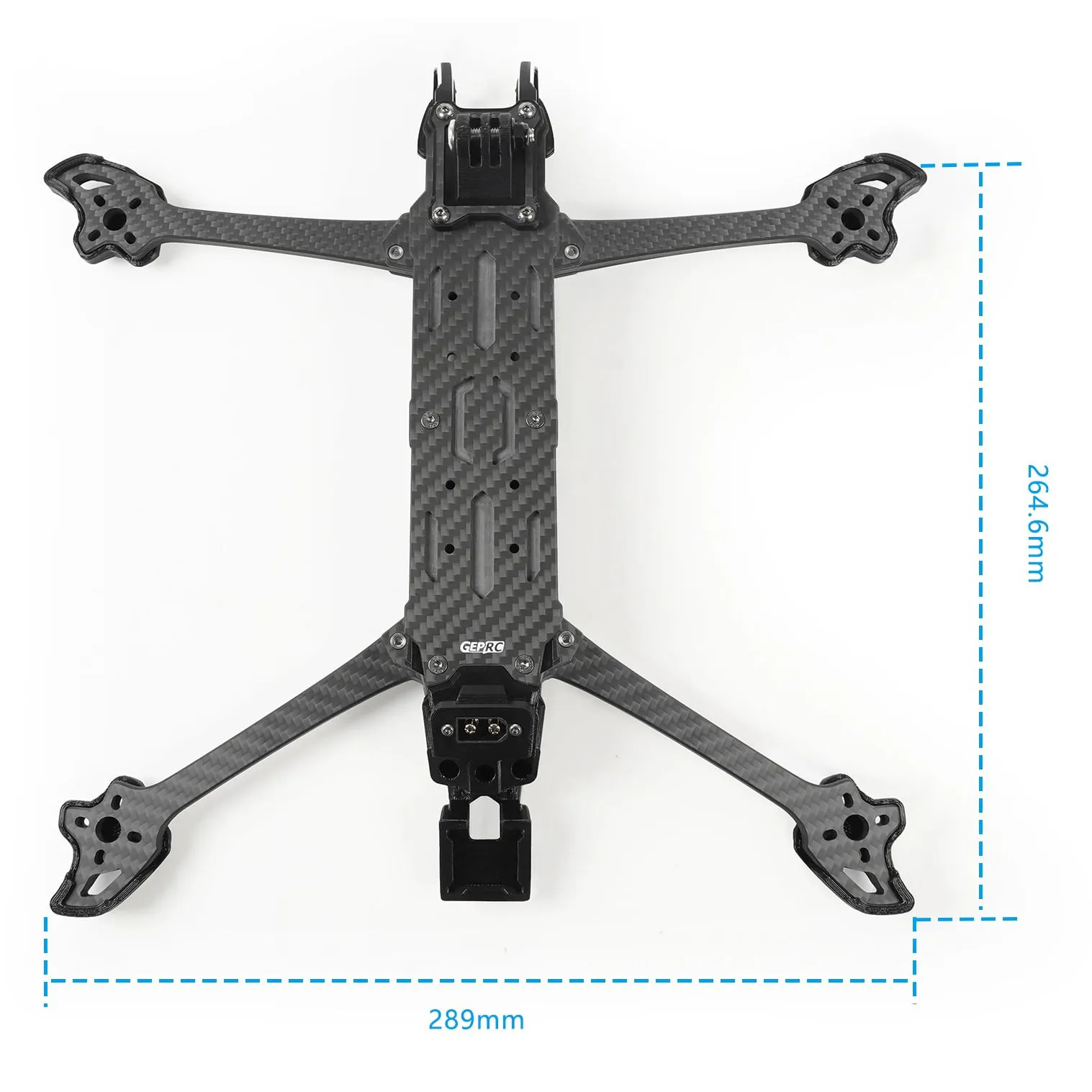

• Wheelbase: 320mm
• Arm thickness: 6.0mm
• Top / bottom / splint plate thickness: 3.0mm
• FC / VTX mounting: 30.5x30.5mm, 25.5x25.5mm, 20x20mm
• Motor mounting: 16x16mm, 19x19mm
• Camera width: 19mm, 20mm
• Weight: 280.5g (including TPU parts)

Pair the MOZ7 with 2806.5 or 2809 motors, 7-inch biblade or triblade props, and a high-capacity 6S Li-Ion pack for optimal cruising efficiency and extended flight times.
