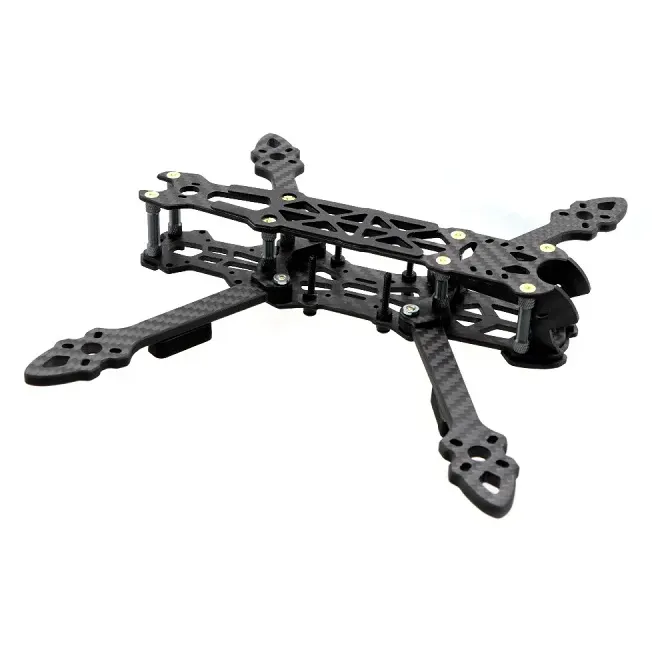

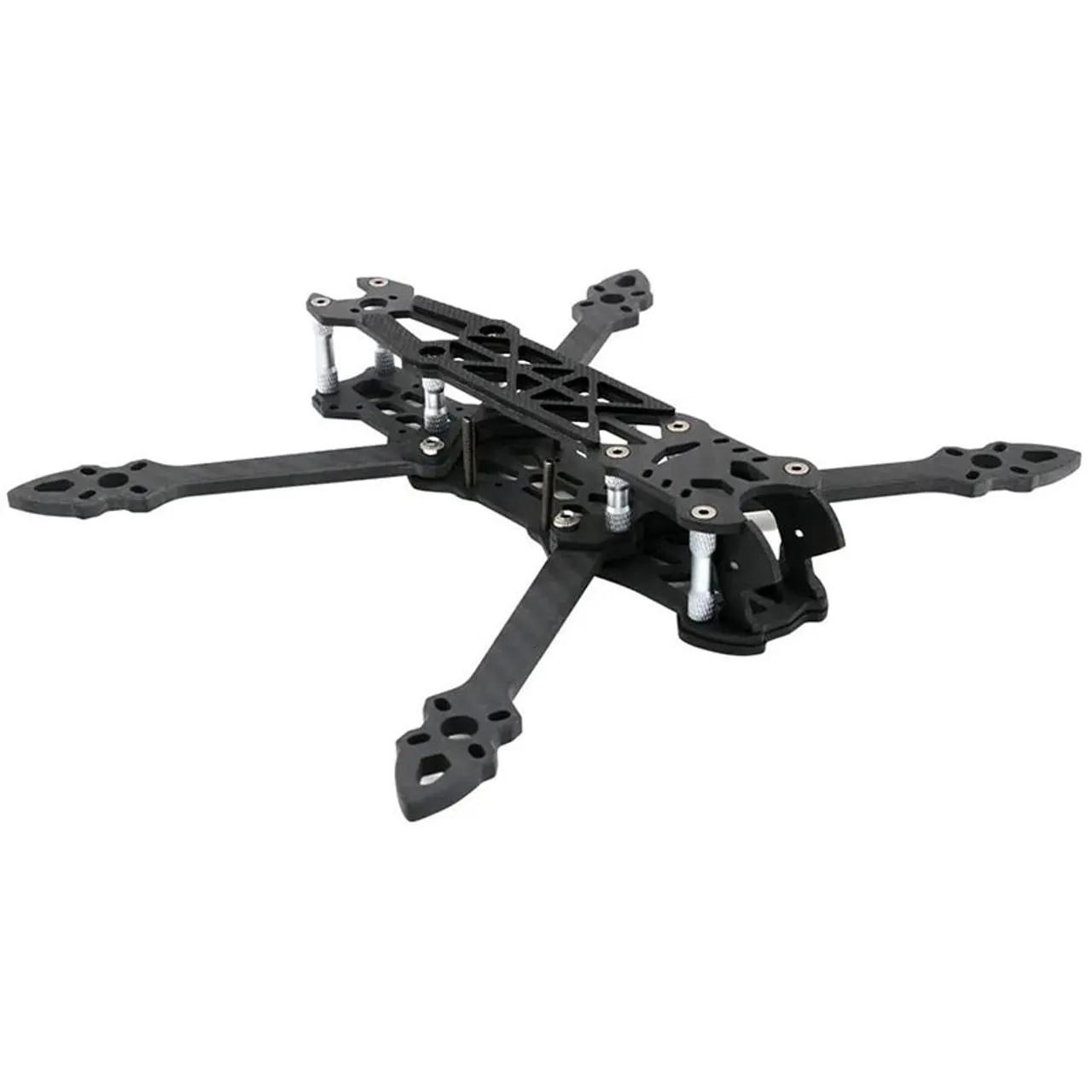

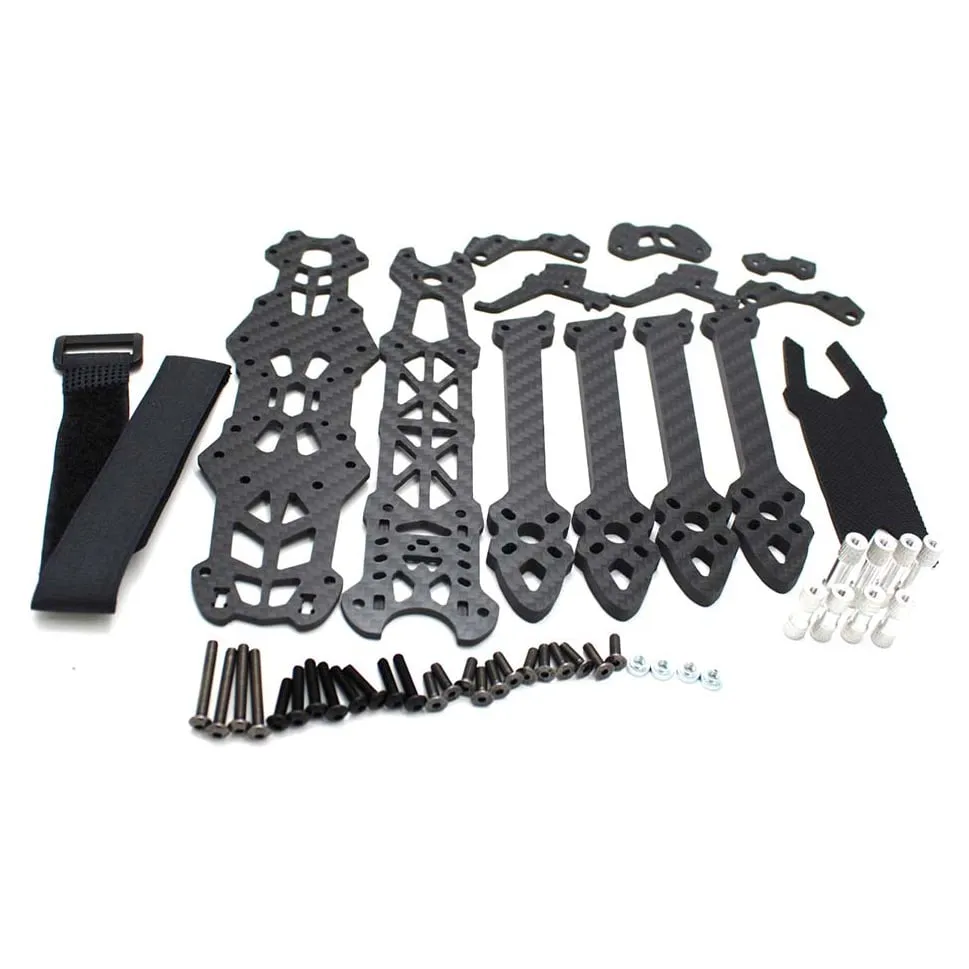

Mark4 7" 295mm Carbon Fiber Frame Kit

The Mark4 7" is a 295mm 3K carbon fibre frame kit designed for long-range cruising and mountain surfing. Utilizing a classic stretched-X geometry, this 7-inch platform provides a wide stance to accommodate high-capacity Li-Ion packs and full-size action cameras while maintaining locked-in tracking during fast forward flight.

Key features

• Stretched-X configuration shifts the motor spacing for more efficient straight-line performance and clear HD video lines of sight.
• Thick 5mm carbon fibre arms withstand the increased momentum of heavier 7-inch payloads.
• Rigid 2.5mm top and bottom plates secure the core electronics against frame resonance and vibration.
• Drilled for standard 30.5x30.5mm flight stacks and designed to fit 19mm micro FPV cameras.

Specifications

• Wheelbase: 295 mm
• Supported propellers: 7-inch
• Material: 3K Carbon Fibre
• Arm thickness: 5 mm
• Top/Bottom plate thickness: 2.5 mm
• Side plate thickness: 2 mm
• Stack mounting: 30.5x30.5 mm / 20x20 mm
• Camera mounting width: 19 mm

Pair this robust frame kit with 2806.5-sized motors, a heavy-duty ESC, and a 6S Li-Ion battery pack to maximize your long-range flight times.
