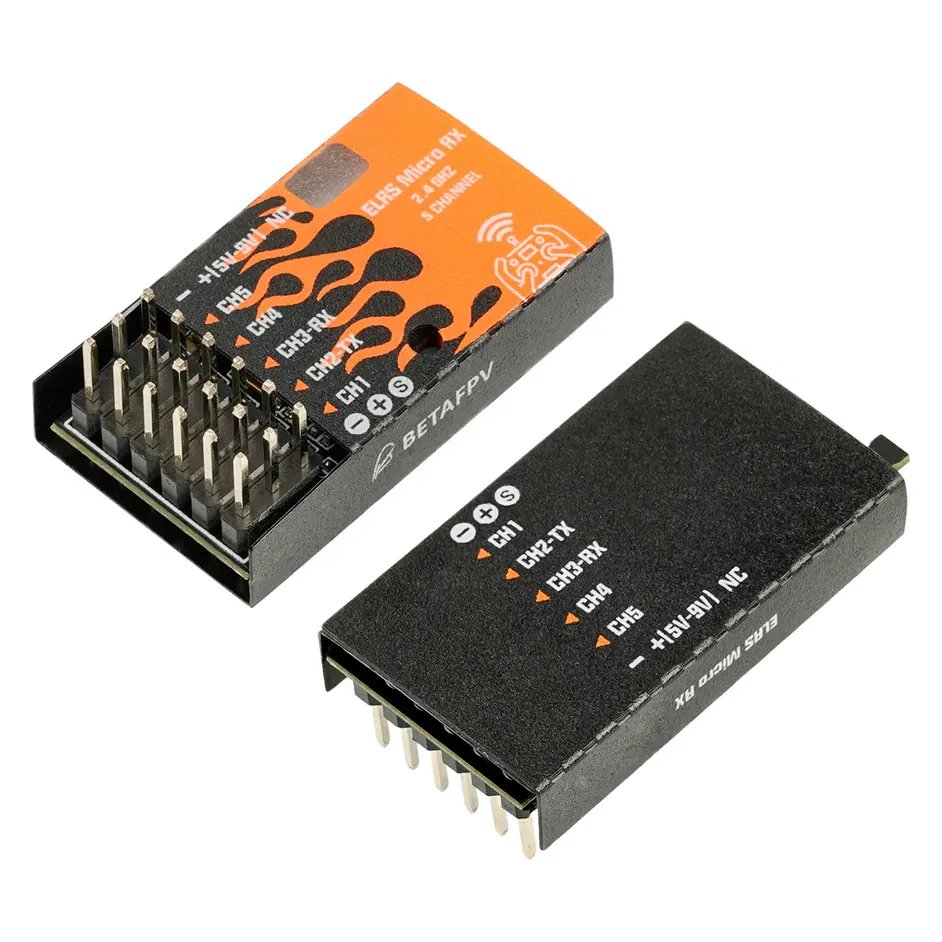

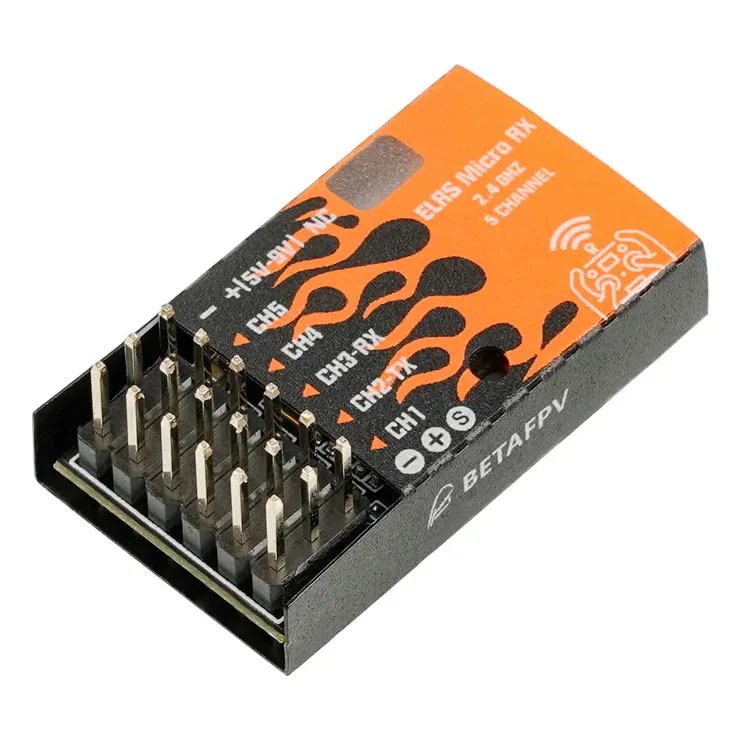

ELRS Micro Receiver
SKU ELRS-MICRO-RX
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
A compact 2.4GHz ExpressLRS (ELRS) receiver with five direct PWM outputs, built for fixed-wing aircraft, helicopters, RC cars and boats, where servos and ESCs plug straight into the receiver without a flight controller. It can also be flashed with CRSF-output firmware for use with a flight controller.
Key features
- Operates on the open-source 2.4GHz ELRS protocol for high refresh rates and exceptionally low latency.
- Five PWM channels drive servos and ESCs directly, with a user-set failsafe that holds the model's controls if the link is lost.

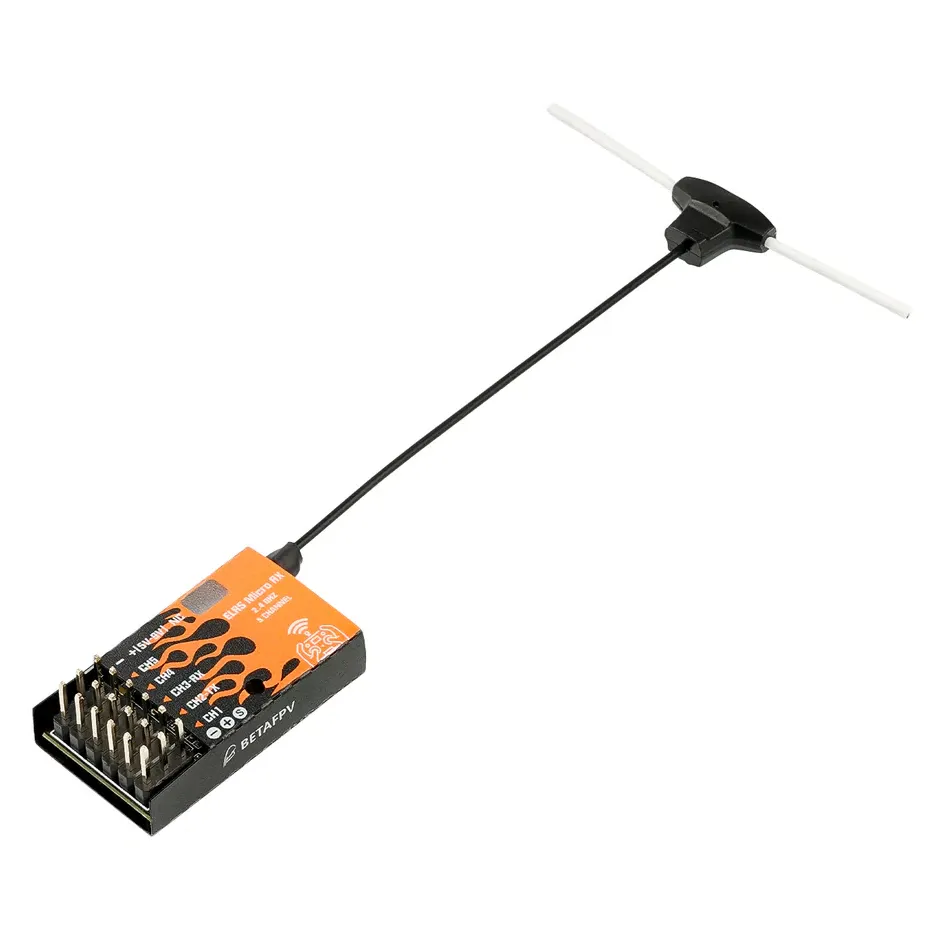

- External U.FL antenna connector with an included T antenna.
Specifications
- RC protocol: ELRS
- Frequency band: 2.4GHz
- Output: 5-channel PWM, or CRSF with alternate firmware
- MCU / RF chip: ESP8285 / SX1280/SX1281
- Telemetry power: 17 mW (12.5 dBm)
- Input voltage: 5-9 V DC
- Antenna: U.FL connector, T antenna
- Dimensions: 19 x 32 x 9 mm (without antenna)
- Weight: 4.5 g (with antenna)
With CRSF firmware flashed, channel 2 becomes TX and channel 3 becomes RX for a flight controller UART. The receiver and your transmitter module must run the same major ELRS version to bind; firmware updates can be managed via Wi-Fi using the ELRS Configurator.
| RC Protocol | ELRS |
|---|---|
| Made in India | No |
| Brand | BetaFPV |
| Frequency | 2.4GHz |
| Weight | 4.5 g |
| Antenna Connector | U.FL |
| PWM Channels | 5 |
| Diversity | No |
| Output Protocol | PWM |
