RadioMaster RP1 V2 TCXO ELRS 2.4GHz Nano Receiver

The RadioMaster RP1 V2 TCXO is an ultra-compact 2.4GHz ExpressLRS receiver built for whoops, micro drones, and weight-conscious racing or freestyle builds. Upgraded from its predecessor, this V2 iteration integrates a Temperature Compensated Crystal Oscillator (TCXO) to ensure rock-solid RF frequency stability and reliable telemetry, regardless of extreme heat from adjacent electronics or winter flight conditions.

Key features

• Built-in TCXO prevents packet loss and frequency drift during temperature fluctuations.

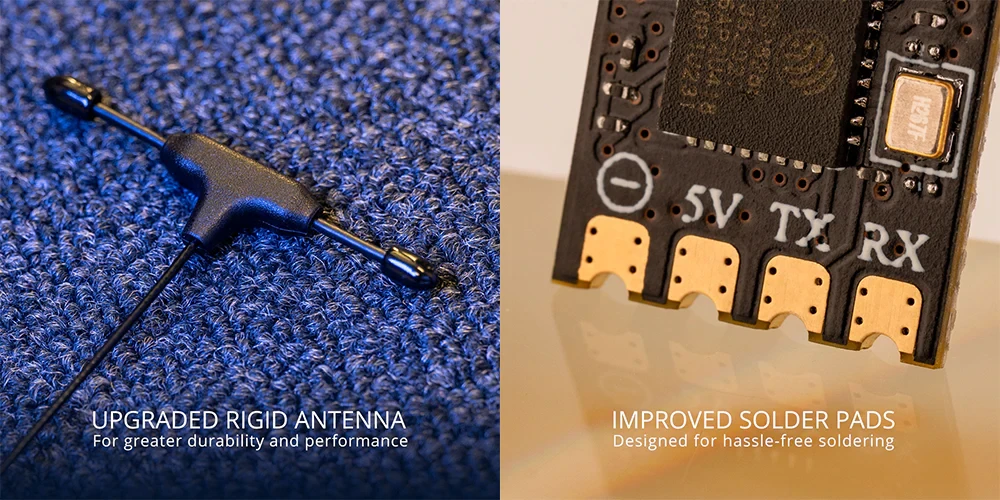

• Features a standard U.FL (IPEX1) connector, allowing easy swaps or replacement of the included 65mm T-antenna.

• Open-source ExpressLRS architecture delivers exceptional range, low latency, and high refresh rates.

• Sub-gram bare board weight minimises impact on ultralight toothpicks and cinewhoops.

Specifications

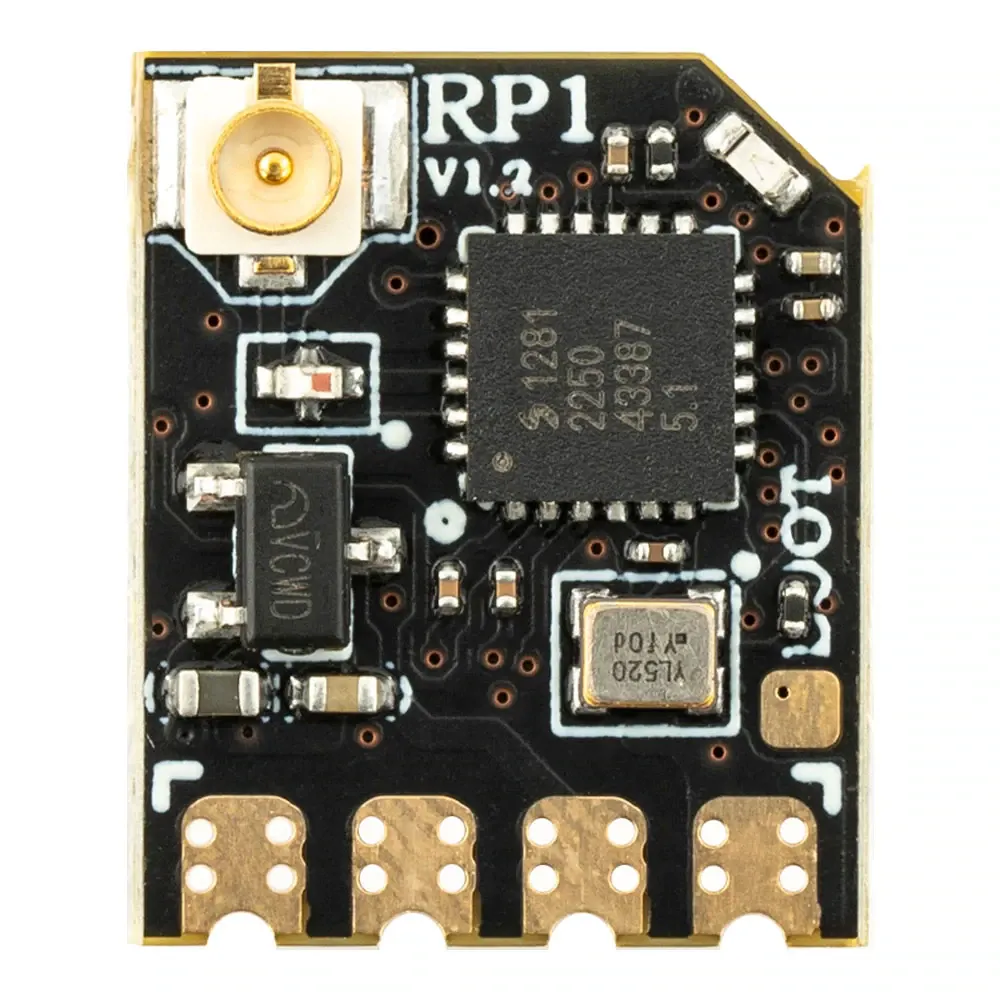

• MCU: ESP8285

• RF chip: SX1280IMLTRT

• Antenna connector: U.FL / IPEX1

• Telemetry RF power: 10mW max

• Operating voltage: 5V

• Bus interface: CRSF

• Weight: 0.53g (receiver only) / 2.2g (with antenna)

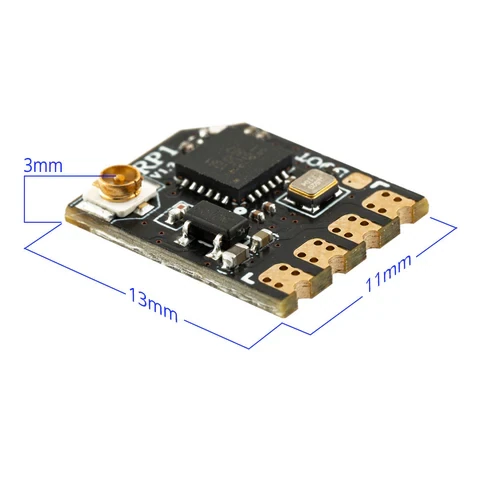

• Dimensions: 13 x 11 x 3 mm

• Firmware target: RadioMaster RP1/2 2400 RX

The RP1 V2 interfaces with any standard flight controller UART via the CRSF protocol. Ensure your flight controller supplies a stable 5V pad for power during installation.
