Axisflying ELRS 2.4GHz Receiver
₹2,299Incl. GST
SKU AXIS-ELRS-24G-RX
RC Protocol: ELRSMade in India: NoBrand: AxisflyingFrequency: 2.4GHz
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

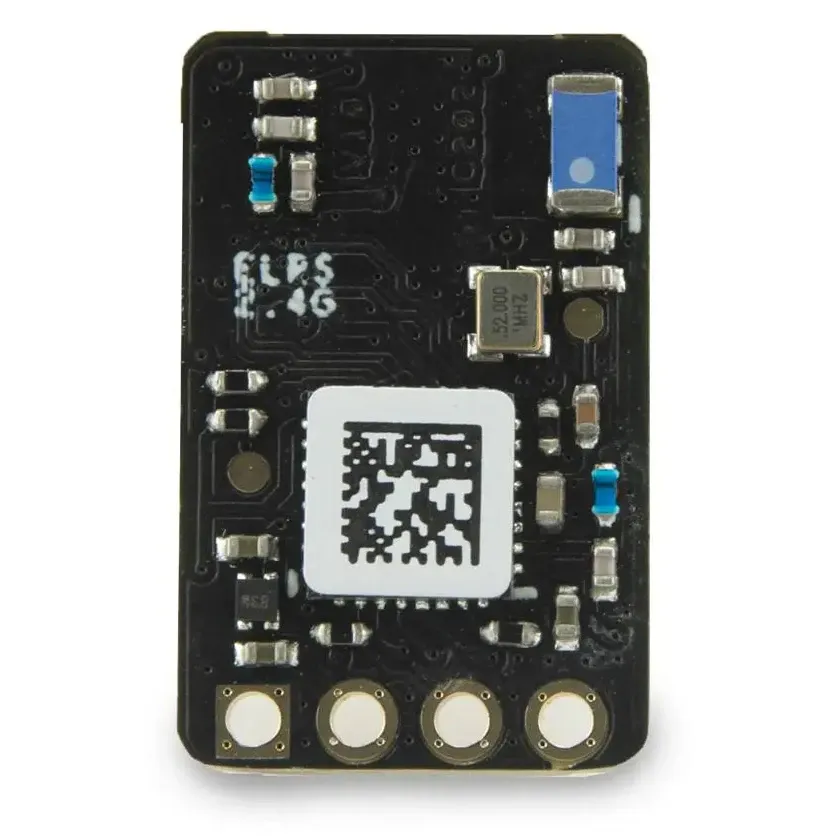

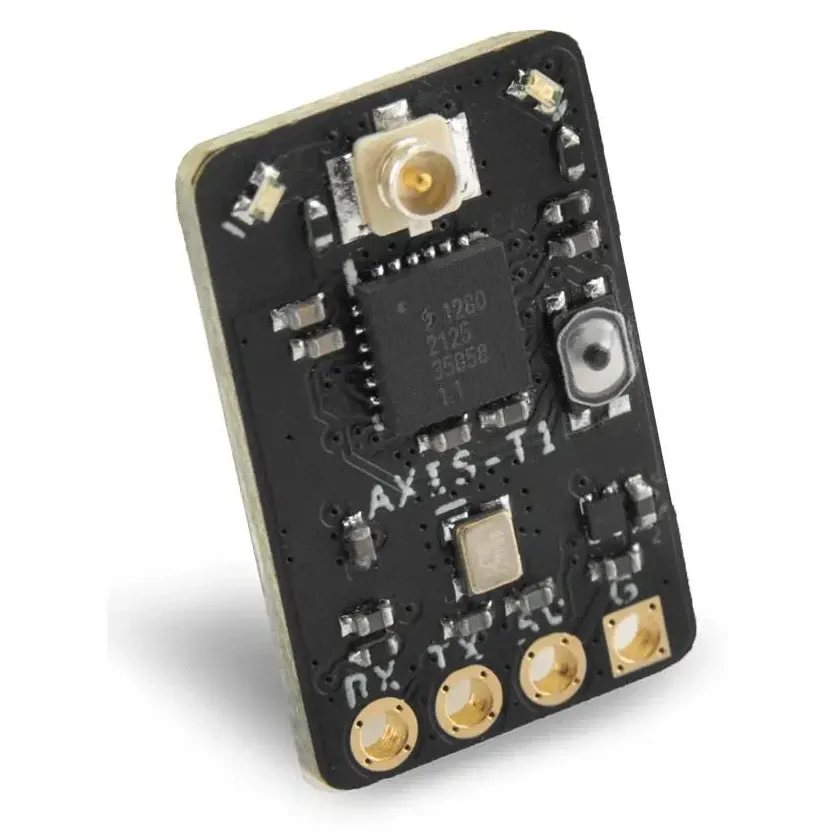

A compact ELRS 2.4GHz receiver from Axisflying, based on the SX1280 RF chip and ESP8285 MCU. At 0.8g and 18.2 x 11.75mm it fits anything from whoops to 7-inch long-range quads, and it binds to any 2.4GHz ELRS radio or TX module running a matching major firmware version.
Key features
- Packet rates up to 500Hz for low-latency control, down to 25Hz for maximum range.
- CRSF serial output needs just one UART on the flight controller and carries telemetry back to the radio.

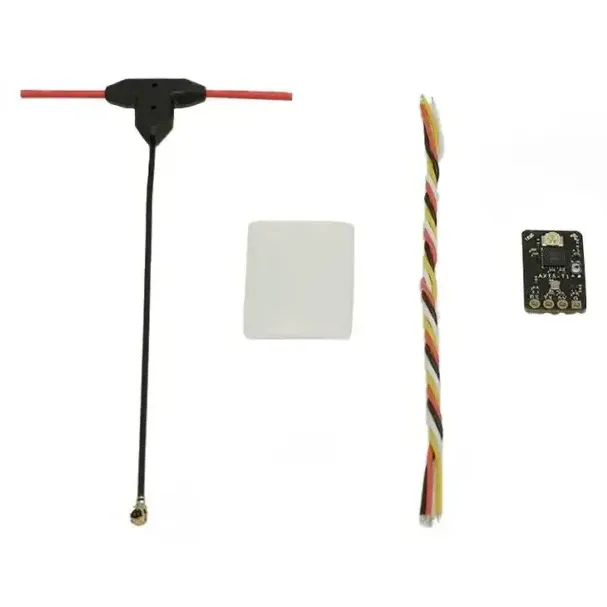

- IPEX (U.FL) antenna connector with a 2.4GHz T-antenna included.
- 5V supply from the FC's 5V or 4.5V pad.
Specifications
- RF chip: SX1280
- MCU: ESP8285
- Frequency range: 2400-2500MHz
- Packet rate: 25Hz to 500Hz
- Output protocol: CRSF
- Working voltage: 5V
- Antenna connector: IPEX (U.FL)
- Dimensions: 18.2 x 11.75 x 3mm
- Weight: 0.8g (receiver), 2.4g with antenna
Wiring: receiver TX to an FC UART RX, receiver RX to the same UART's TX, plus 5V and ground; then enable Serial RX on that UART with the CRSF provider in Betaflight or INAV. Silicone wire and heat shrink are included.
| RC Protocol | ELRS |
|---|---|
| Made in India | No |
| Brand | Axisflying |
| Frequency | 2.4GHz |
| Weight | 0.8 g |
| Antenna Connector | U.FL |
| Diversity | No |
