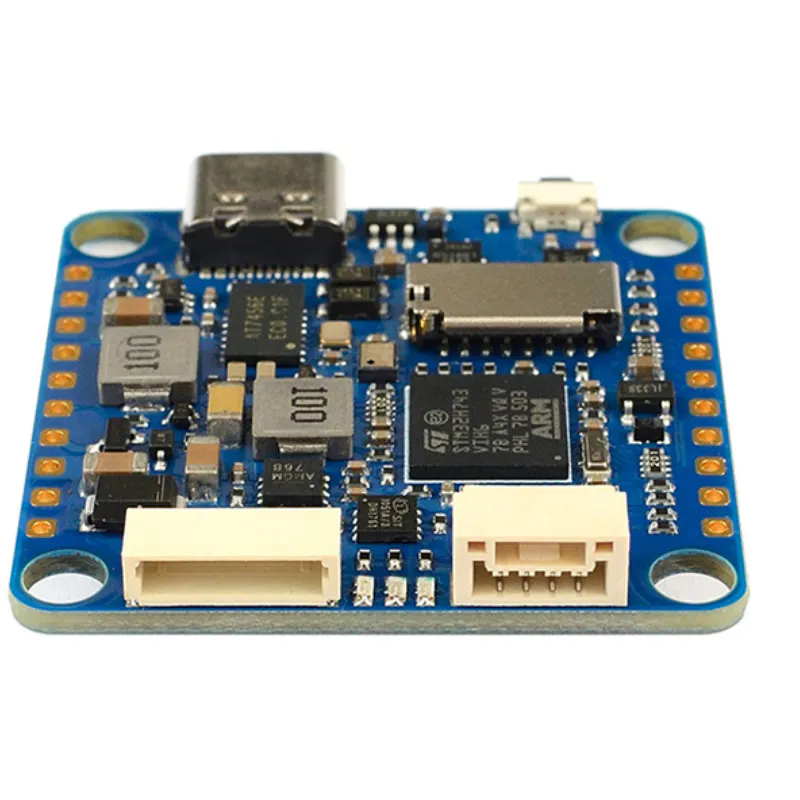

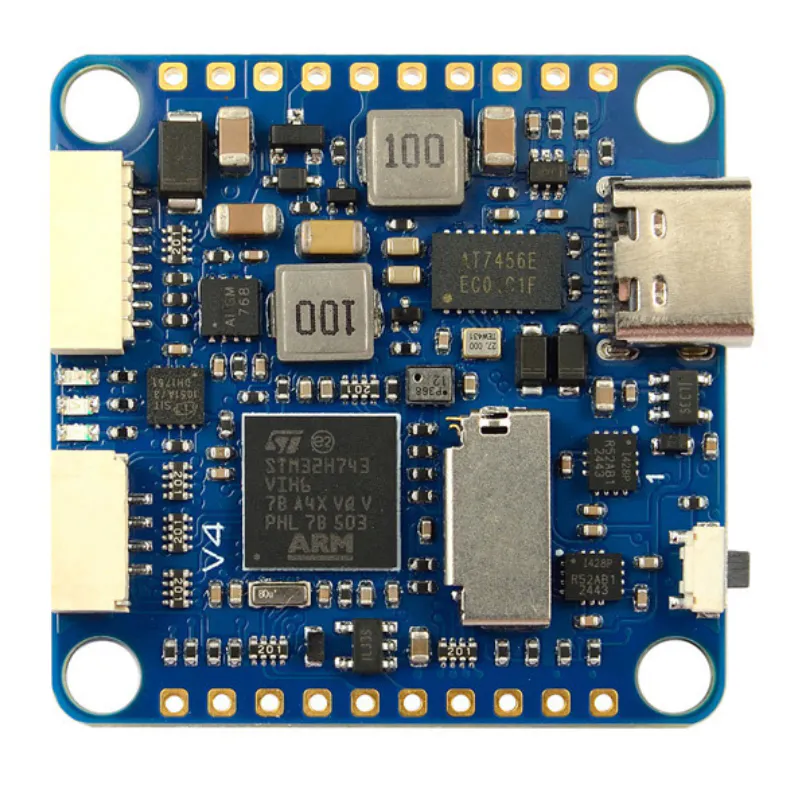

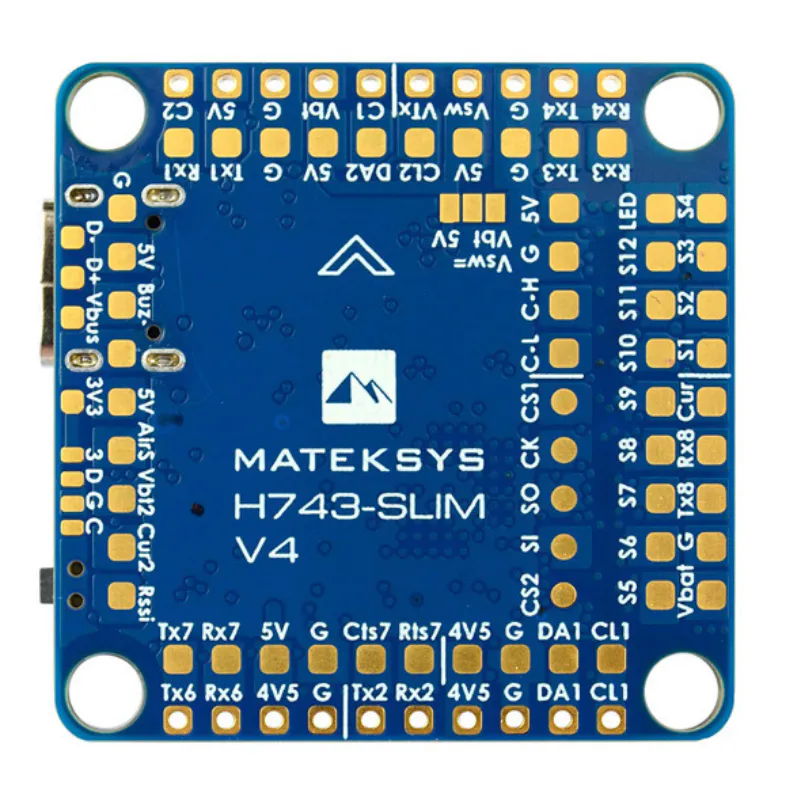

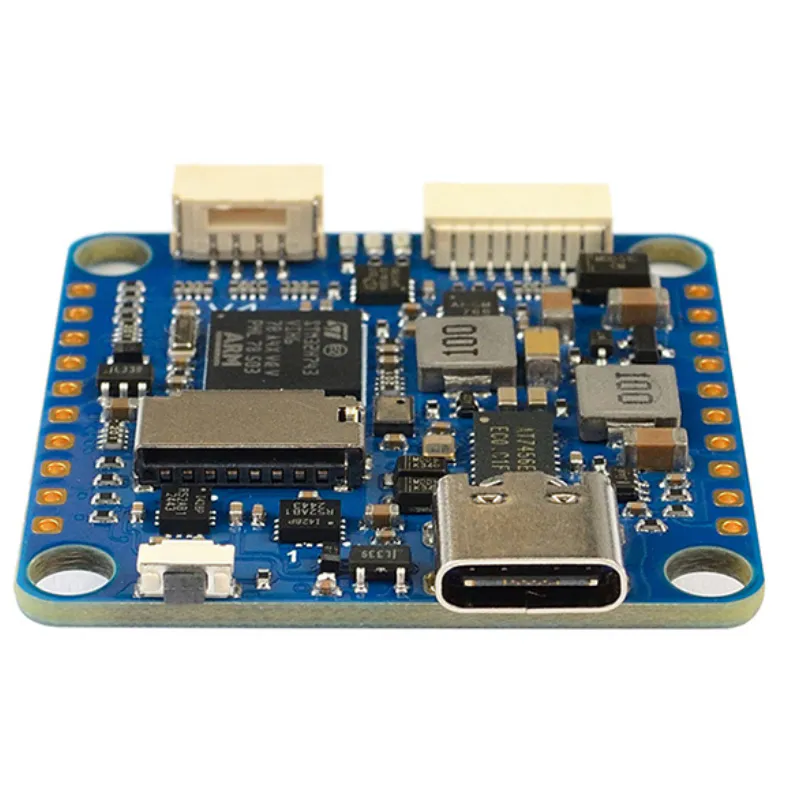

Matek H743-Slim V4 Flight Controller

Matek H743-Slim V4 is a 30.5×30.5 flight controller for FPV builds that need an H743 processor, a dual ICM42688P gyro and support for Betaflight, ArduPilot or INAV. It suits stack-based builds where clean wiring matters, with USB-C, onboard logging, a barometer and enough I/O for GPS, camera switching and other peripherals.

Key features

• STM32H743 processor (480MHz) for demanding FC workloads and feature-rich firmware setups
• Dual ICM42688P gyro and an onboard DPS368 barometer for current-generation sensor performance
• Onboard microSD slot for flight logging and tune analysis

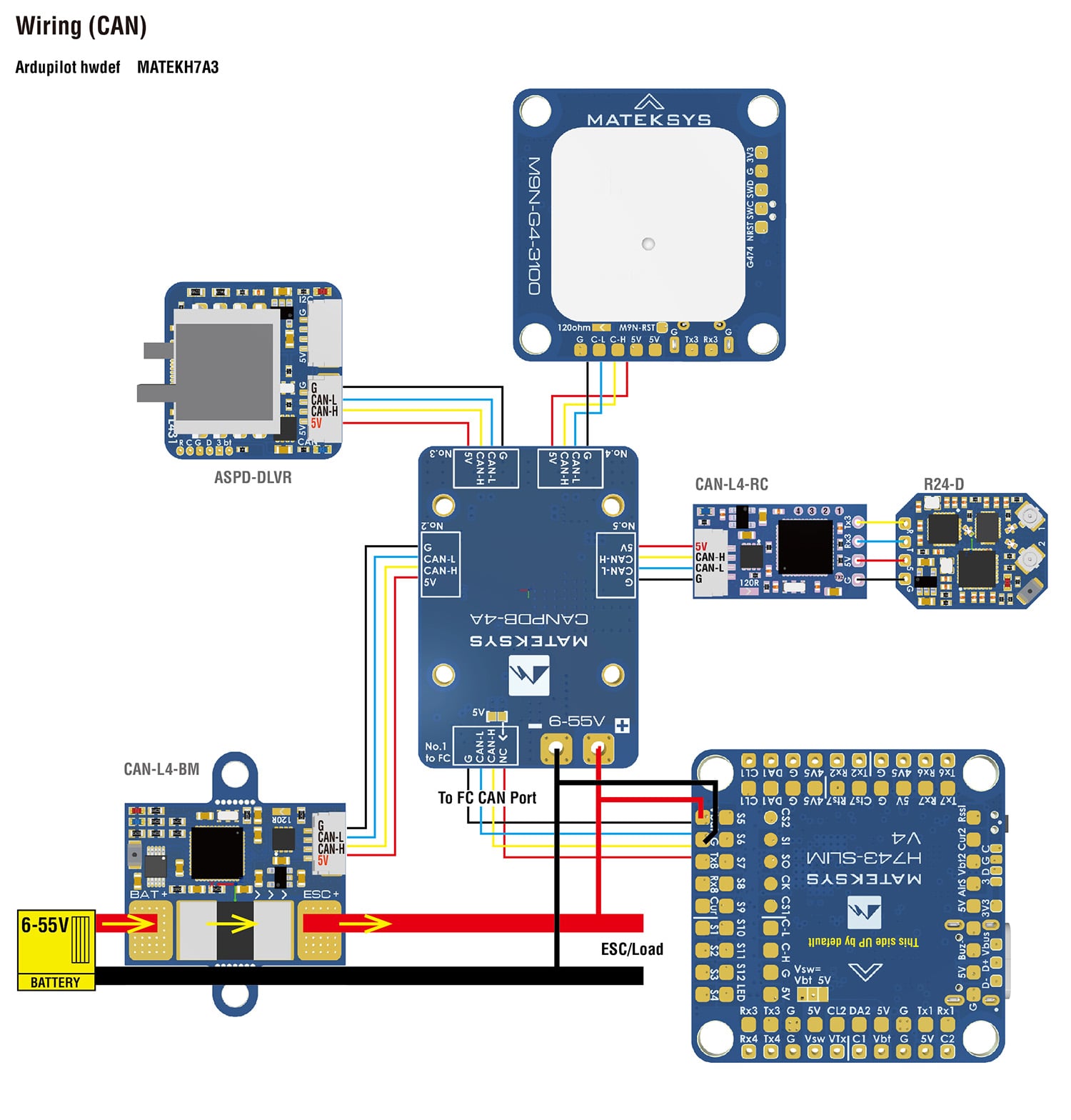

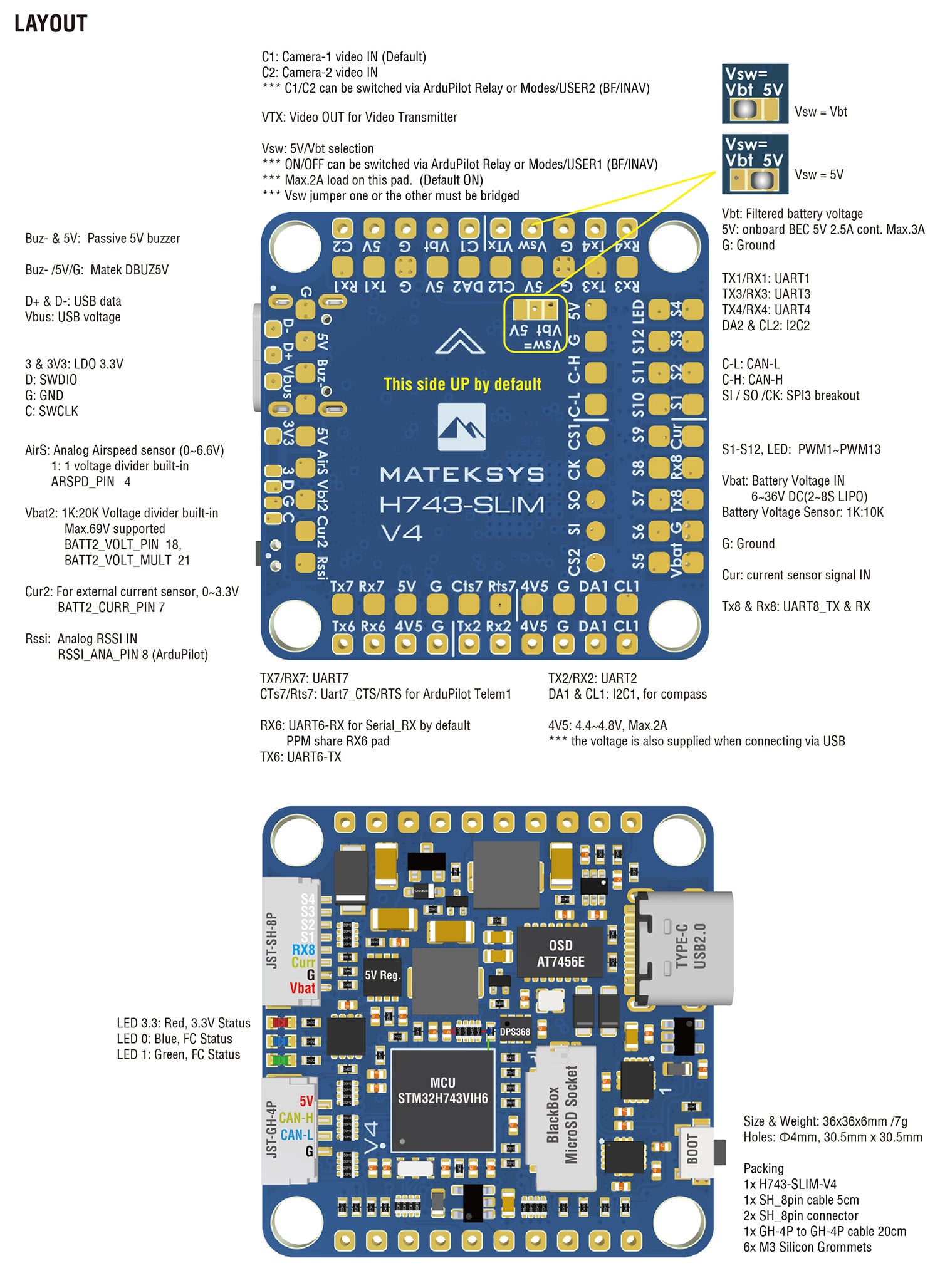

• 7 UARTs, 2 I2C buses, CAN and an SPI3 breakout for receivers, GPS units, telemetry and external modules

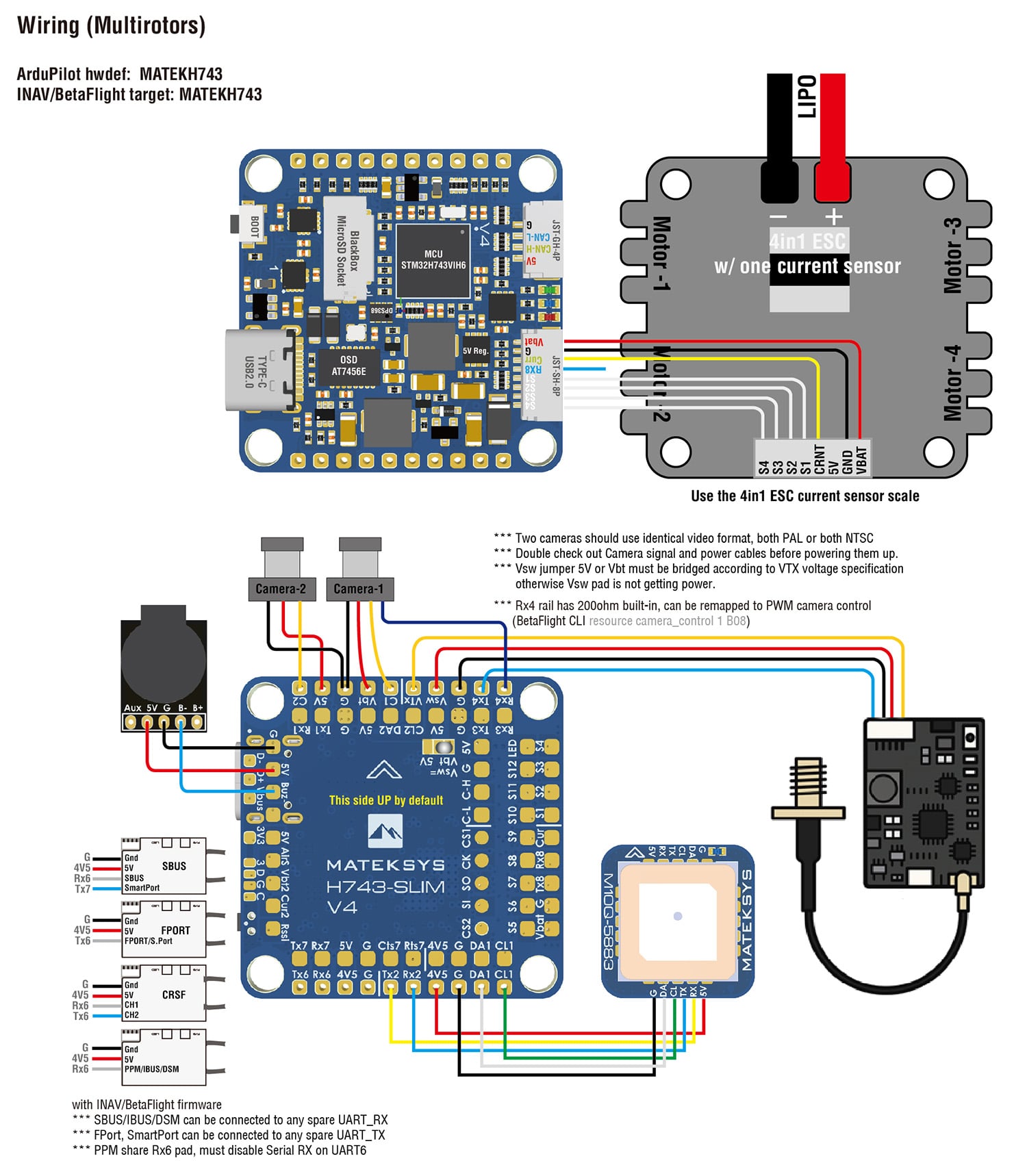

• Switchable dual camera inputs and switchable 5V/Vbat filtered outputs simplify camera and analogue-VTX wiring
• 2-8S input with TVS protection, filtered VBAT and regulated power rails for wider pack compatibility

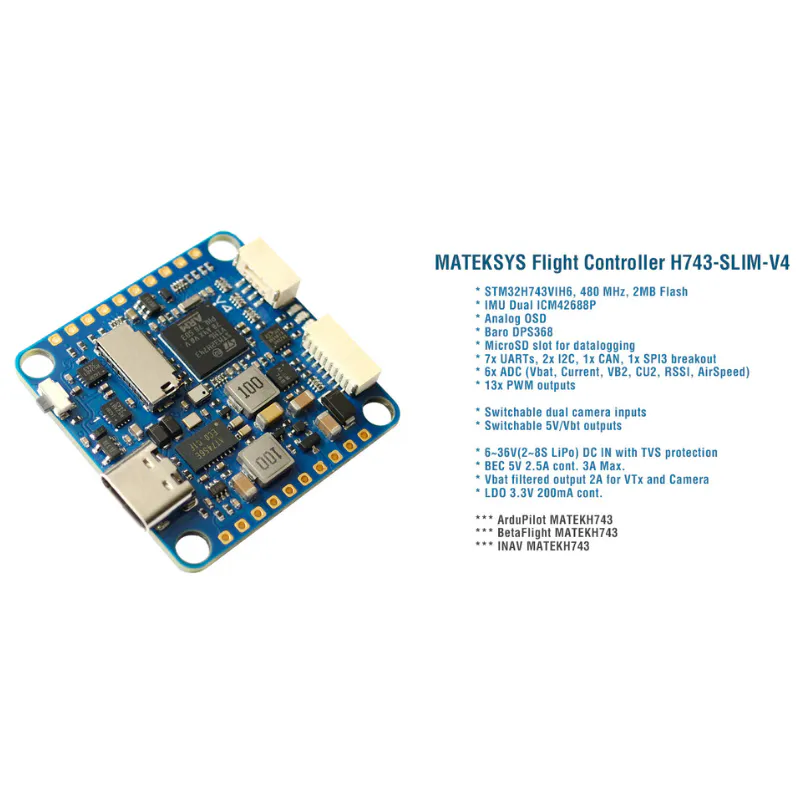

Specifications

• FC processor: STM32H743
• Gyro: Dual ICM42688P
• Barometer: DPS368
• Mounting size: 30.5x30.5 mm
• Input voltage: 2-8S
• Supported firmware: Betaflight, ArduPilot, INAV
• Weight: 7 g
• Dimensions: 36 x 36 x 5 mm
• BEC: 5 V 2.5 A continuous (3 A max); filtered VBAT output 2 A
• OSD: AT7456E
• Outputs: 13 PWM/DShot (including LED pad)
• Current sensor: none built in

Choose this board if your build uses a 30.5x30.5 stack pattern and you want broad firmware support, an onboard barometer and enough ports for peripherals without moving up to a larger FC footprint.
