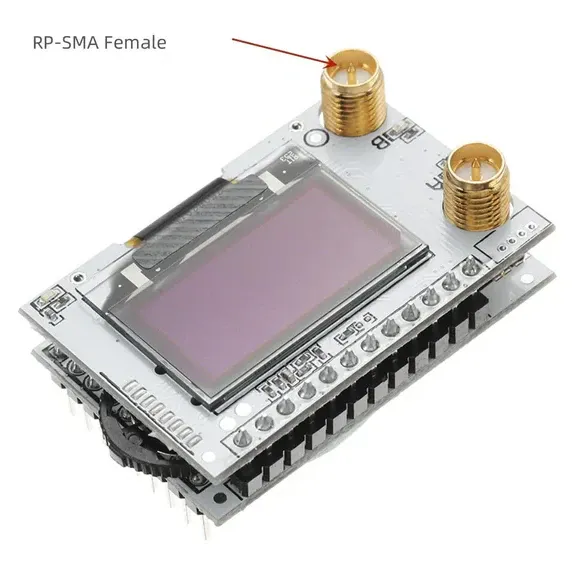

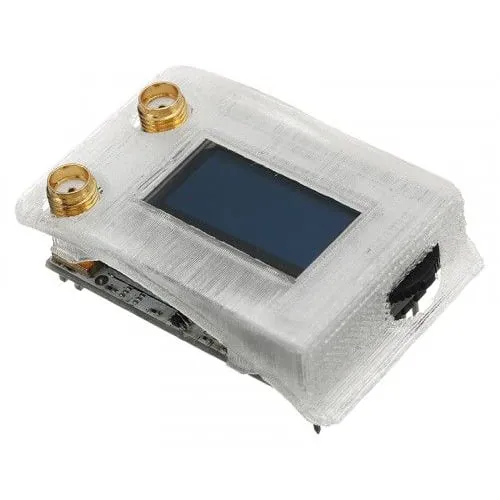

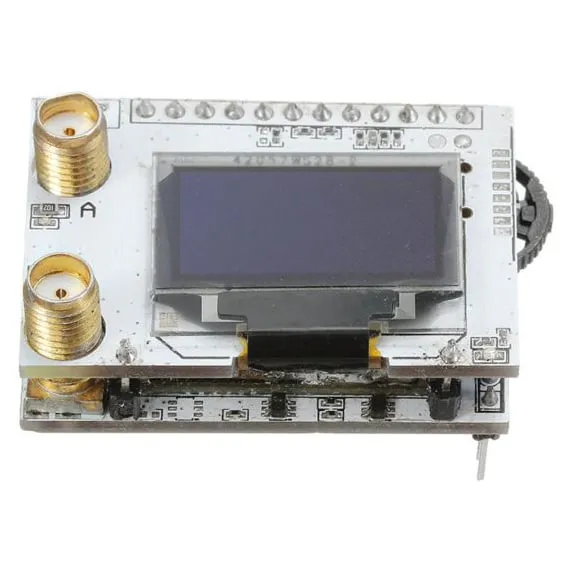

Eachine PRO58 Diversity 40CH 5.8G OLED VRX Receiver
SKU EACHINE-PRO58-RPSMA-F
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Eachine PRO58 is a 5.8GHz diversity receiver module designed for FatShark-style goggle bays. Known for its accessibility and strong community support, this 40-channel VRX features an integrated OLED display and is frequently flashed by pilots with third-party open-source firmware like Achilles or Pirx to unlock advanced spectrum analysis and refined user interfaces.
Key features
- True diversity reception using dual 5.8GHz receiver chips for improved multipath handling.
- Integrated OLED display with a built-in auto-scan function and spectrum analyser.
- Three-way up/down/select button for quick channel switching and menu adjustments; the goggles' own CH+/CH- buttons also change channel (channels 1-8 only).
- Built-in beeper confirms each button operation.
- Onboard ST-Link flashing pads for installing custom third-party firmware.
Specifications
- Frequency: 5.8GHz (40 Channels)
- Bands: A, B, E, F and Raceband
- Receiver type: True Diversity
- Antenna connectors: 2x RP-SMA Female
- Sensitivity: -92dBm
- Display: OLED
- Input voltage: 5V
- Dimensions: 42 x 30 x 25 mm
- Weight: 23g
This module drops directly into FatShark Dominator, HD3, HDO, and other FPV goggles equipped with a standard 5V receiver module bay. As this variant features RP-SMA female connectors, ensure your chosen patch and omnidirectional antennas use RP-SMA male fittings.
| Frequency | 5.8GHz |
|---|---|
| Made in India | No |
| Brand | Eachine |
| Antenna Connector | RP-SMA |
| FPV System | Analog |
