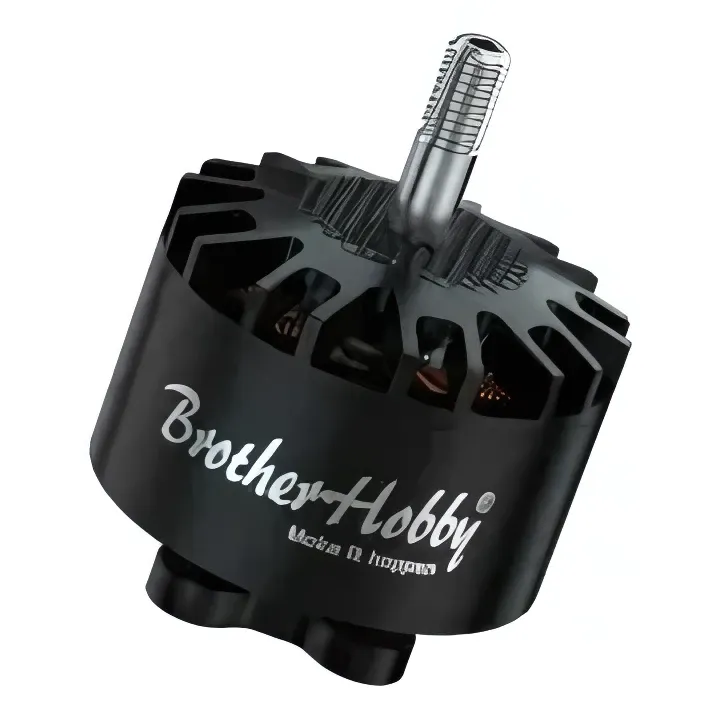

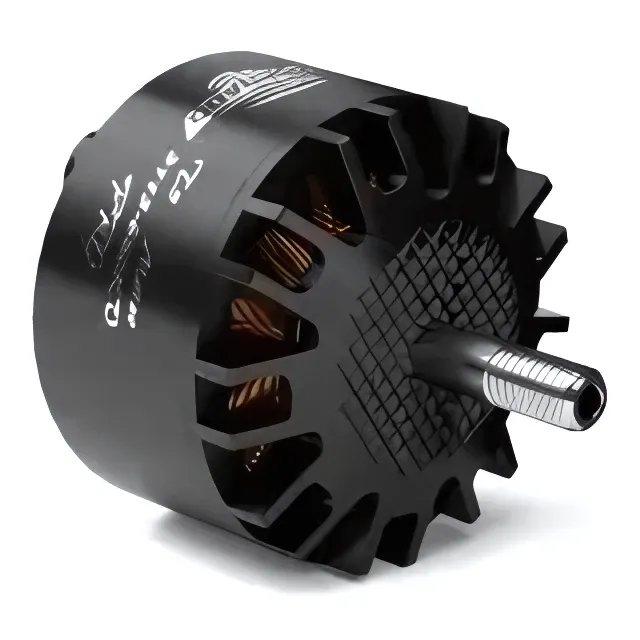

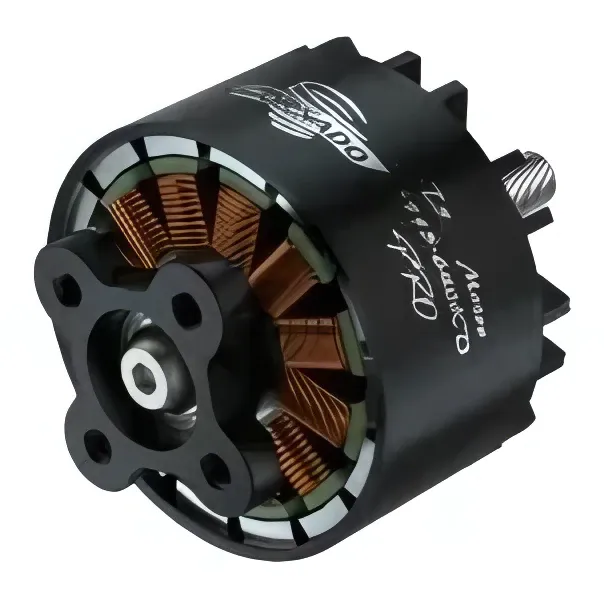

BrotherHobby Tornado T5 Pro 3115 970KV Motor

The BrotherHobby Tornado T5 Pro 3115 970KV is a high-torque, big-stator motor engineered for 7-inch to 9-inch long-range builds and heavy-lift cinelifters. Built to swing large propellers with sustained efficiency, this 970KV variant is ideal for 6S setups requiring aggressive thrust to carry heavy payloads without inducing extreme voltage sag.

Key features

• Machined with an aerospace-grade 7075 aluminium base and bell cap for maximum durability under heavy payload stress.

• Utilises N52H arc magnets and a 0.2mm Kawasaki silicon steel stator to optimise torque generation and thermal efficiency.

• Equipped with a hollow titanium alloy shaft and premium Japanese NMB bearings for smooth, vibration-free rotation.

• Features an extended knurled prop grip to prevent heavy 7-inch and 8-inch propellers from slipping during high-throttle punches.

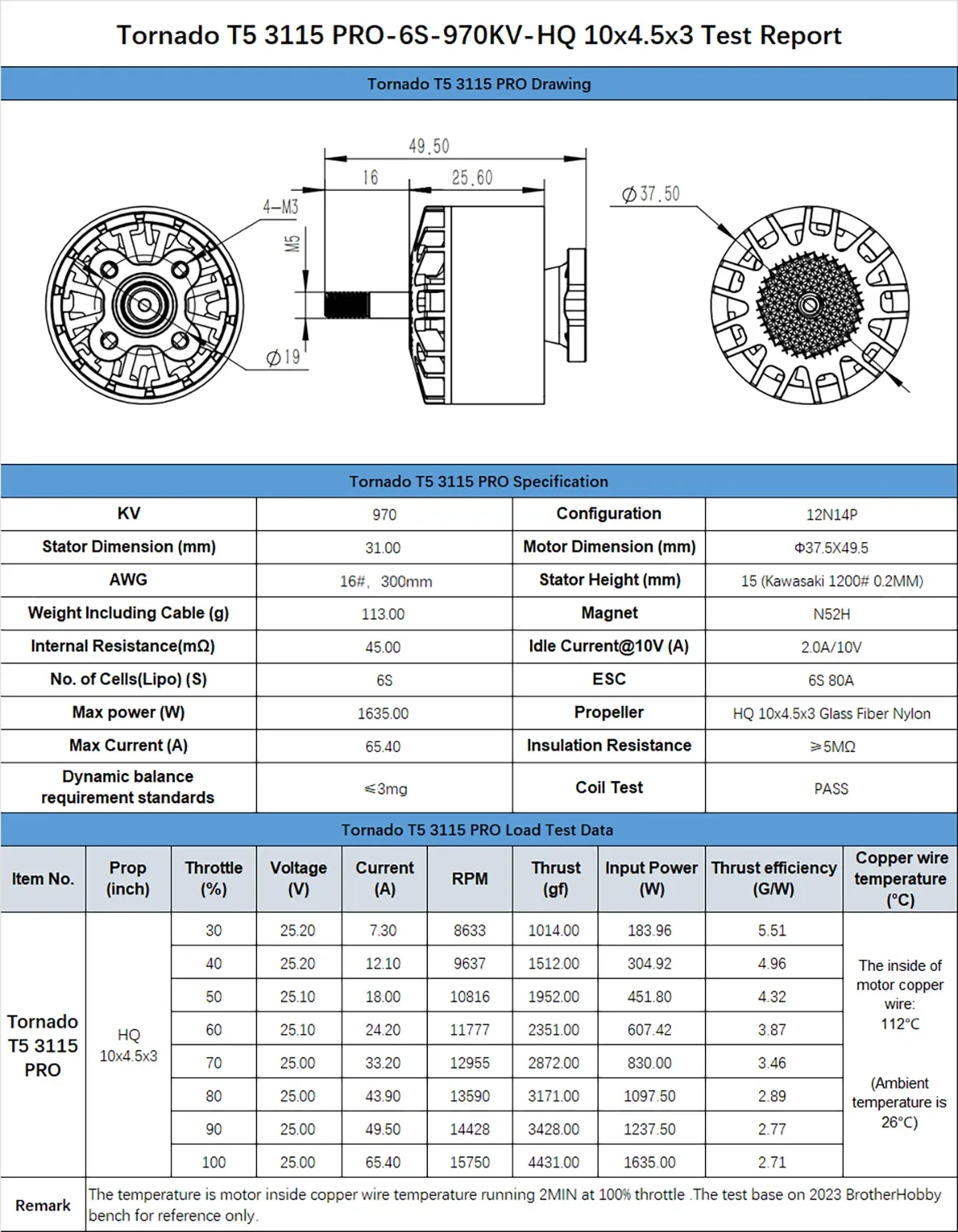

Specifications

• KV: 970

• Stator Dimensions: 31x15mm

• Configuration: 12N14P

• Magnets: N52H Arc

• Shaft Diameter: 5mm

• Bearings: Japanese NMB (11x5x5mm)

• Mounting Pattern: 19x19mm (M3)

• Motor Wires: 18AWG, 200mm

• Weight: 112g (including wires)

This motor pairs best with robust 60A+ ESCs and aggressive 7- to 8-inch tri-blade propellers for cinematic tracking, mountain surfing, or professional heavy-lift applications.
