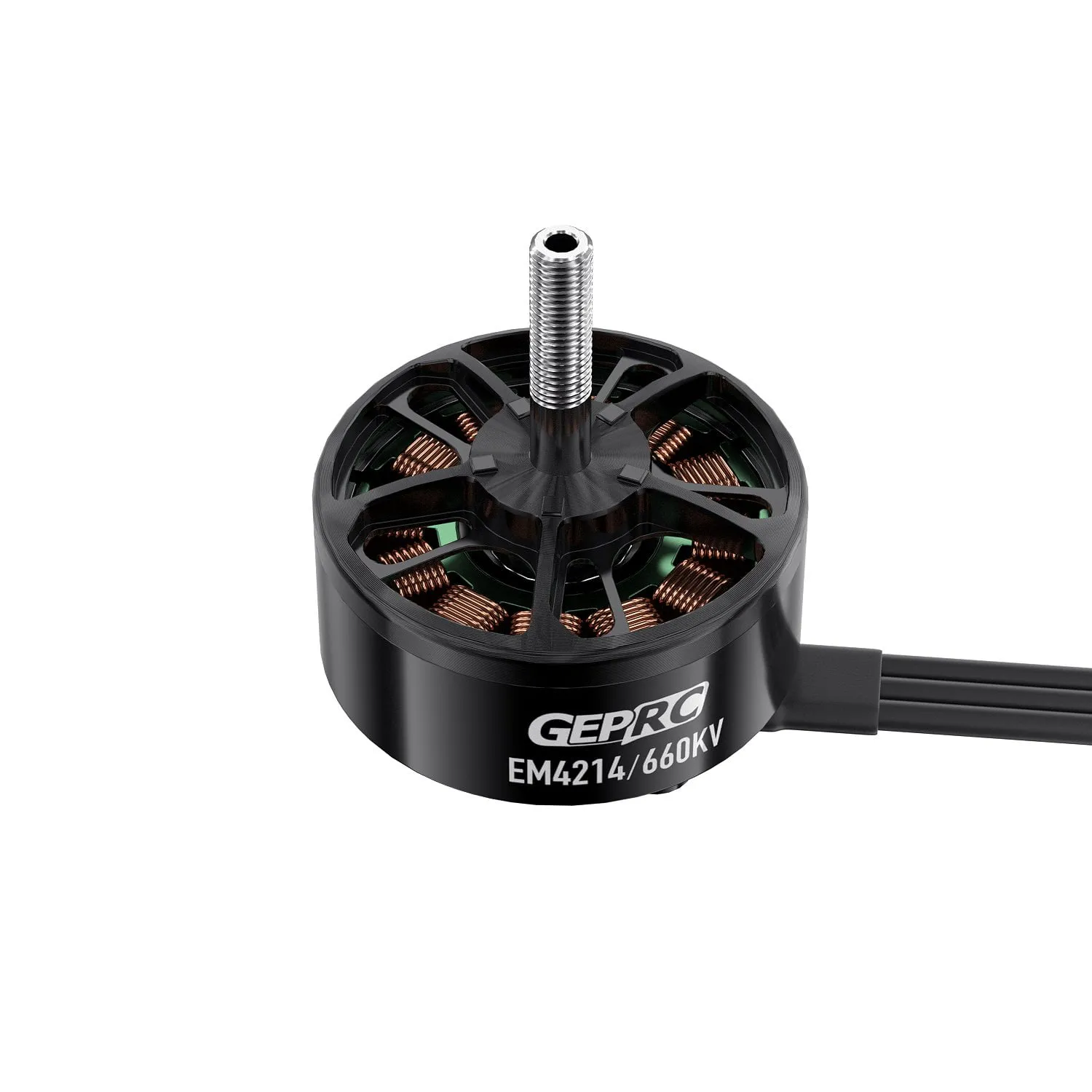

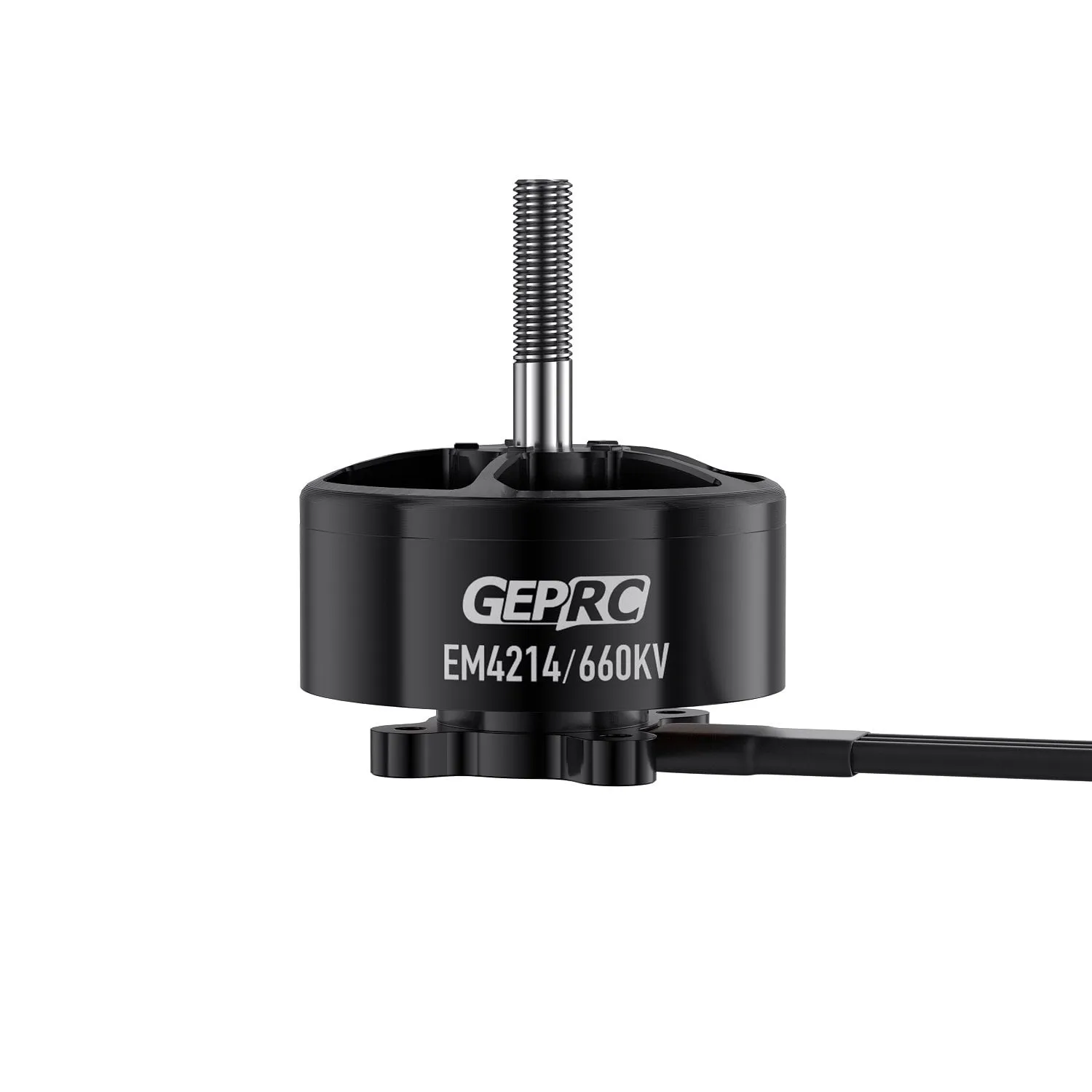

GEPRC EM4214 660KV Motor
SKU GEPRC-EM4214-660KV
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The GEPRC EM4214 660KV is a large-format brushless motor built for heavy-lift FPV cinelifters, long-range platforms and X-Class builds. The 4214 stator outputs the torque needed to smoothly spool up 12 to 14-inch propellers while carrying substantial payloads such as full-size cinema cameras or oversized battery packs.
Key features
- Large 4214 stator with a 12N14P winding delivers the low-end torque needed for heavy-payload cinelifters and stabilised rigs.
- 660KV winding balances thrust and efficiency for 6S LiPo power systems on 12 to 14-inch propellers.
- N52H magnets and NMB bearings support sustained heavy-lift flight without excess vibration.
- 6mm steel shaft and a 30x30mm mounting pattern fit standard heavy-lift and X-Class frames.
Specifications
- Brand: GEPRC
- Stator size: 4214
- KV: 660KV
- Recommended voltage: 6S LiPo
- Shaft: 6mm
- Mounting: 30x30mm
- Weight: 246g (with wire)
- Dimensions: 49 x 32.5 mm
- Shaft protrusion: 25.5 mm
- Max power: 2120 W
- Peak current: 90 A
- Interphase resistance: 25 mOhm
- Lead: 800 mm, 14AWG
- In the box: motor, 4x M4 screws, M6 anti-slip nut
To safely manage the current spikes from large-propeller heavy-lift operation, pair this motor with an 80-100A ESC.
| Stator Size | 4214 |
|---|---|
| Stator Diameter | 42mm |
| Stator Height | 14mm |
| KV | 660 KV |
| Prop Mount | 6mm |
| Shaft | 6mm |
| Motor Mount | 30x30mm |
| Input Voltage | 6S |
| Weight | 246 g |
| Brand | GEPRC |
| Made in India | No |
