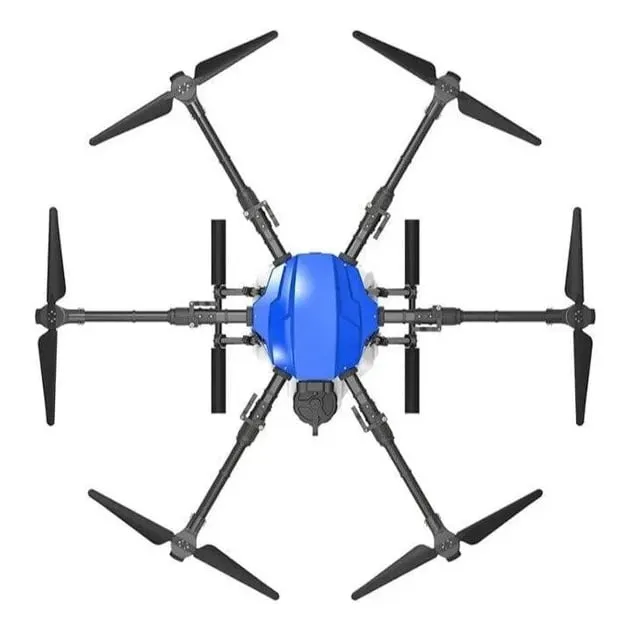

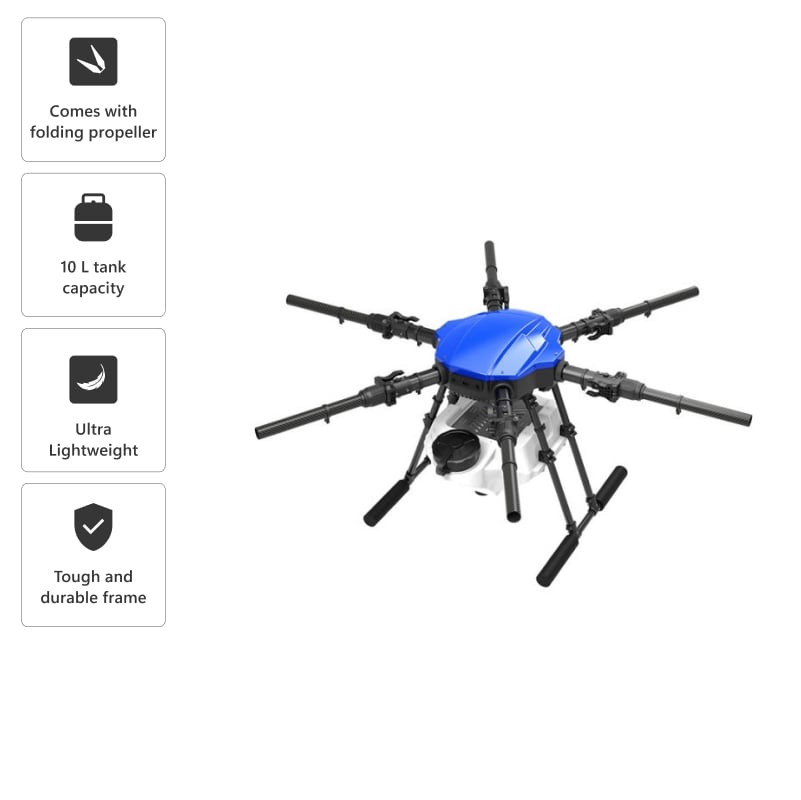

EFT E610P 10L 6-Axis Agricultural Drone Frame

The EFT E610P is a heavy-duty 6-axis hexacopter frame engineered for 10-litre liquid payload agricultural operations. Built for crop spraying and precision farming, this frame delivers critical redundancy—allowing the aircraft to maintain control and land safely even if a single motor fails during a heavy-lift sortie.

Key features

• Integrated 10-litre liquid tank designed for optimal centre-of-gravity balancing as fluid depletes.

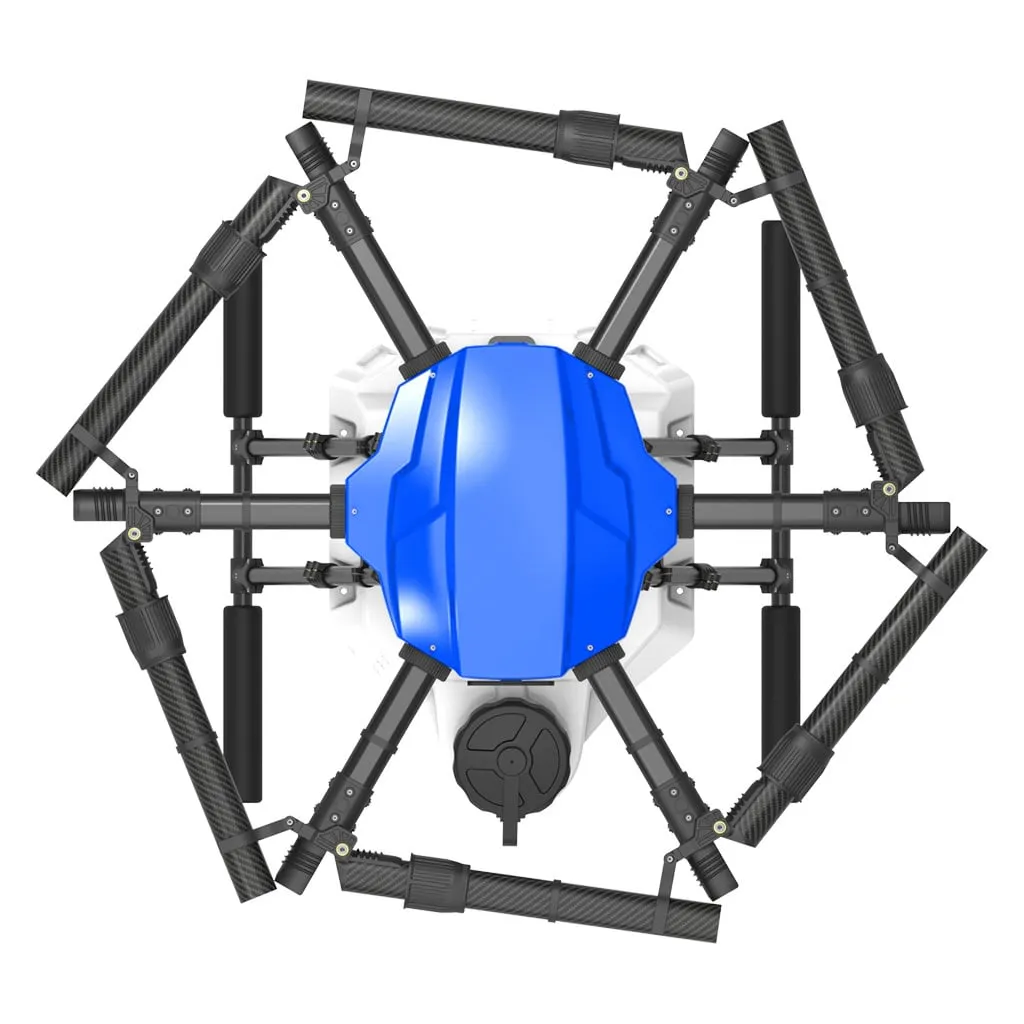

• Classic umbrella folding arm mechanism ensures rapid deployment in the field and compact transport.

• Weather-sealed central canopy protects the flight controller and power distribution board from dust, water, and corrosive agricultural chemicals.

• Rigid 30mm carbon fibre arm tubes combined with robust folding joints minimise flex under heavy payloads.

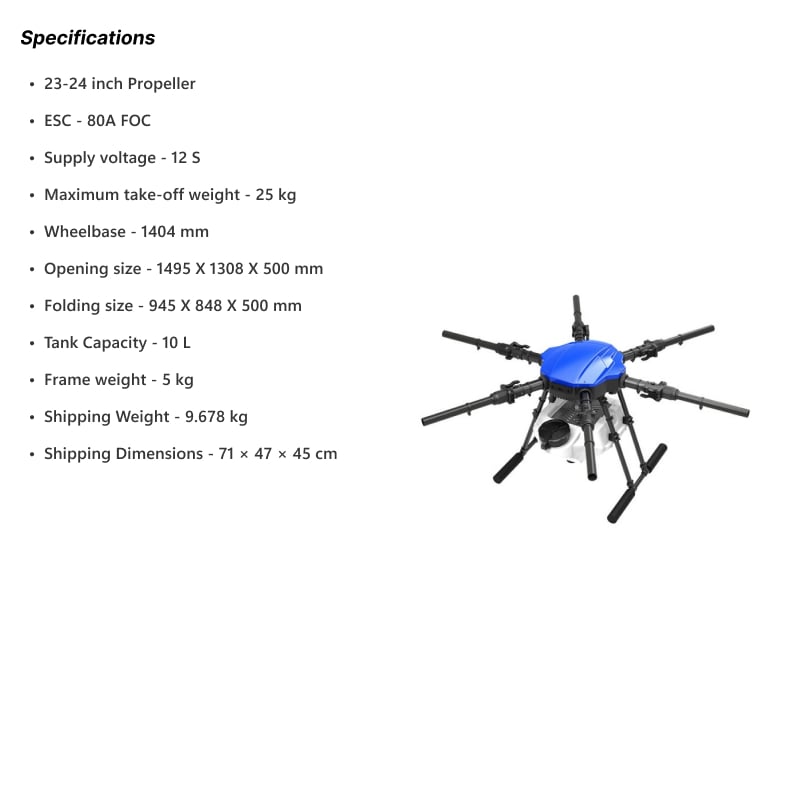

Specifications

• Frame model: EFT E610P

• Axis count: 6 (Hexacopter)

• Wheelbase: 1404 mm

• Tank capacity: 10 L

• Arm tube diameter: 30 mm

• Frame weight: 5 kg

• Maximum take-off weight: 25 kg

• Supply voltage: 12S

• Recommended ESC: 80 A FOC

• Unfolded size: 1495 x 1308 x 500 mm

• Folded size: 945 x 848 x 500 mm

• Recommended power system: Hobbywing X6 / 6215-class motors

• Recommended propellers: 23–24 inch

This frame is designed to pair seamlessly with high-torque 12S agricultural power systems and dedicated flight controllers like the JIYI K++ or Skydroid series, providing a dependable foundation for a custom crop-spraying build.
