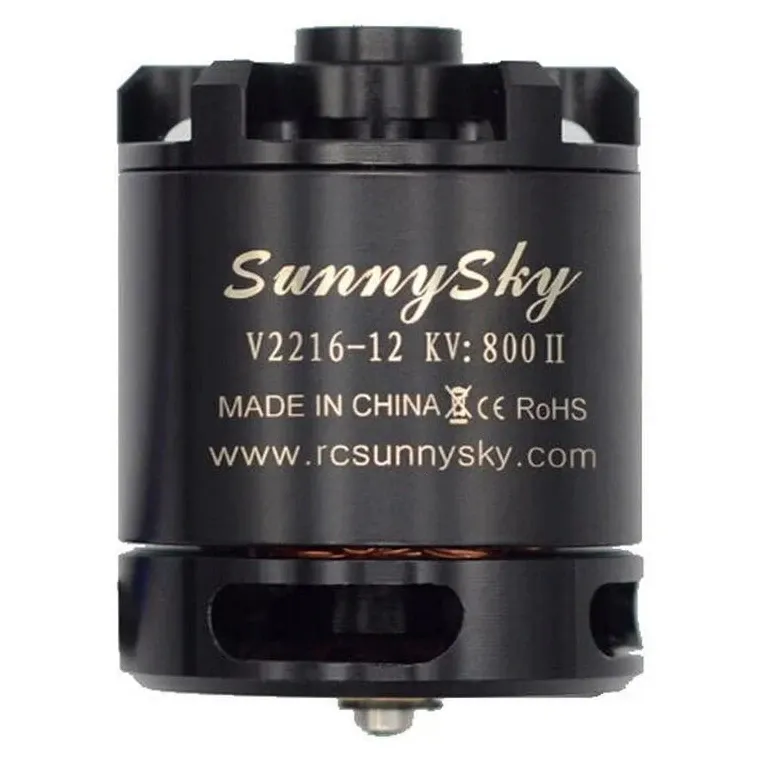

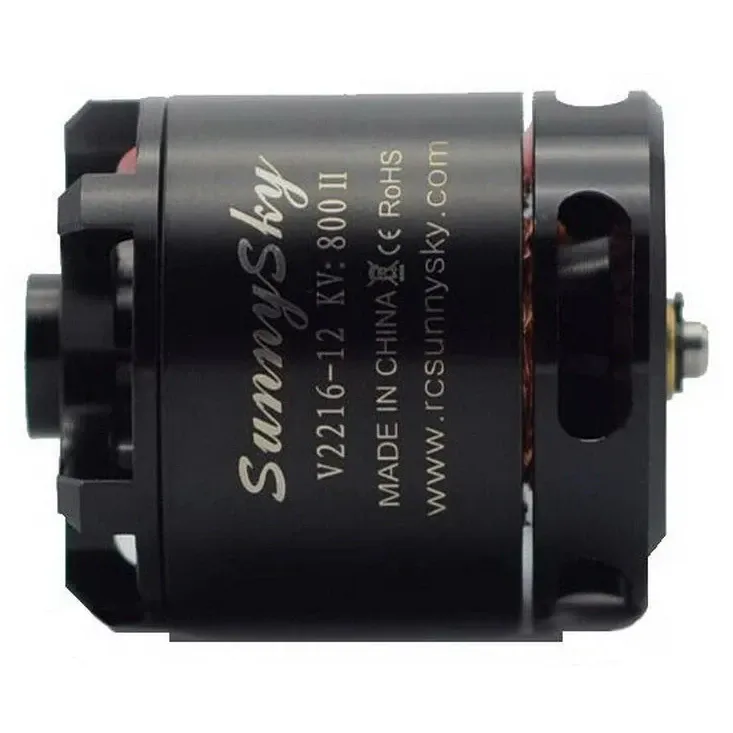

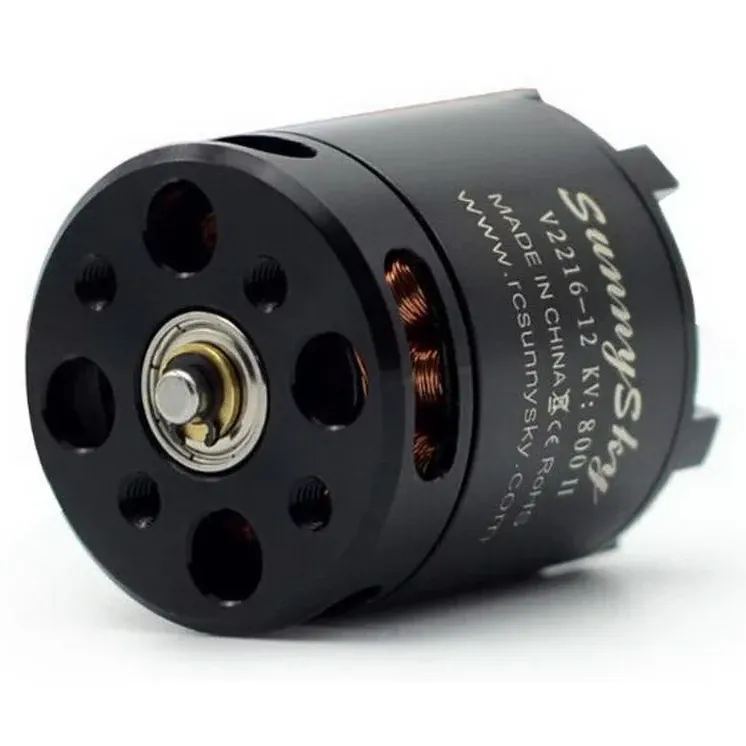

SunnySky V2216 Multirotor Brushless Motor
SKU SUNNYSKY-V2216-800KV
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The SunnySky V2216 800KV is a high-torque brushless motor tailored for endurance multirotors and classic 330-450mm quadcopter frames such as the F450. Built for efficiency rather than outright speed, this 2216 stator excels at swinging larger propellers at lower RPMs to maximise flight times and support heavier payloads.
Key features
- Precision Japanese EZO bearings for smooth, low-vibration operation
- Hand-wound oxygen-free copper wiring to minimise internal resistance

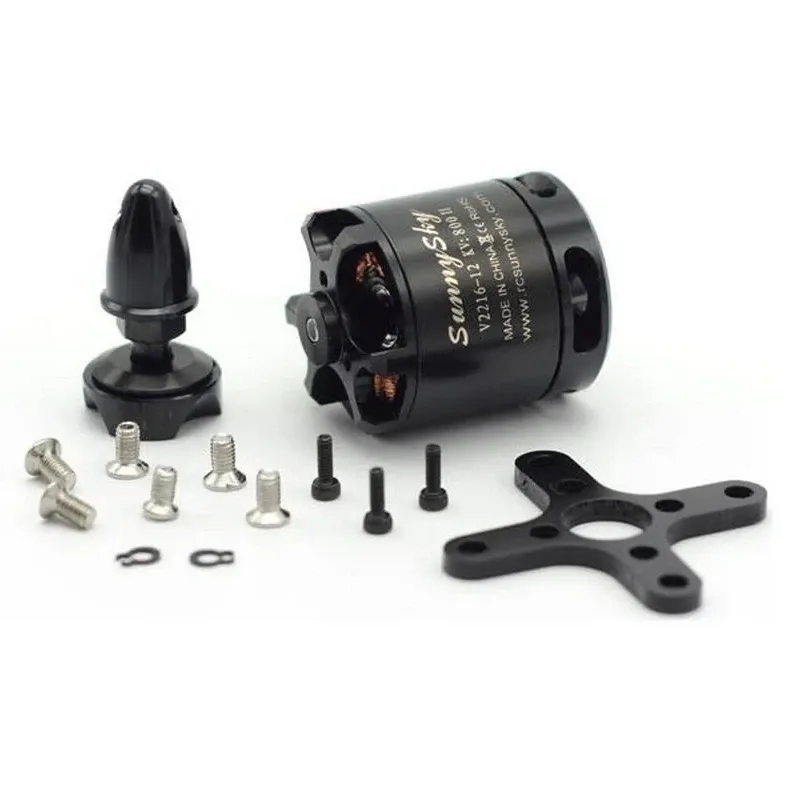

- Included bolt-on aluminium prop adapter with standard M5 threading
- Optimised for 9-inch to 11-inch propellers on 3S to 4S power systems
Specifications
- Stator Size: 2216 (22 x 16 mm)
- KV: 800
- Input Voltage: 3-4S LiPo
- Max Continuous Current: 20A
- Internal Resistance: 115mΩ
- Shaft Diameter: 3.17 mm
- Prop Mount: M5 (via included adapter)
- Motor Dimensions: 28 x 32 mm
- Weight: 68 g (motor); accessories 13 g
For efficient endurance flight, pair this 800KV variant with a 4S LiPo and a 9045 or 1045 propeller. It maintains manageable current draw while providing the steady thrust required to carry high-capacity battery packs over long distances.
| Stator Size | 2216 |
|---|---|
| Stator Diameter | 22mm |
| Stator Height | 16mm |
| KV | 800 KV |
| Shaft | 3.175mm |
| Motor Mount | 16x19mm |
| Input Voltage | 3–4S |
| Weight | 68 g |
| Brand | SunnySky |
| Made in India | No |
