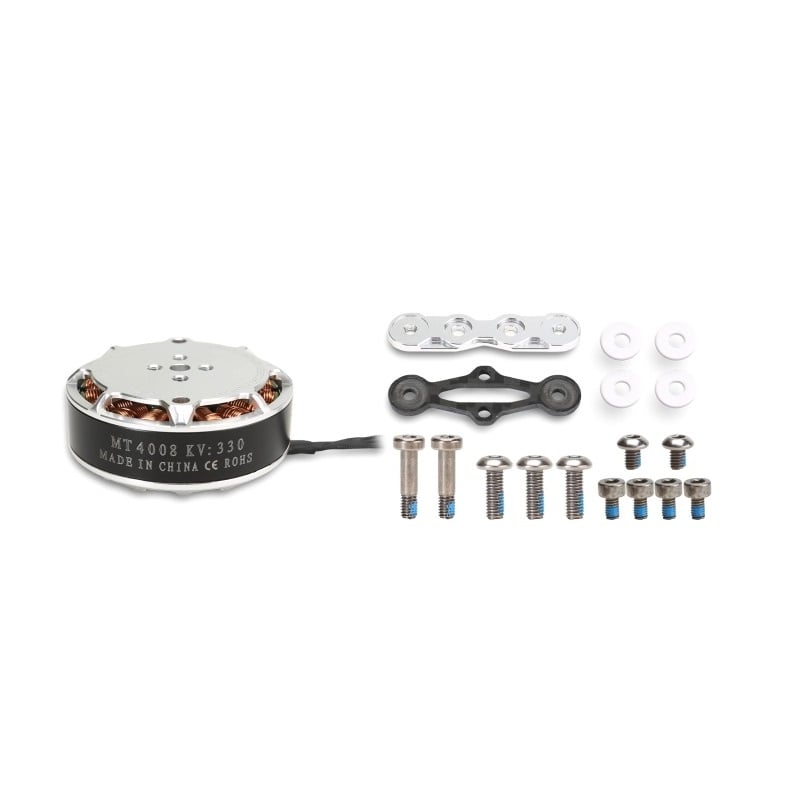

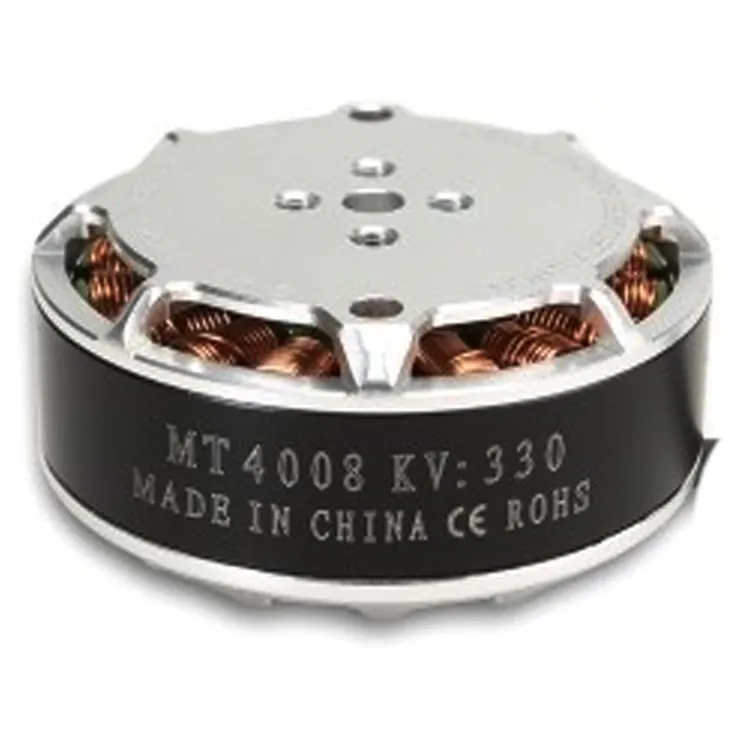

Tarot TL2955 4008MT Motor

The Tarot 4008MT (TL2955) is a Martin-series long-endurance brushless motor built for heavy-lift and mapping multirotors. Its low-profile, high-efficiency design and active-cooling housing are tuned for maximum flight time rather than punch.

Key features

• Large 4008 stator wound for high torque and low current draw at cruise throttle.
• Matched to Tarot's folding Martin-series propellers, fitting common heavy-lift frame arms.
• High-hang motor base protects the stator coil, and an active heatsink keeps temperatures down on long flights.
• CNC lathe and milled construction for consistent balance and long service life.

Specifications

• Model: Tarot 4008MT (TL2955)
• KV rating: 330 KV
• Shaft diameter: 4 mm
• Input voltage: 6S LiPo
• Recommended propeller: 17 to 19 inch
• Weight: 85 g (including propeller seat)
• Stator: 38 mm diameter x 8 mm thick, 18N24P
• Motor dimensions: 44.5 mm diameter x 22 mm height
• Max continuous current: 30 A
• Max continuous power: 497 W
• No-load current: 0.53 A at 20 V
• Motor mount: 19 mm hole spacing or 27.7 mm 3-hole triangle

Pair it with a 30-40A ESC and Tarot's folding Martin-series propellers for a lean, efficient propulsion system on a survey, mapping or heavy-lift multirotor frame.
