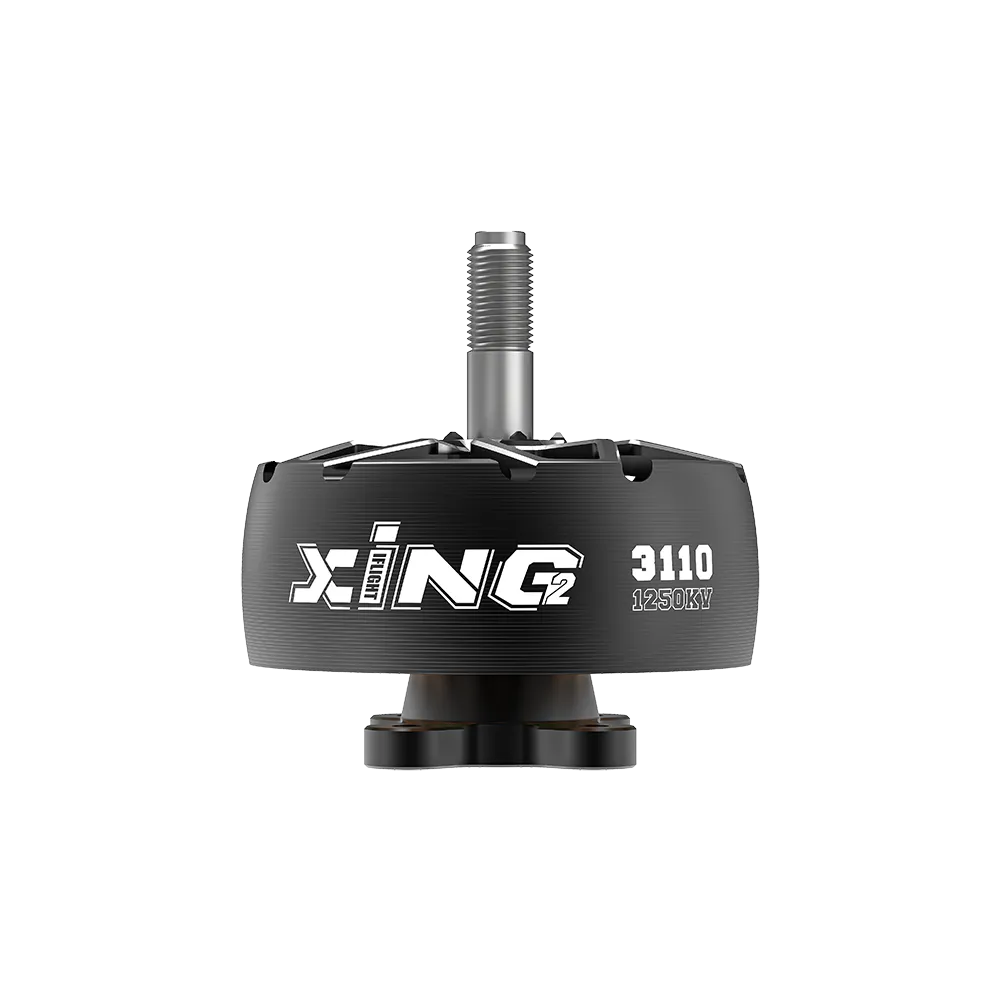

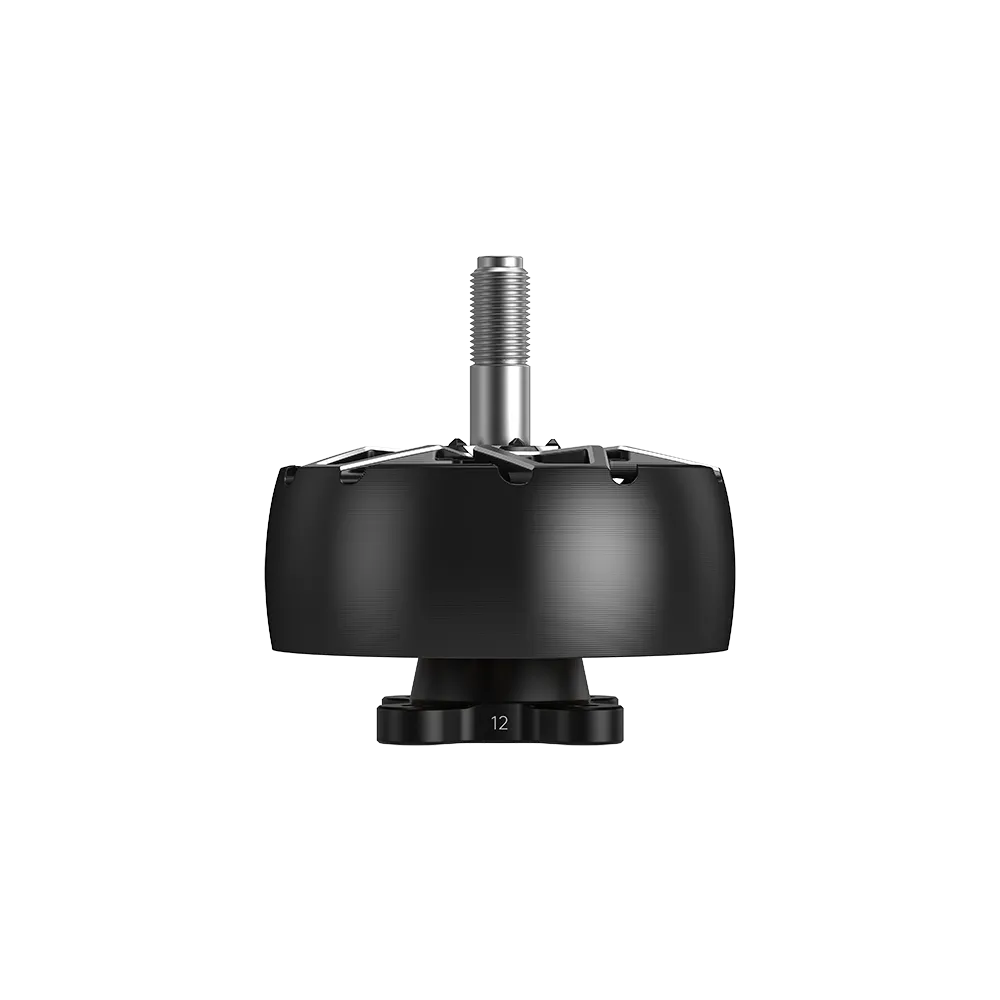

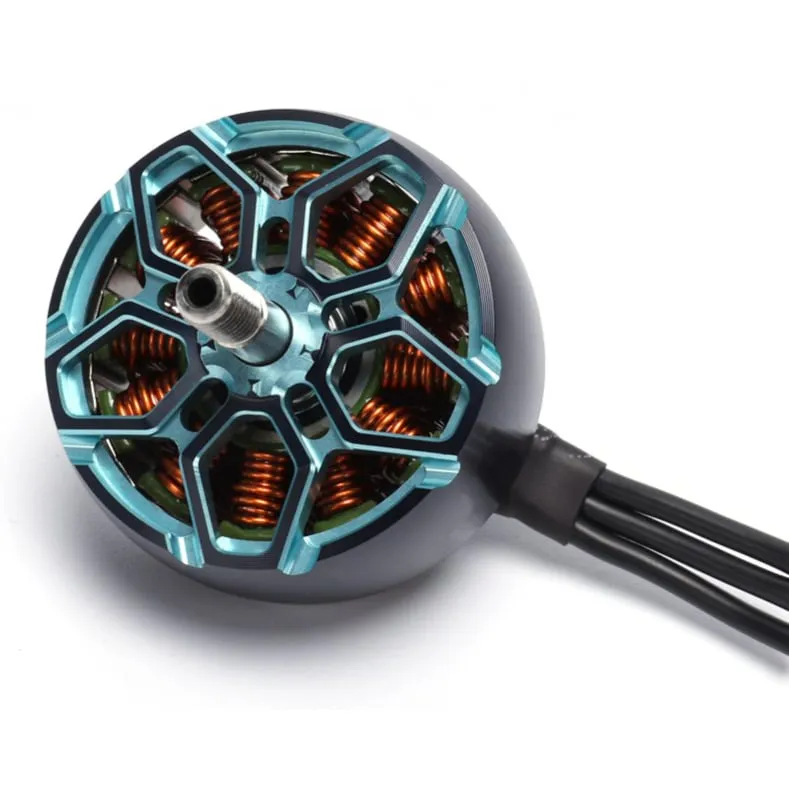

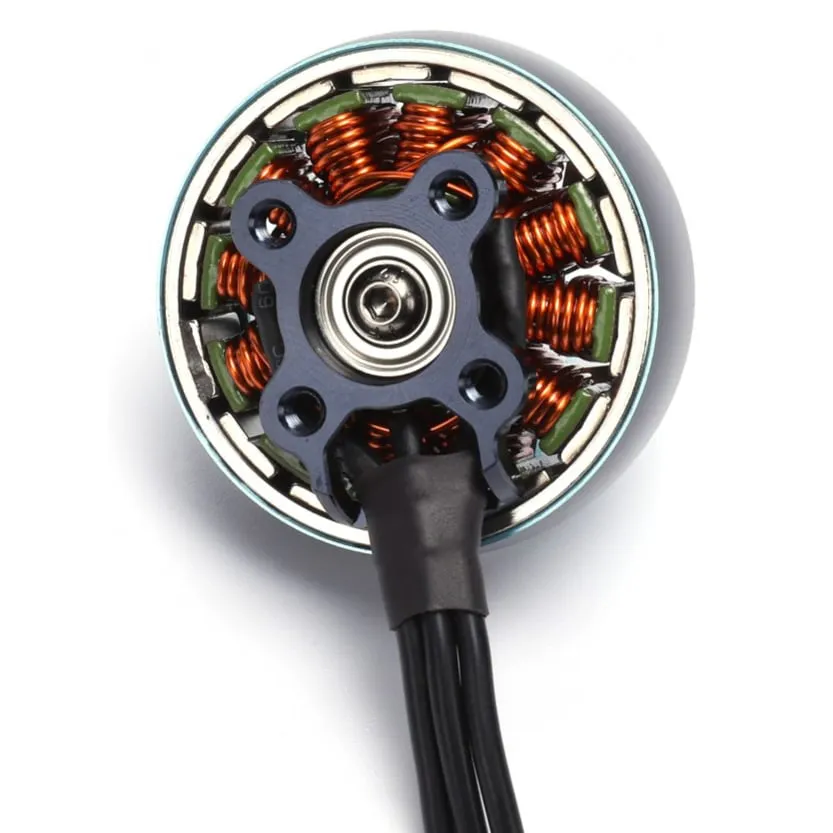

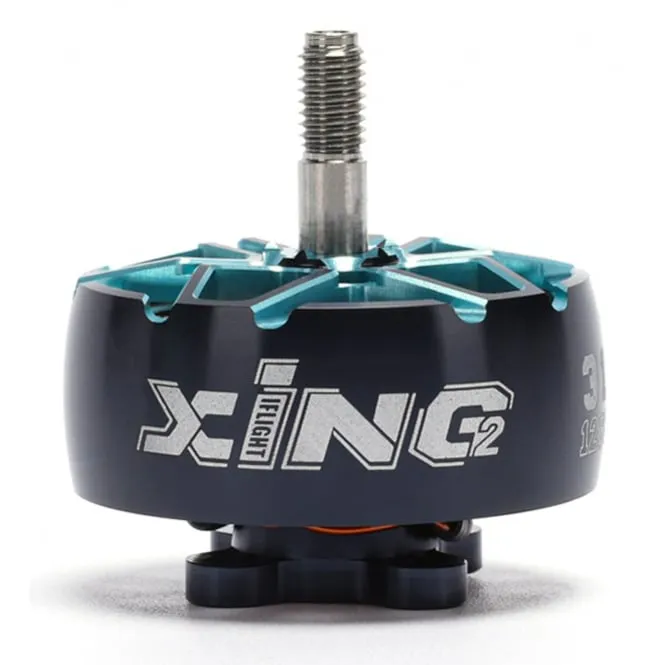

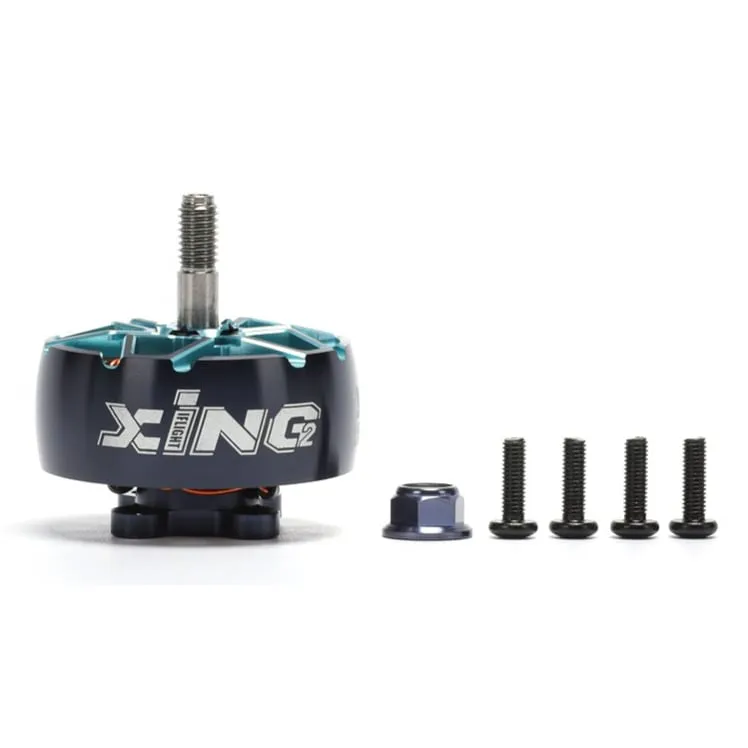

iFlight XING2 3110 Unibell 1250KV FPV Motor

The iFlight XING2 3110 1250KV motor is built for 7-inch to 9-inch long-range builds, macro quads, and heavy-lift cinelifters carrying full-size cameras. The wide 3110 stator delivers the torque needed to keep authority over heavy payloads during long cruises or high-wind flying.

Key features

• 7075 aluminium unibell construction resists deformation from heavy impacts.
• Center-slotted N52H curved arc magnets with a reduced air gap improve thrust and electrical efficiency.
• 5mm titanium alloy prop shaft handles the rotational stress of large-diameter propellers.
• O-ring bearing gap protection dampens vibration for cleaner gyro data and smoother HD footage.
• NSK 11x5x5mm bearings support smooth rotation under sustained heavy-lift loads.

Specifications

• KV: 1250
• Stator size: 3110
• Configuration: 12N14P
• Input voltage: 4-6S LiPo
• Shaft: 5mm titanium alloy (15 mm protruding)
• Mounting pattern: 19x19mm
• Motor dimensions: 38.72 x 39.6 mm
• Peak current: 84.68 A
• Max power: 1976.4 W
• Internal resistance: 43 mOhm
• Motor wire: 18AWG, 260 mm
• Weight: 77g (including wire)

Pair this 1250KV motor with a 6S power system and 7 to 8-inch propellers for a responsive thrust-to-weight ratio on a heavy-lift long-range platform.
