BetaFPV SuperX Gemini Xross Nano Receiver

₹3,899Incl. GST

SKU BFPV-SUPERX-GEMINI-NANO

RC Protocol: ELRSMade in India: NoBrand: BetaFPVFrequency: 868/915MHz, 2.4GHz
Dispatched within 2 business days — quality-checked in Gurugram

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

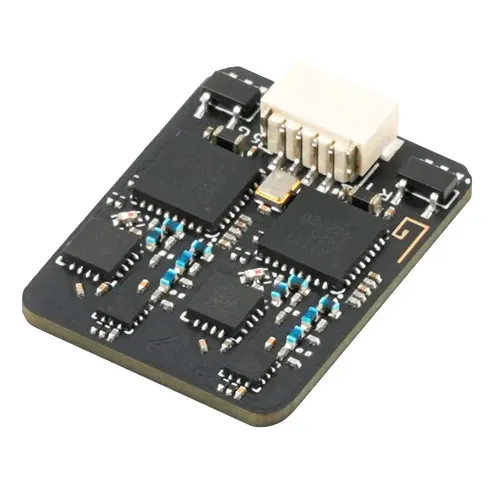

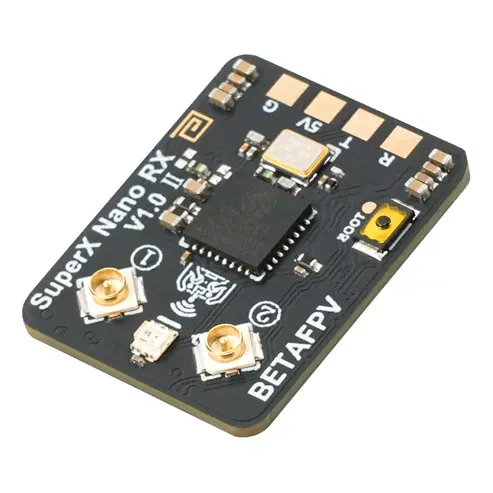

The BetaFPV SuperX Nano is a dual-band ELRS receiver built around two Semtech LR1121 RF chips, giving Gemini diversity across 900MHz and 2.4GHz for 5-inch and larger FPV builds.

Key features

  • Dual LR1121 chips run 900M Gemini, 2.4G Gemini or combined GemX mode for a more resilient long-range link.

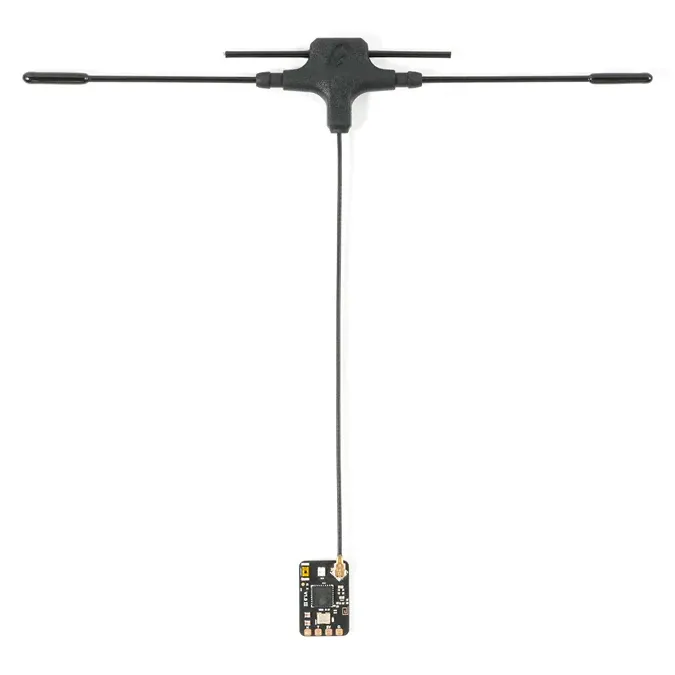

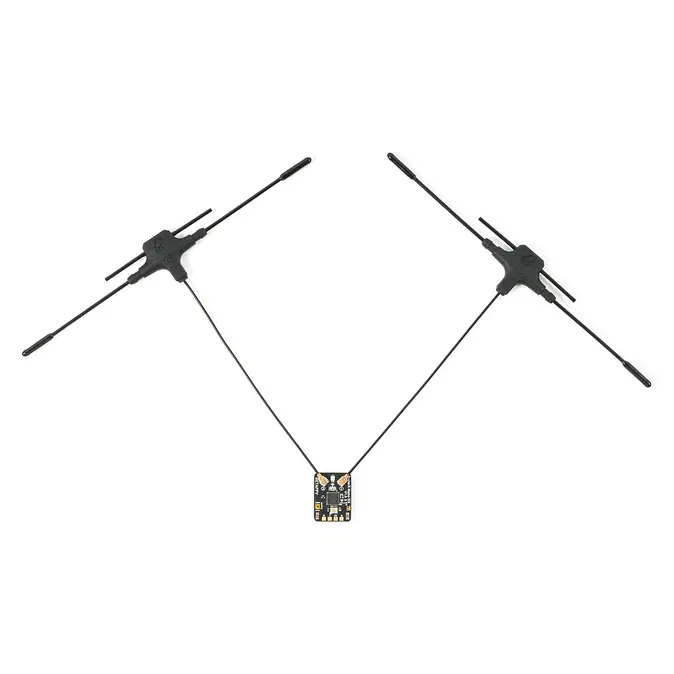

  • Diversity reception through two U.FL antenna connectors with the included dual-band T antennas.
  • Outputs CRSF, SBUS, SUMD, DJI RS2 Pro and MAVLink telemetry protocols.

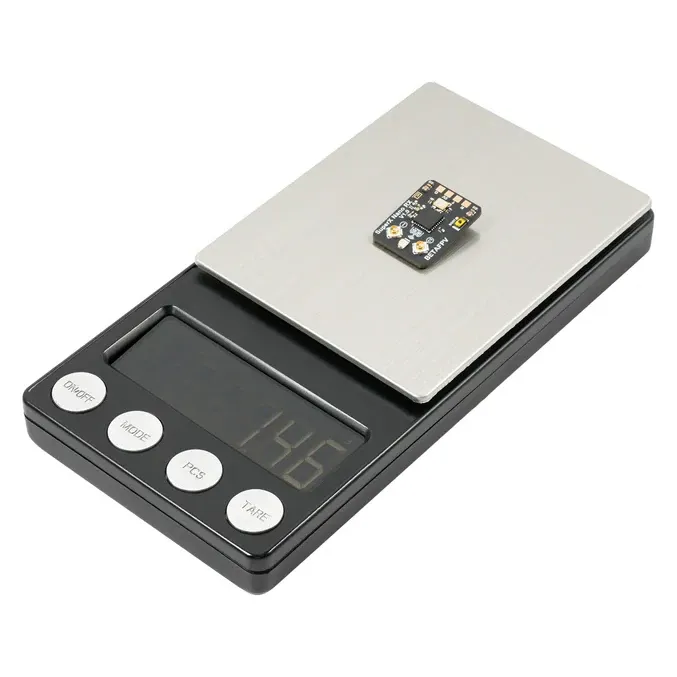

  • Weighs just 1.45g at 16.3 x 21.4mm, suited to 5-inch-plus freestyle, long-range and photography quads.
  • Compatible with BetaFPV's Micro, Micro V2, Nano V2 and SuperG ELRS transmitter modules.

Specifications

  • RF chip: Dual Semtech LR1121
  • MCU: ESP32-C3
  • Frequency: 900MHz + 2.4GHz
  • Telemetry power: 20 dBm (100 mW)
  • Input voltage: 5 V
  • Weight: 1.45 g
  • Dimensions: 16.3 x 21.4 mm
  • Antenna connectors: 2x U.FL
  • Protocols: CRSF, SBUS, SUMD, DJI RS2 Pro, MAVLink

Ships with two dual-band T antennas and heat-shrink tubing; GemX mode needs a dual-band ELRS transmitter module.
