RadioMaster XR1 Nano Dual-Band ExpressLRS Receiver

RadioMaster XR1 Nano Dual-Band ExpressLRS Receiver

Name: RadioMaster XR1 Nano Dual-Band ExpressLRS Receiver
Brand: RadioMaster
SKU: RM-XR1-NANO-DB
Price: 1549 INR
Availability: InStock

₹1,549Incl. GST

SKU RM-XR1-NANO-DB

RC Protocol: ELRSMade in India: NoBrand: RadioMasterFrequency: 868/915MHz, 2.4GHz

Ships within 3–4 business days — quality-checked in Gurugram before dispatch

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

100% genuine parts
GST invoice with every order
Secure payments — cards, UPI & net banking via Razorpay
7-day returns on wrong or damaged items

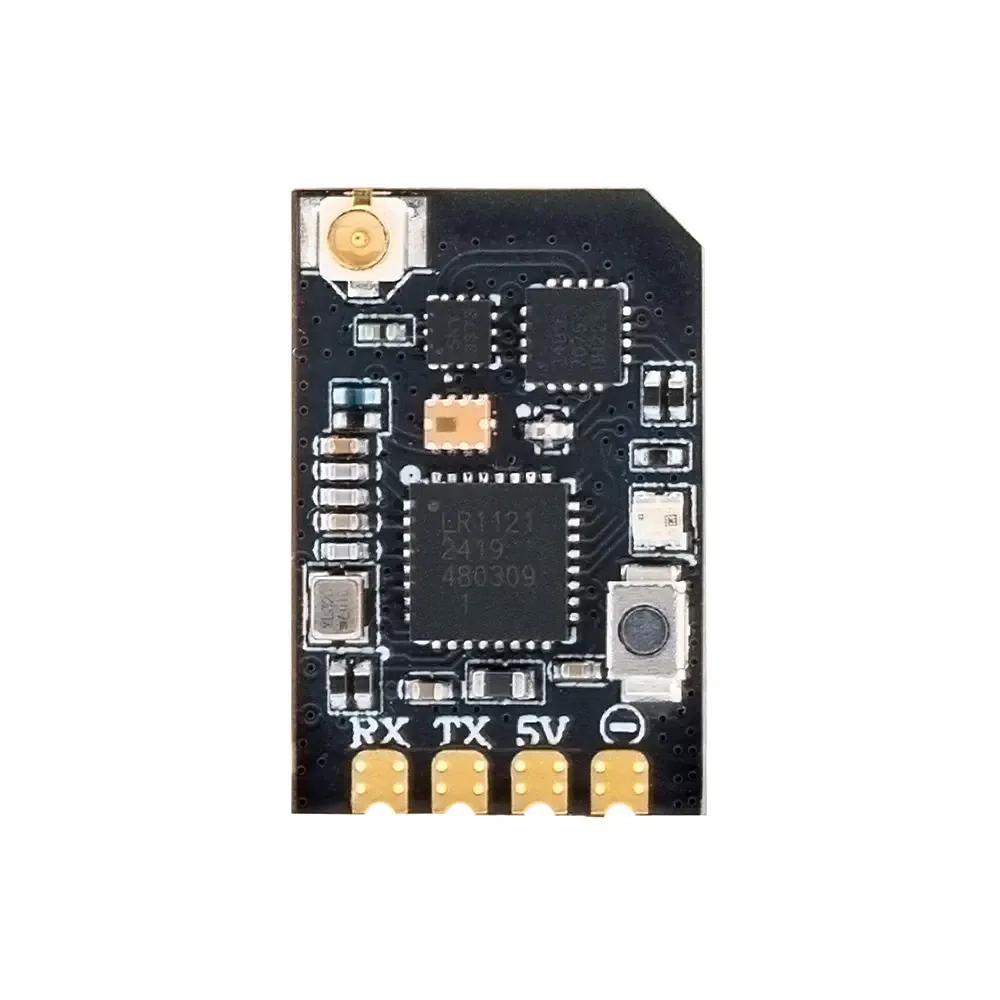

The RadioMaster XR1 Nano is an ultra-compact ExpressLRS receiver built around the third-generation Semtech LR1121 transceiver, with this dual-band variant switchable between 2.4GHz and 900MHz without swapping antennas.

Key features

Semtech LR1121 transceiver paired with an ESP32-C3 MCU for strong range and sensitivity on either band
Just 1.0g and 20 x 13 x 3mm, small enough for nano and micro whoop builds
Built-in WiFi WebUI for configuring settings and updating firmware without a separate app
CRSF and a secondary UART bus interface, with castellated pads for direct soldering
IPEX-1 antenna connector; ships with a T-antenna, CRSF wire, heat-shrink and a manual card
Supports ExpressLRS packet rates up to 1000Hz, with a 50Hz minimum refresh rate

Specifications

Protocol: ExpressLRS
Frequency: 2.4GHz, 868/915MHz (switchable)
RF chip: Semtech LR1121
MCU: ESP32-C3
Antenna connector: IPEX-1
Working voltage: 5V
Weight: 1.0g (without antenna)
Dimensions: 20 x 13 x 3mm

Bind it to a dual-band-capable ELRS transmitter module and flash matching firmware on both ends to use the 900MHz band; the 2.4GHz-only and 900MHz-only XR1 Nano variants share the same footprint.
