SpeedyBee Nano 2.4GHz ELRS Receiver

The SpeedyBee Nano 2.4GHz ExpressLRS receiver delivers high-refresh-rate, low-latency control for FPV racing, freestyle, and micro builds. Built on the open-source ELRS architecture, this 2.4GHz receiver provides reliable range and signal penetration in an ultra-compact footprint that easily mounts inside tight whoop canopies or cramped 5-inch frames.

Key features

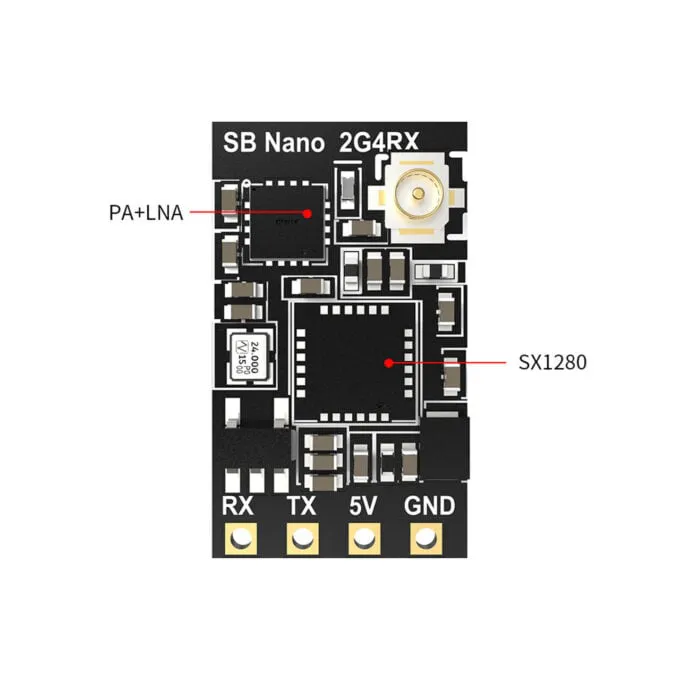

• Based on the ESP8285 MCU and SX1280 RF chip for robust ExpressLRS performance

• Supports Wi-Fi firmware flashing for convenient updates without flight controller passthrough

• Ultra-lightweight bare board design minimises build weight on sub-250g drones

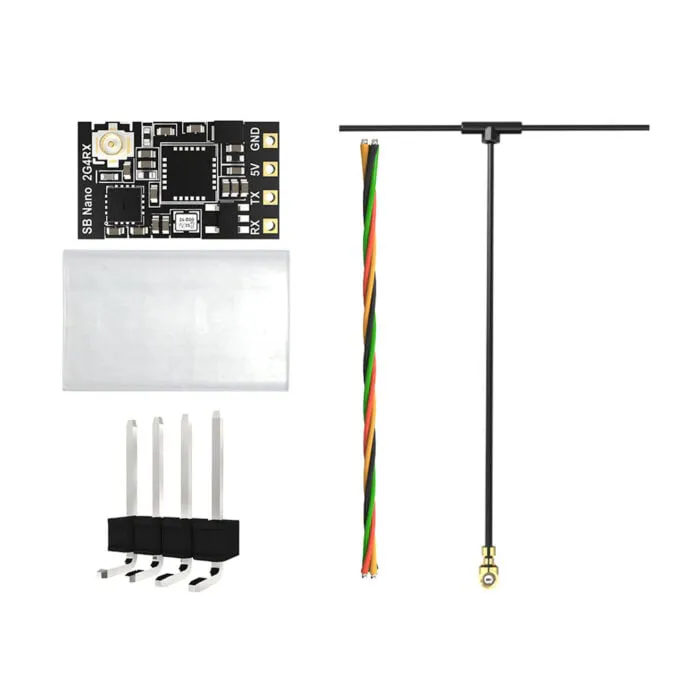

• Includes a standard IPEX1 (U.FL) T-antenna for optimal signal polarisation

Specifications

• MCU: ESP8285

• RF chip: SX1280

• Frequency band: 2.4GHz ISM

• Telemetry power: 50mW

• Input voltage: 5V

• Antenna connector: IPEX1 (U.FL)

• Weight: 0.43g (bare board)

• Dimensions: 10.4 x 14.5mm

Wire this receiver to any spare flight controller UART using the standard CRSF protocol. Ensure your radio transmitter or TX module is updated to a matching major ELRS firmware release for successful binding.
