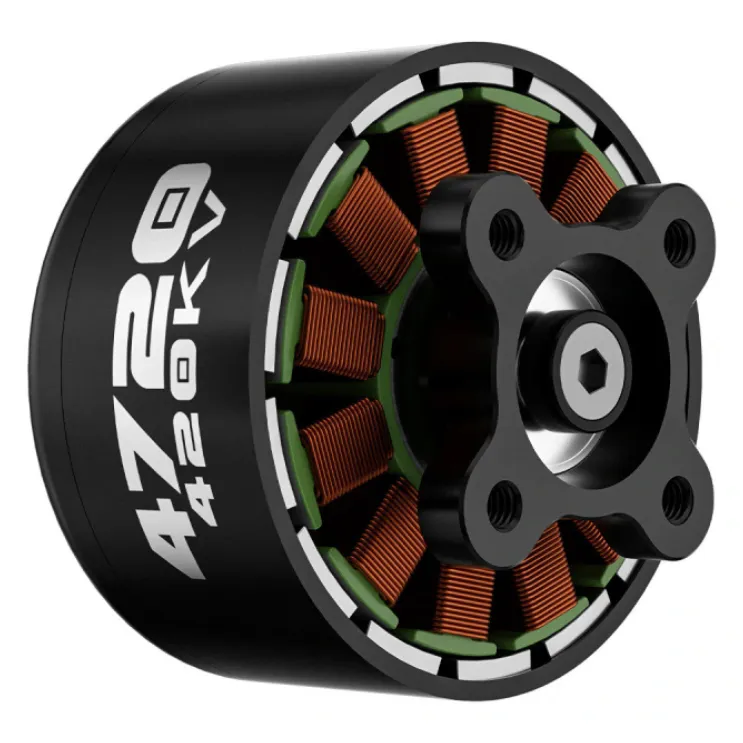

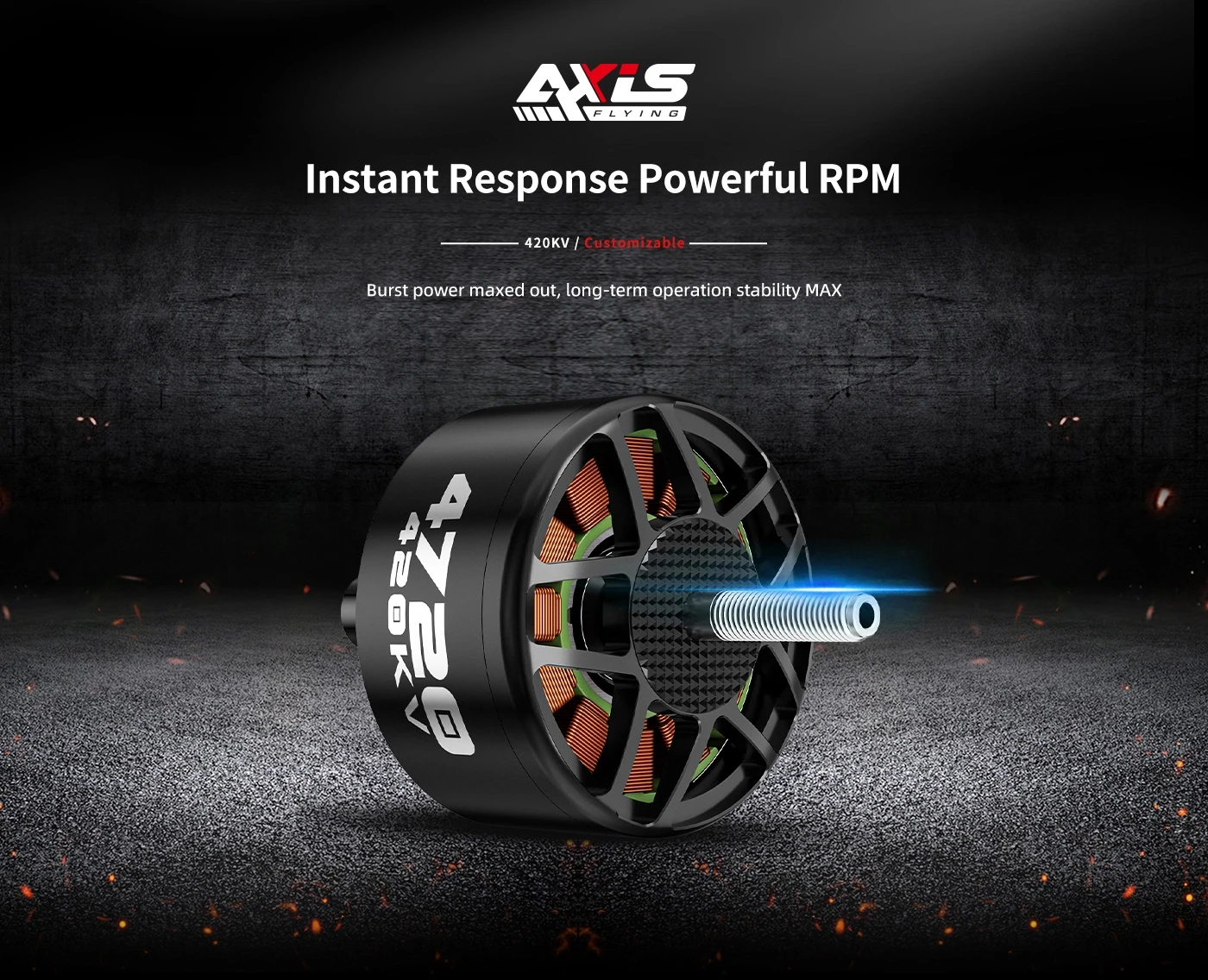

Axisflying AZ4720 420KV 6-8S Brushless Motor

The Axisflying AZ4720 is a 420KV heavy-load motor from the AZ series, built for 15-inch long-range, cinematic and payload-carrying FPV quads on 6-8S. Axisflying rates it at 7232 g of maximum thrust and just over 3 kW peak power, with HQProp 15x7 or 13x9 tri-blades as the recommended props.

Key features

• 12N14P layout with high-strength arc magnets for the torque large three-blade props demand

• 6 mm shaft and four M4 mounting screws

• 13AWG silicone leads sized for current peaks near 100 A

• High-temperature enamelled windings and high-speed bearings for long, high-current flights

Specifications

• KV: 420KV

• Rated voltage: 6-8S LiPo

• Configuration: 12N14P

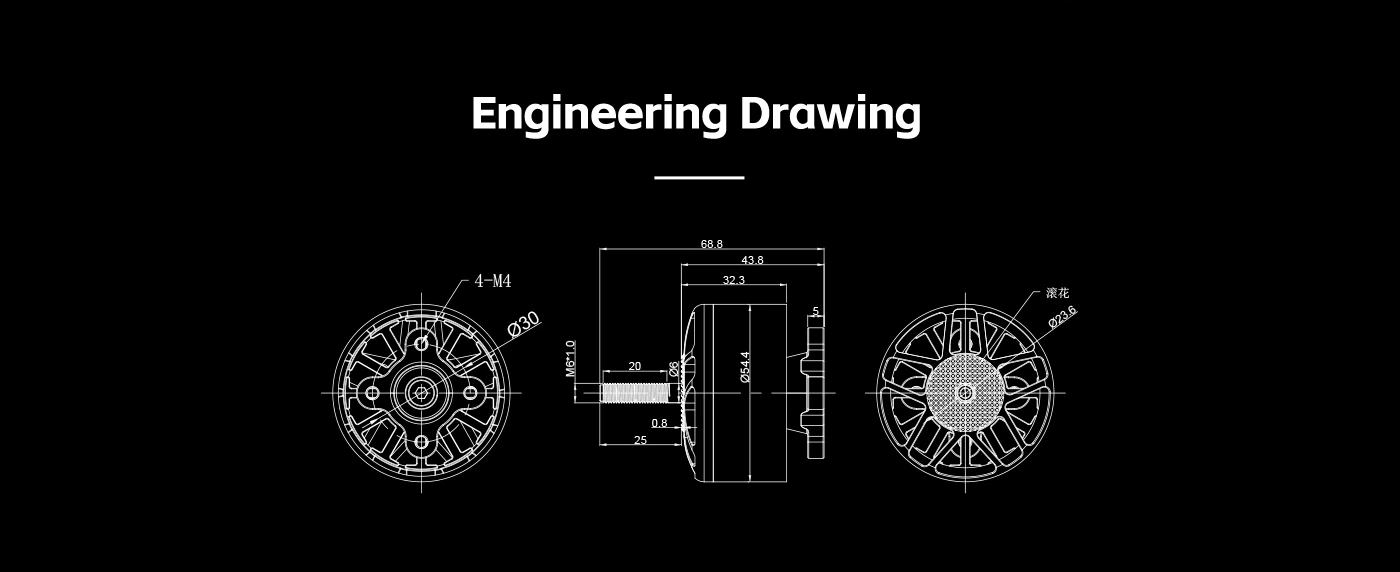

• Dimensions: 54.7 mm diameter x 69.8 mm

• Shaft: 6 mm

• Mounting: 4 x M4

• Leads: 13AWG silicone

• Internal resistance: 30 mOhm

• Idle current (10 V): 1.9 A

• Max power: 3037 W

• Peak current: 99.7 A

• Max thrust: 7232 g

• Weight: 336 g with leads

• In the box: 1 motor, mounting screws and accessories

Sold singly, so order four for a quad. Pair it with ESCs rated for 8S and for bursts above the 99.7 A peak, and check the M4 hole spacing against your frame's motor mount before ordering.
