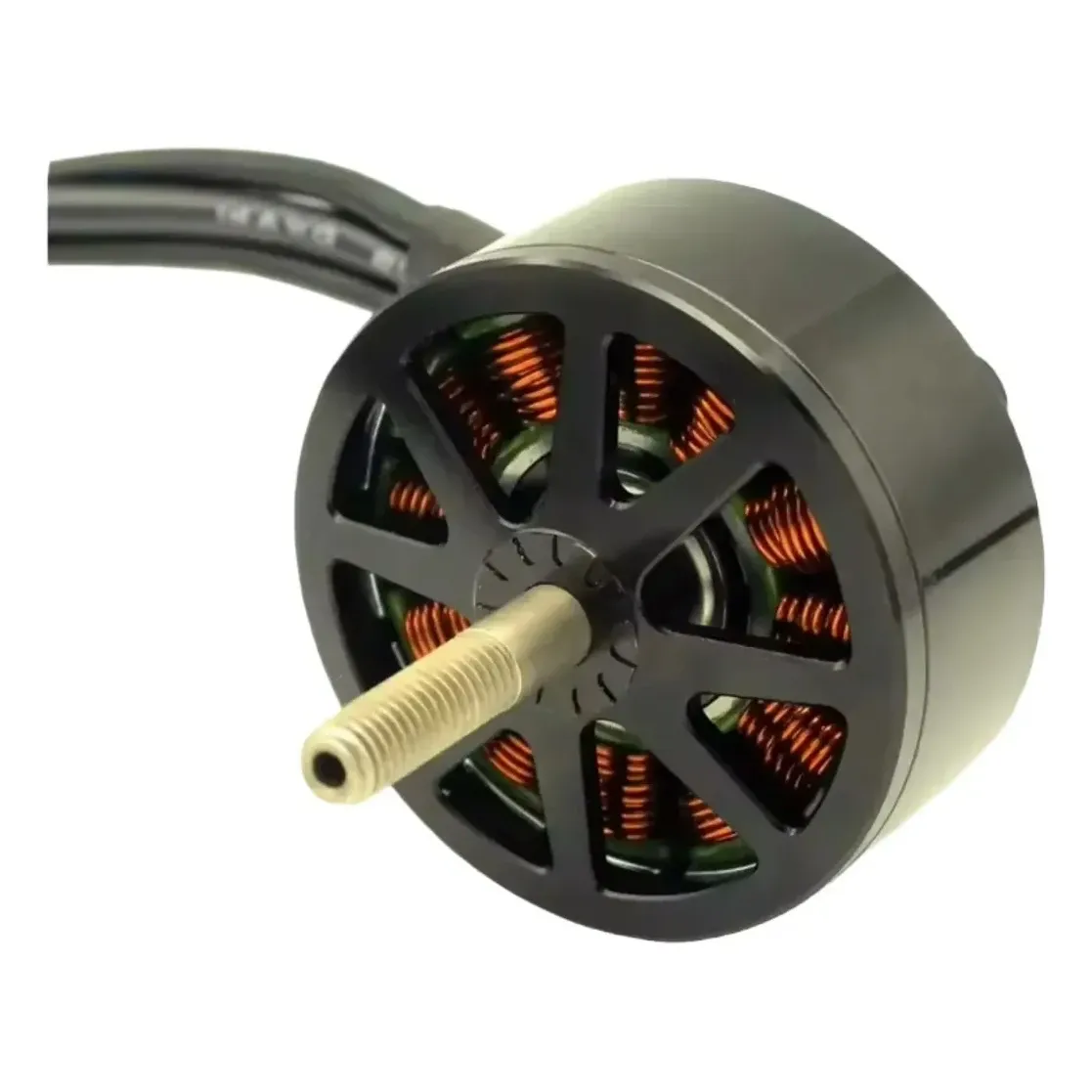

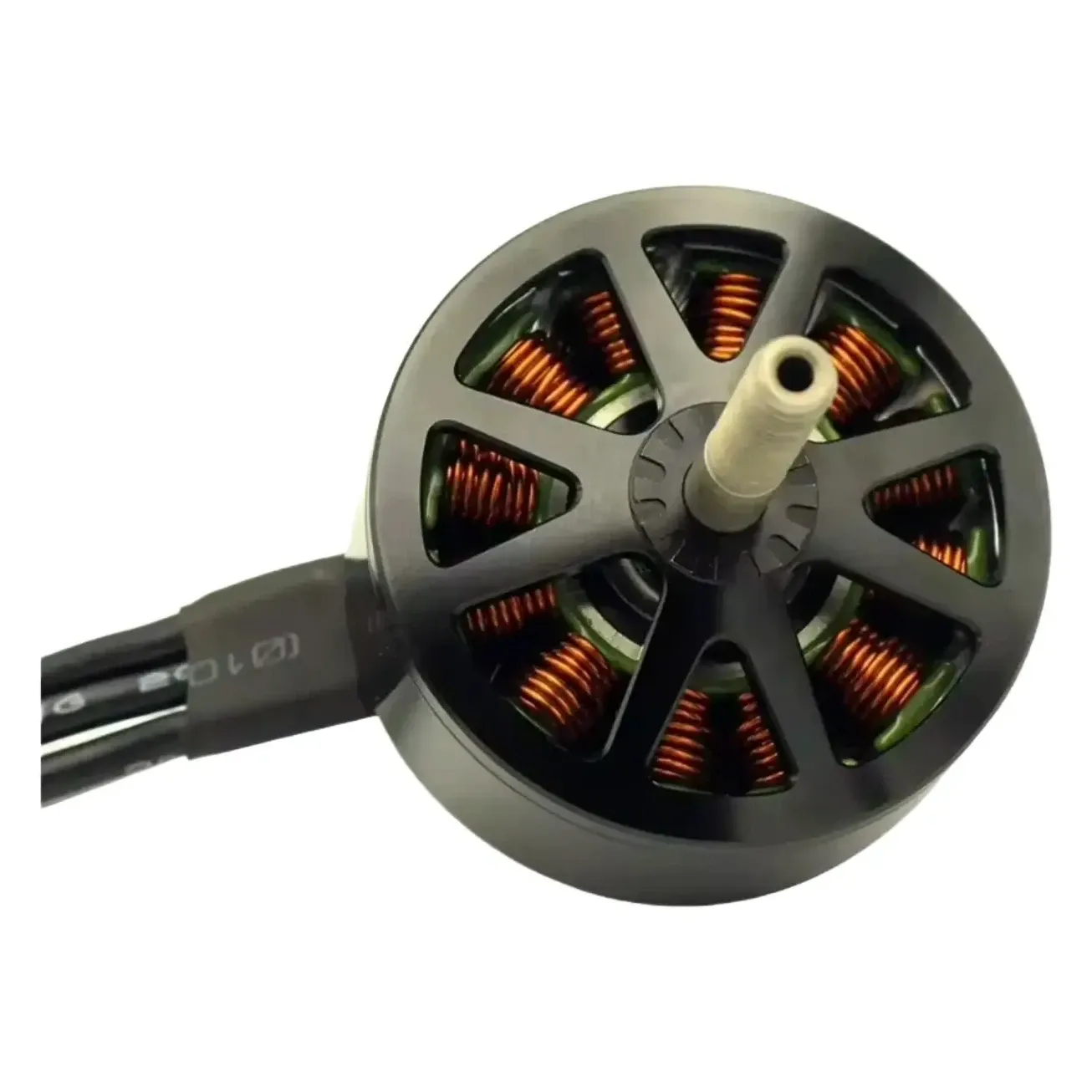

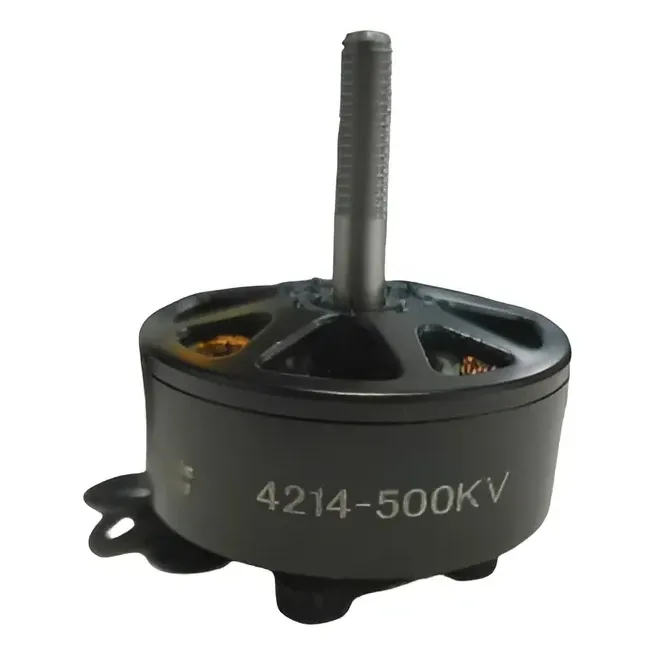

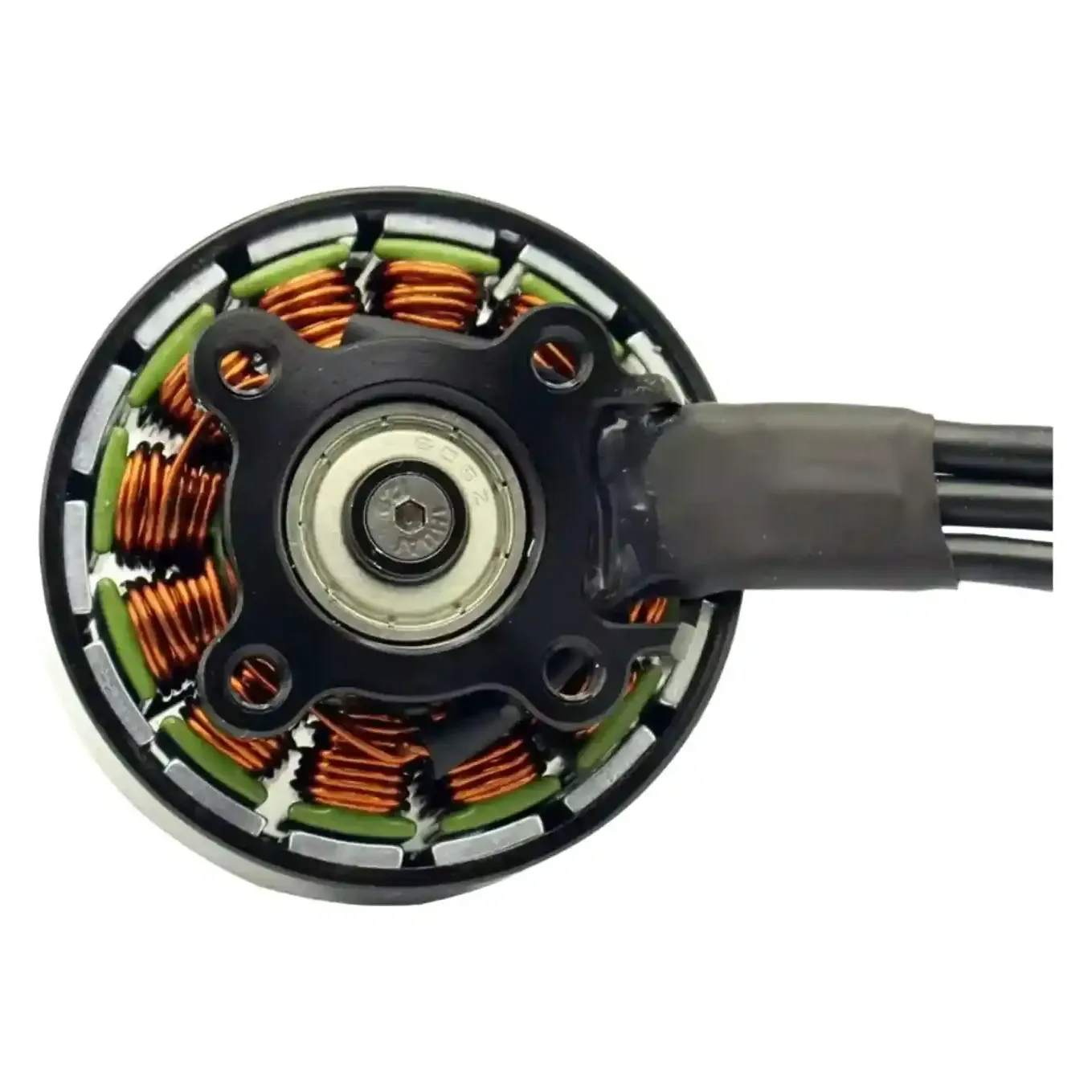

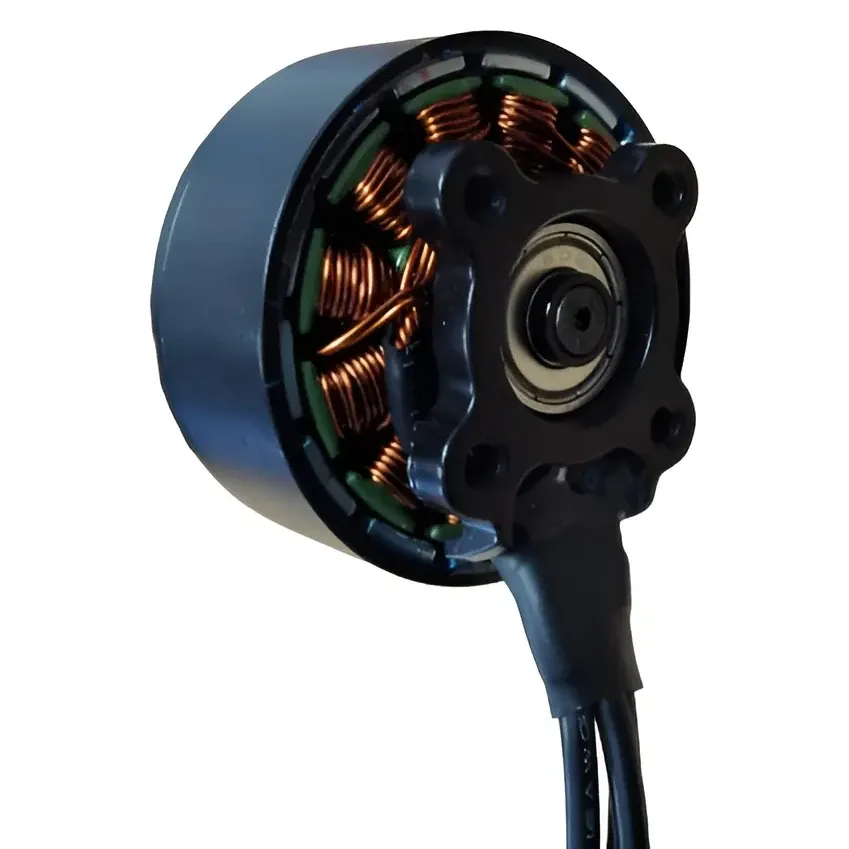

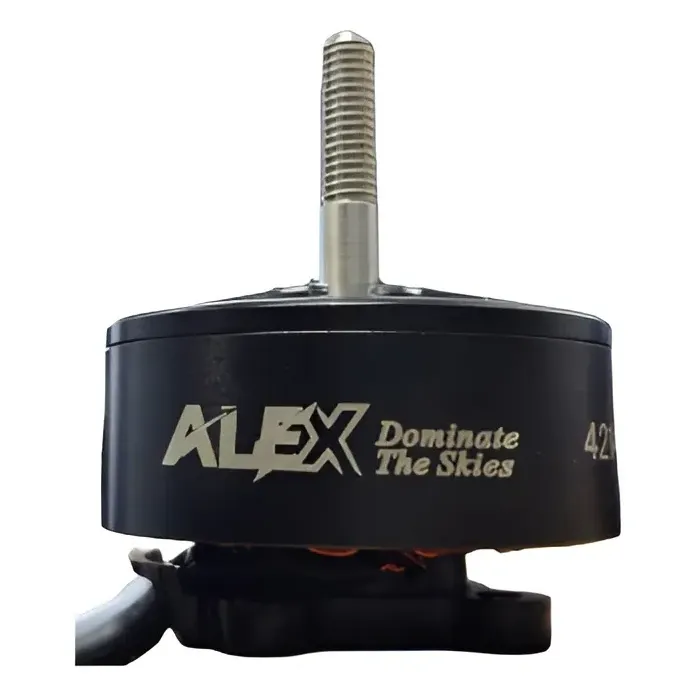

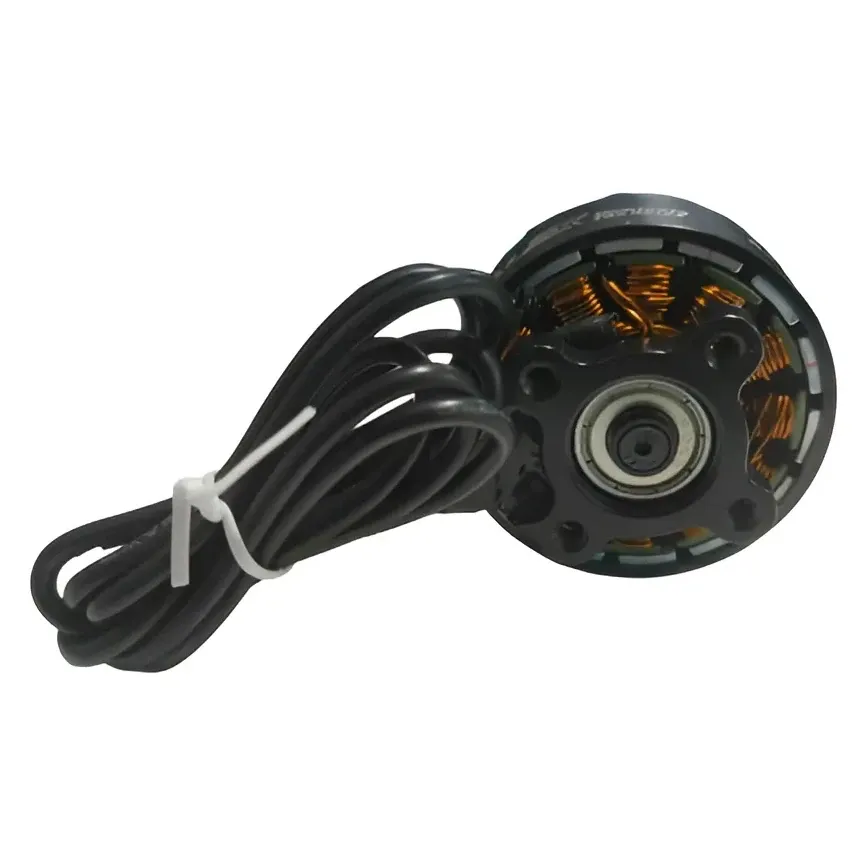

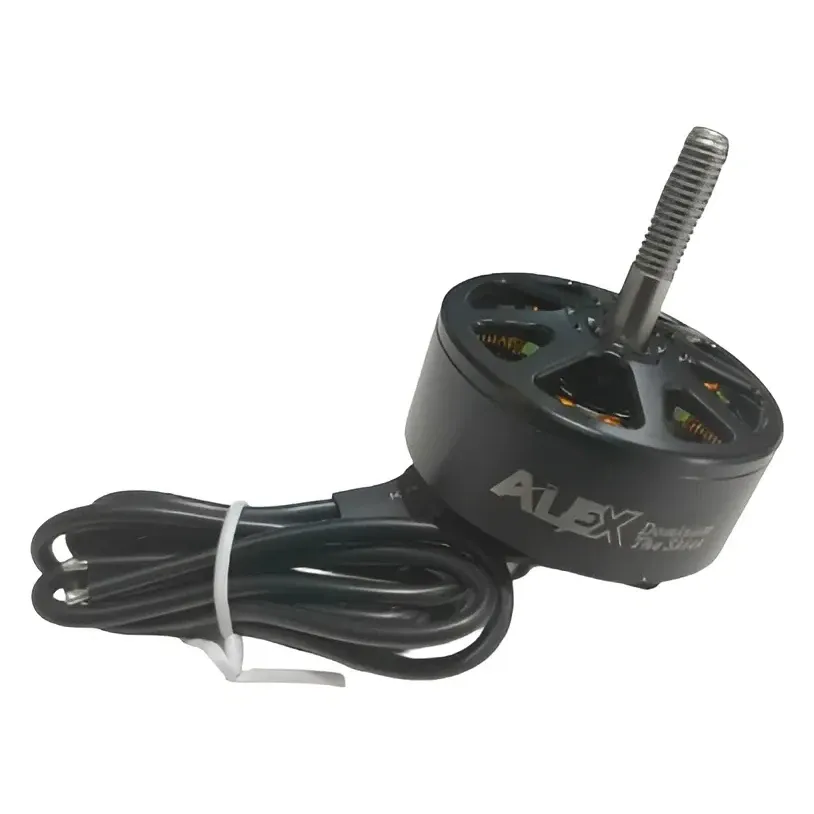

Alex 4214 380KV/500KV 5-8S Brushless Motor for UAV & Multirotor

The Alex 4214 is a 5–8S brushless outrunner for UAV multirotors and heavy-lift frames on 13-inch-class props, offered in 380KV and 500KV windings. Made in India, it uses a 12N14P layout and is rated at 1080 W maximum over 60 seconds.

Key features

• Two windings for different packs: 380KV on 8S spins about 11,250 rpm unloaded at nominal voltage, close to 500KV on 6S at about 11,100 rpm
• 1080 W maximum power (60-second rating), tested with a GF1310 13-inch propeller
• 12N14P configuration in a 49.5 × 33 mm motor body
• 182 g (380KV) or 195 g (500KV) per motor

Specifications

• Stator: 4214
• KV: 380KV or 500KV
• Configuration: 12N14P
• Input voltage: 5–8S LiPo (18.5–29.6 V nominal)
• Max power (60 s): 1080 W
• Test propeller: GF1310 (13 inch)
• Motor dimensions: 49.5 × 33 mm
• Weight: 182 g (380KV), 195 g (500KV)

Sold as a single motor; choose the KV variant when ordering. For an X-class or industrial quad, order four of the same KV so every arm matches, and pick the winding by the pack you already fly.
