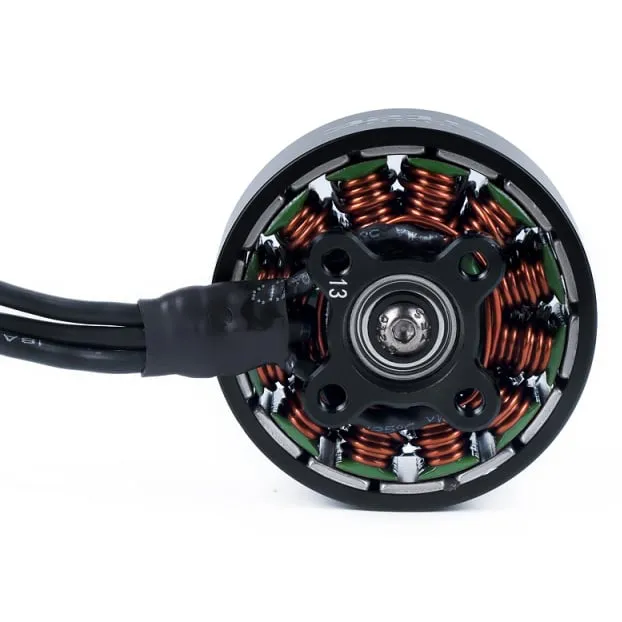

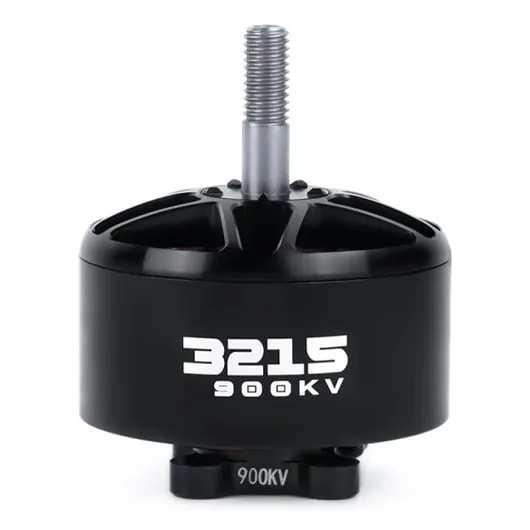

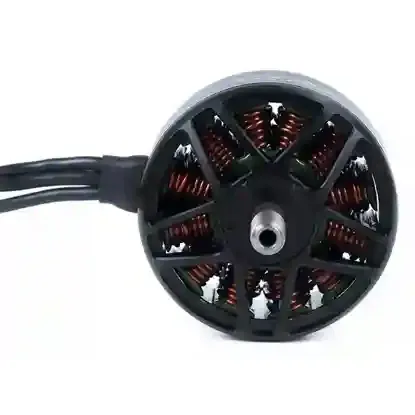

Axisflying AZ3215 900KV 4–6S FPV Motor
₹4,499Incl. GST
SKU AXIS-AZ3215-900KV
Stator Size: 3215KV: 900 KVInput Voltage: 4–6SWeight: 113.5 g
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Axisflying AZ3215 900KV is a brushless motor for heavy-lift FPV and large multirotor builds, running on 4–6S LiPo and rated for up to 4185 g of maximum thrust.
Key features
- 12N14P stator winding delivers up to 1617 W peak power and 64.7 A peak current.
- 37.1 mm diameter x 31.5 mm motor housing, weighing 113.5 g (±0.5 g).
- Low 46 mΩ interphase resistance for efficient power conversion.
- 300 mm 18AWG silicone-insulated motor leads for reliable wiring.
- Suited to heavy-lift FPV, cinelifter and large freestyle quads on 4–6S power.
Specifications
- Stator size: 3215
- KV: 900KV
- Input voltage: 4–6S
- Weight: 113.5 g
- Max thrust: 4185 g
- Max power: 1617 W
Pair with an ESC rated for at least 64.7 A peak current and a propeller matched to the selected battery voltage.
| Stator Size | 3215 |
|---|---|
| Stator Diameter | 32mm |
| Stator Height | 15mm |
| KV | 900 KV |
| Input Voltage | 4–6S |
| Weight | 113.5 g |
| Brand | Axisflying |
| Made in India | No |
