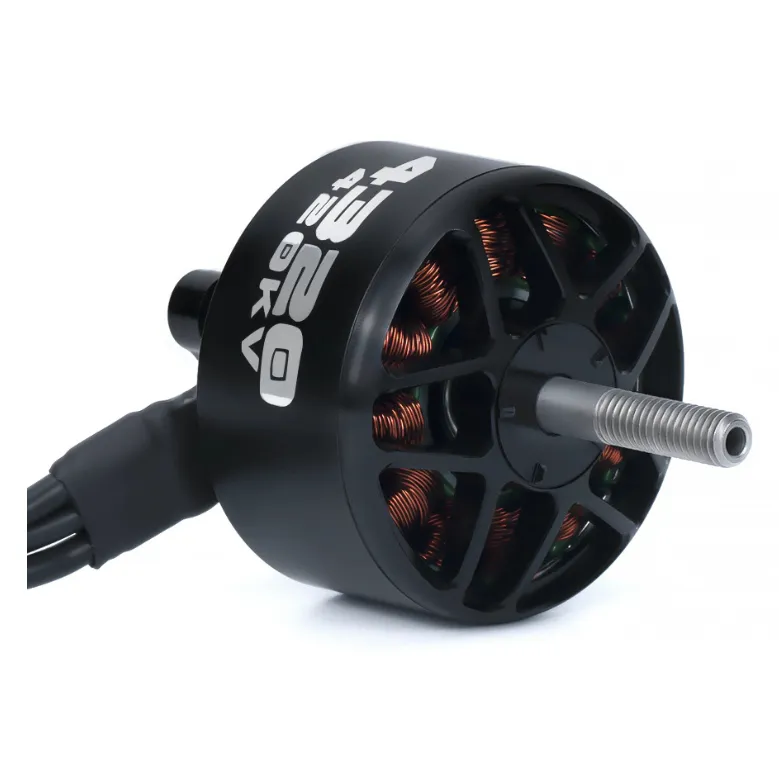

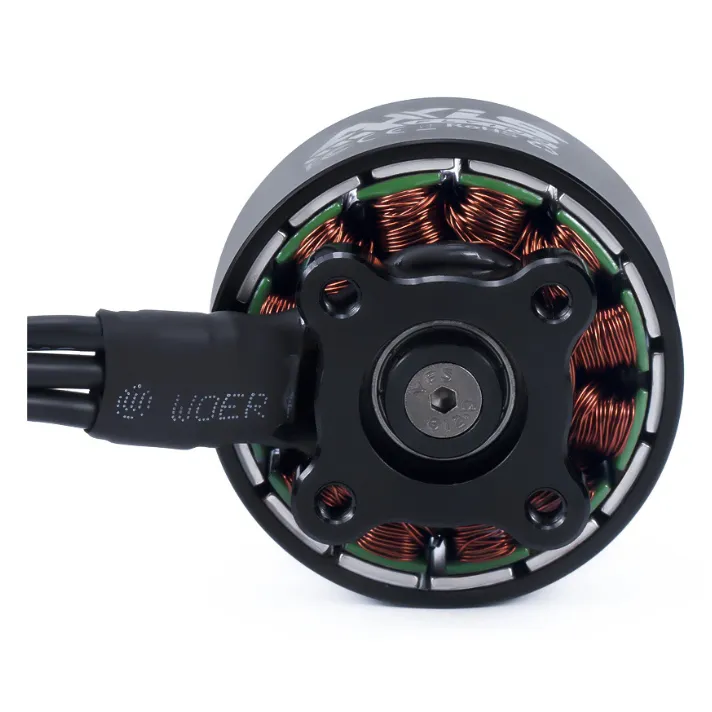

Axisflying AZ4320 420KV 6-8S Brushless Motor

The Axisflying AZ4320 is a 420KV heavy-load motor from the AZ series, built for 13-inch long-range, cinematic and payload-carrying FPV quads on 6-8S. Axisflying rates it at 6130 g of maximum thrust and 1412 W peak power, and lists the HQProp 15x7 tri-blade as its recommended prop.

Key features

• 12N14P layout with high-strength arc magnets for the torque large three-blade props demand

• 6 mm shaft and four M4 mounting screws

• 14AWG silicone leads, 150 mm long, for direct runs to arm-mounted or central ESCs

• High-temperature enamelled windings and high-speed bearings for long, high-current flights

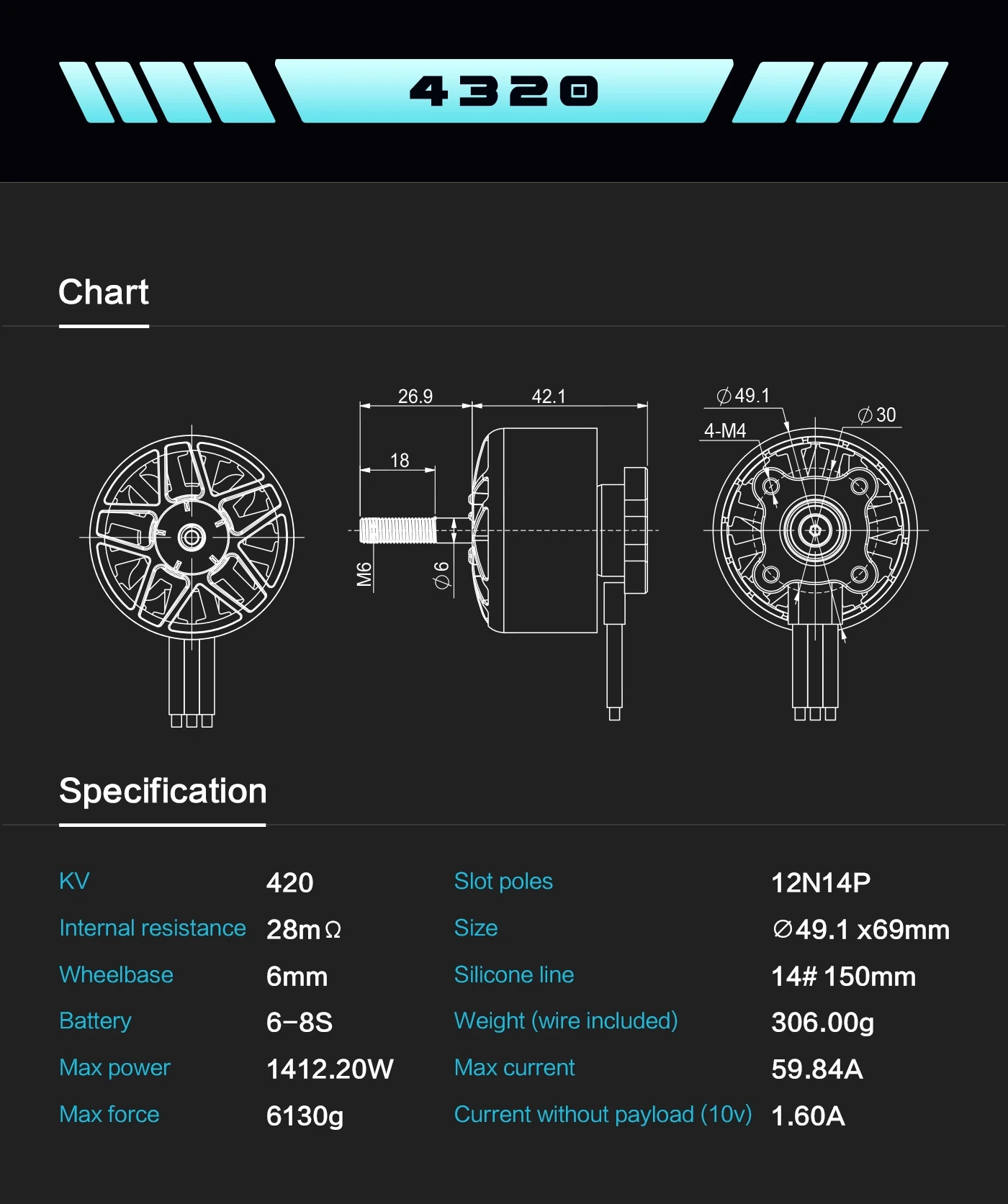

Specifications

• KV: 420KV

• Rated voltage: 6-8S LiPo

• Configuration: 12N14P

• Dimensions: 49.1 mm diameter x 69 mm

• Shaft: 6 mm

• Mounting: 4 x M4

• Leads: 14AWG silicone, 150 mm

• Internal resistance: 28 mOhm

• Idle current (10 V): 1.6 A

• Max power: 1412 W

• Peak current: 59.84 A

• Max thrust: 6130 g

• Weight: 306 g with leads

• In the box: 1 motor, mounting screws and accessories

Sold singly, so order four for a quad. Pair it with ESCs rated for 8S and for bursts above the 59.84 A peak, and check the M4 hole spacing against your frame's motor mount before ordering.
