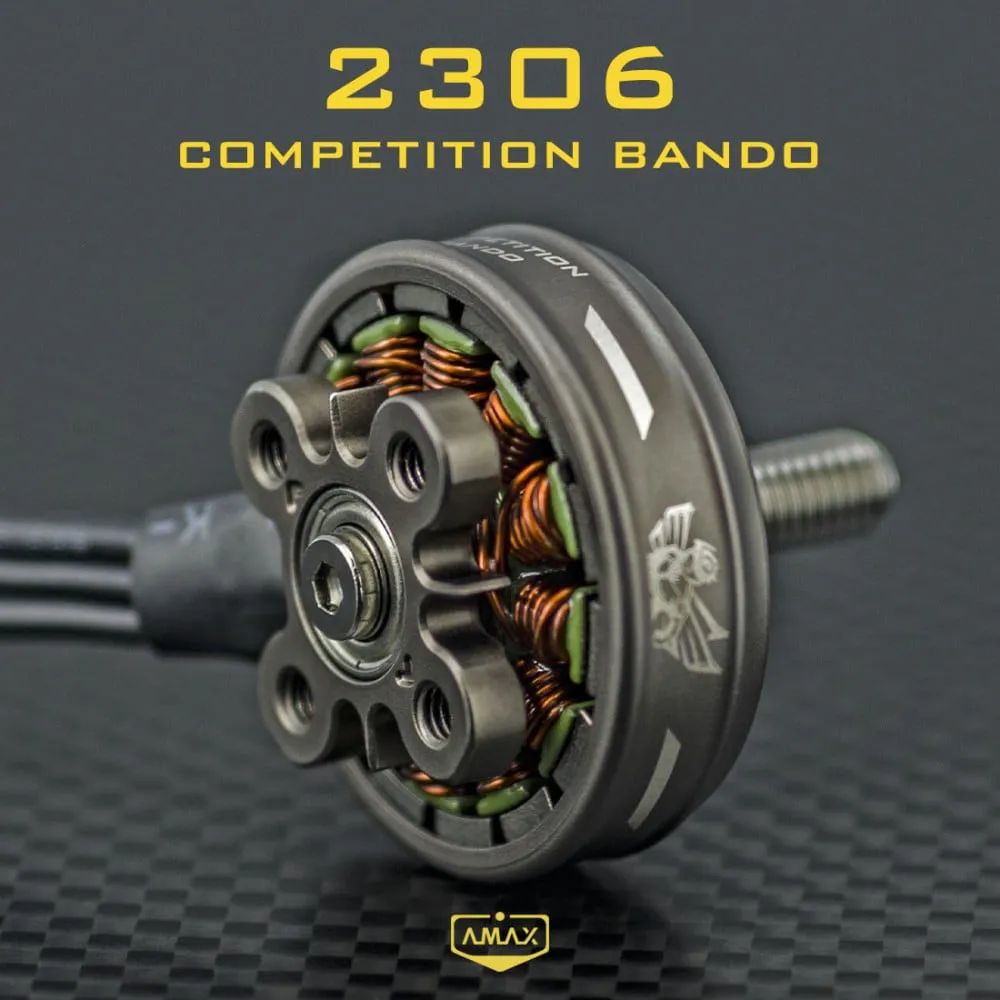

AMAX 2306 Competition Bando 1950KV Brushless Motor

The AMAX 2306 Competition Bando is the Competition-series freestyle motor with a reinforced bell, made for pilots who fly parks, bandos and concrete spots where crashes land on hard surfaces.

Key features

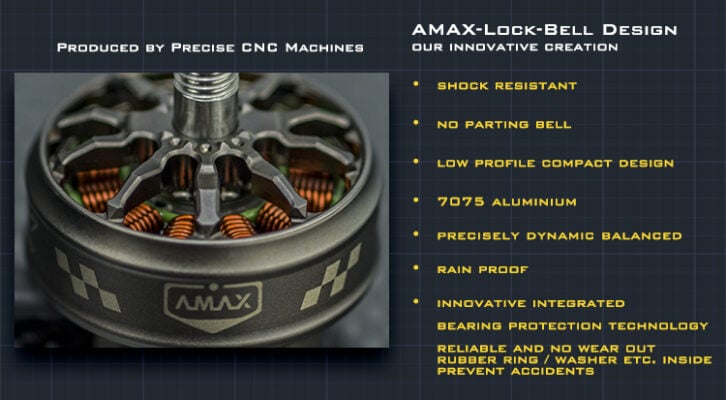

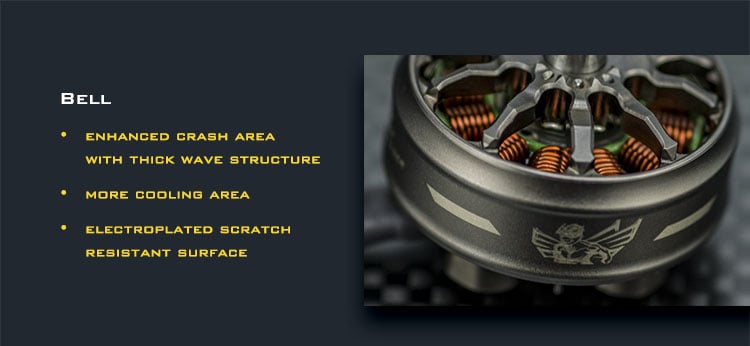

• Tougher bell construction than the standard Competition motor, built to take repeated hard-surface impacts

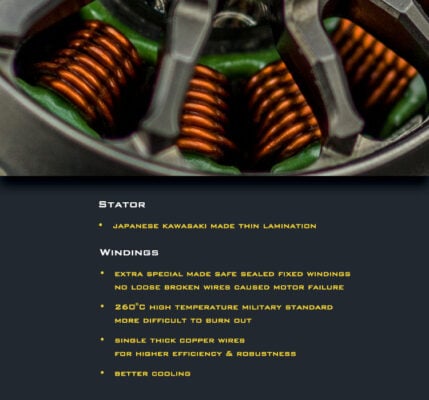

• 2306 stator (23 mm × 6 mm) wound in a 12N14P configuration

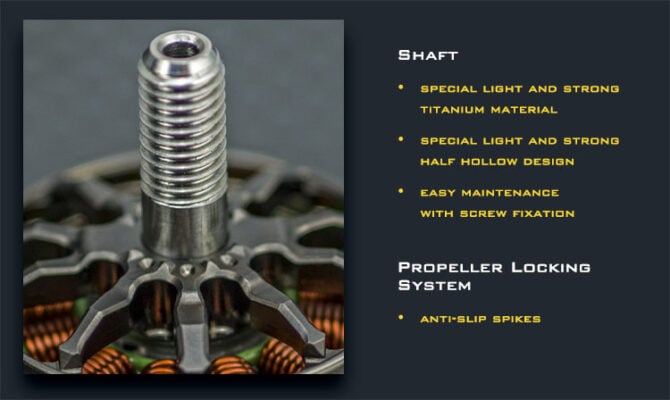

• 5 mm shaft with an M5 self-locking prop nut

• 16×16 mm M3 mounting pattern, the standard on 5-inch freestyle arms

• 150 mm motor leads, long enough to trim to length for a tidy build

Specifications

• Stator size: 2306 (23 × 6 mm)

• KV: 1950KV

• Configuration: 12N14P

• Shaft: 5 mm, M5 prop nut

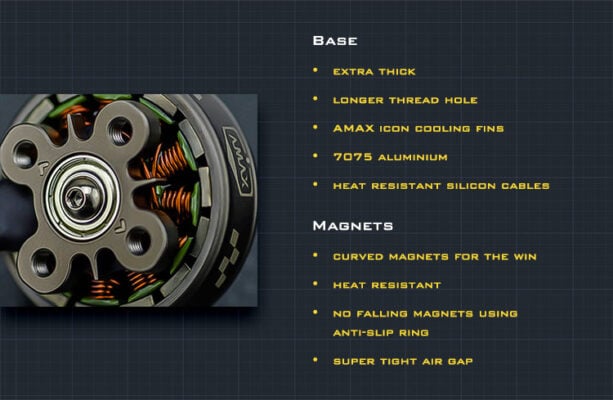

• Mounting: 16×16 mm, M3 screws

• Lead length: 150 mm

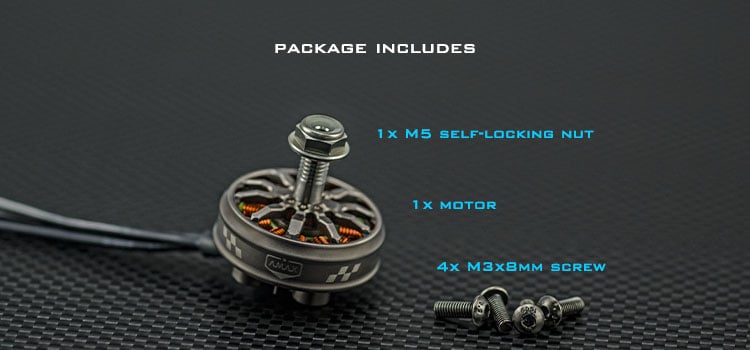

• In the box: 1 motor, 1 M5 self-locking nut, 4 × M3×8 mm screws

Sold singly, so order four for a quad. Check the supplied M3×8 mm screws against your arm thickness before tightening: on thin arms a screw can reach the windings and short a phase, so swap to a shorter screw.
