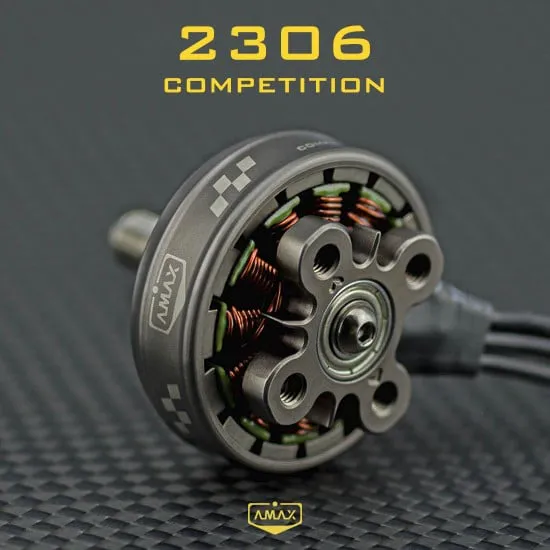

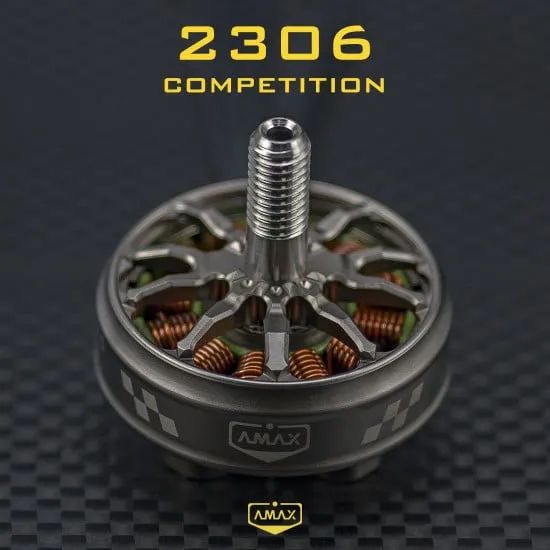

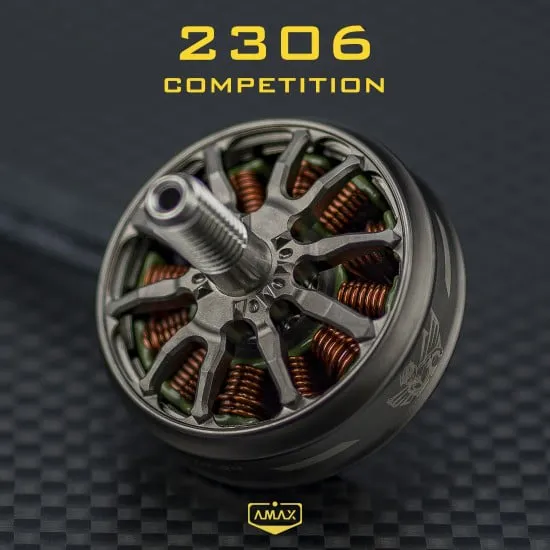

AMAX Competition 2306 1750KV Brushless Motor

The AMAX Competition 2306 is a 1750KV brushless motor for 5-inch FPV quads on 6S, the stator size and KV combination most freestyle and racing builds are designed around.

Key features

• 2306 stator: 23 mm × 6 mm, balancing torque for quick throttle response against weight on a 5-inch frame.

• 1750KV for 6S: the lower-KV end of the 5-inch range, giving smoother, cooler running on 6S with 5-inch props.

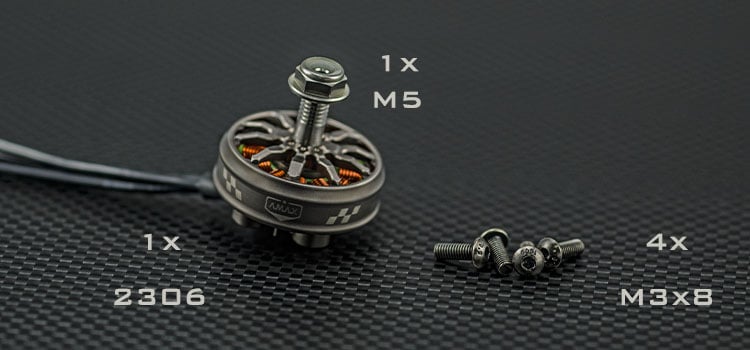

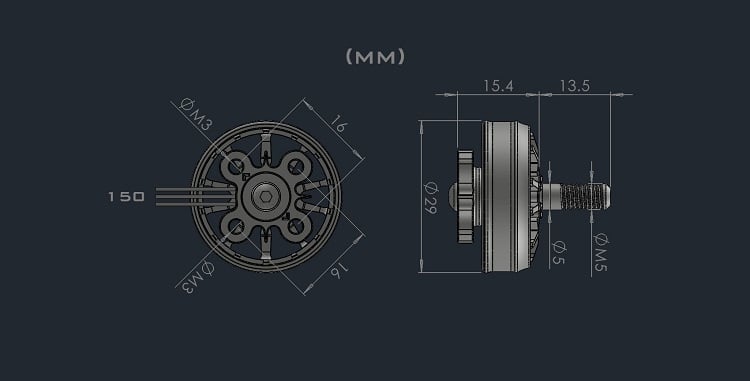

• 16 × 16 mm M3 mount: fits the standard motor bolt pattern on 5-inch freestyle and racing arms.

• 5 mm shaft: takes standard 5-inch props secured with an M5 locknut.

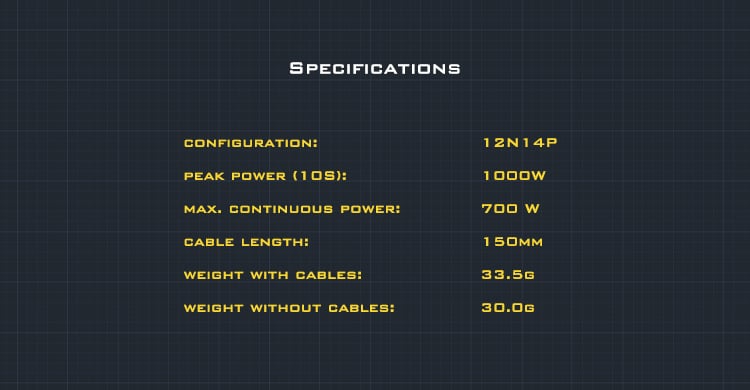

Specifications

• Stator: 2306 (23 mm × 6 mm)

• KV: 1750KV

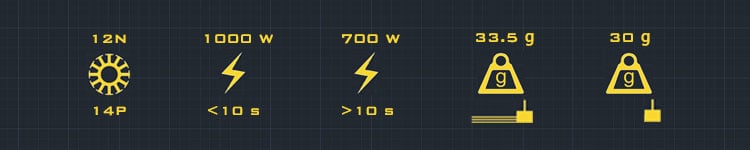

• Configuration: 12N14P

• Mounting: 16 × 16 mm, M3

• Shaft: 5 mm

• Recommended battery: 6S LiPo (22.2 V nominal)

Sold as a single motor, so order four for a quad. Pair it with a 6S ESC rated for 5-inch freestyle current, and keep motor screws short enough that they cannot reach the windings.
