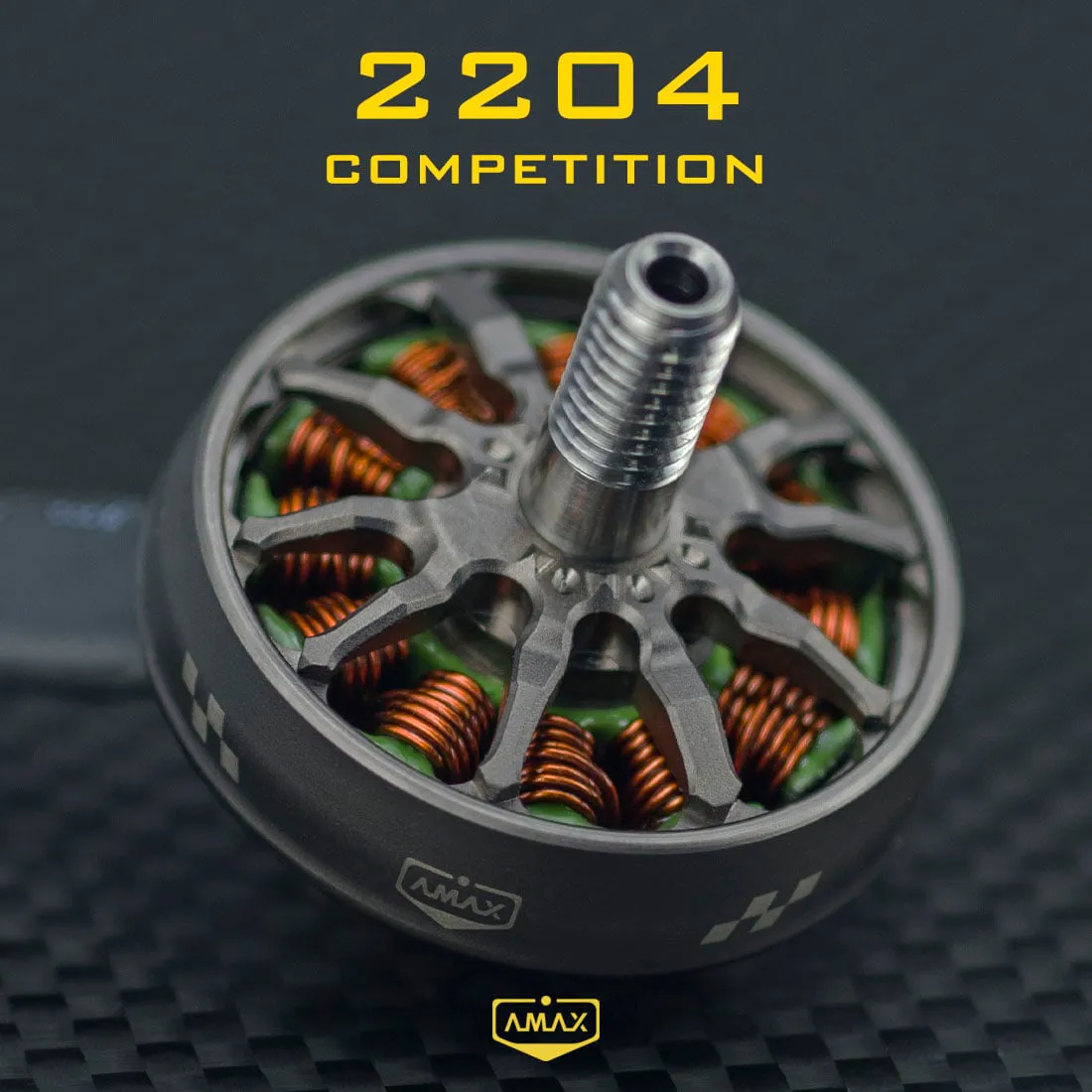

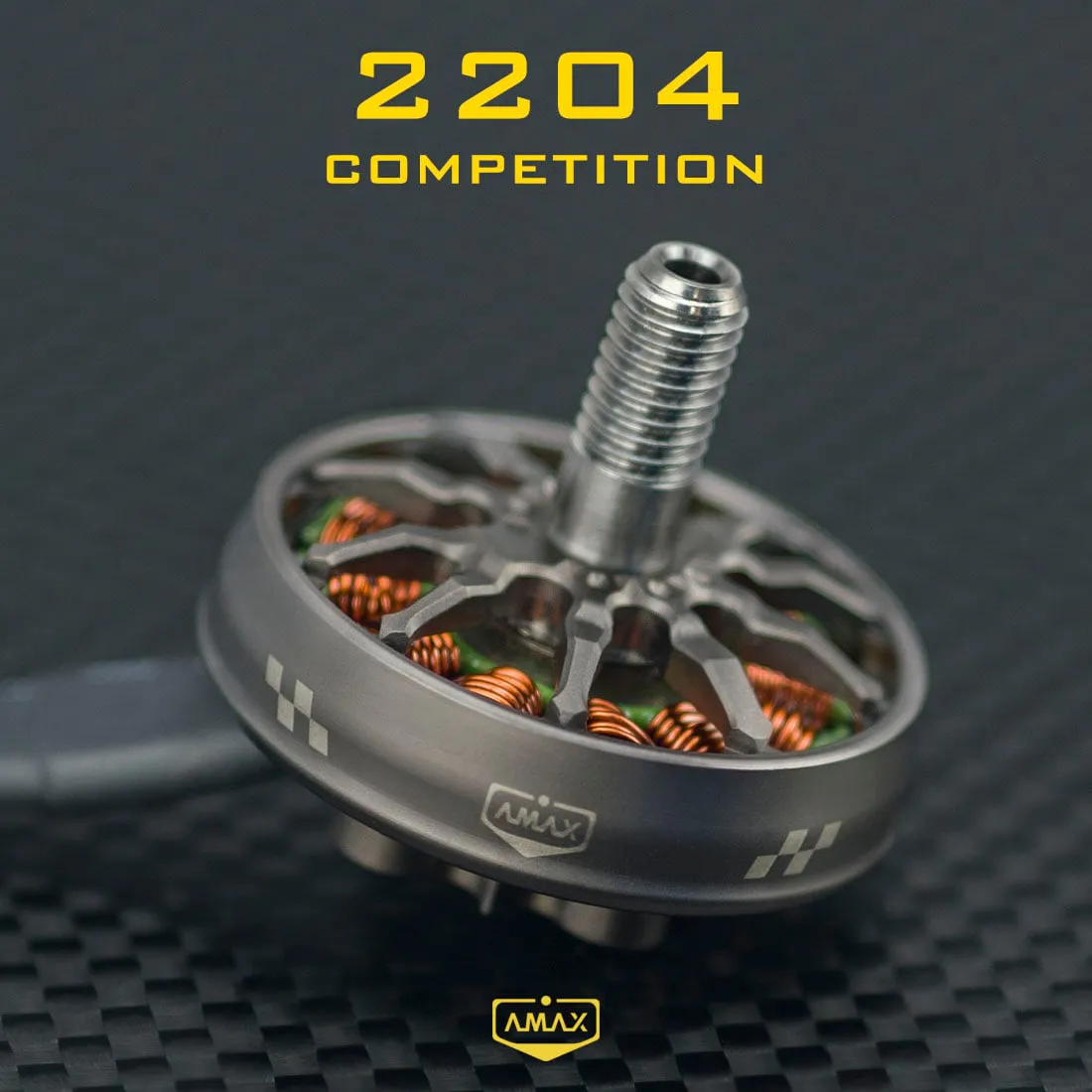

AMAX Competition 2204 1750KV Brushless Motor

The AMAX Competition 2204 is a 1750KV brushless motor for lightweight FPV quads: 4-inch builds and ultralight 5-inch frames where a full-size 2207 or 2306 motor would add more mass than the airframe needs.

Key features

• 2204 stator: 22 mm wide and 4 mm tall, a low-profile stator that saves weight on every arm compared with 23xx-class motors.

• 1750KV winding: a low KV for this stator size, intended for 6S packs, where it keeps current draw down for efficient cruising.

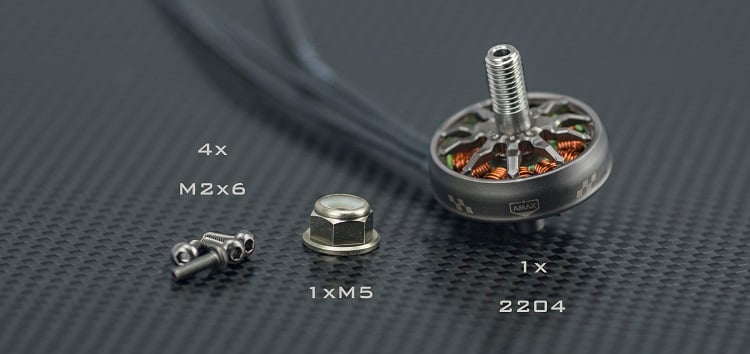

• Sold singly: one motor per unit; a quad needs four, and a spare is worth keeping for crash repairs.

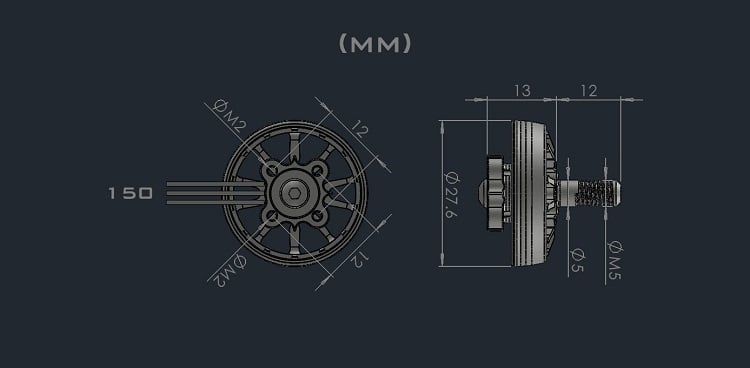

On 6S, this KV is normally paired with 4-inch to light 5-inch props; heavier 5-inch freestyle builds are better served by a 2207 or 2306. Before ordering, check the motor's bolt pattern and shaft against your frame arms and props, and choose an ESC rated for 6S.
