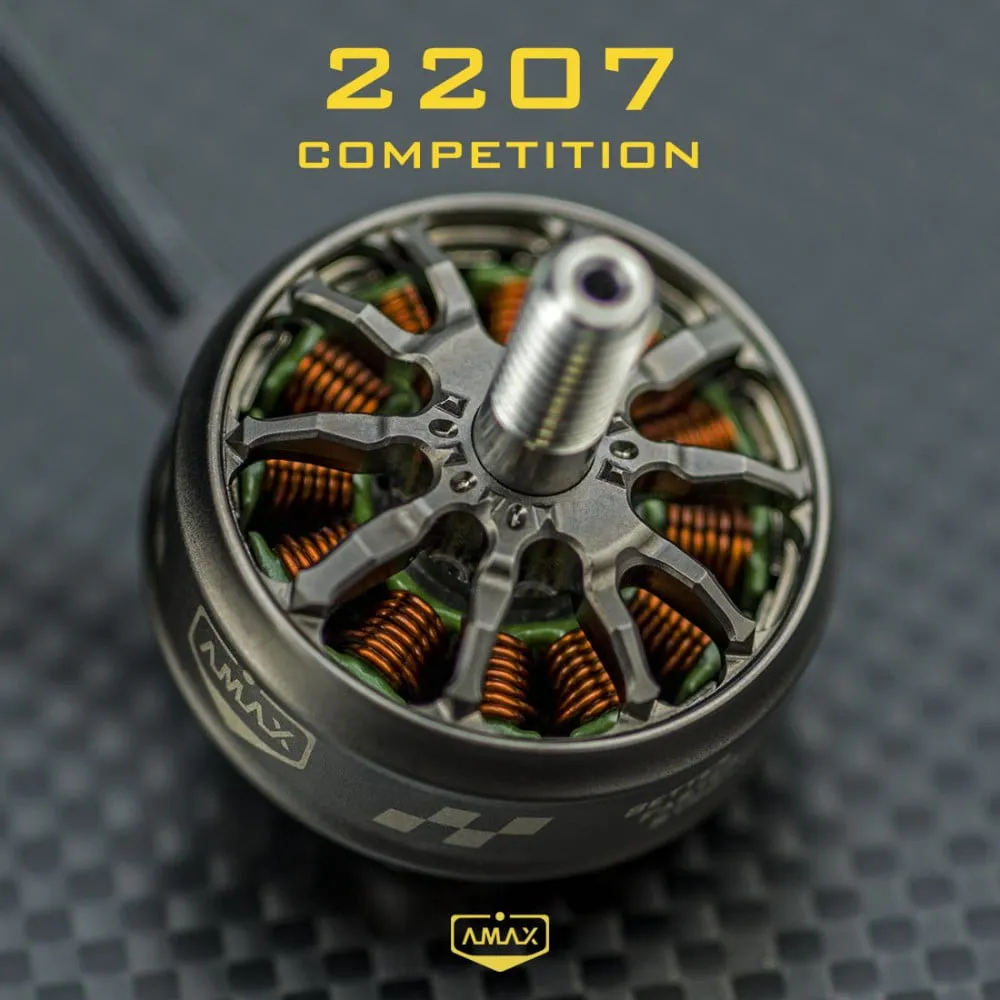

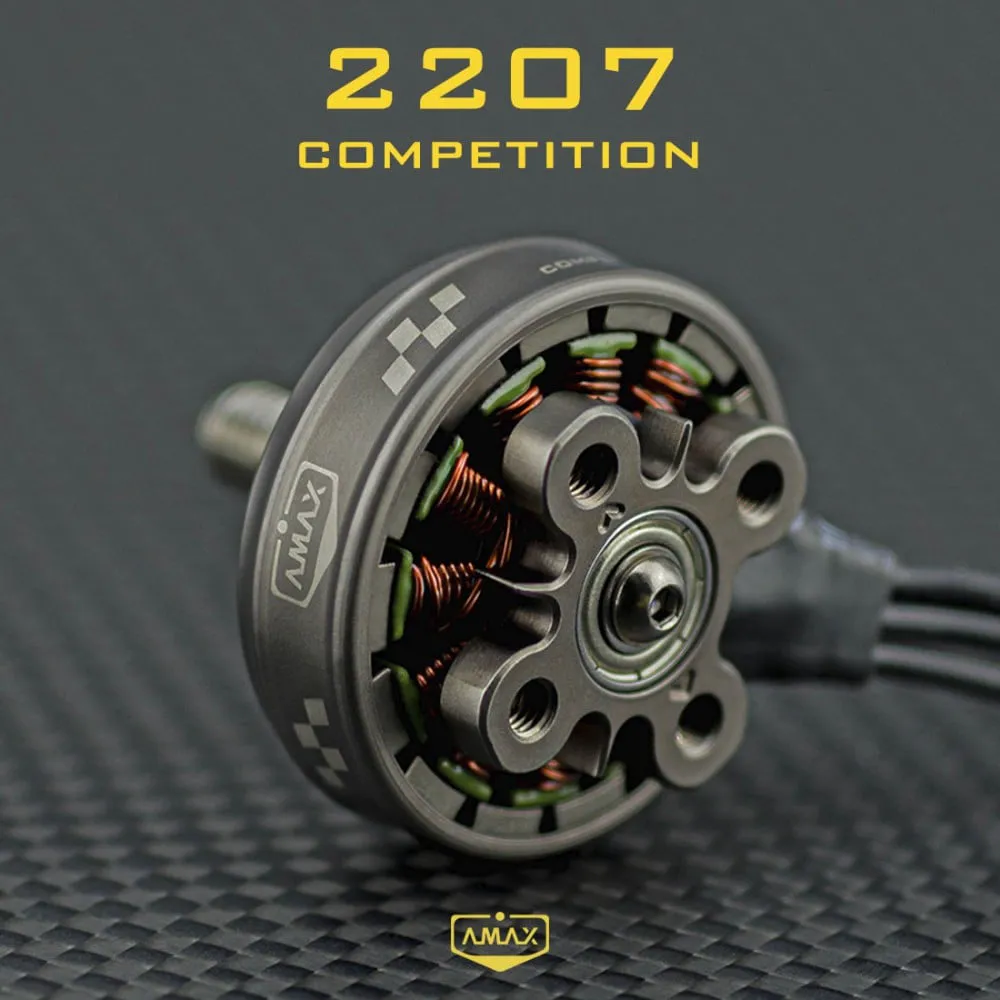

AMAX Competition 2207 Motor

The AMAX Competition 2207 brushless motor is engineered for high-performance 5-inch freestyle and racing drones. Designed to balance explosive thrust with precise throttle response, the 2207 stator delivers the torque required for rapid pitch changes and sharp track cornering.

Key features

• Constructed with N52SH arc magnets and a Kawasaki silicon steel stator for maximised magnetic efficiency and heat tolerance under heavy loads.

• Fitted with a hollow titanium alloy shaft to reduce rotational mass while maintaining impact resilience during crashes.

• Runs on premium Japanese NSK bearings for smooth, vibration-free power delivery across the entire RPM band.

• Machined with a ridged bell top to bite into the propeller hub, eliminating prop slip during sudden throttle punches.

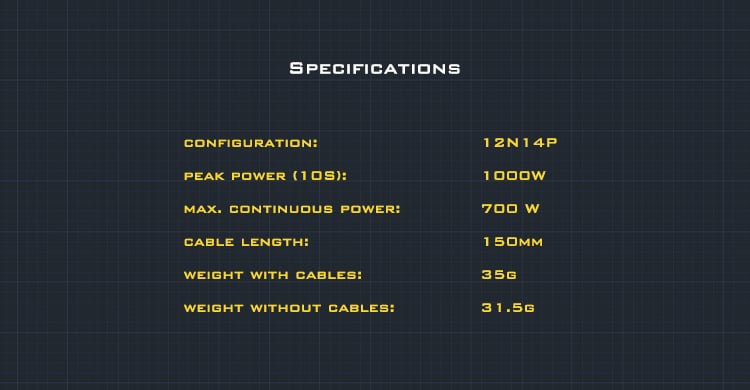

Specifications

• Stator Size: 2207

• Supported Voltage: 5-6S LiPo

• Propeller Shaft: 5mm

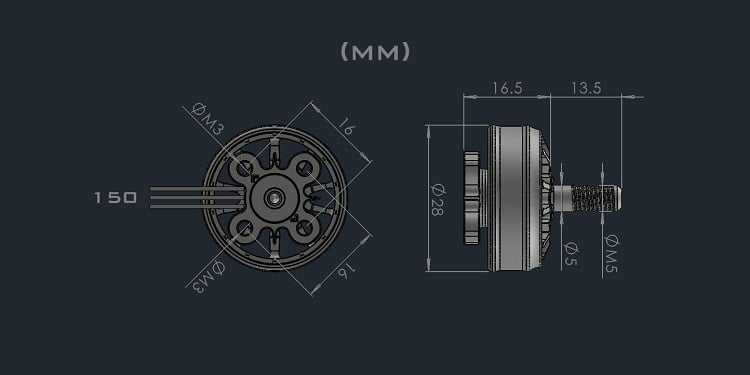

• Mounting Pattern: 16x16mm (M3)

• Bearings: NSK 9x4x4mm

• Motor Wire: 20AWG

Choose the 1750KV variant for efficient, flowing freestyle flights on 6S, or select the 1950KV for aggressive freestyle and track racing where a higher top-end RPM is essential.
