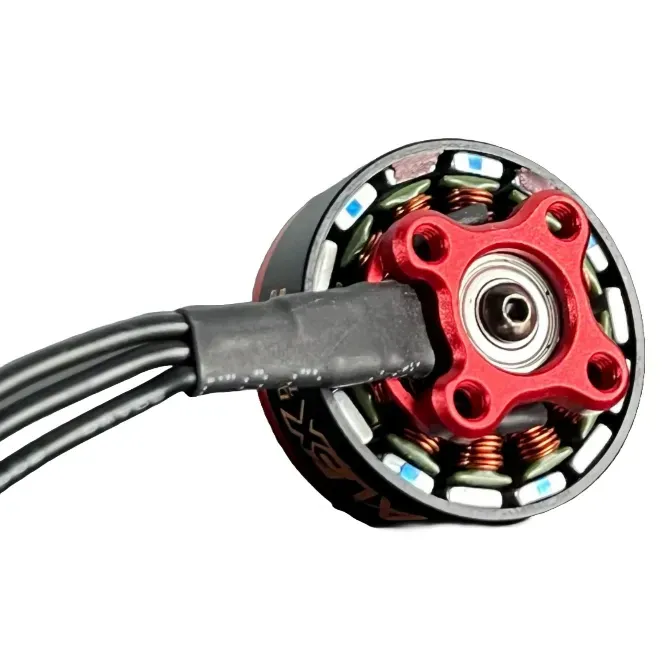

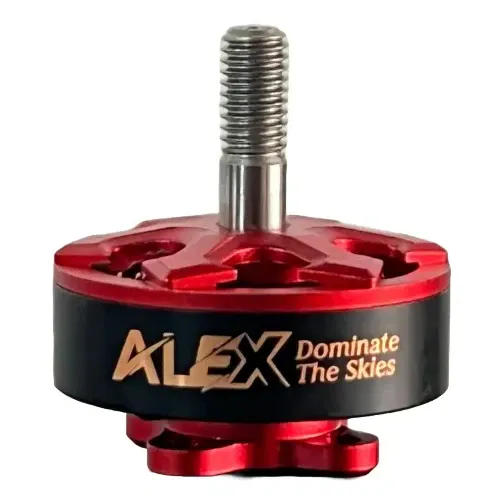

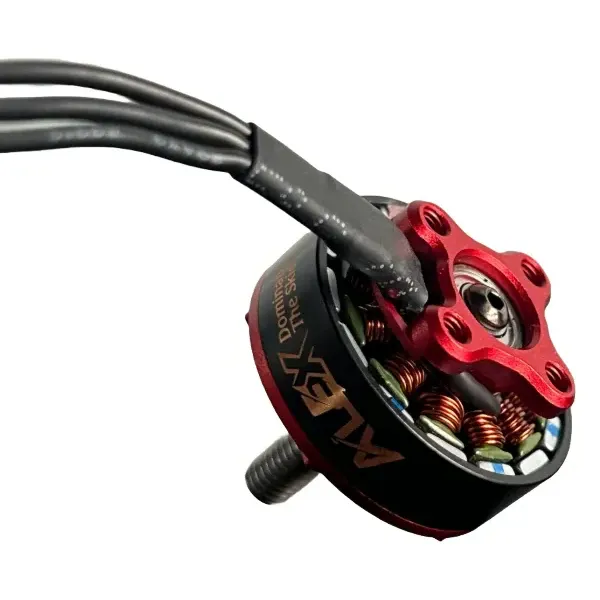

Alex 2306 Brushless FPV Motor, 1750/2500/2800KV

The Alex 2306 is a made-in-India brushless motor for 5-inch FPV racing and freestyle quads, offered in 1750KV, 2500KV and 2800KV windings on a 23 × 6 mm stator. As a rule of thumb, 1750KV suits 6S packs, while 2500KV and 2800KV suit 4S builds chasing quick throttle response.

Key features

• Three windings: pick the KV that matches your battery voltage and prop pitch.
• 5 mm shaft: fits standard 5-inch props with a 5 mm hub bore, secured by a prop nut.
• 2800KV figures: 30 g with up to 579.2 W of power.
• Precision bearings: low-resistance bearings for smooth running.
• Cooling-oriented design: built to limit heat build-up over long flight sessions.

Specifications

• Stator: 2306 (23 mm diameter, 6 mm height)

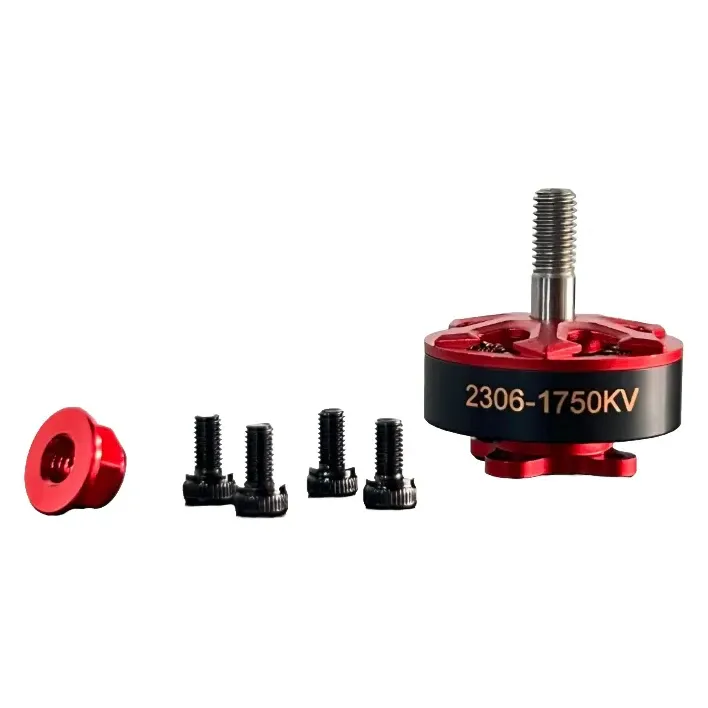

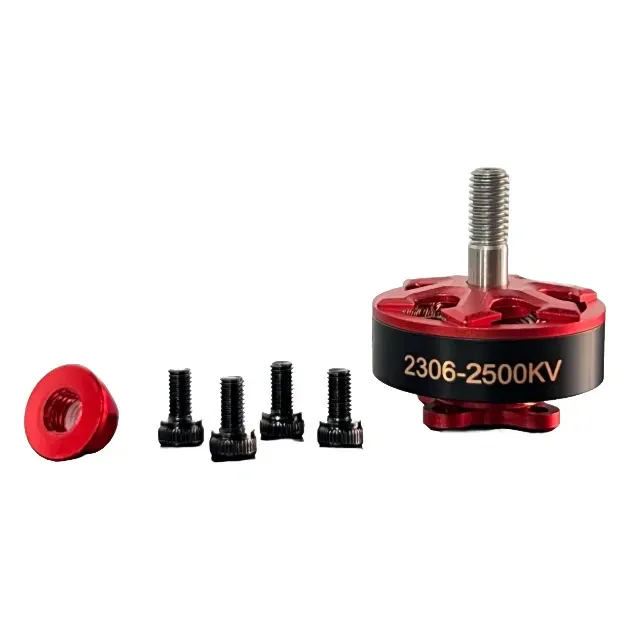

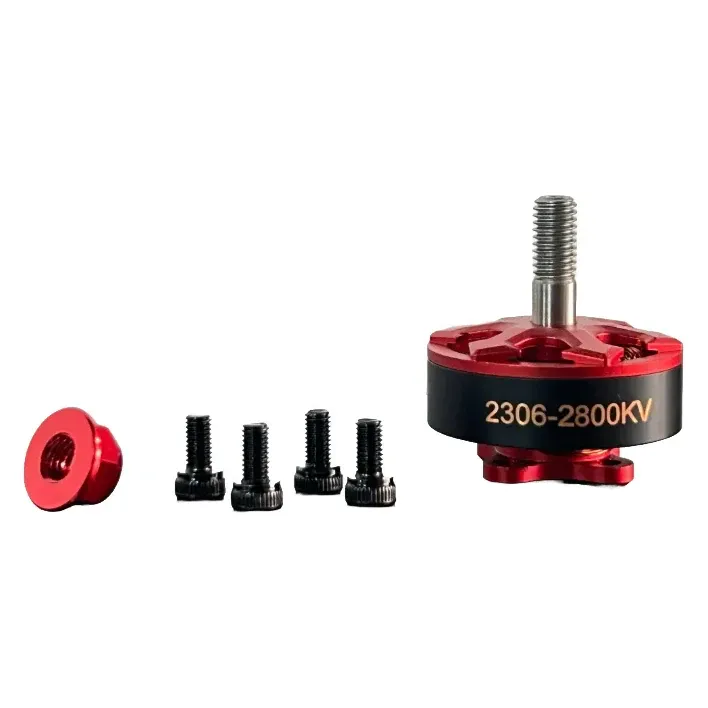

• KV options: 1750KV, 2500KV, 2800KV
• Shaft: 5 mm
• Weight (2800KV): 30 g
• Max power (2800KV): 579.2 W
• Pack: 1 motor

Sold individually, so order four for a quad. Check your frame's motor-mount pattern before ordering, and size the ESC for the KV and cell count you choose.
