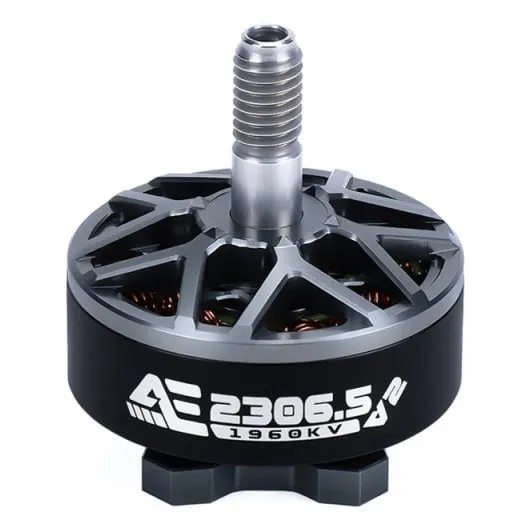

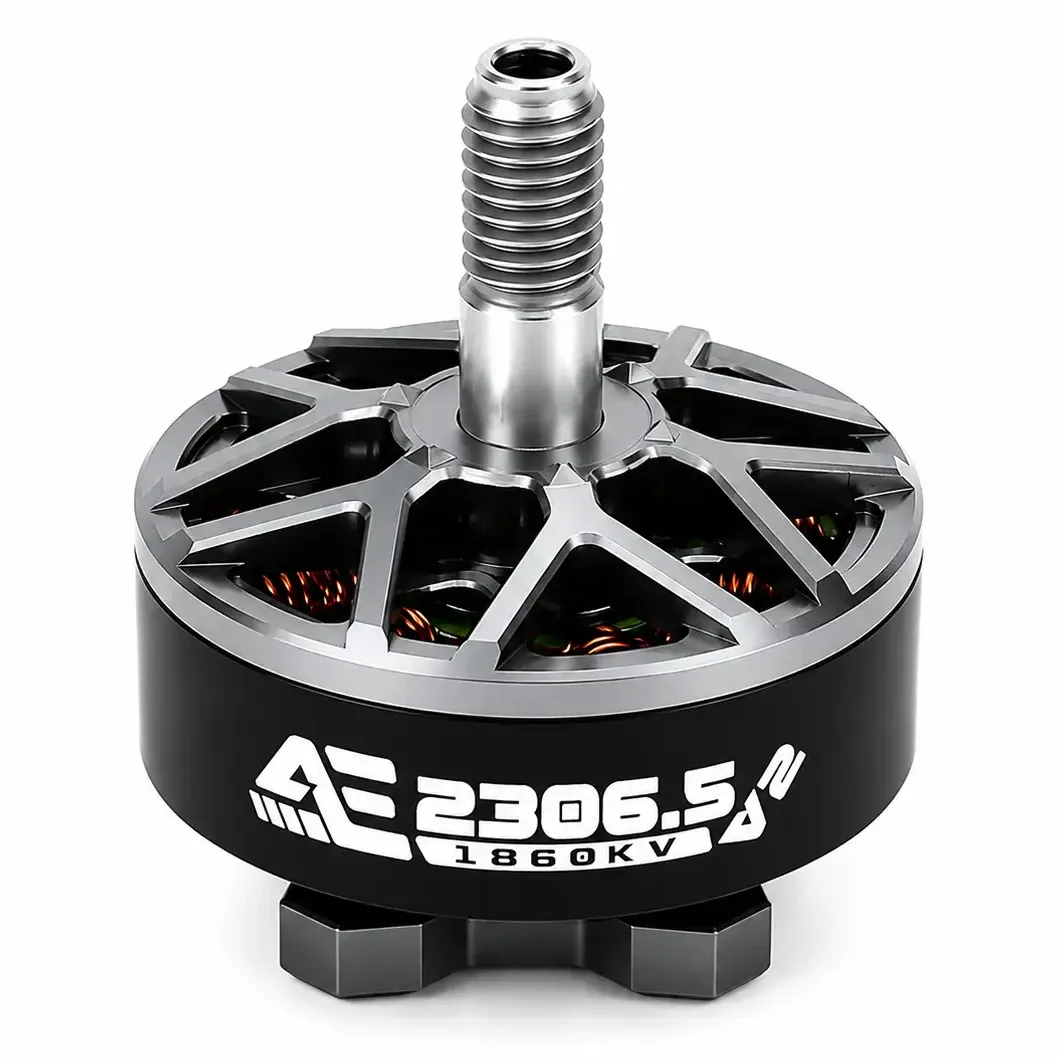

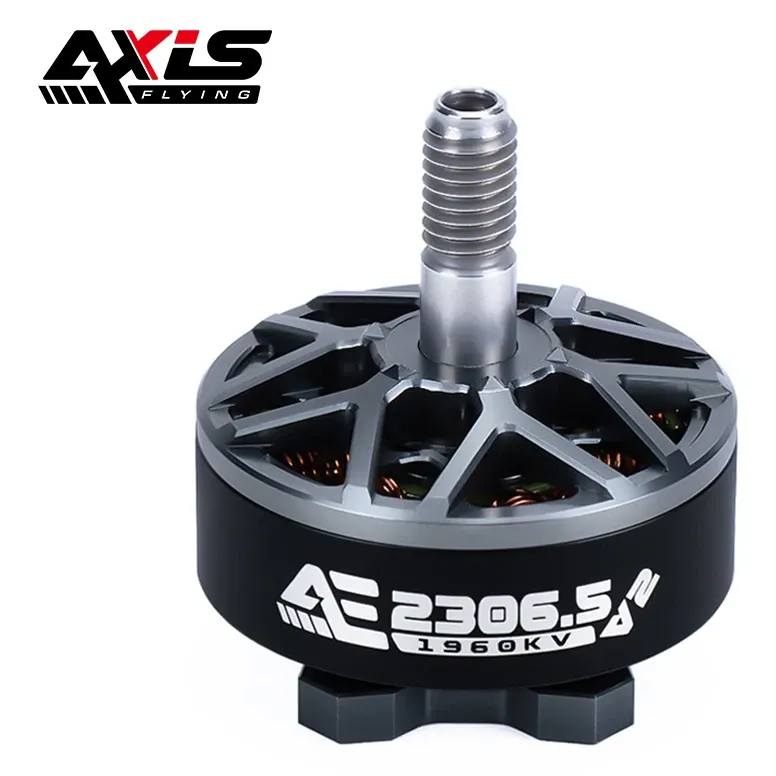

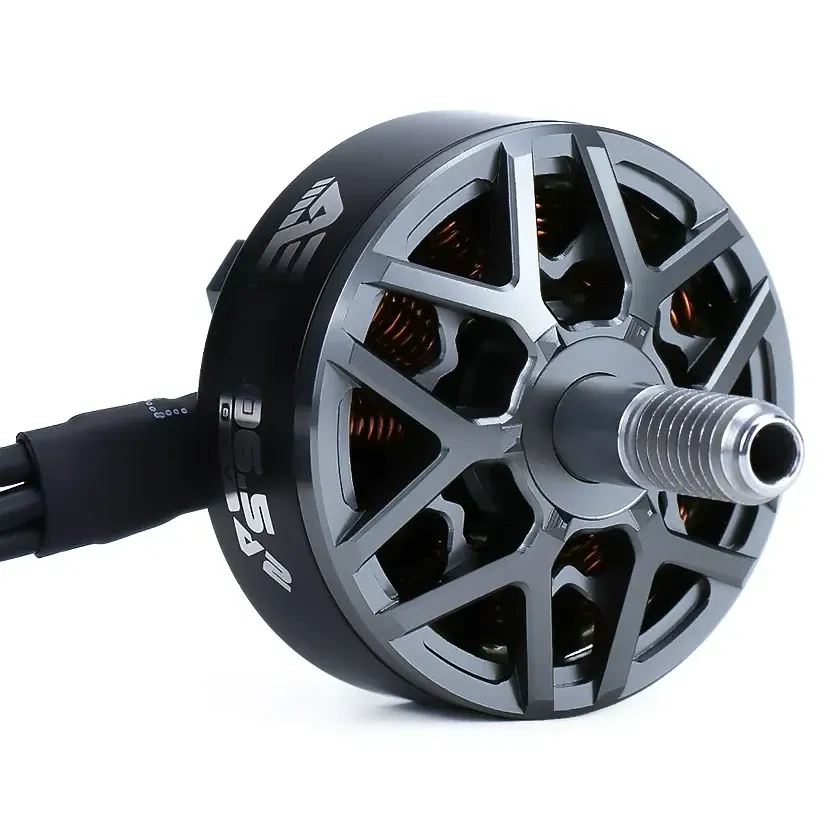

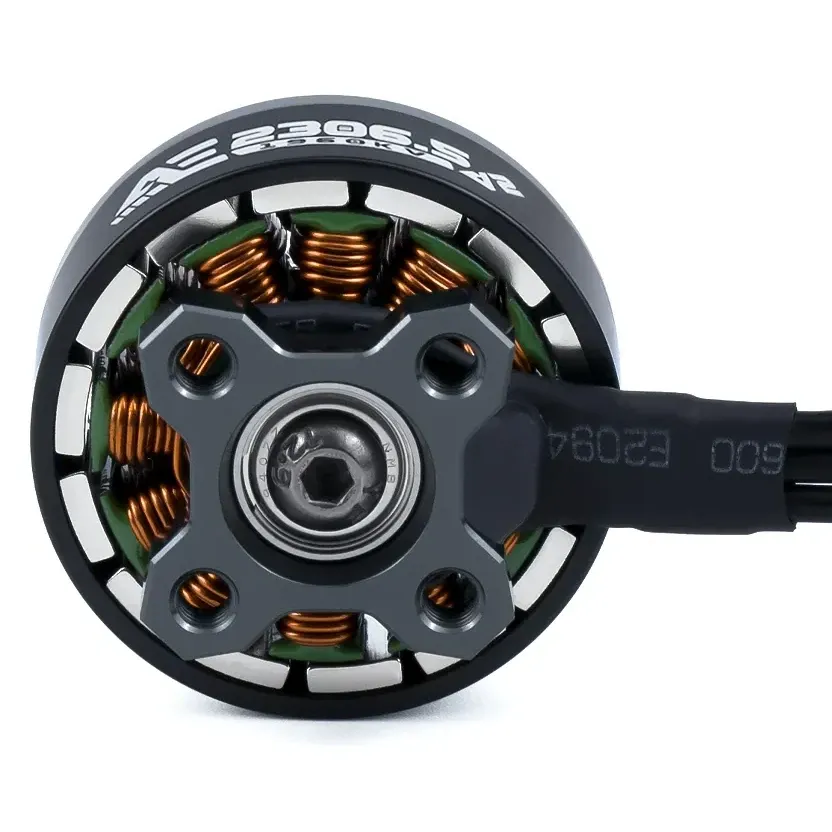

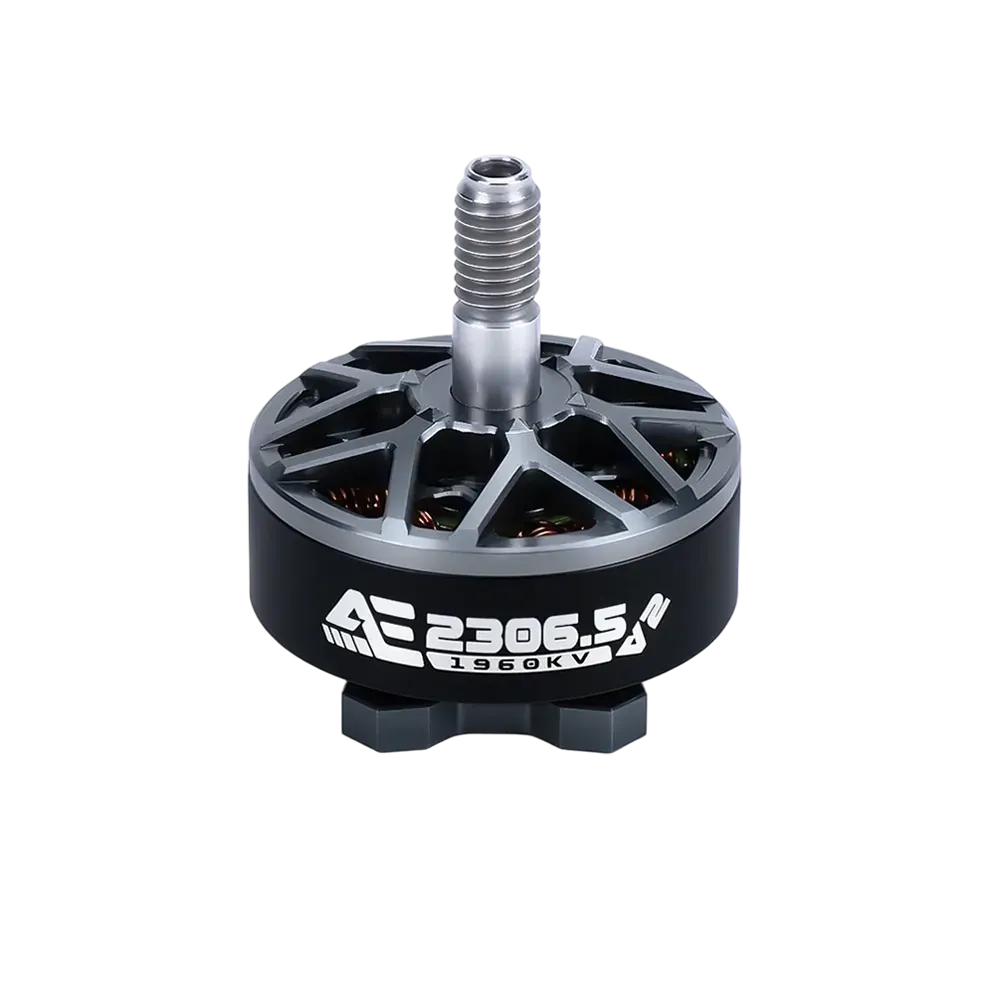

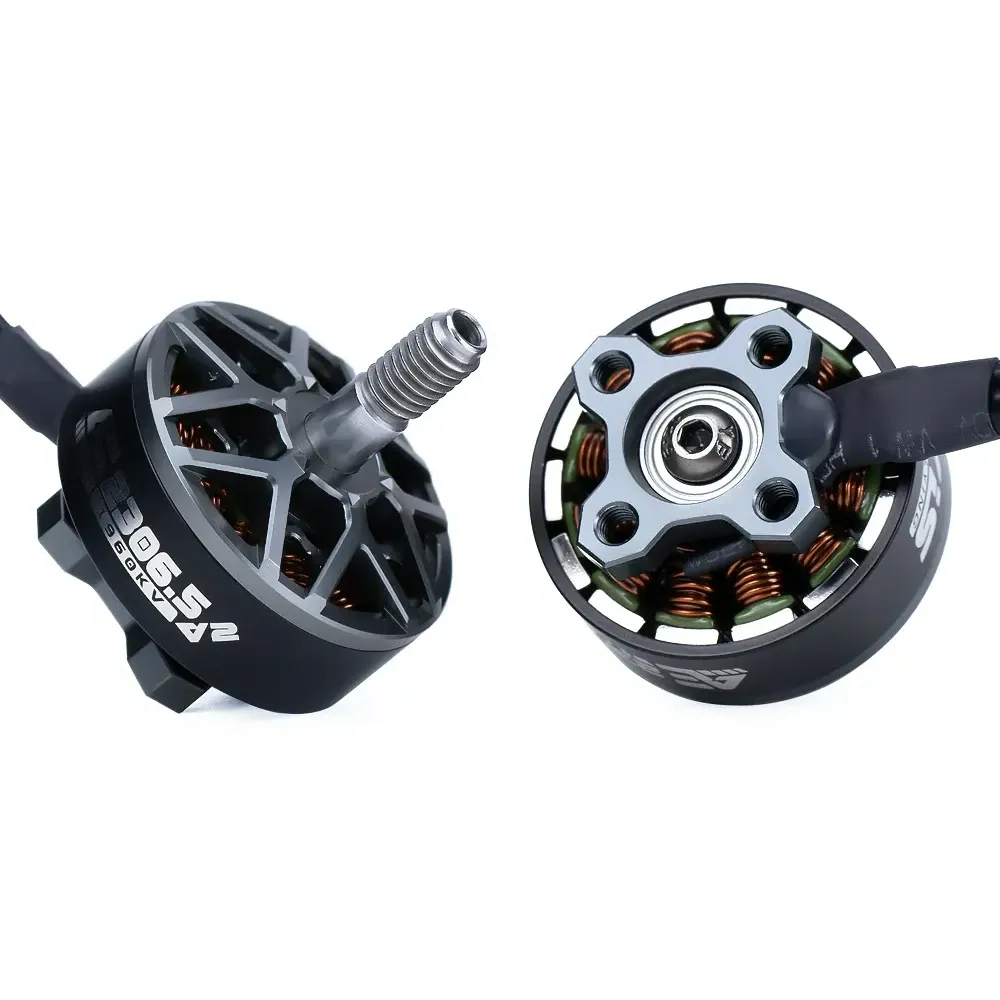

Axisflying AE2306.5 V2 Motor

The Axisflying AE2306.5 V2 is a budget-focused 5-inch freestyle motor built for pilots flying Arco, Flow or Bando-style frames on 6S power. It targets riders who want dependable thrust without paying for the brand's higher-end motor lines.

Key features

• 1860KV and 1960KV windings rated for 6S LiPo, with stated maximum outputs of 859.58W (1860KV) and 1041.79W (1960KV).

• Delivers up to 1760g of peak thrust per motor on a suitable propeller.

• 12N14P configuration in a 27.9 x 32.7mm can for a strong power-to-weight ratio.

• Weighs 33.7g including wire, keeping the airframe's mass low.

• Ships with mounting screws, a locking M5 flanged nut, an O-ring and washers.

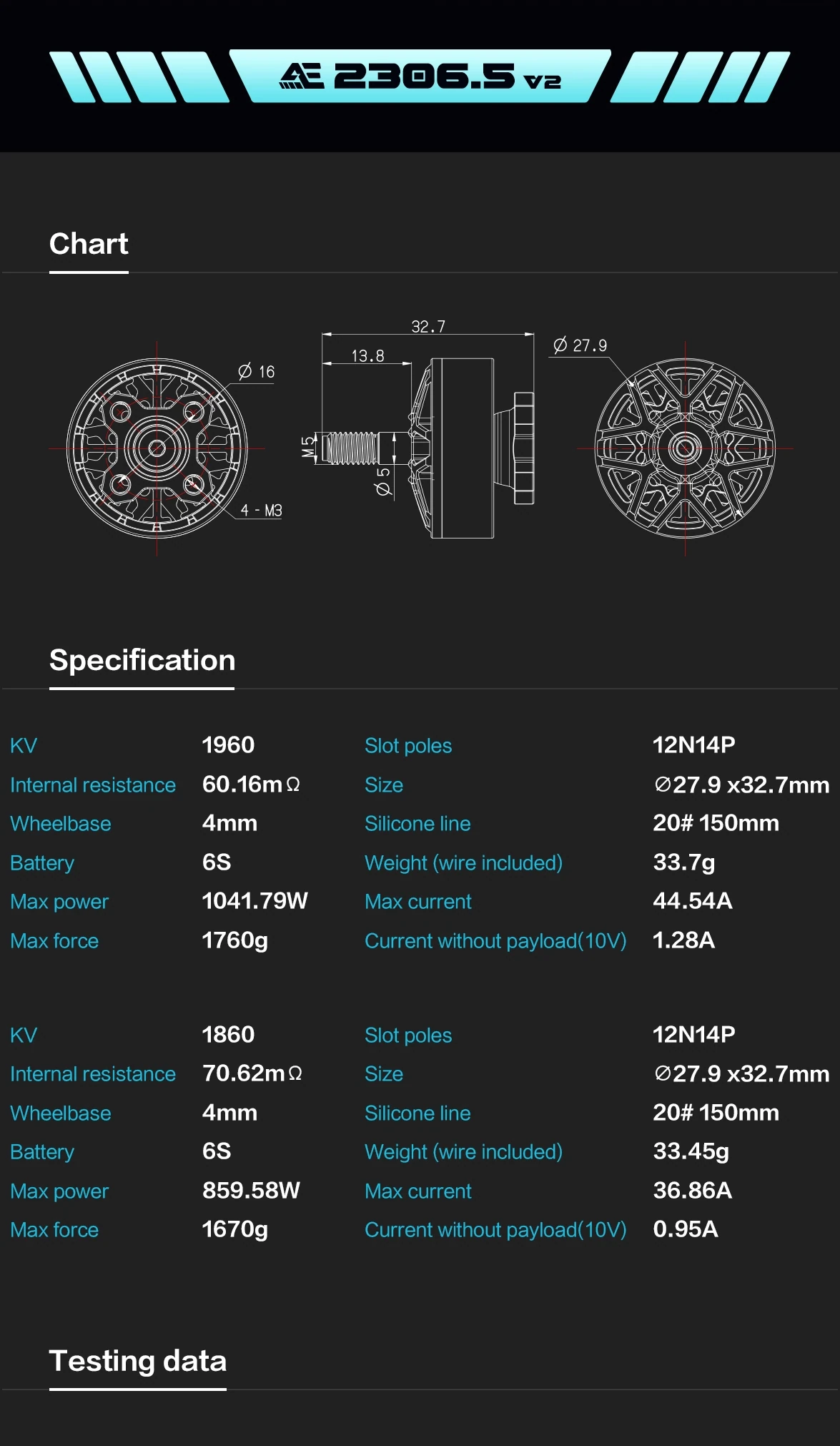

Specifications

• Stator size: 2306.5

• KV: 1860KV / 1960KV

• Weight: 33.7g (with wire)

• Dimensions: 27.9 x 32.7mm

• Configuration: 12N14P

• Interphase resistance: 70.62 mOhm (1860KV), 60.16 mOhm (1960KV)

• Rated input: 6S LiPo

Match the propeller pitch and ESC current rating to the 6S power draw, and fit four motors from the same batch for even thrust across the quad.
