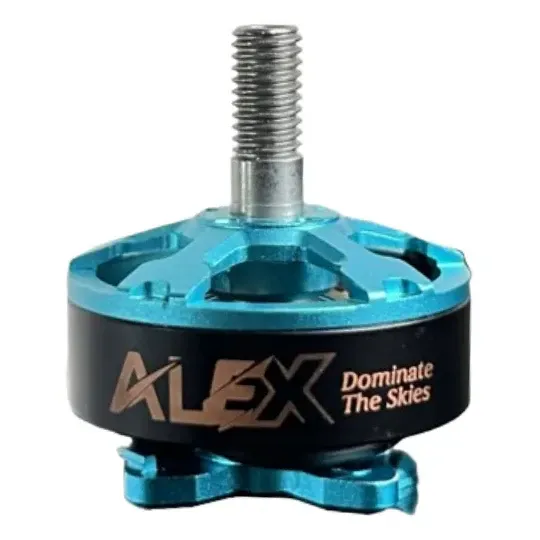

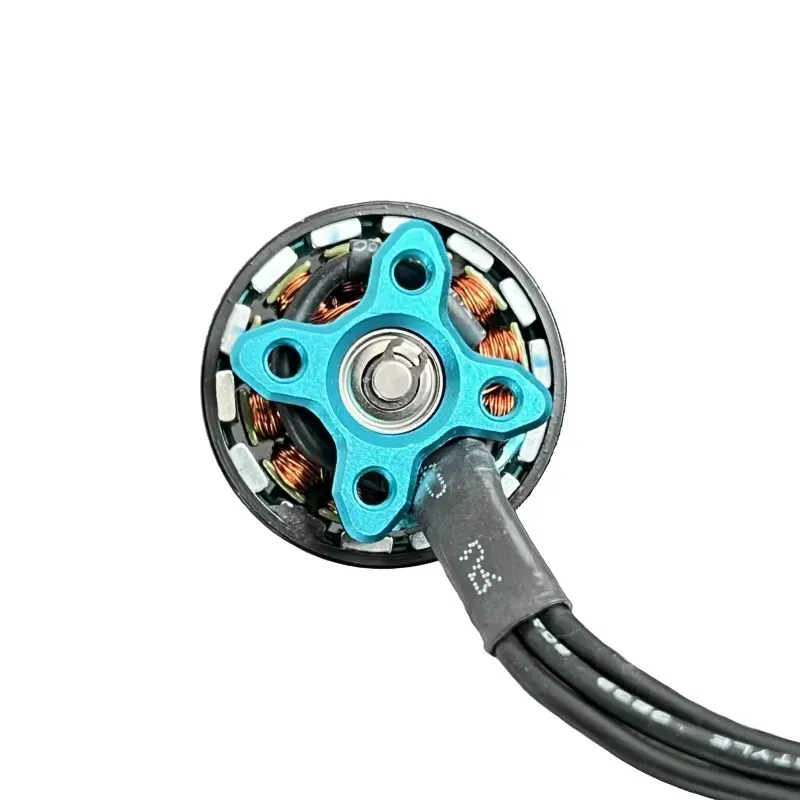

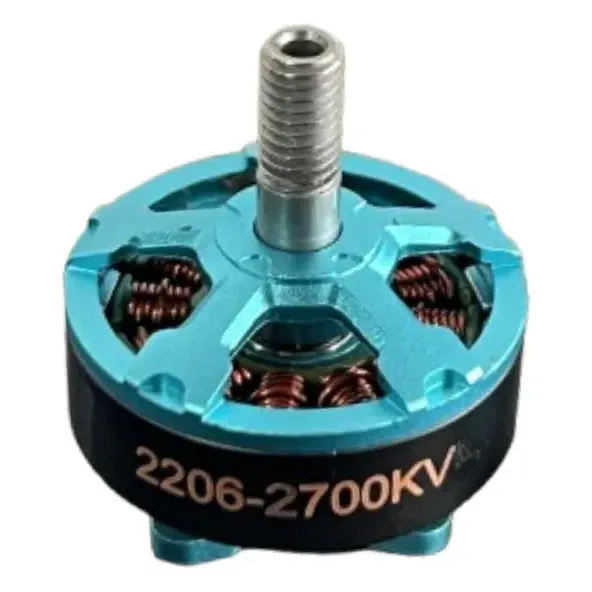

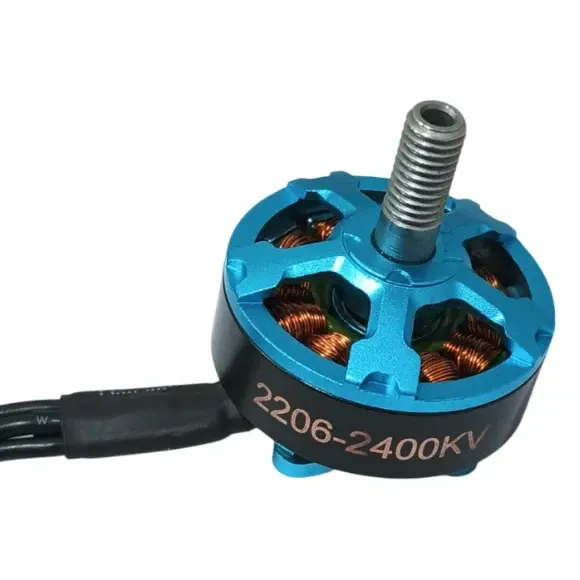

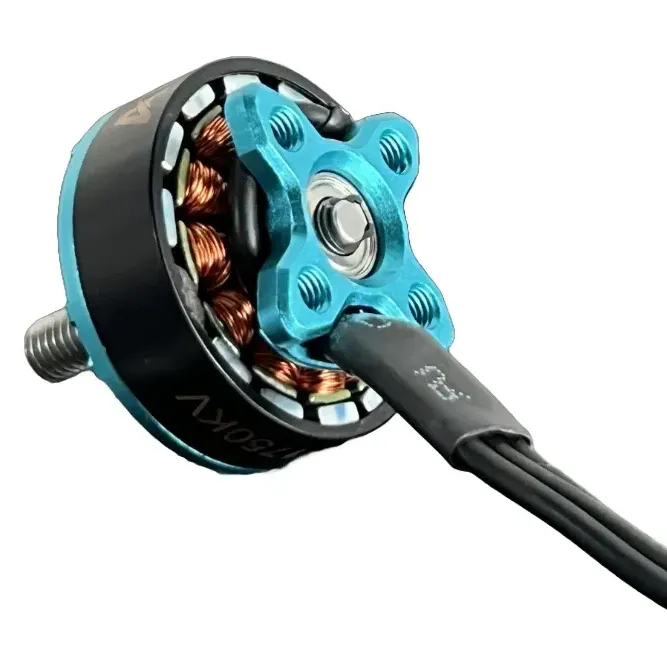

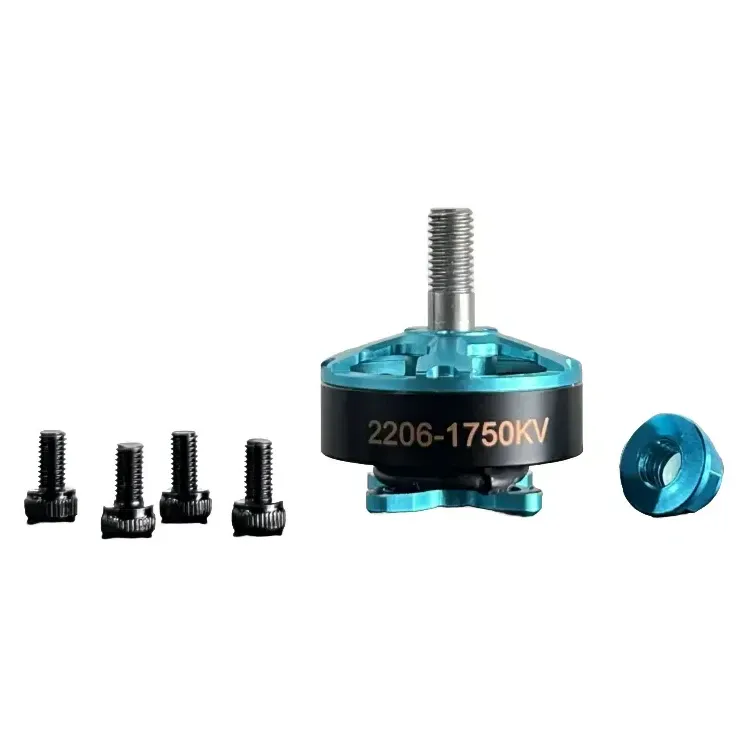

Alex 2206 Brushless FPV Motor

The Alex 2206 is a made-in-India brushless motor for 5-inch FPV racing and freestyle quads, offered in 1750KV, 2400KV and 2700KV windings. As a rule of thumb on 5-inch props, around 1750KV suits 6S packs, while 2400KV and 2700KV suit 4S builds that want sharper throttle response.

Key features

• Three windings on one stator: pick the KV that matches your battery voltage and prop pitch.
• Precision bearings: low-resistance bearings for smooth, efficient running.
• Heat management: a cooling-oriented design that limits heat build-up over long flight sessions.
• 1750KV figures: 34 g with a rated maximum thrust of 1,024 g.

Specifications

• Stator: 2206 (22 mm diameter, 6 mm height)
• KV options: 1750KV, 2400KV, 2700KV
• Weight (1750KV): 34 g
• Max thrust (1750KV): 1,024 g
• Pack: 1 motor

Sold individually, so order four for a quad plus a spare. Check your frame's motor-mount pattern and your props' hub bore against the motor before ordering, and size the ESC for the KV and cell count you choose.
