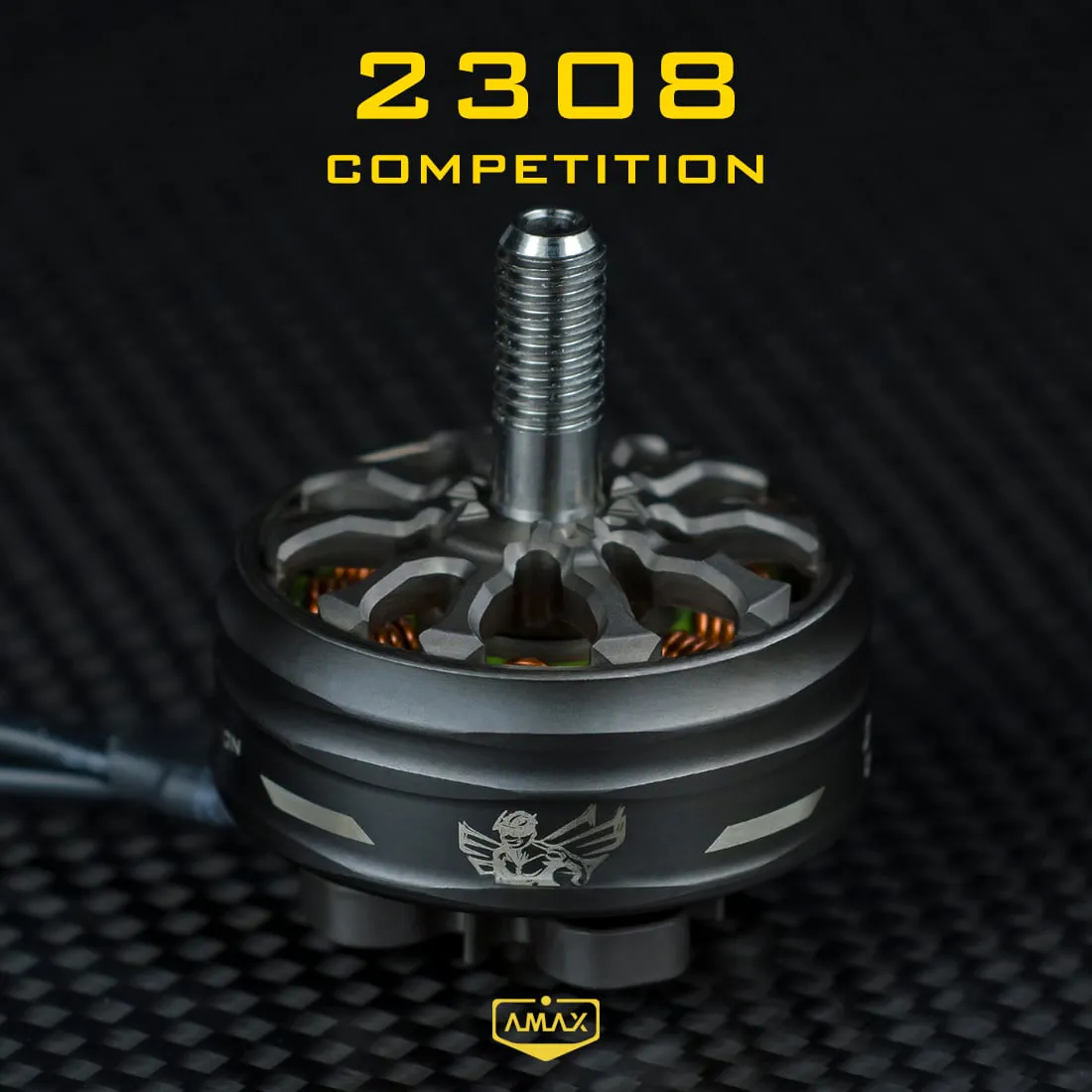

AMAX Competition 2308 Brushless Motor 1000KV/1600KV

The AMAX Competition 2308 is a brushless motor with a taller stator than the common 2306, offered in 1000KV and 1600KV windings for builds that swing larger props or carry more weight than a standard 5-inch freestyle quad: heavier 5–6-inch cinematic rigs and 7-inch long-range frames.

Key features

• 2308 stator: 23 mm × 8 mm; the extra 2 mm of stator height over a 2306 adds torque for holding RPM under load.

• 1000KV option: the low-KV choice for larger props and efficient long-range cruising.

• 1600KV option: spins smaller props faster for sharper throttle response on heavier short-range builds.

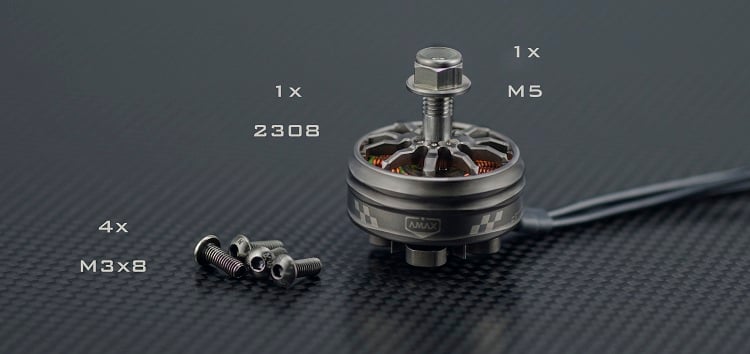

• Sold singly: each unit is one motor; order four for a quad.

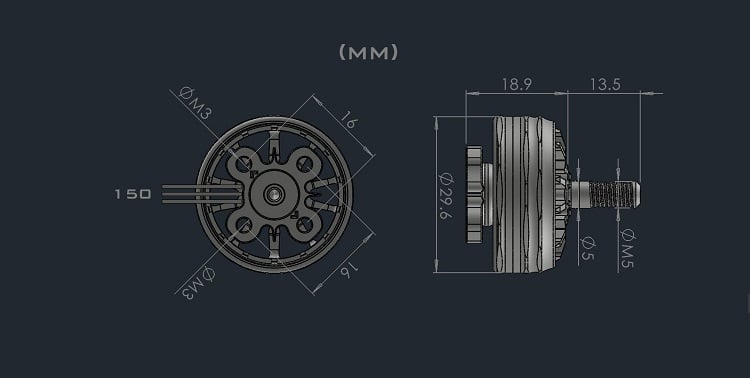

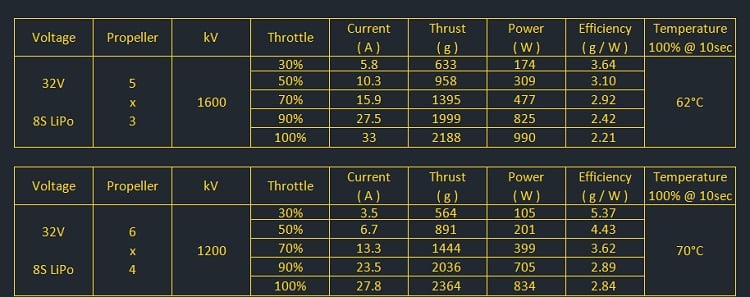

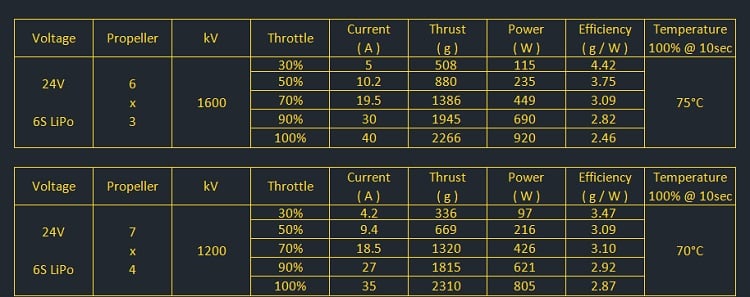

Choose the KV by prop size and battery voltage: at the same voltage, lower KV turns larger props and higher KV suits smaller ones. Confirm the shaft and bolt pattern against your props and frame arms before ordering a set.
