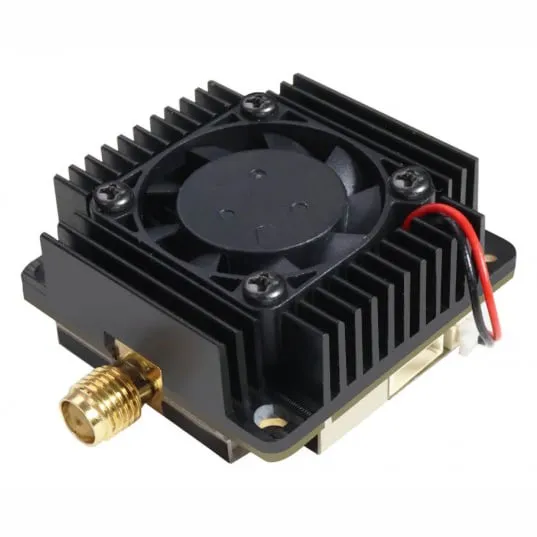

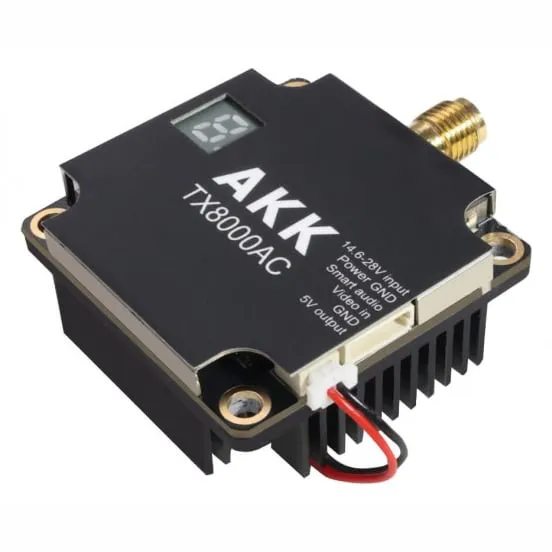

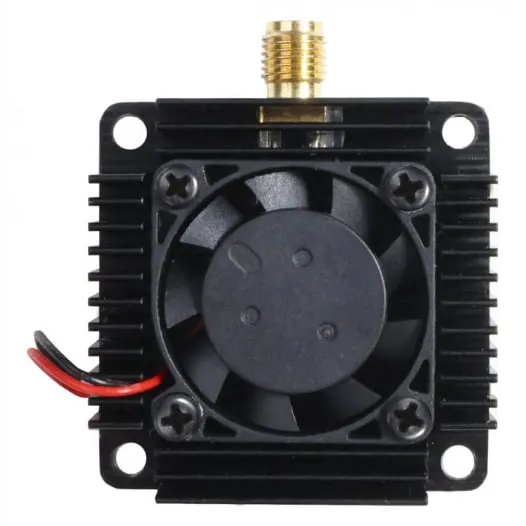

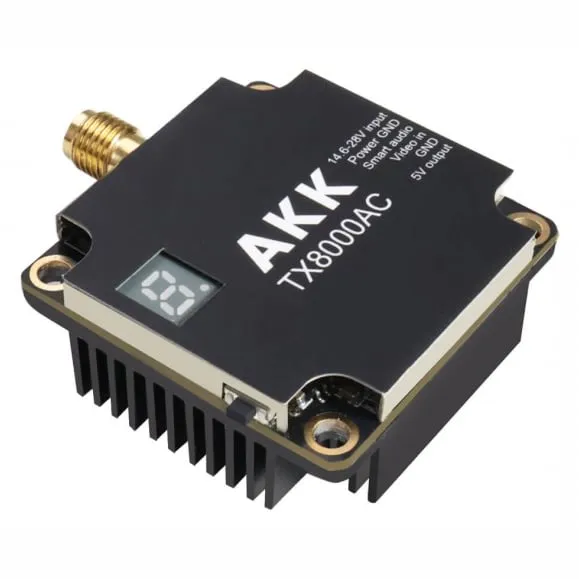

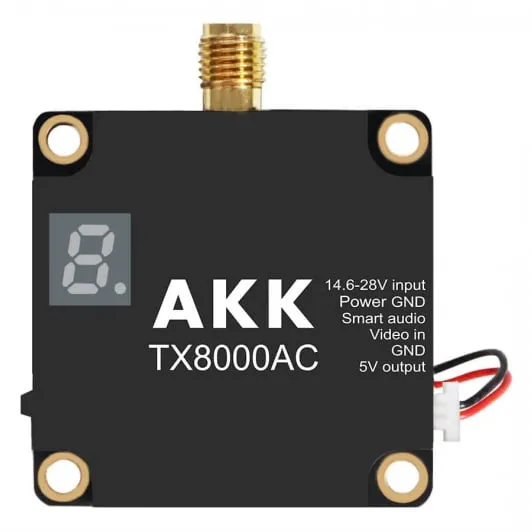

AKK TX8000AC 8W Ultra Long Range 4.9G–6G VTX

The AKK TX8000AC is an ultra-high-output 8000mW analogue video transmitter engineered for extended long-range FPV and large-scale fixed-wing platforms. Operating across a broad 4.9GHz to 6.0GHz frequency spectrum, it allows pilots to move off congested standard 5.8GHz channels, ensuring clean video feeds over multi-kilometre flights and in high-interference environments.

Key features

• Unprecedented 8W (8000mW) maximum RF output for extreme range and heavy signal penetration.

• Ultra-wide 4.9GHz to 6.0GHz frequency support for advanced channel separation.

• Engineered specifically for large fixed-wing aircraft and high-capacity long-range FPV drones.

Installation warning: An 8W VTX generates severe heat and demands a robust power system capable of high current draw. It must be mounted in direct, high-speed airflow and must never be powered on without a properly tuned wide-band antenna attached. Relying on standard narrow-band 5.8GHz antennas at the 4.9GHz or 6.0GHz extremes will cause dangerous SWR levels and permanently damage the hardware.
