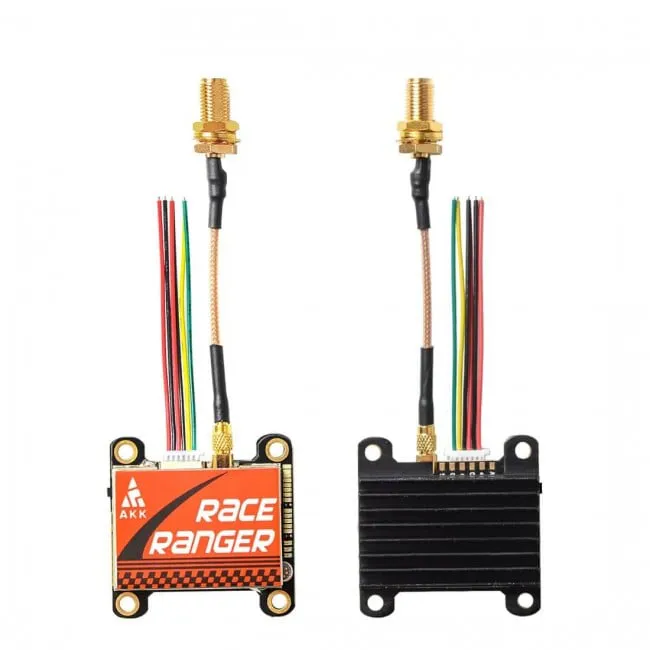

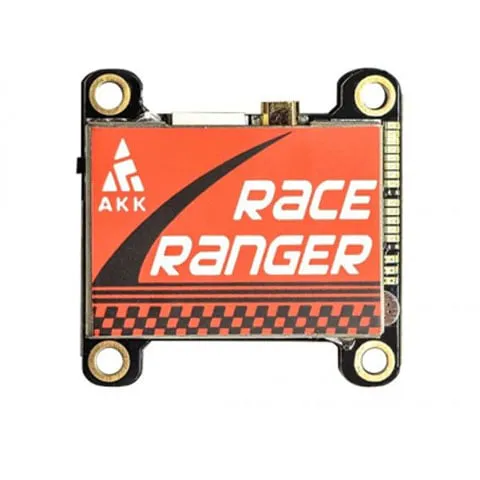

AKK Race Ranger 1.6W VTX

The AKK Race Ranger is a heavy-duty 5.8GHz analog video transmitter engineered for long-range FPV, mountain surfing, and flying through dense obstacles. Enclosed in a full-coverage CNC aluminium shell, this VTX provides exceptional heat dissipation, allowing it to sustain its maximum 1.6W output without thermal throttling during extended flights.

Key features

• Up to 1600mW of selectable output power for maximum range and signal penetration.

• CNC-machined heatsink casing protects the board in crashes and aggressively manages thermal load.

• Built-in microphone transmits real-time motor and wind audio directly to your goggles.

• SmartAudio integration allows rapid band, channel, and power adjustments via your Betaflight OSD.

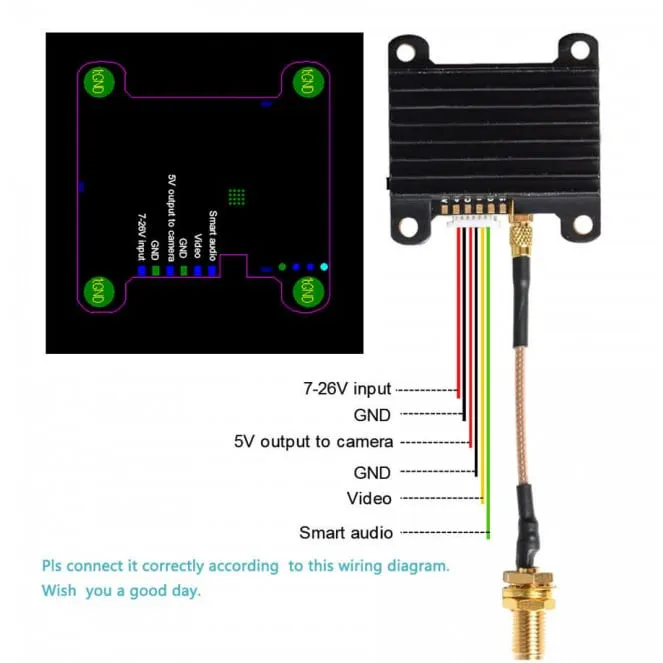

• Dedicated 5V output pad to power your analog FPV camera.

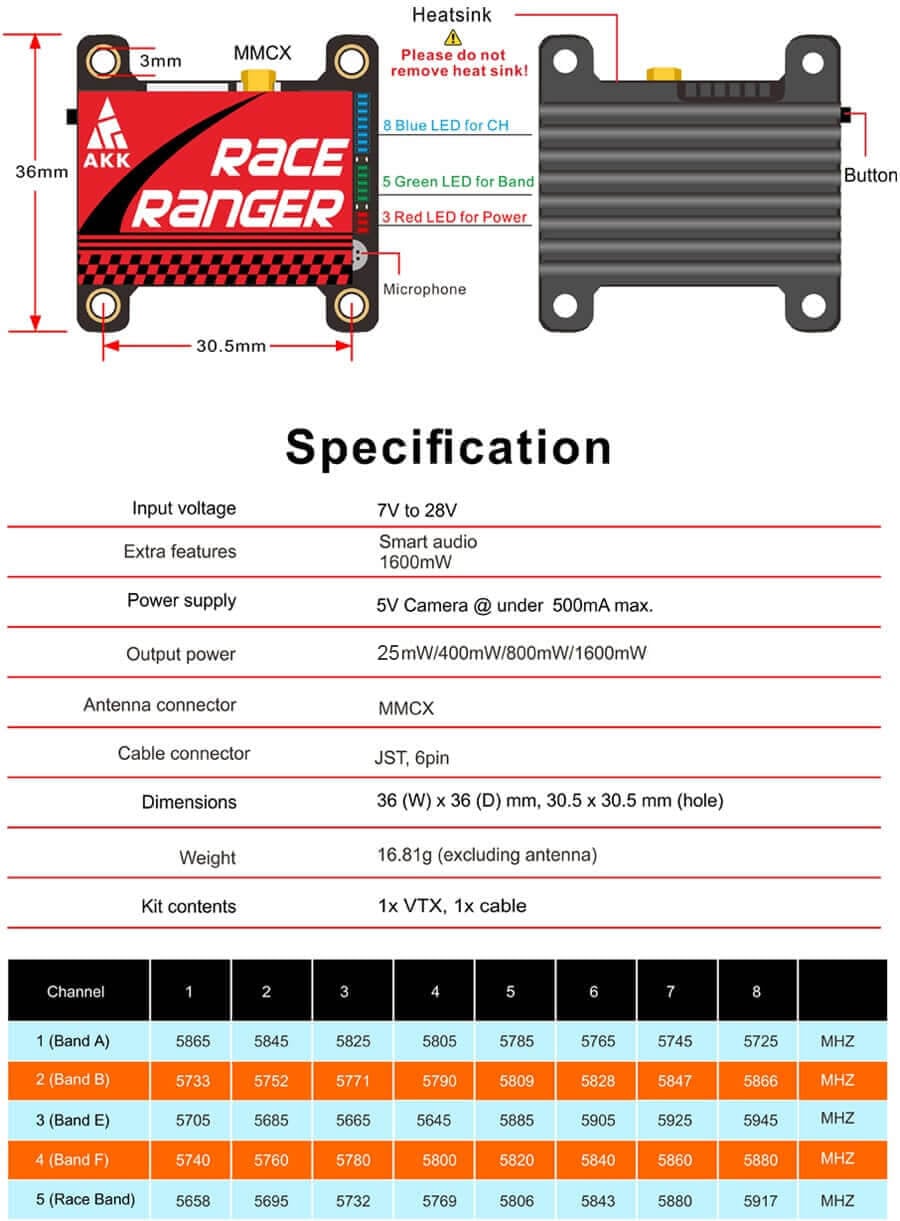

Specifications

• Input Voltage: 7-28V (2-6S LiPo)

• Output Power: Pit / 200mW / 400mW / 800mW / 1600mW

• Frequency Band: 5.8GHz

• Mounting Pattern: 30.5x30.5 mm

• Antenna Connector: MMCX

• Control Protocol: SmartAudio

• Dimensions: 36x36 mm

• Weight: 16.8 g

With a standard 30.5x30.5mm mounting pattern, this VTX bolts cleanly onto most full-sized stacks. It draws significant current at its highest output settings, making it best suited for 7-inch cruisers, heavy-lift cinelifters, and macroquads where direct 2-6S battery power and high airflow are readily available.
