AKK Alpha 5 5.8GHz 5W 80CH Analog VTX

The AKK Alpha 5 is an ultra-high-power 5.8GHz analog video transmitter engineered for extreme long-range FPV, mountain surfing, and large-scale cinelifters. Pushing an immense 5000mW (5W) maximum RF output, this VTX provides solid signal penetration through dense foliage and challenging terrain to maintain a reliable analog feed over vast distances.

Key features

• Massive 5000mW maximum output power for extended range and superior obstacle penetration.

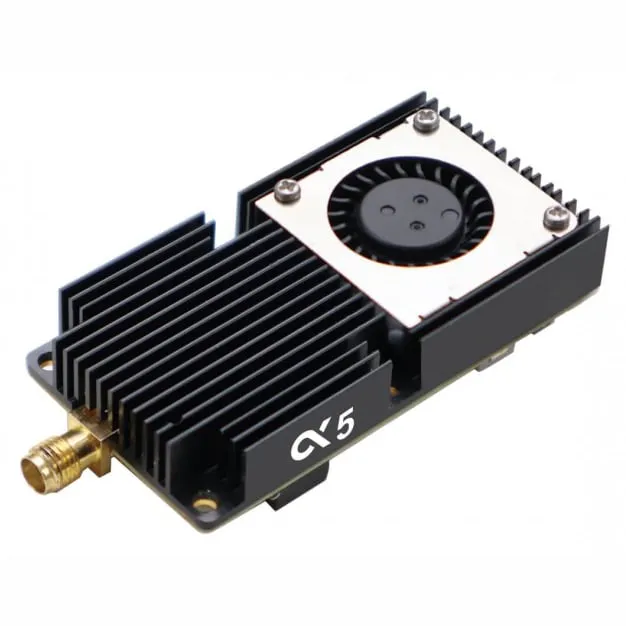

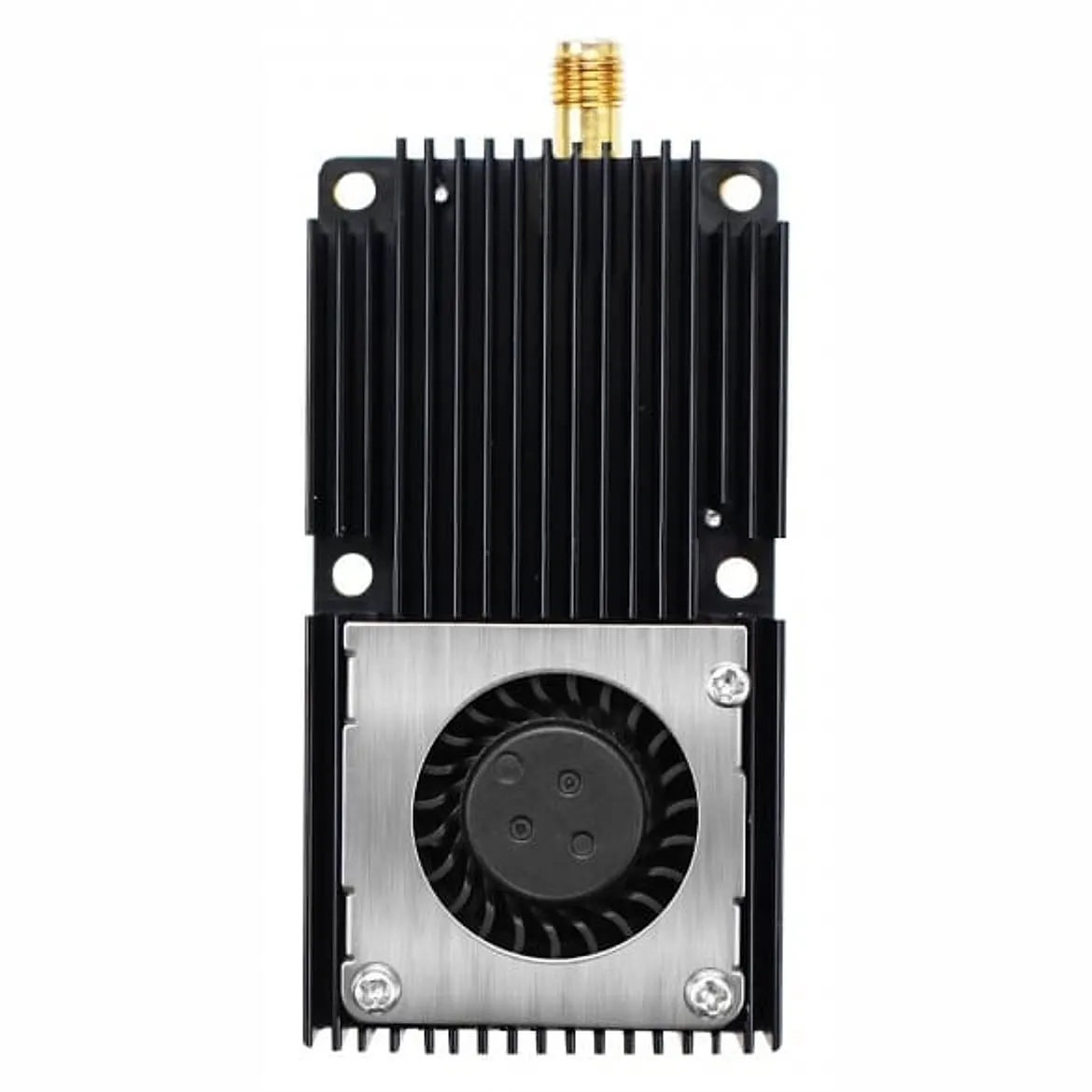

• Integrated CNC aluminium heatsink paired with an active cooling fan to manage high thermal loads and prevent power sag mid-flight.

• Broad 80-channel support on the 5.8GHz band offers excellent frequency flexibility in noisy RF environments.

• SmartAudio integration allows for quick power level, band, and channel adjustments directly via your Betaflight OSD.

• Standard 30.5x30.5mm mounting footprint suits most long-range, X-Class, and heavy-lift frames.

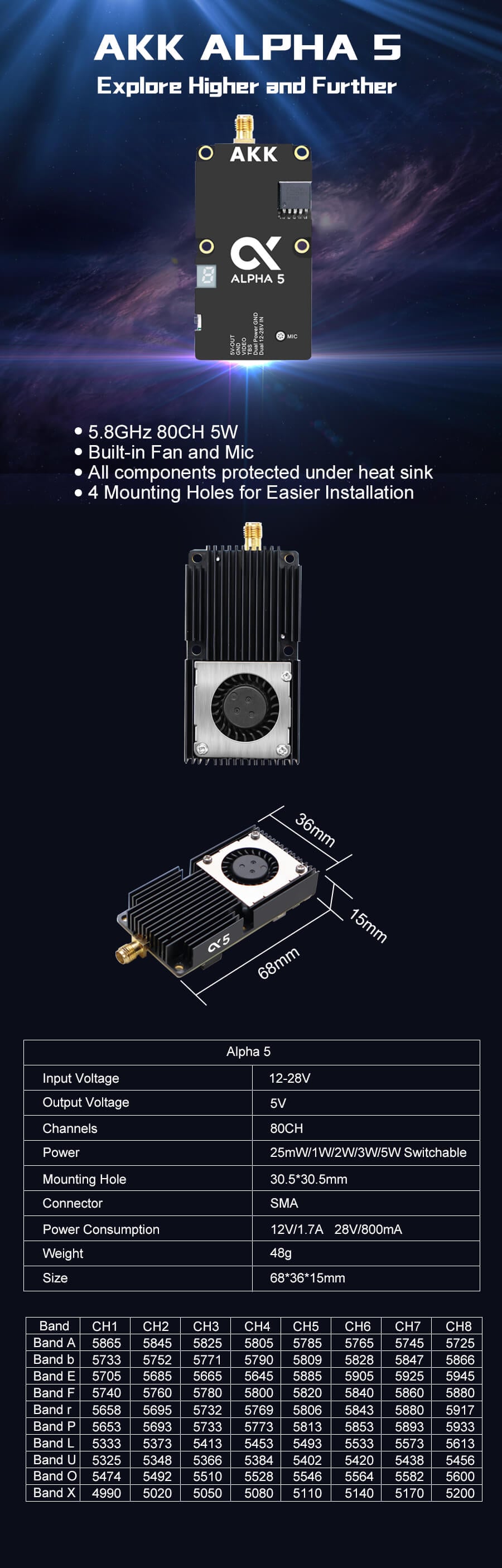

Specifications

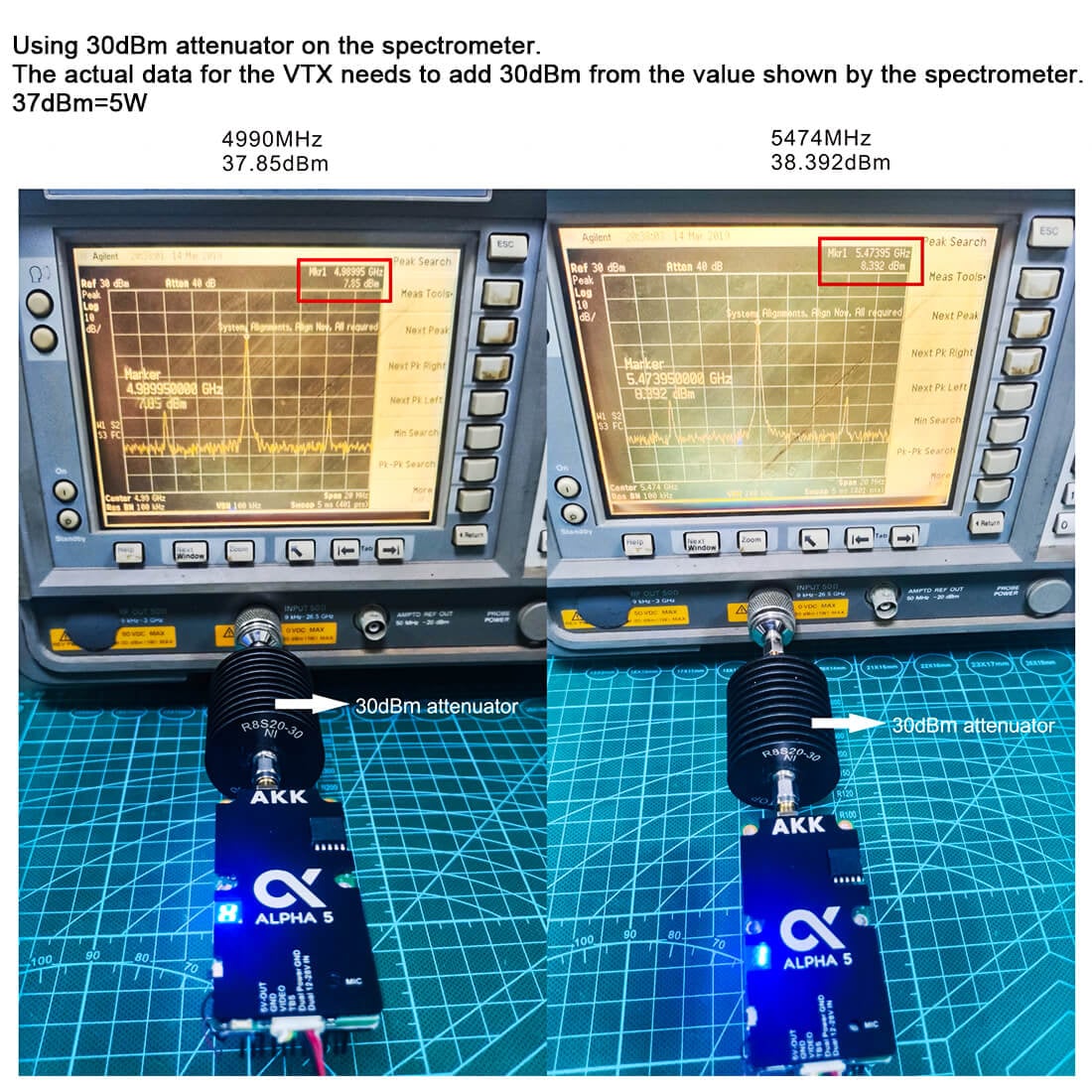

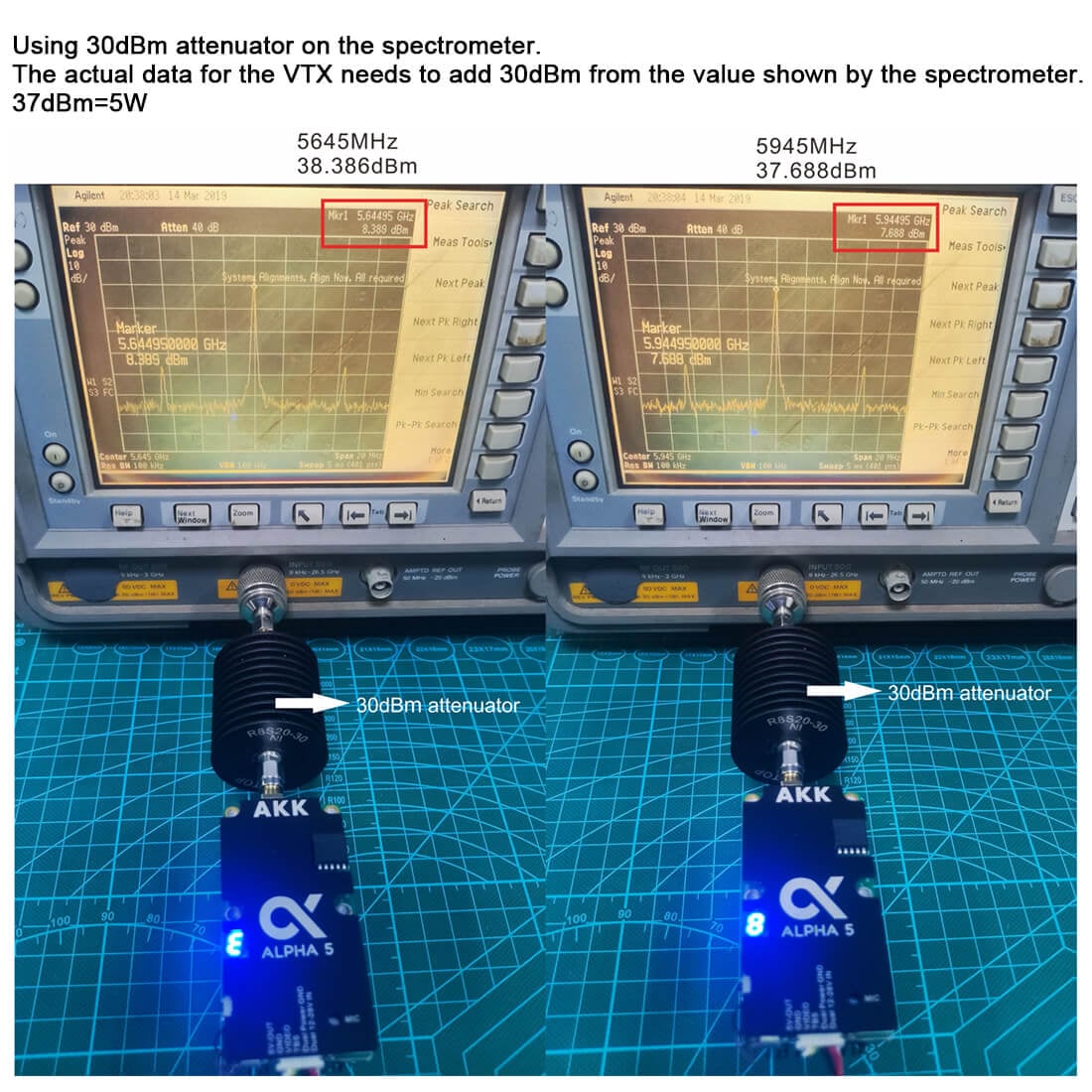

• Max Output Power: 5000 mW (5 W)

• Power levels: 25 mW / 1 W / 2 W / 3 W / 5 W, switchable

• Frequency Band: 5.8GHz

• Channel Count: 80

• Control Protocol: SmartAudio

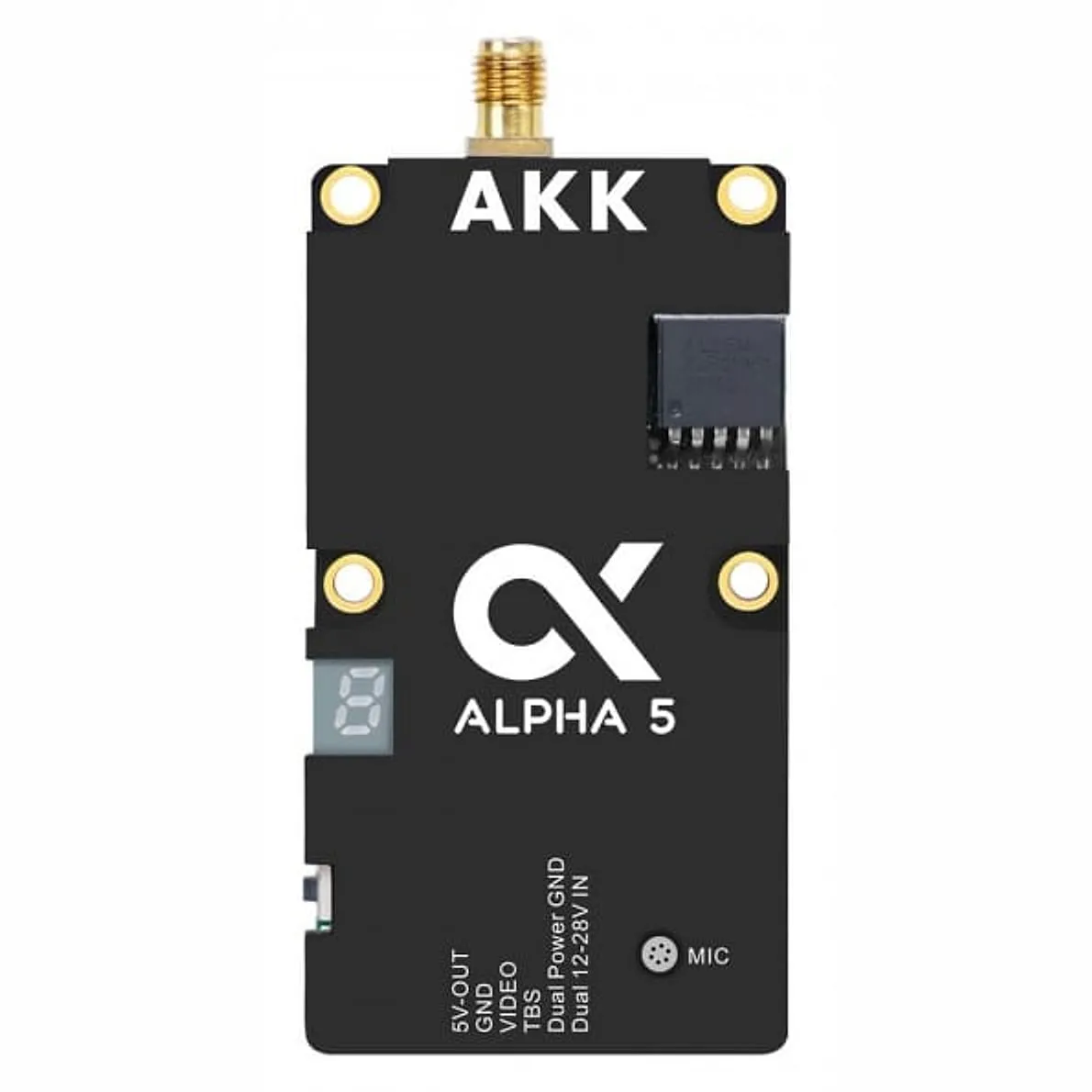

• Display: LED digit display for band, channel and power

• Mounting Size: 30.5x30.5 mm

Note: Never power up this VTX without a properly tuned antenna securely attached. Due to the severe current draw at 5W output, ensure your power supply and wiring gauge are rated to handle the electrical load, and keep the unit exposed to prop wash to assist the onboard cooling fan.
