HGLRC Zeus 800mW 5.8GHz VTX (20×20 / 30×30)

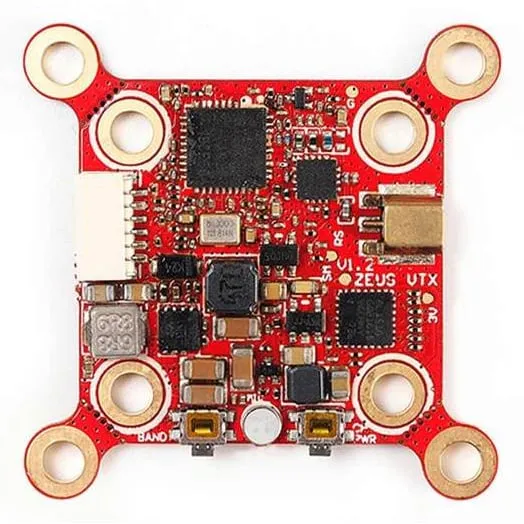

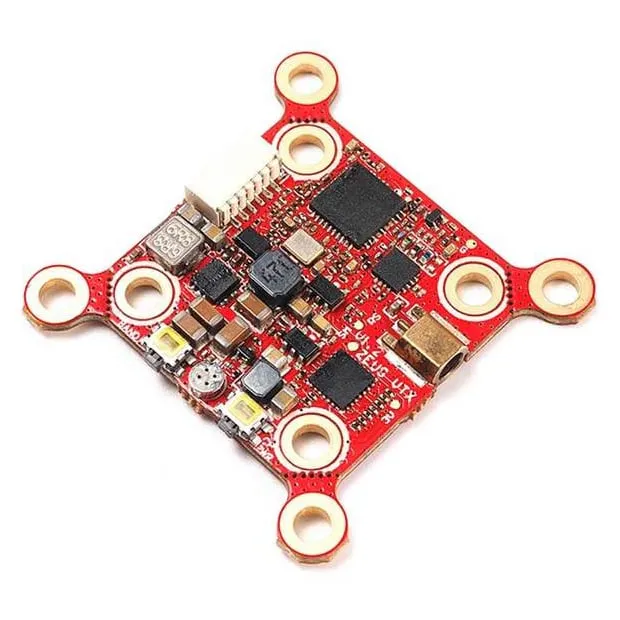

The HGLRC Zeus 800mW is a versatile 5.8GHz analogue video transmitter designed for freestyle and racing drones. It features a dual-pattern PCB that natively accommodates both 20x20 and 30.5x30.5 stack setups out of the box, eliminating the need for bulky 3D-printed adapter plates.

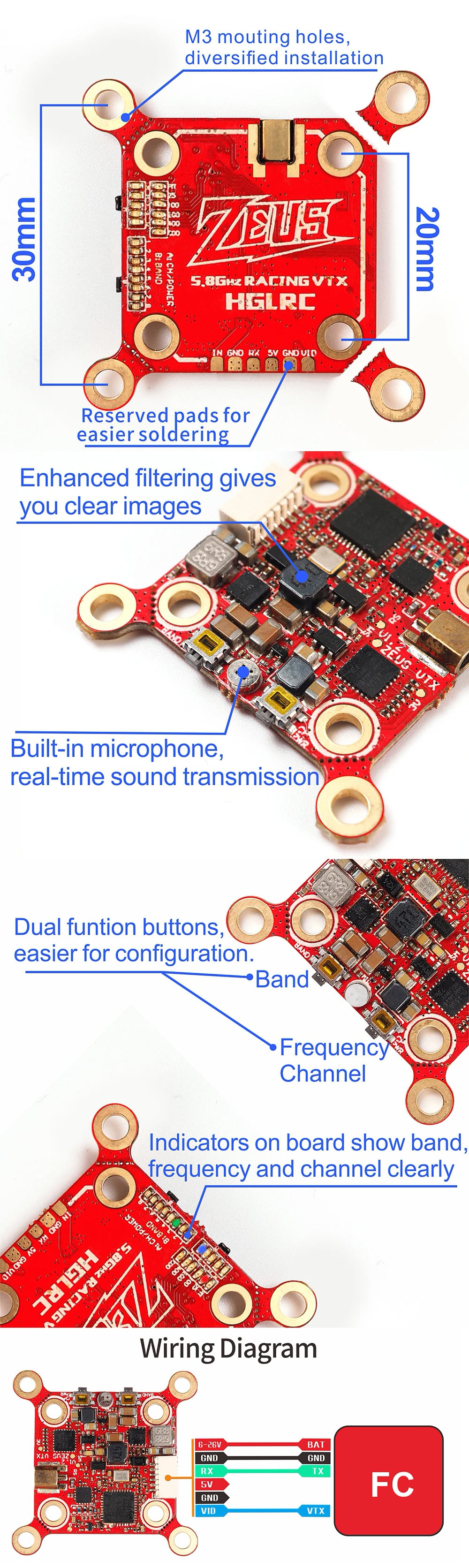

Key features

• Six selectable output power levels (PIT/25/100/200/400/800mW) for scalable range depending on your flight environment.
• Integrated IRC Tramp protocol support allows for rapid channel, band, and power configuration via your flight controller and Betaflight OSD.

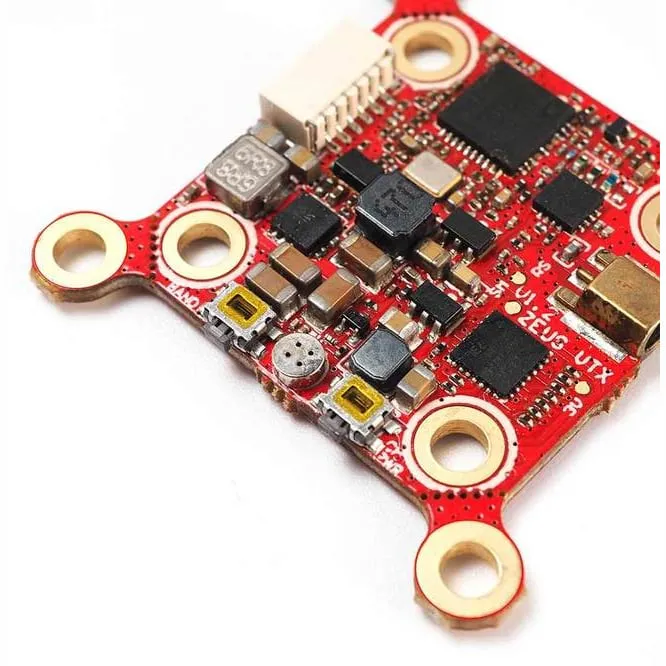

• Built-in microphone provides real-time motor and prop audio feedback straight to your goggles.
• Robust MMCX antenna connector ensures a secure, low-profile cable run that resists popping off in a crash.

Specifications

• Brand: HGLRC
• Frequency: 5.8GHz (40 channels)
• Output power: PIT, 25mW, 100mW, 200mW, 400mW, 800mW
• Current draw: 94 mA (PIT), 169 mA (25mW), 199 mA (100mW), 216 mA (200mW), 279 mA (400mW), 387 mA (800mW)
• Input voltage: 2-6S LiPo (DC 6-26V)
• BEC output: 5V / 2A
• Control protocol: IRC Tramp
• Antenna connector: MMCX

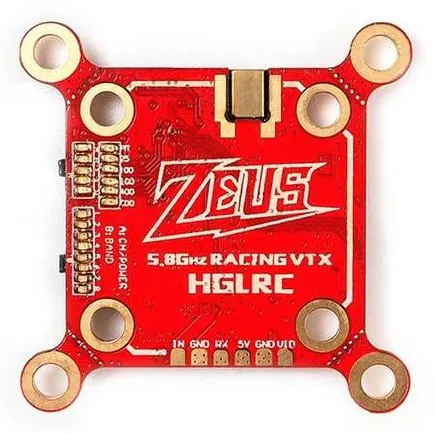

• Mounting pattern: 20x20, 30.5x30.5mm (M3)
• Dimensions: 37 x 37 x 5 mm
• Weight: 4.8 g

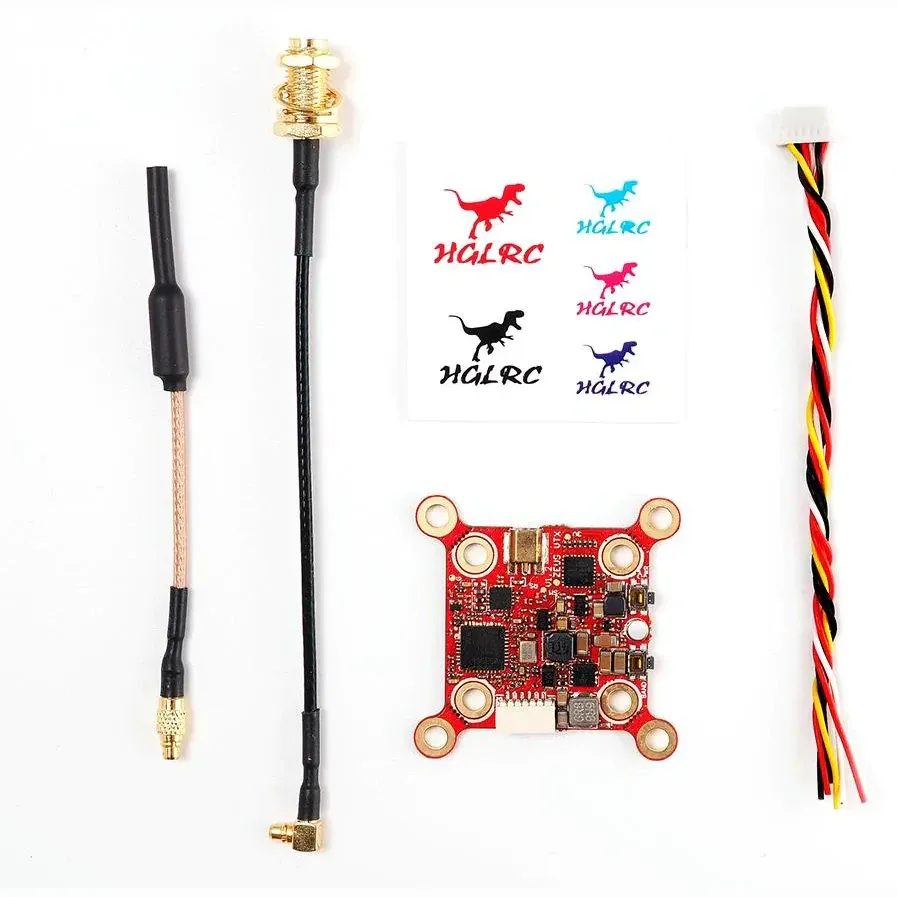

• In the box: VTX, 80 mm MMCX brass antenna, SH1.0 6-pin cable, MMCX to SMA adapter cable

This VTX is an excellent fit for 5-inch freestyle builds or mid-range cruisers where reliable video penetration and flexible stack placement are essential.
