AKK FX3 Ultimate DVR VTX
₹3,199Incl. GST
SKU AKK-FX3-ULTIMATE-DVR
VTX Power: 1000 mWMounting Size: 20x20Antenna Connector: MMCXMade in India: No
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The AKK FX3 Ultimate is an analogue 5.8GHz video transmitter with a built-in DVR, recording clean footage straight from the FPV camera rather than off the ground-station receiver.
Key features
- Power is switchable between 25mW, 200mW, 600mW and 1000mW at the press of a button, along with channel and band selection.

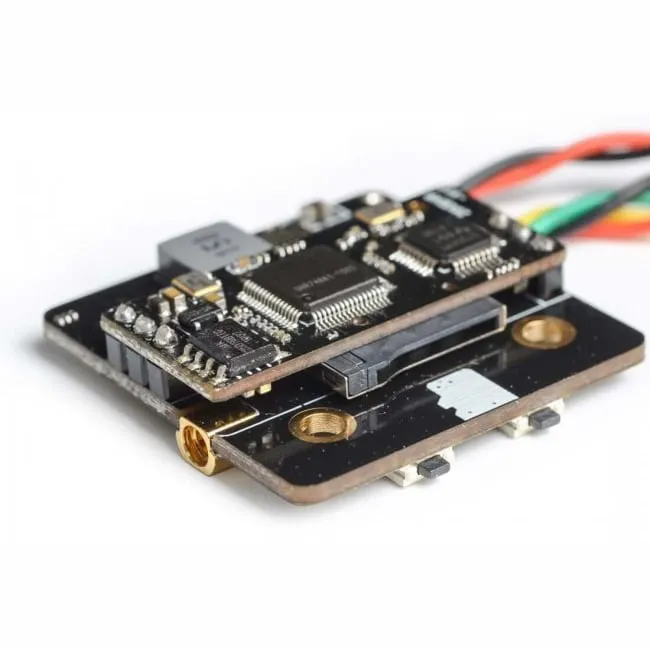

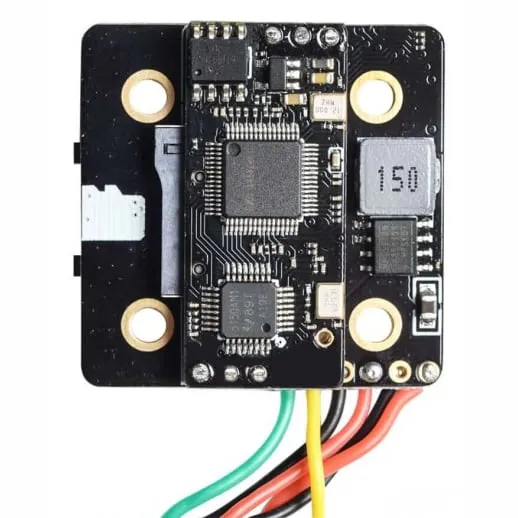

- A stacked two-board design separates the video transmitter from the DVR board, so the DVR can be removed while the VTX keeps working.
- SmartAudio support lets you change channel and power from the Betaflight OSD without touching buttons in the field.
- An onboard microphone adds flight audio to the recorded footage.

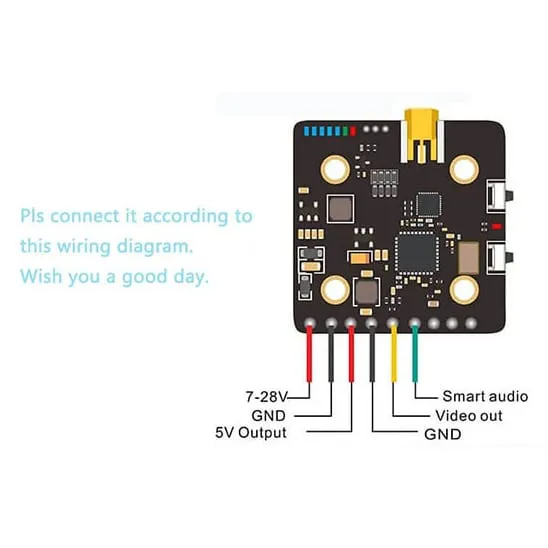

- Accepts 7-28V input, covering 2-6S batteries, and supplies 5V out to power the FPV camera.
Specifications
- Frequency: 5.8GHz
- Power output: 25/200/600/1000mW, switchable
- Input voltage: 7-28V (2-6S)
- Mounting: 20 x 20mm
- Antenna connector: MMCX
Mount it where air can flow over the board, since the video transmitter runs hot in use, and never power it on without an antenna fitted.
| VTX Power | 1000 mW |
|---|---|
| Mounting Size | 20x20 |
| Antenna Connector | MMCX |
| Made in India | No |
| Brand | AKK |
| Frequency | 5.8GHz |
