ZeroDrag Warp F7 Flight Controller (ICM42688P)
SKU ZERODRAG-WARP-F7
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

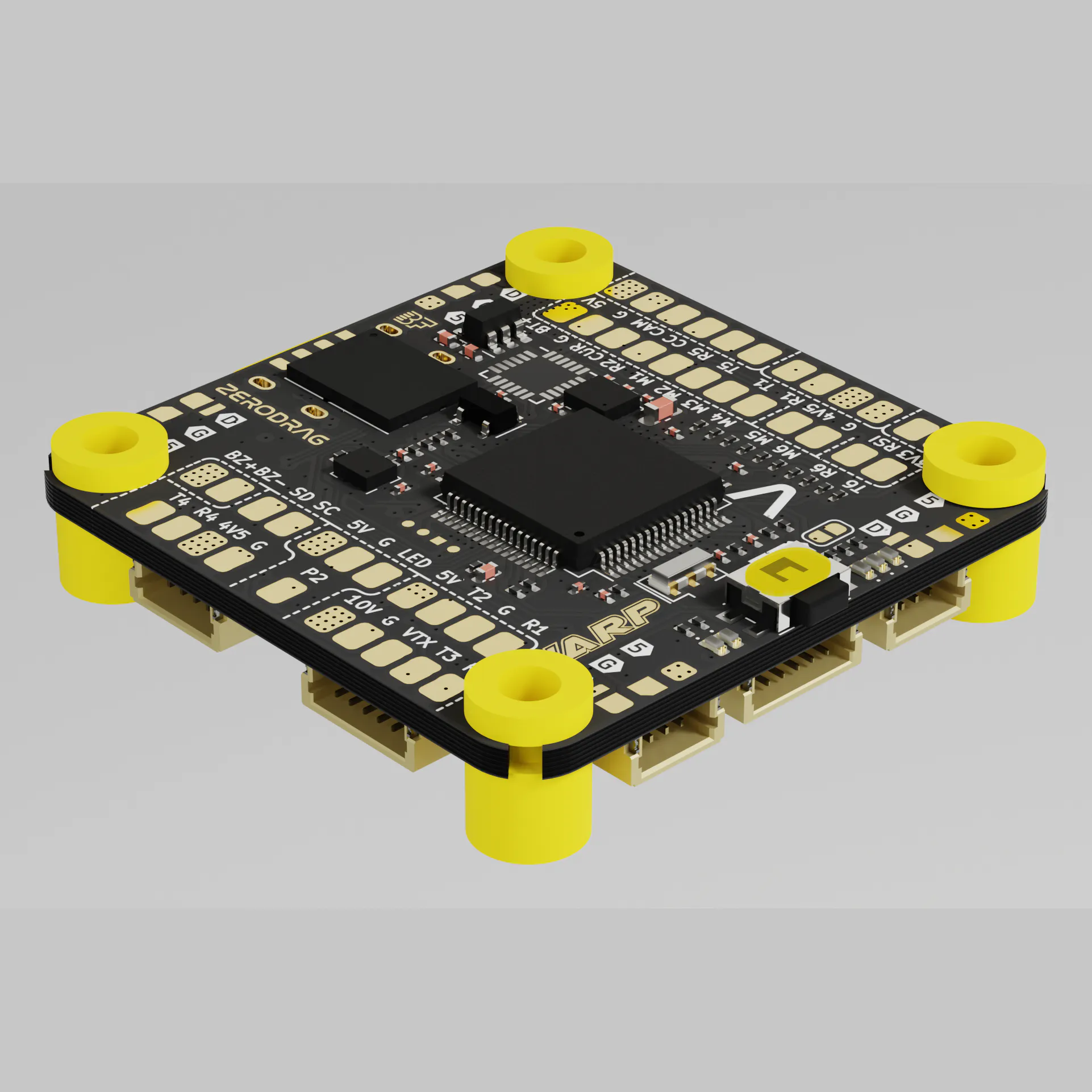

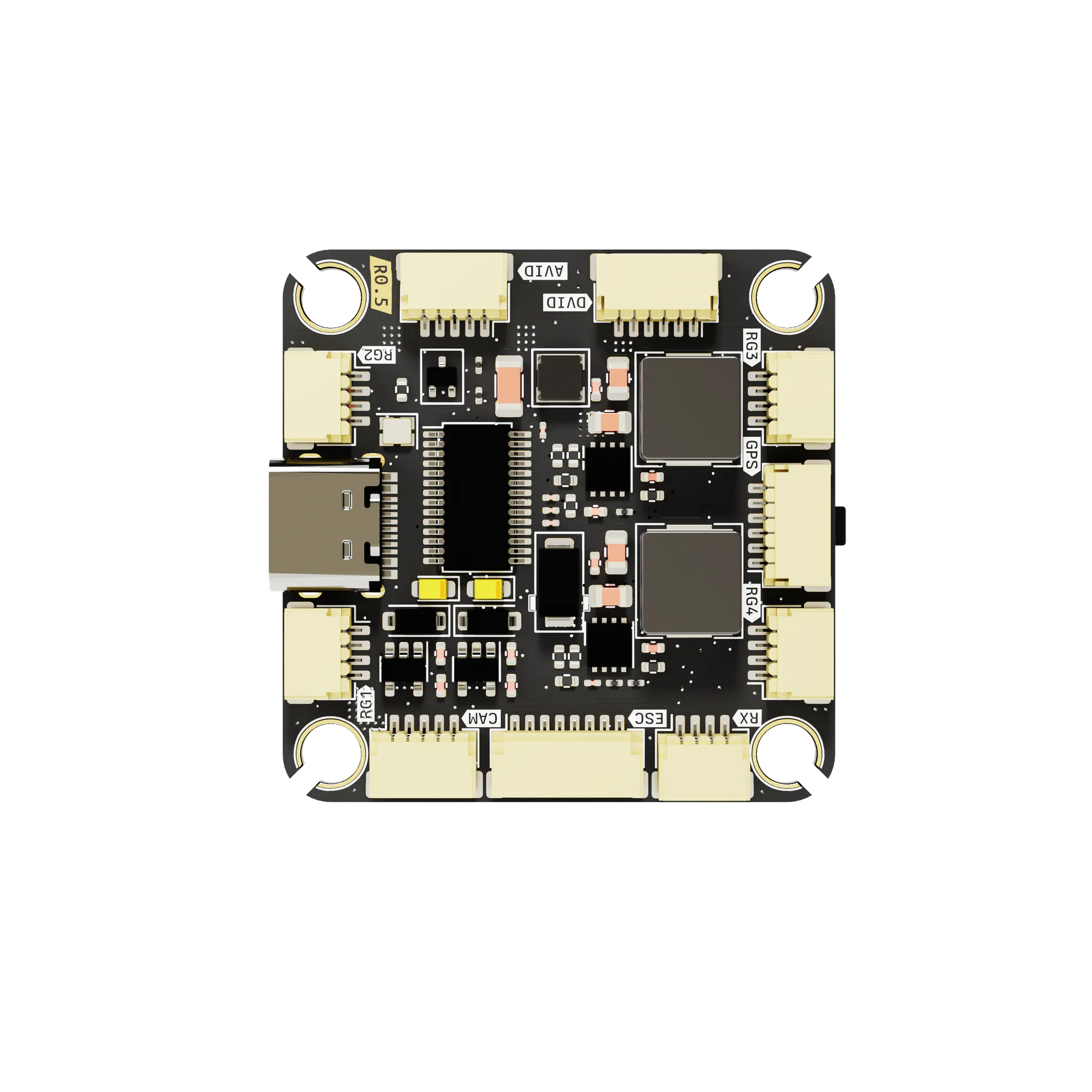

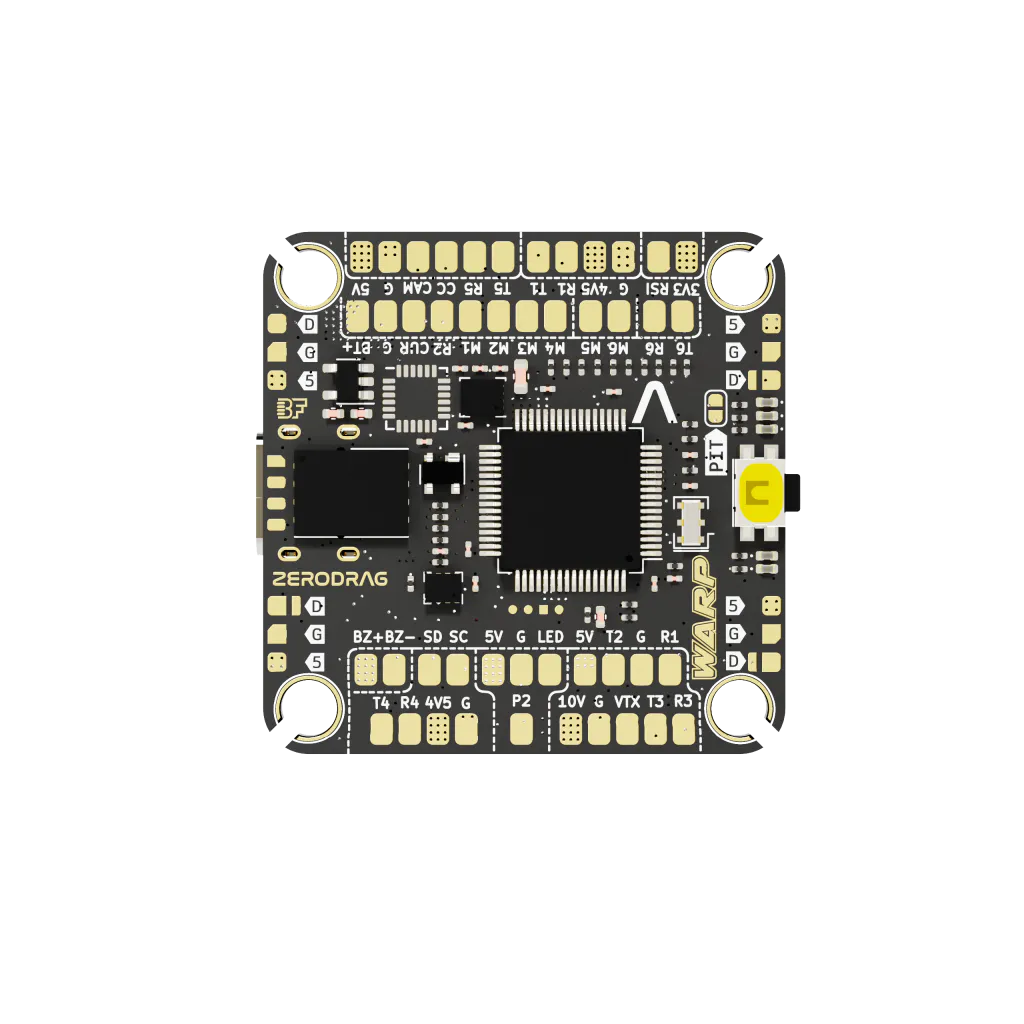

The ZeroDrag Warp F7 is a dedicated FPV flight controller built around a powerful F7 microcontroller and the modern ICM42688P gyroscope, made in India with a fully solder-less connector layout. It is engineered for demanding freestyle, racing and cinelifter builds, handling complex Betaflight processing including bidirectional DShot and RPM filtering without straining CPU load.
Key features
- Solder-less connector design speeds up builds and repairs without a soldering iron
- F7 processor gives ample headroom for high-frequency loop times and advanced PID processing
- ICM42688P gyroscope delivers an ultra-low noise floor and precise tracking for a locked-in stick feel
- Built-in barometer adds altitude data for Betaflight and cinelifter tuning
- Native Betaflight compatibility for straightforward OSD configuration, tuning and hardware setup
Specifications
- Processor: STM32F722
- Gyroscope: ICM42688P
- Mounting pattern: 30.5x30.5mm (4 mm holes)
- Input voltage: 3-6S LiPo
- UARTs: 6 (or 5 when all 8 motor outputs are used)
- Motor outputs: up to 8
- Barometer: BMP280
- OSD: AT7456E
- Blackbox: 32MB flash
- BEC: 5V/3A, 10V/2.5A
- USB: Type-C
- Dimensions: 37 x 38.5 x 7.1 mm
- Weight: 9.35 g
- Supported firmware: Betaflight, INAV
- In the box: flight controller, cable set (GPS, camera, analogue VTX, LED, receiver, DJI 6-pin, 8-pin ESC), spare connectors, 5 M3 silicone grommets, Type-C protector
- Origin: Made in India

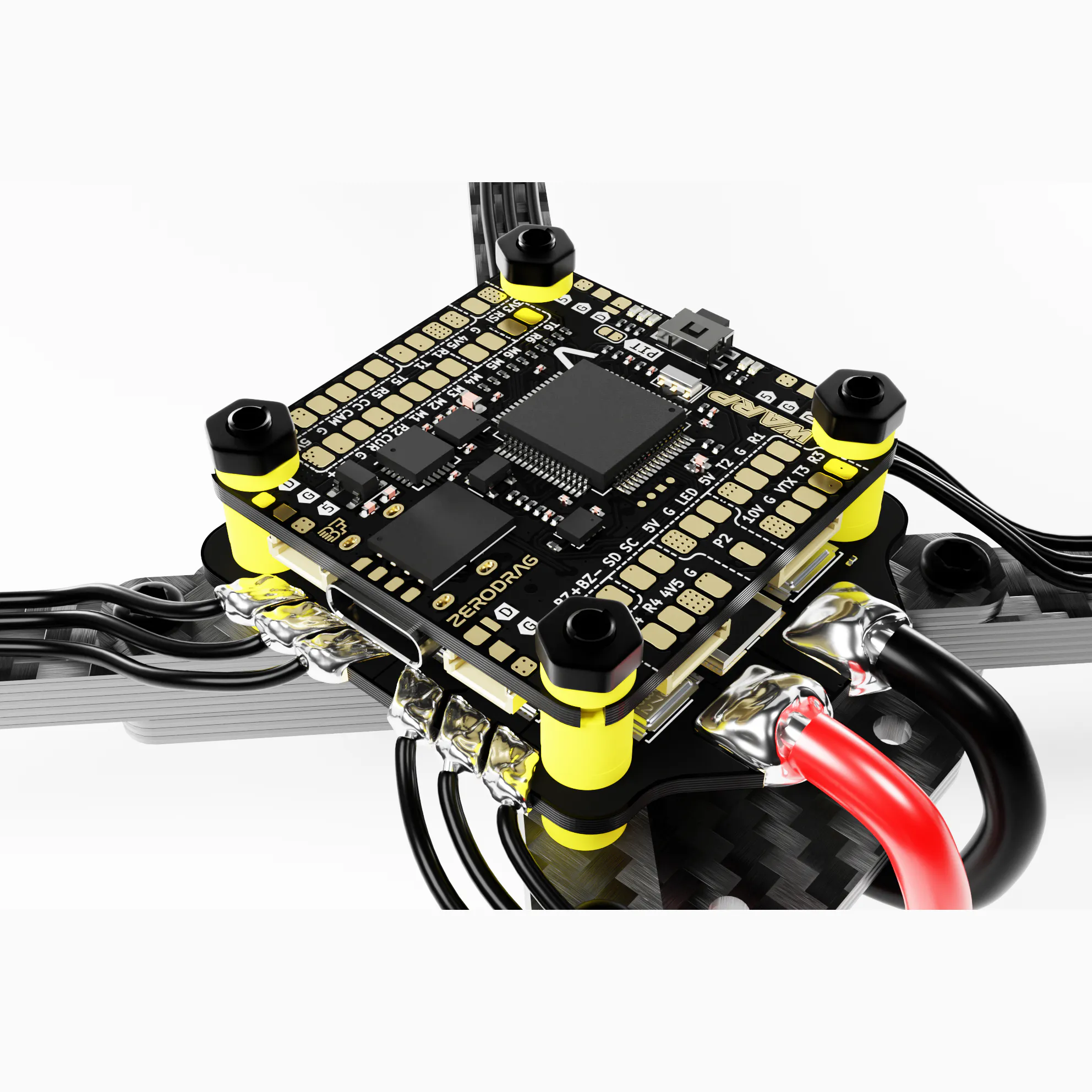

Pair the Warp F7 with a capable 4-in-1 ESC to form a highly responsive, clean-running control stack for your next high-performance quadcopter.
| Integrated Receiver | No |
|---|---|
| Mounting Size | 30.5x30.5 |
| Integrated VTX | No |
| FC Processor | F722, F7 |
| Gyro | ICM42688P |
| Input Voltage | 3–6S |
| Made in India | Yes |
| Brand | Zerodrag |
| Supported Firmware | Betaflight, INAV |
| Barometer | Yes |
| UARTs | 6 |
| Weight | 9.35 g |
| Compass Included | No |
| Motor Outputs | 8 |
